Tube handle, Aluminium anodized
Tube handle, Aluminium anodized
Tube handle, Aluminium black plastic-coated
Tube handle, Aluminium black plastic-coated

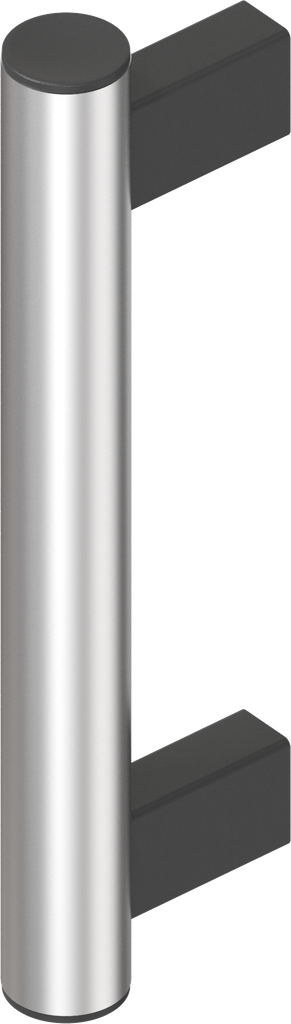

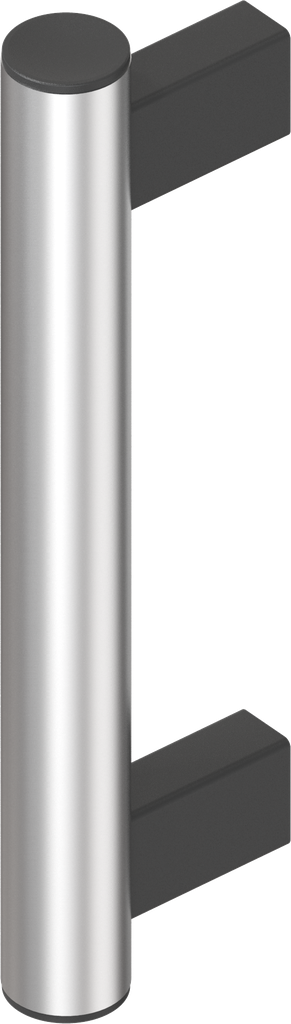

Tube handle, Aluminium anodized; 1095-U28-200NA

https://www.emka.com/products/1095-u28-200na https://www.emka.com/web/image/product.template/62258/image_1920?unique=be1c0bf

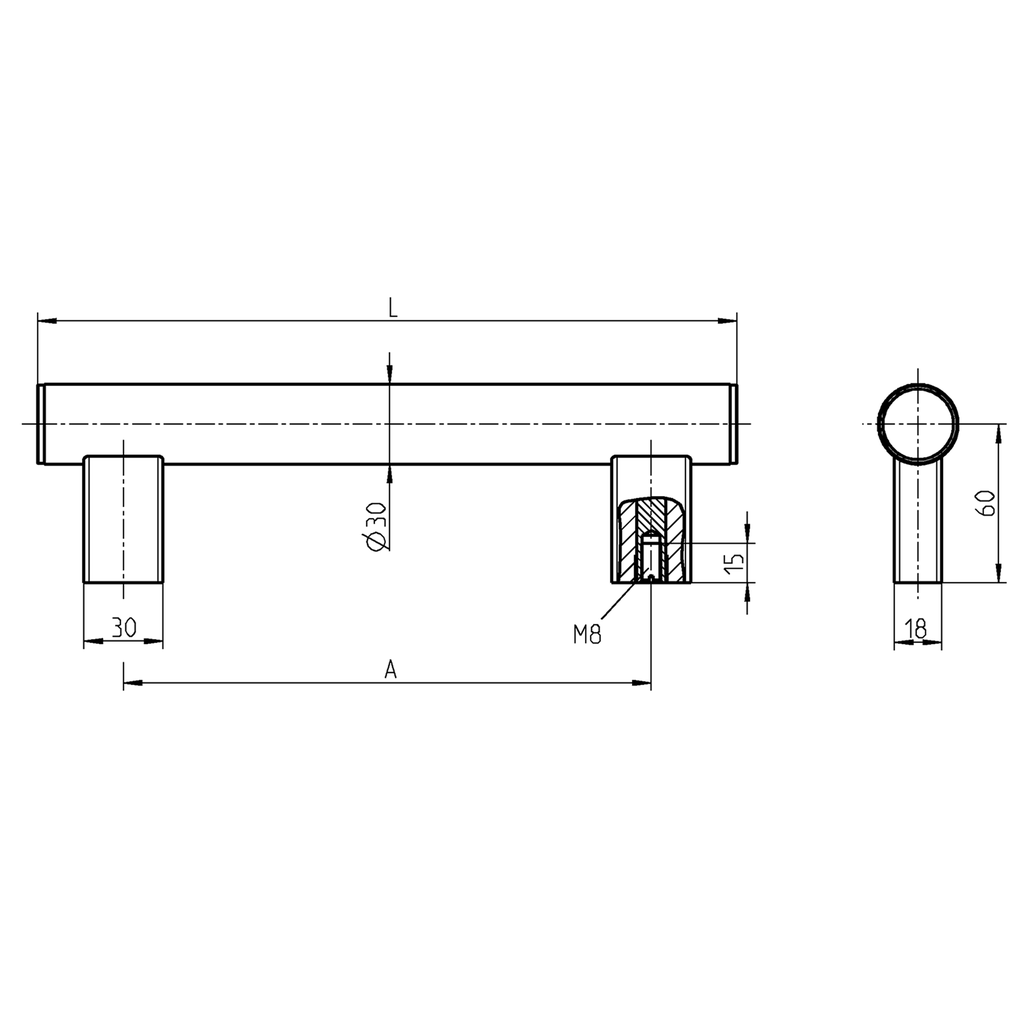

A = 200 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U28-200NA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: anodized
    Catalog sheet: 6A-340
    Dimension A: 200 mm
    Fixing type of handle: screw-on from inside
    G = thread specification: M8x15
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension L: 265 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
