Tube handle, Aluminium anodized
Tube handle, Aluminium anodized
Screw set for Ts = 4 to 12 mm, Steel zinc-plated
Screw set for Ts = 4 to 12 mm, Steel zinc-plated

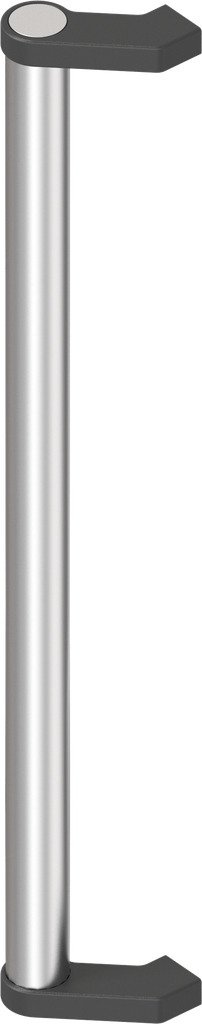

Tube handle, Aluminium anodized; 1095-U27-500NA

https://www.emka.com/products/1095-u27-500na https://www.emka.com/web/image/product.template/348375/image_1920?unique=2a18f4f

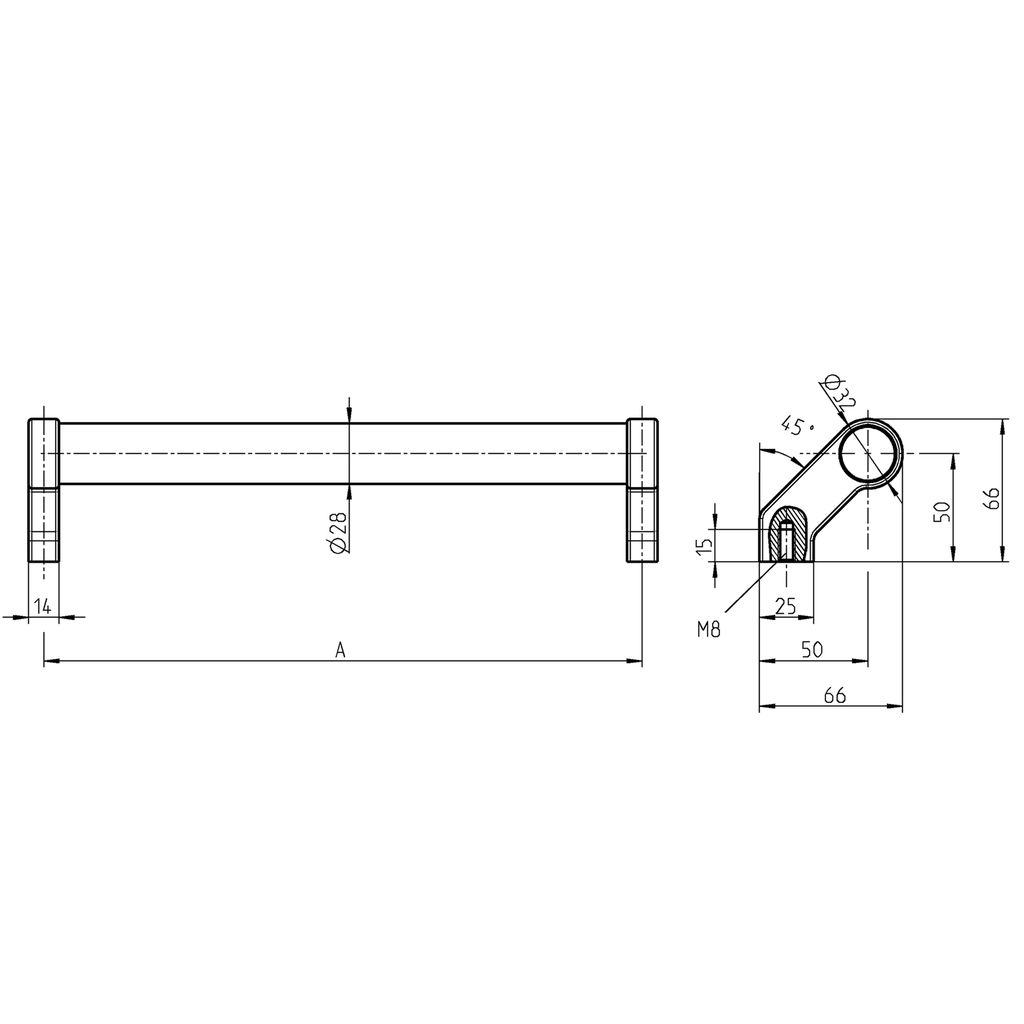

A = 500 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U27-500NA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: anodized
    Catalog sheet: 6A-320
    Dimension A: 500 mm
    Fixing type of handle: screw-on from inside
    G = thread specification: M8x15
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-320
    CAD file | 1095-U27-500NA_igs
    CAD file | 1095-U27-500NA_stp
