Tube handle, Aluminium black plastic-coated
Tube handle, Aluminium black plastic-coated
Tube handle, Aluminium anodized
Tube handle, Aluminium anodized

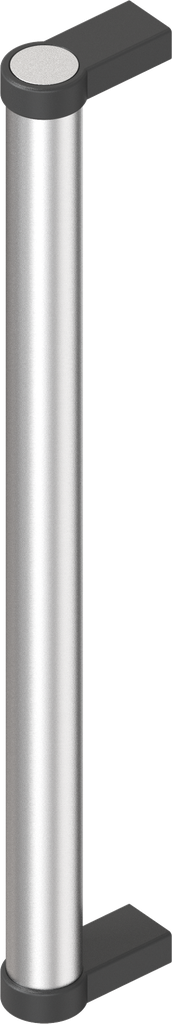

Tube handle, Aluminium anodized; 1095-U26-400NA

https://www.emka.com/products/1095-u26-400na https://www.emka.com/web/image/product.template/215406/image_1920?unique=2a18f4f

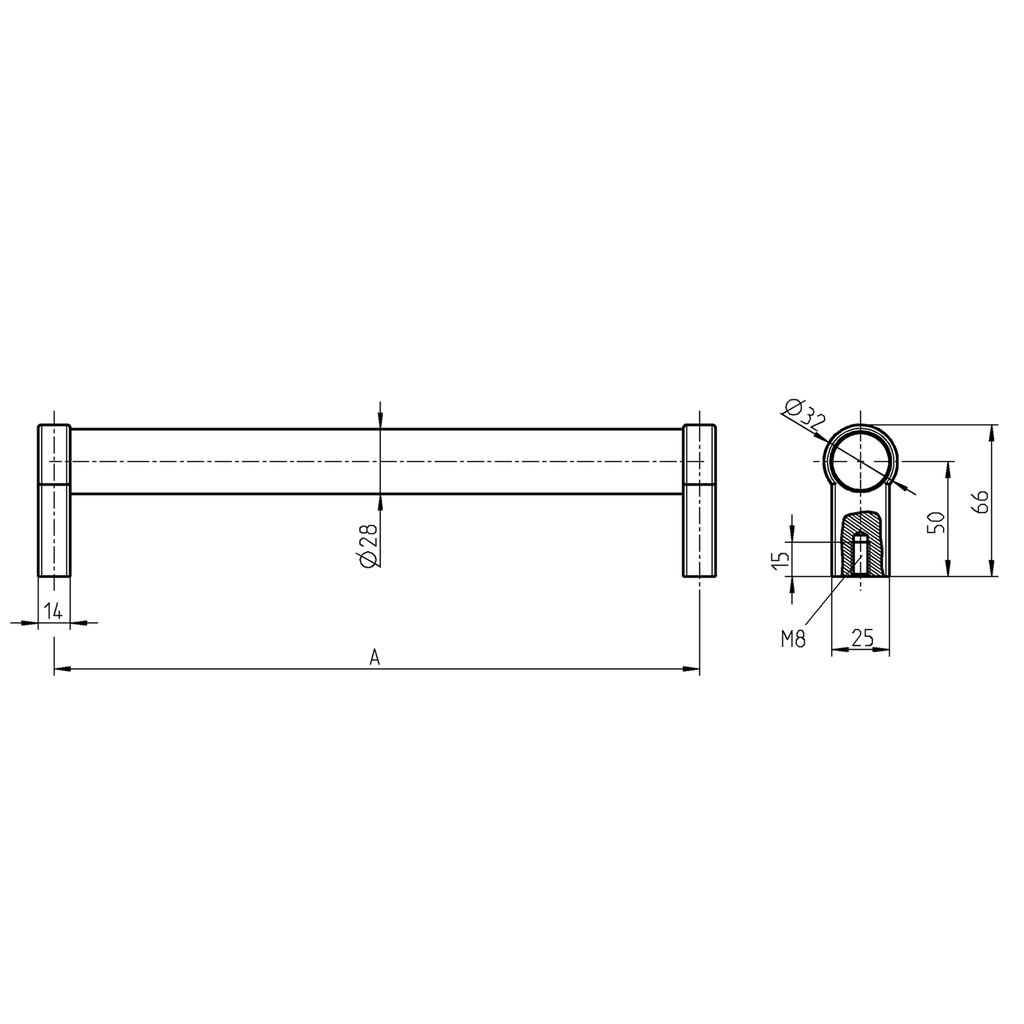

A = 400 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U26-400NA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: anodized
    Catalog sheet: 6A-320
    Dimension A: 400 mm
    Fixing type of handle: screw-on from inside
    G = thread specification: M8x15
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-320
    CAD file | 1095-U26-400NA_igs
    CAD file | 1095-U26-400NA_stp
