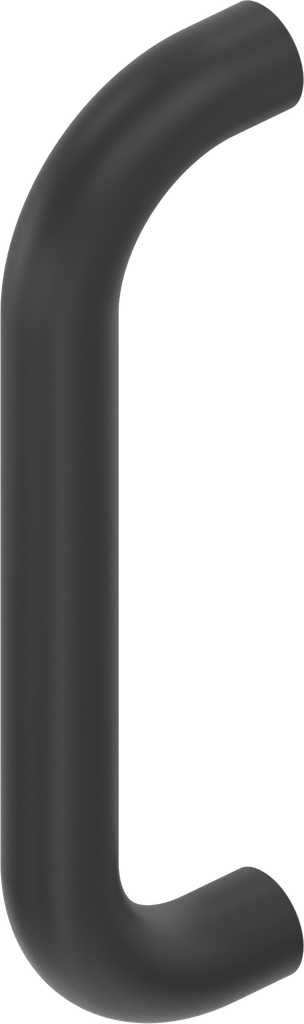

Bow-type handle, Aluminium black plastic-coated; 1095-U24-250AA

https://www.emka.com/products/1095-u24-250aa https://www.emka.com/web/image/product.template/215388/image_1920?unique=9c6f97c

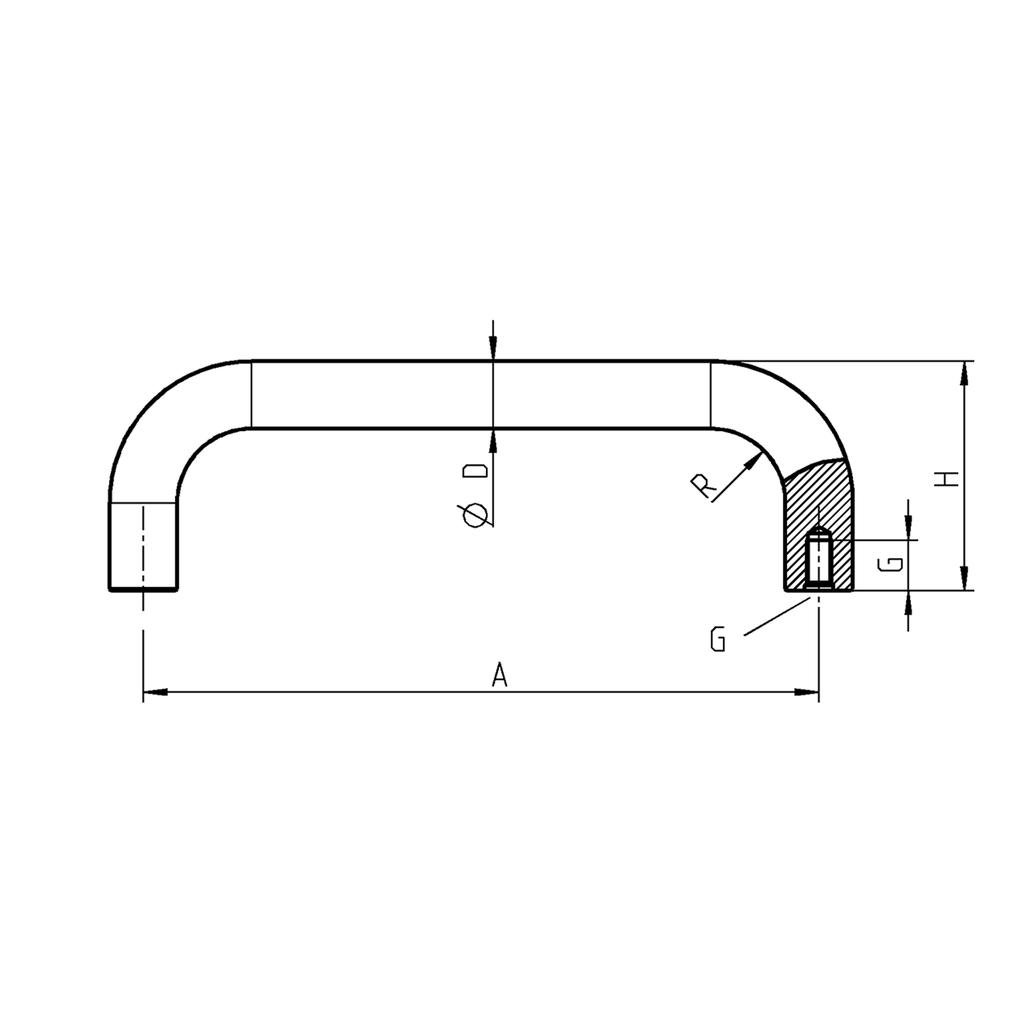

A = 250 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U24-250AA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-140
    Dimension A: 250 mm
    Fixing type of handle: screw-on from inside
    Dimension D: 28 mm
    G = thread specification: M10x15
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 78 mm
    Dimension R: 32 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-140
    CAD file | 1095-U24-250AA_igs
    CAD file | 1095-U24-250AA_stp
