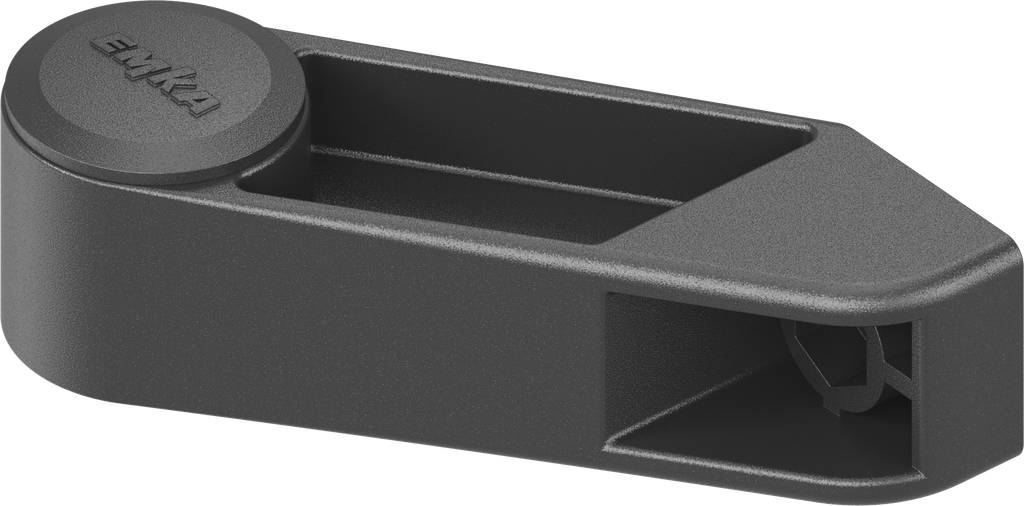

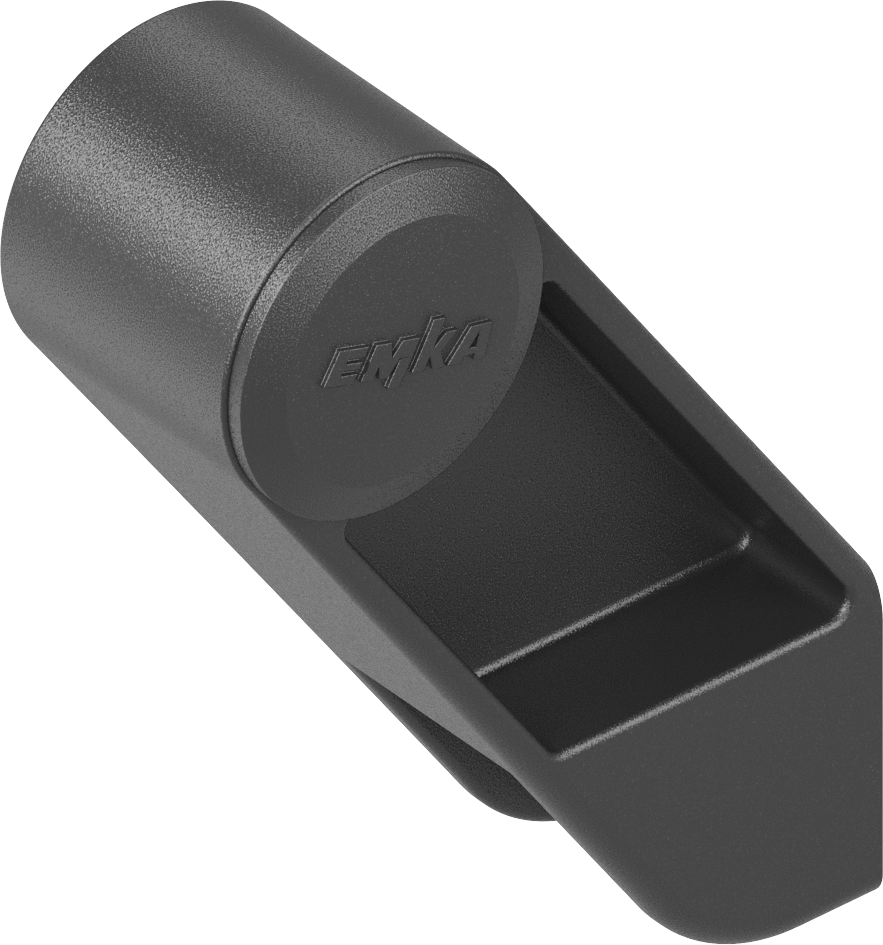

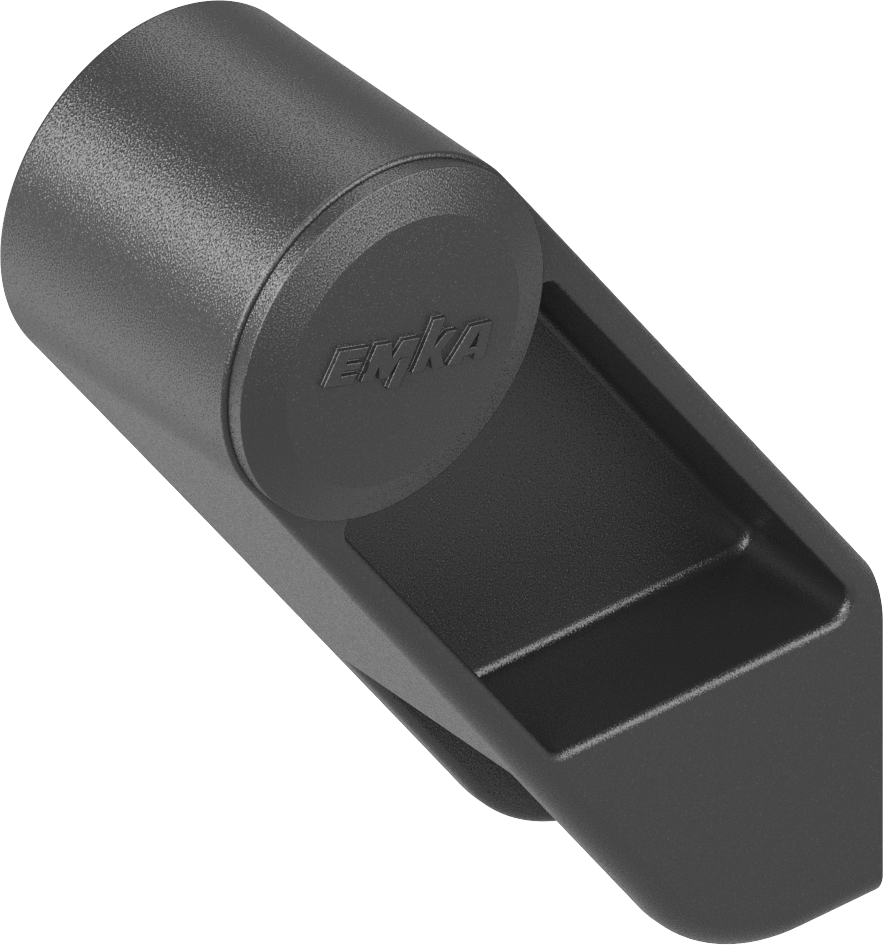

Handle piece, Polyamide black; 1095-U1

https://www.emka.com/products/1095-u1 https://www.emka.com/web/image/product.template/62252/image_1920?unique=a37b42b


    This combination does not exist.



    Product information:

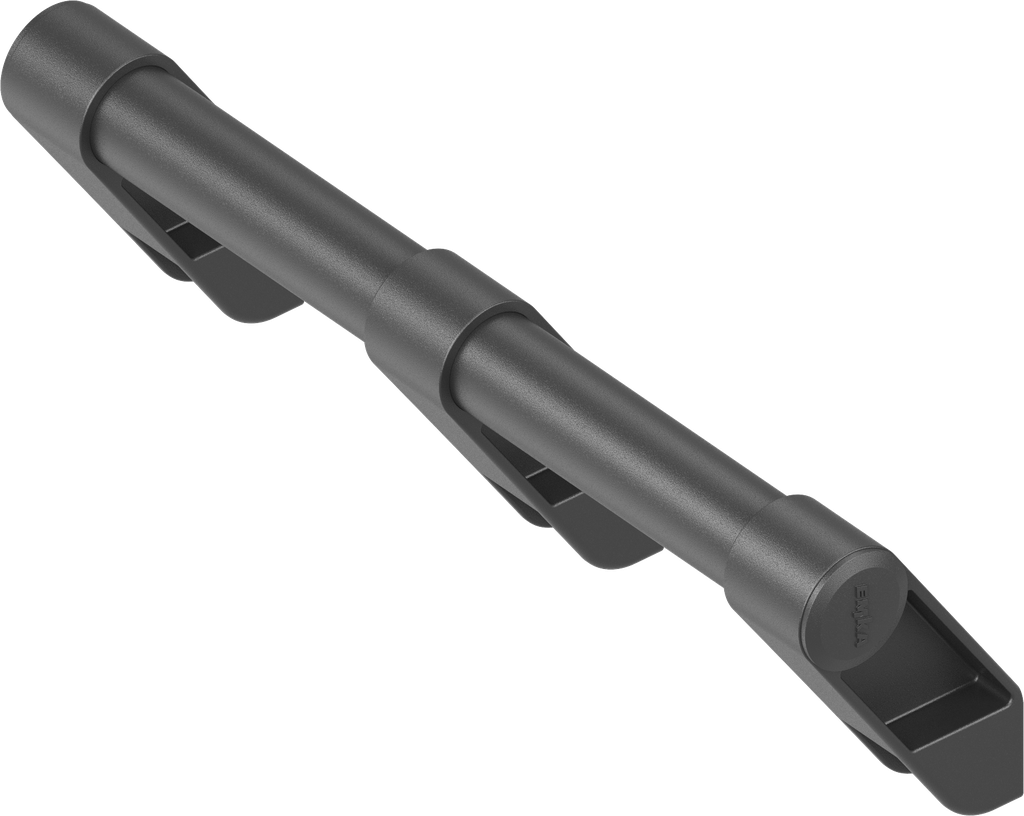

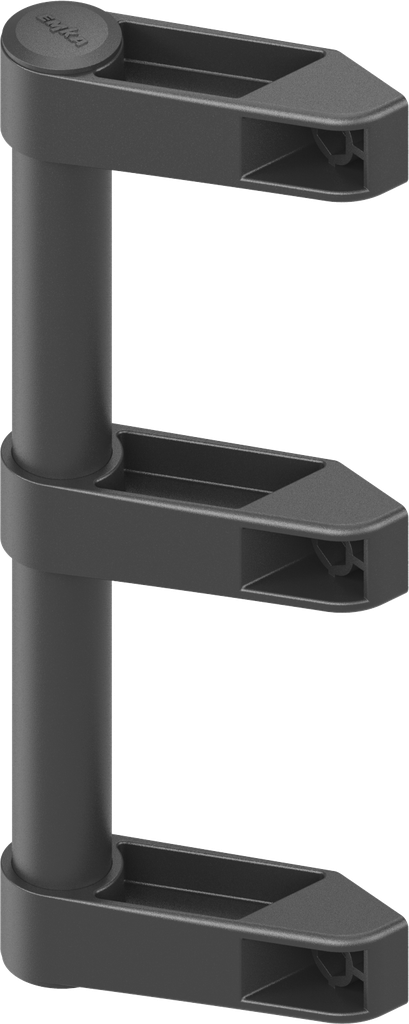

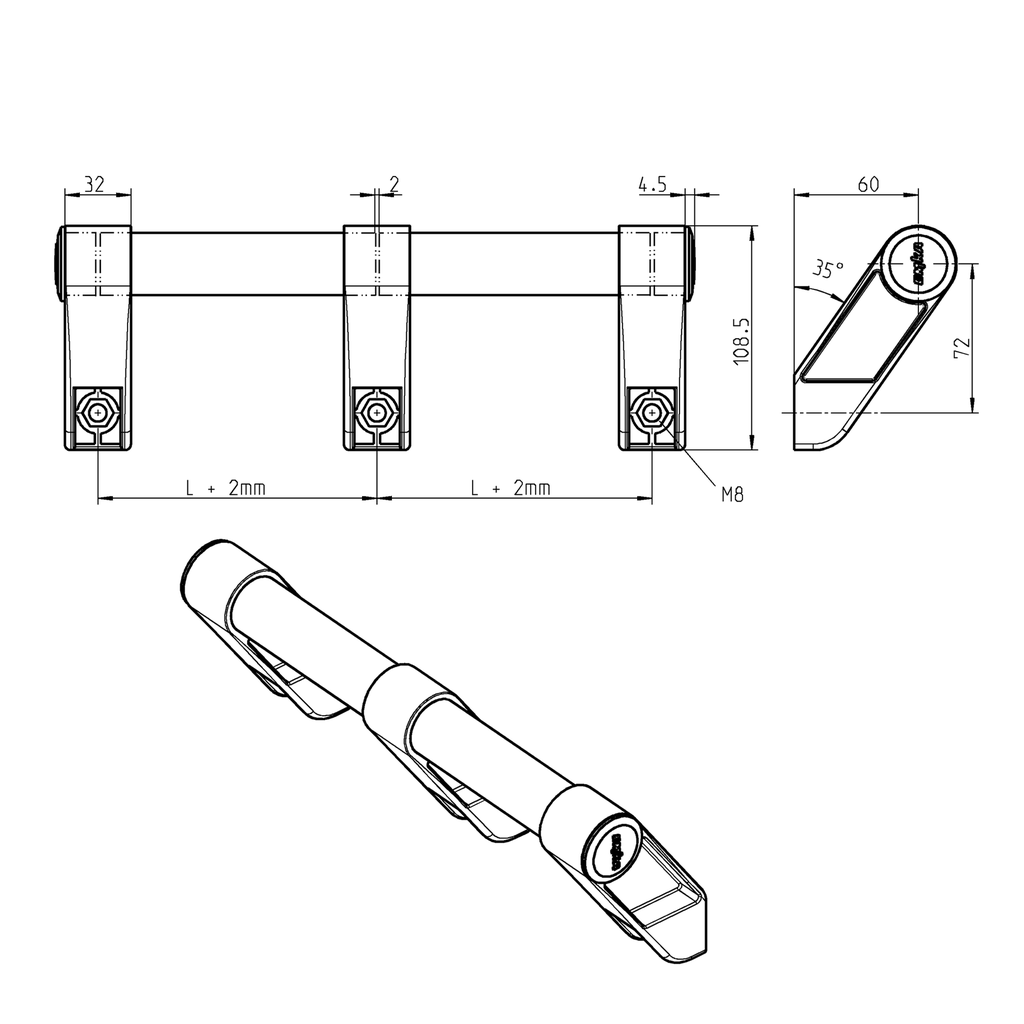

    Grip usable left, right and as centre part. A middle stay is to be used from 1000 mm length. When used as a middle stay the tube has to be split.

    Handle stay for hexagon head screw or hexagon socket head cap screw M8 acc. to DIN 4017/1207

    Internal Reference: 1095-U1
    Product Type: Grip
    Program: 1095
    Catalog sheet: 6A-240
    Material of the module : Polyamide
    Surface of the module: black
    Fixing type of handle: screw-on from outside
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
