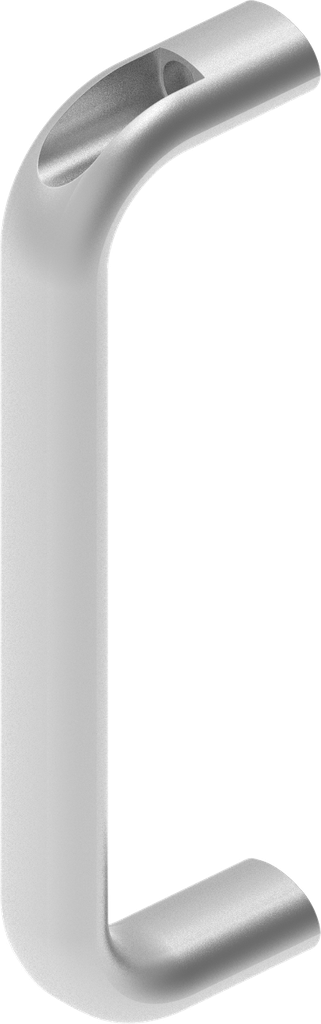

Bow-type handle, Stainless steel AISI CF-8; 1095-42-160PS

https://www.emka.com/products/1095-42-160ps https://www.emka.com/web/image/product.template/215285/image_1920?unique=2df133e

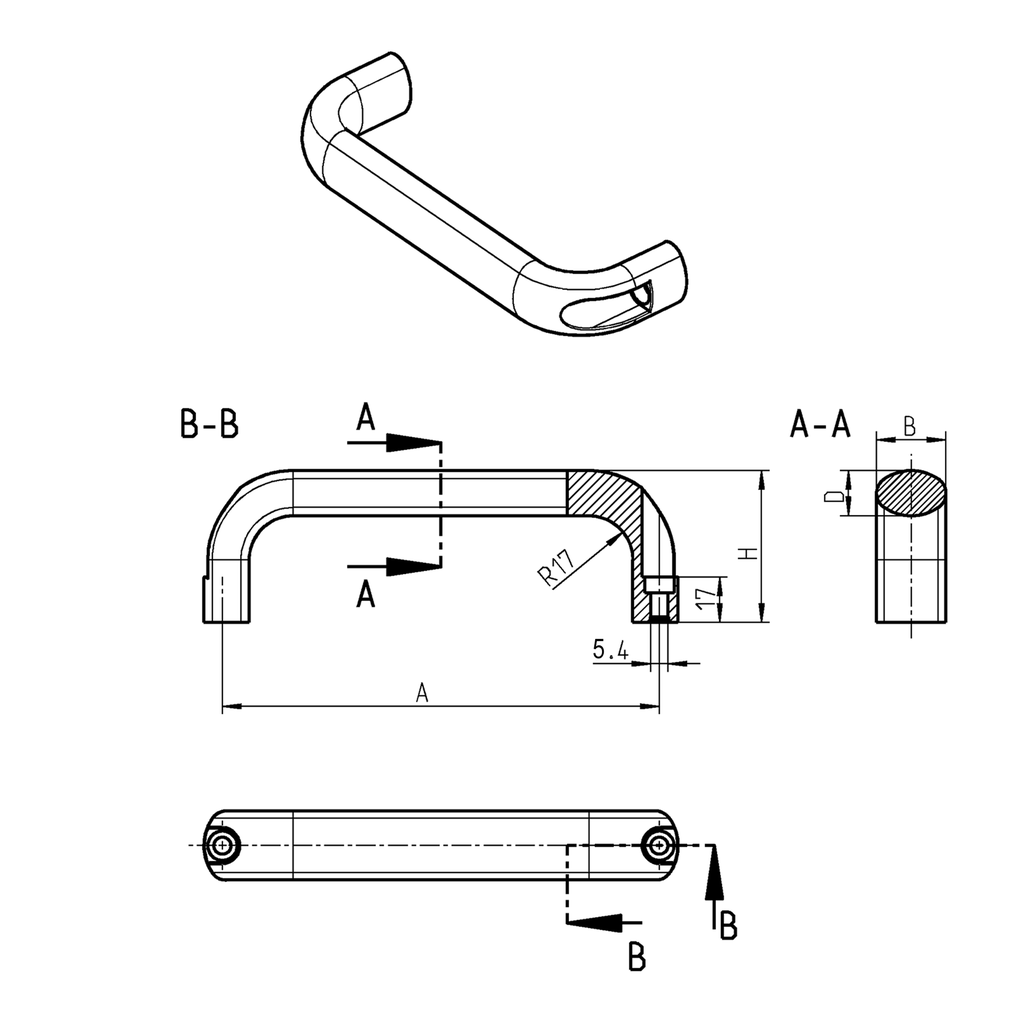

A = 160 mm

    This combination does not exist.

    Contact Us

    Product information:

    Bore hole for hexagon socket head cap screw DIN 4762
    Internal Reference: 1095-42-160PS
    Product Type: Handle
    Material: Stainless steel AISI CF-8
    Program: 1095
    Catalog sheet: 6A-160
    Dimension A: 160 mm
    Dimension B: 20 mm
    Fixing type of handle: screw-on from outside
    Dimension D: 13 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 51 mm
    Dimension R: 13 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-160
    CAD file | 1095-42-160PS_igs
    CAD file | 1095-42-160PS_stp
