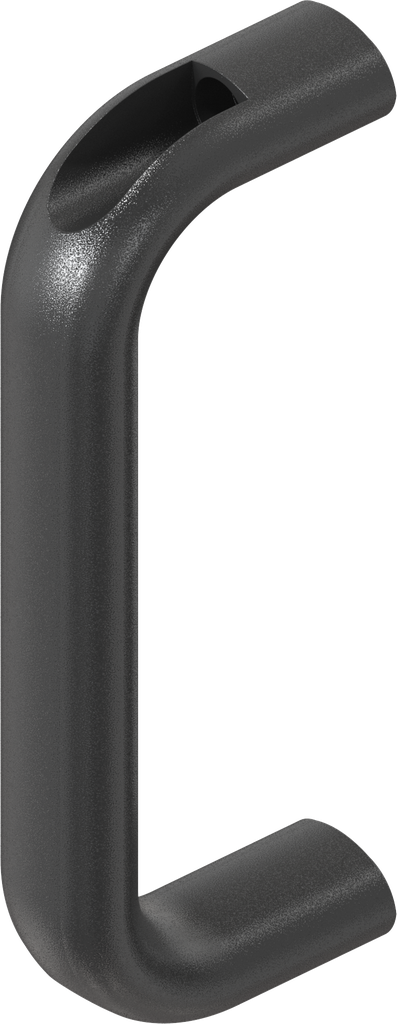

Bow-type handle, Aluminium black plastic-coated; 1095-42-120AA

https://www.emka.com/products/1095-42-120aa https://www.emka.com/web/image/product.template/215278/image_1920?unique=76d10a3

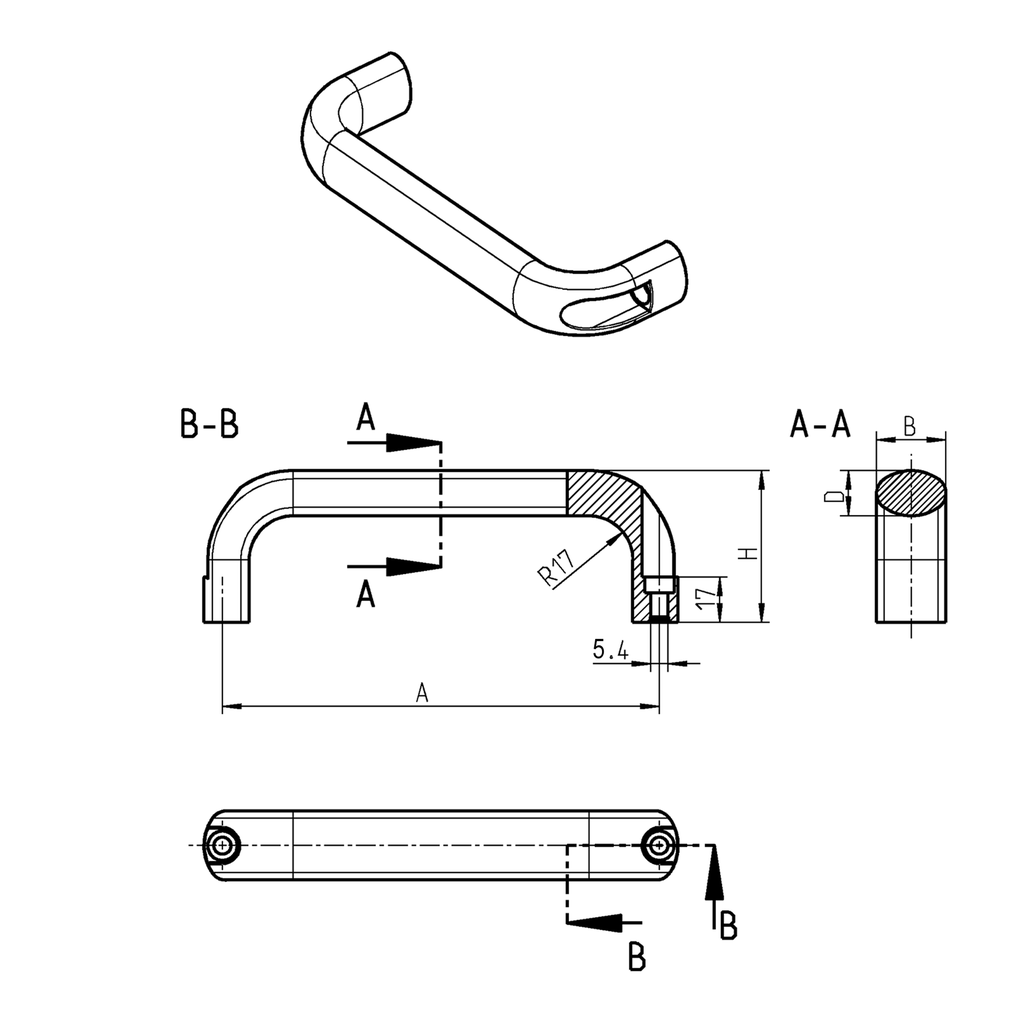

A = 120 mm

    This combination does not exist.

    Contact Us

    Product information:

    Bore hole for hexagon socket head cap screw DIN 4762
    Internal Reference: 1095-42-120AA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-160
    Dimension A: 120 mm
    Dimension B: 20 mm
    Fixing type of handle: screw-on from outside
    Dimension D: 13 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 51 mm
    Dimension R: 13 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-160
    CAD file | 1095-42-120AA_igs
    CAD file | 1095-42-120AA_stp
