Bow-type handle, Aluminium black plastic-coated
Bow-type handle, Aluminium black plastic-coated
Bow-type handle, Aluminium black plastic-coated
Bow-type handle, Aluminium black plastic-coated

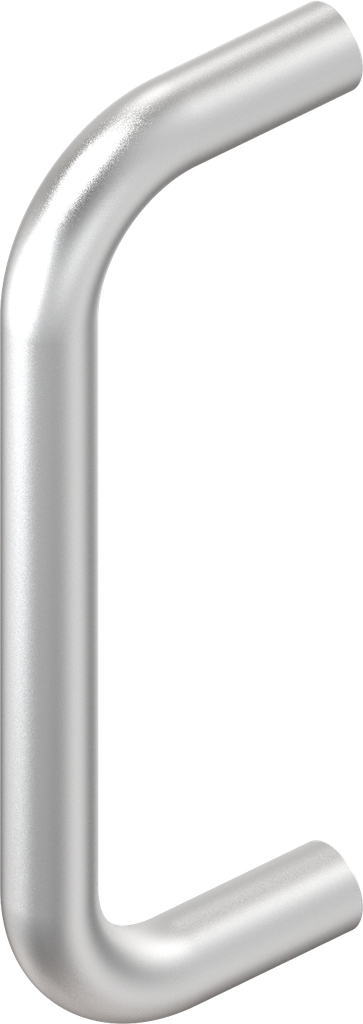

Bow-type handle, Stainless steel AISI 304; 1095-38-125PC

https://www.emka.com/products/1095-38-125pc https://www.emka.com/web/image/product.template/215262/image_1920?unique=0565e1f

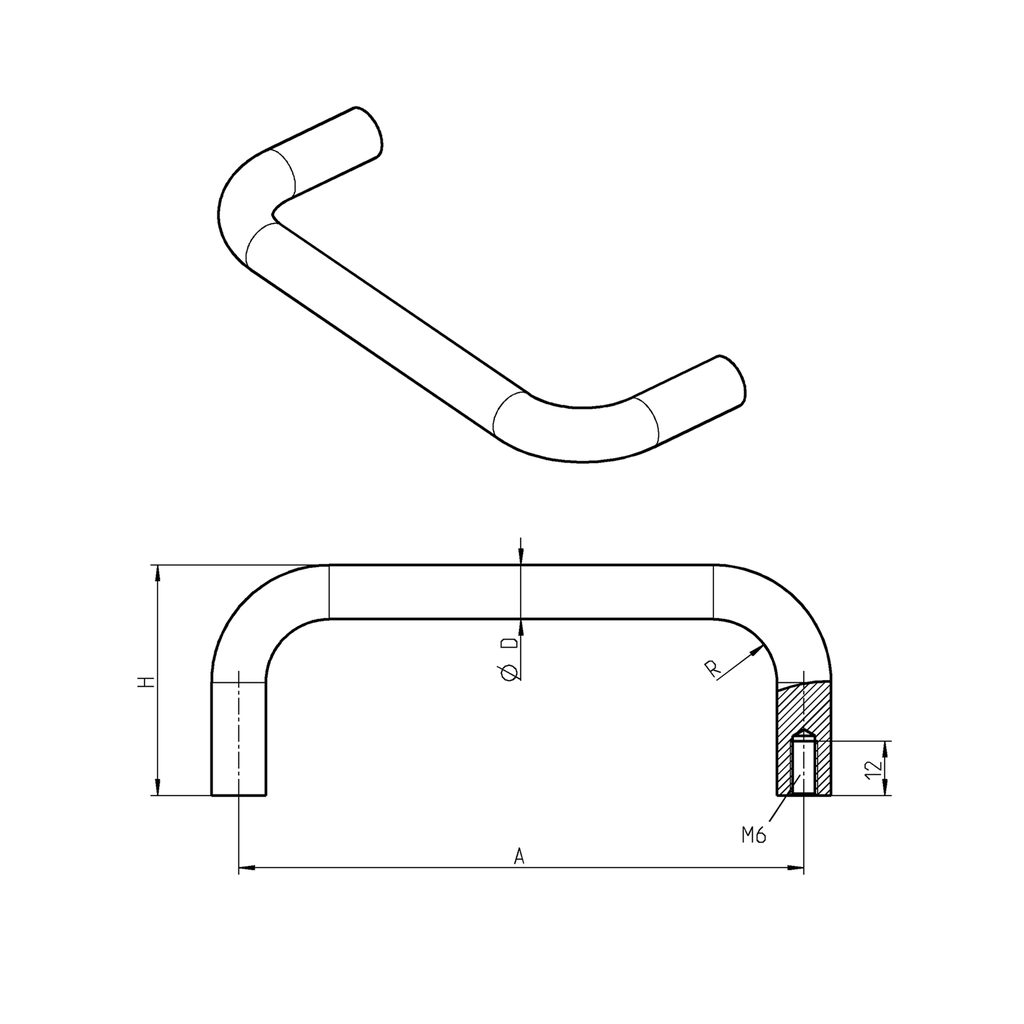

A = 125 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-38-125PC
    Product Type: Handle
    Material: Stainless steel AISI 304
    Program: 1095
    Catalog sheet: 6A-190
    Dimension A: 125 mm
    Fixing type of handle: screw-on from inside
    Dimension D: 12 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 51 mm
    Dimension R: 14 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-190
    CAD file | 1095-38-125PC_igs
    CAD file | 1095-38-125PC_stp
