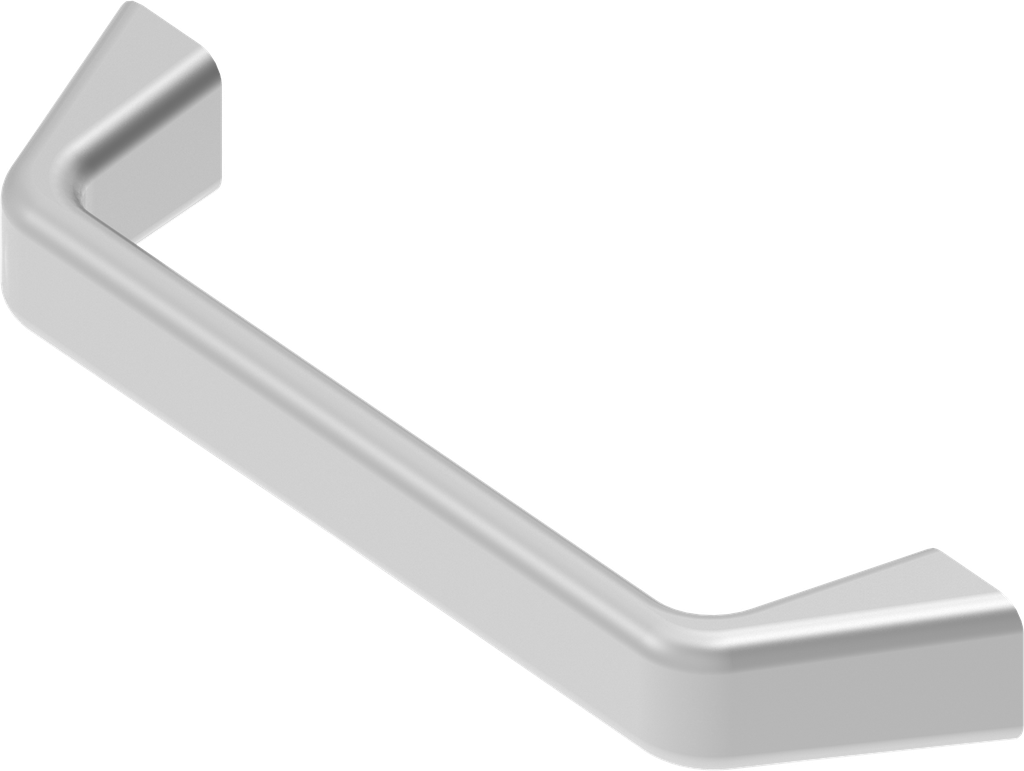

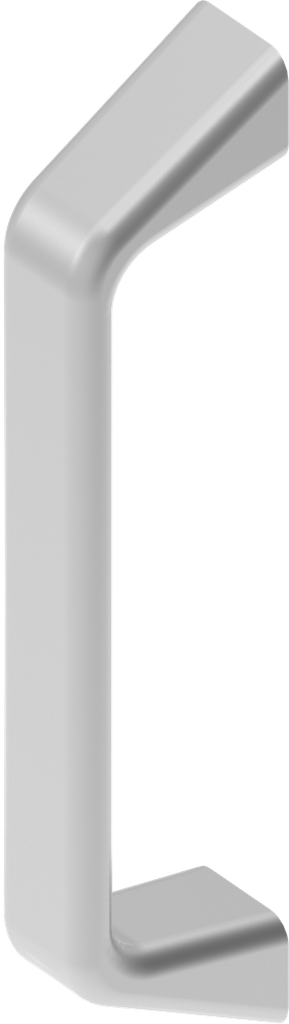

Bow-type handle, Die-cast aluminium blank; 1095-30-180KB

https://www.emka.com/products/1095-30-180kb https://www.emka.com/web/image/product.template/215251/image_1920?unique=9c6f97c

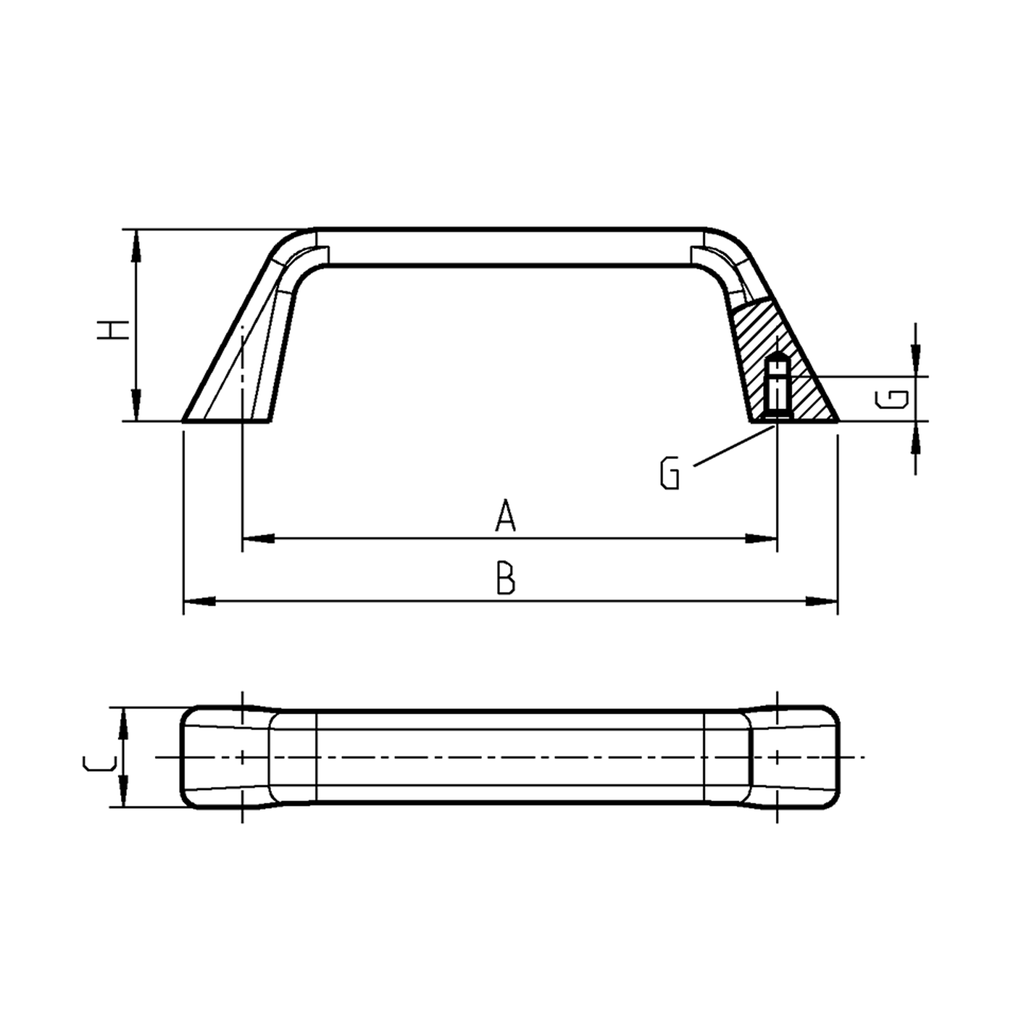

A = 180 mm


    This combination does not exist.



    Internal Reference: 1095-30-180KB
    Product Type: Handle
    Material: Die-cast aluminium
    Program: 1095
    Surface: blank
    Catalog sheet: 6A-180
    Dimension A: 180 mm
    Dimension B: 215 mm
    Fixing type of handle: screw-on from inside
    Dimension C: 27 mm
    G = thread specification: M8 x 12
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 48 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-180
    CAD file | 1095-30-180KB_igs
    CAD file | 1095-30-180KB_stp
