Bow-type handle, Die-cast aluminium blank
Bow-type handle, Die-cast aluminium blank
Handle, Aluminium black plastic-coated
Handle, Aluminium black plastic-coated

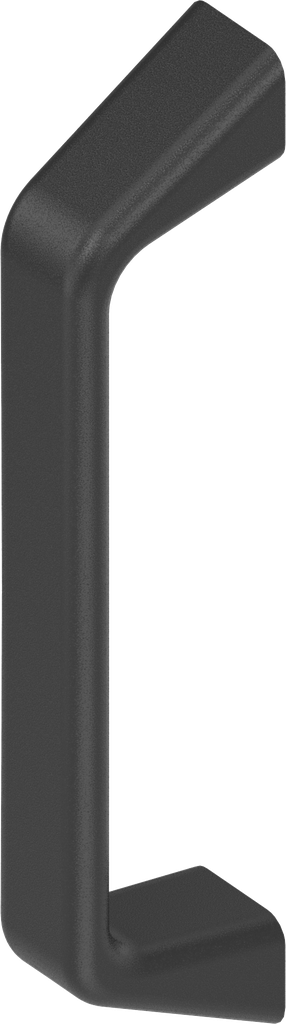

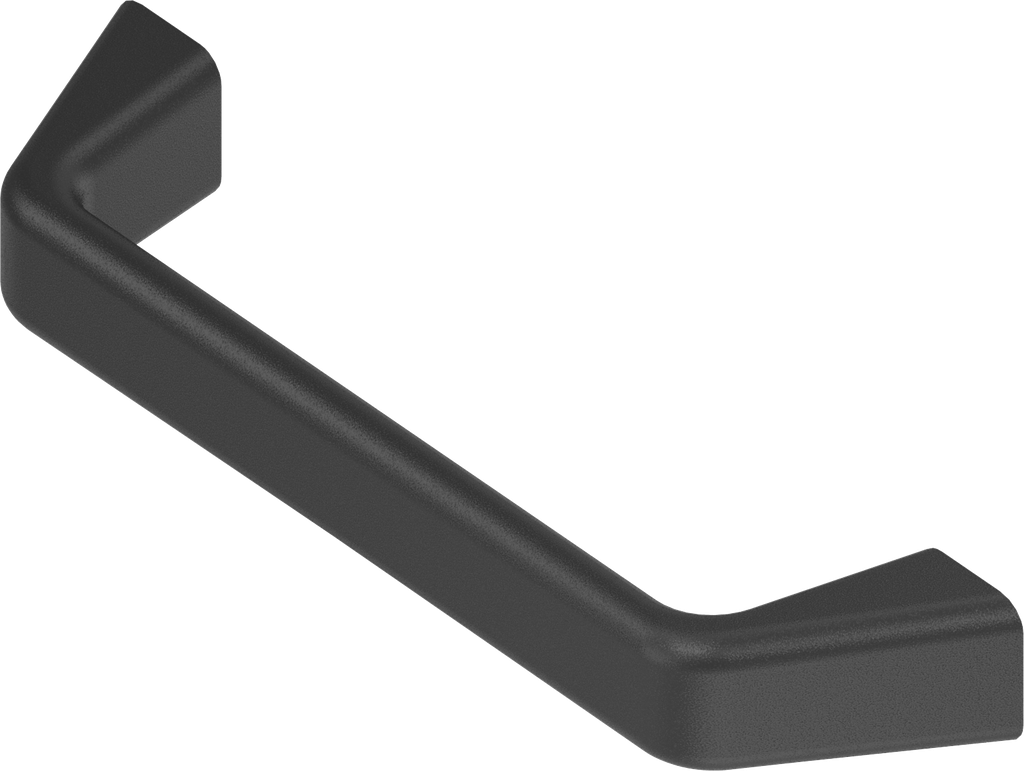

Bow-type handle, Die-cast aluminium black plastic-coated; 1095-30-180AA

https://www.emka.com/products/1095-30-180aa https://www.emka.com/web/image/product.template/62244/image_1920?unique=be590c8

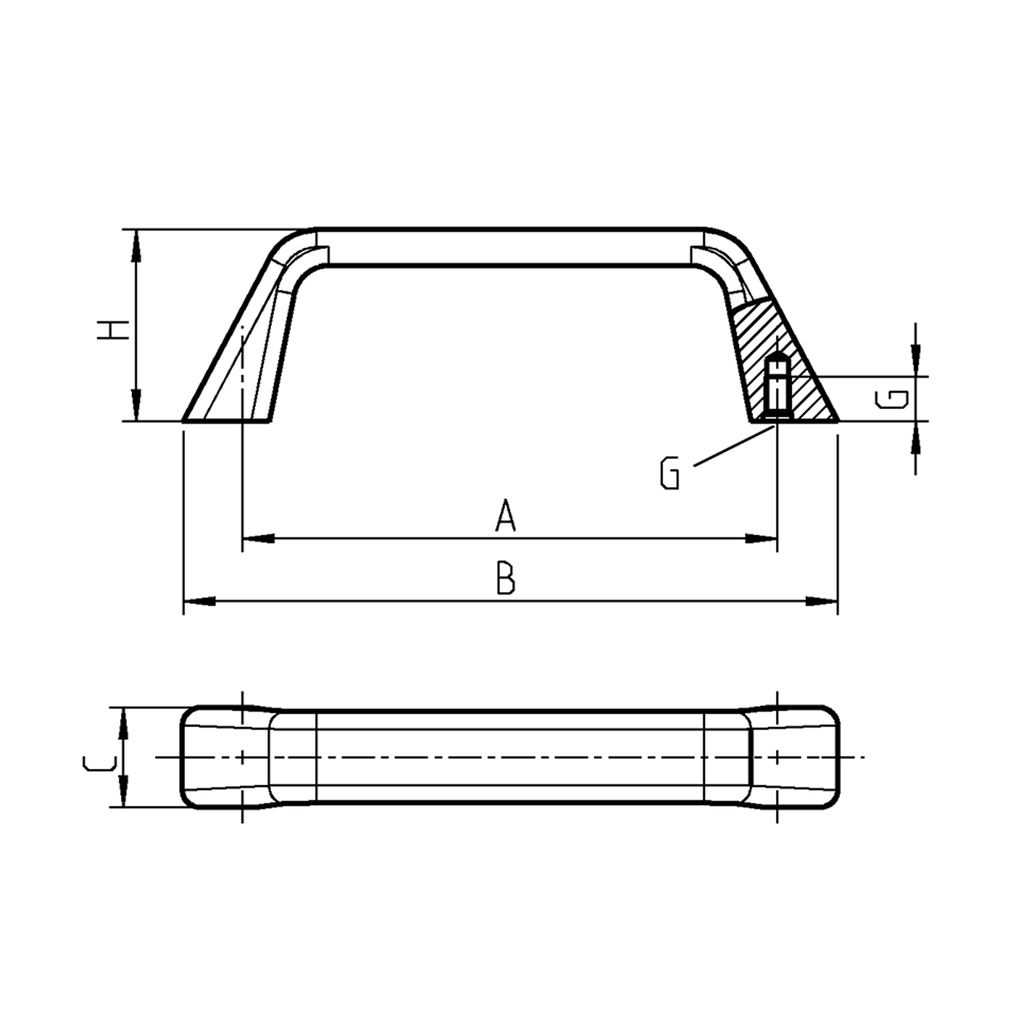

A = 180 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-30-180AA
    Product Type: Handle
    Material: Die-cast aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-180
    Dimension A: 180 mm
    Dimension B: 215 mm
    Fixing type of handle: screw-on from inside
    Dimension C: 27 mm
    G = thread specification: M8 x 12
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 48 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
