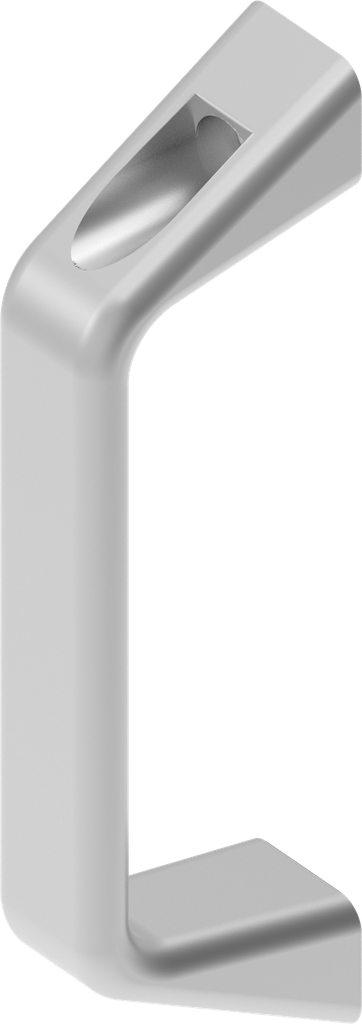

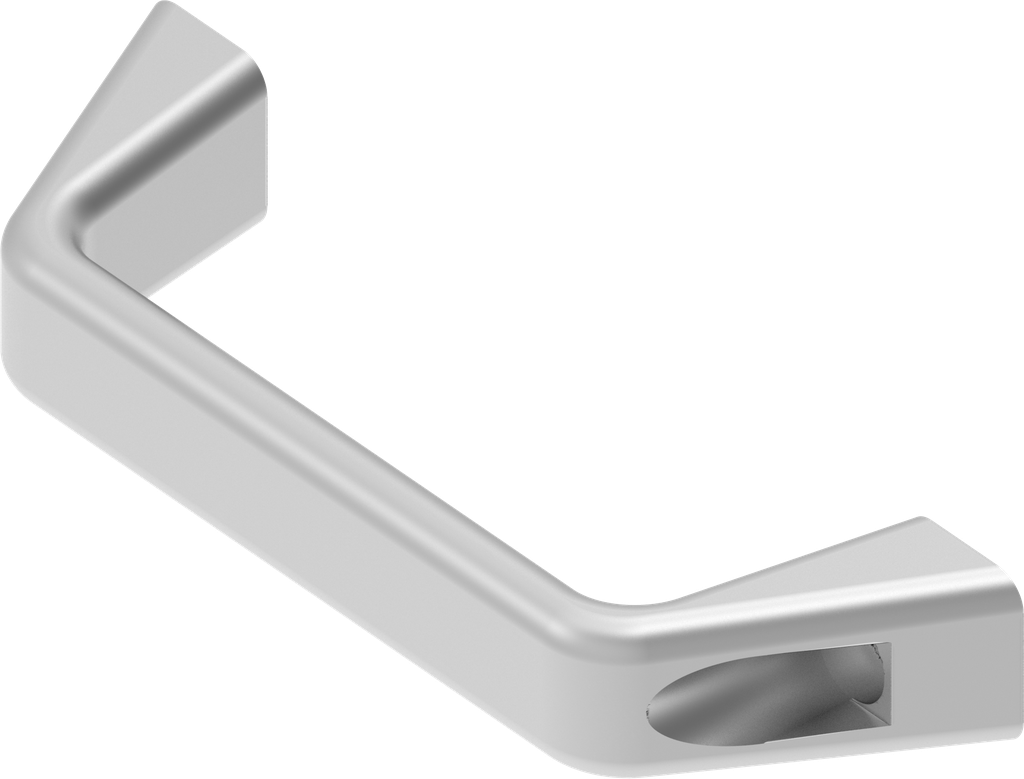

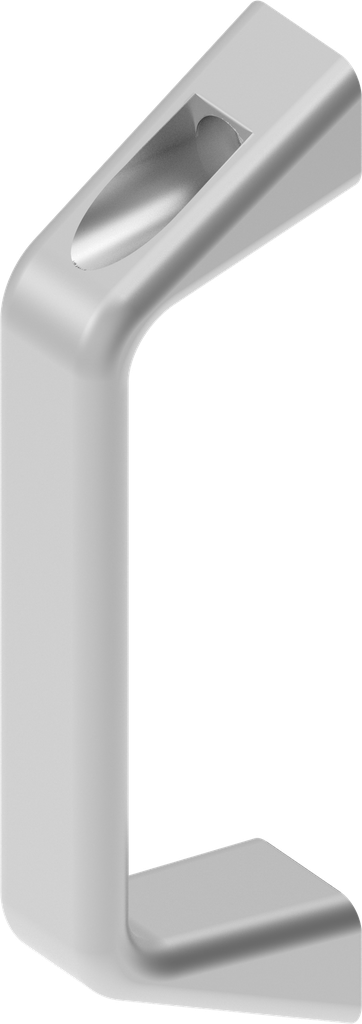

Bow-type handle, Die-cast aluminium blank; 1095-29-120KB

https://www.emka.com/products/1095-29-120kb https://www.emka.com/web/image/product.template/62239/image_1920?unique=3587b3a

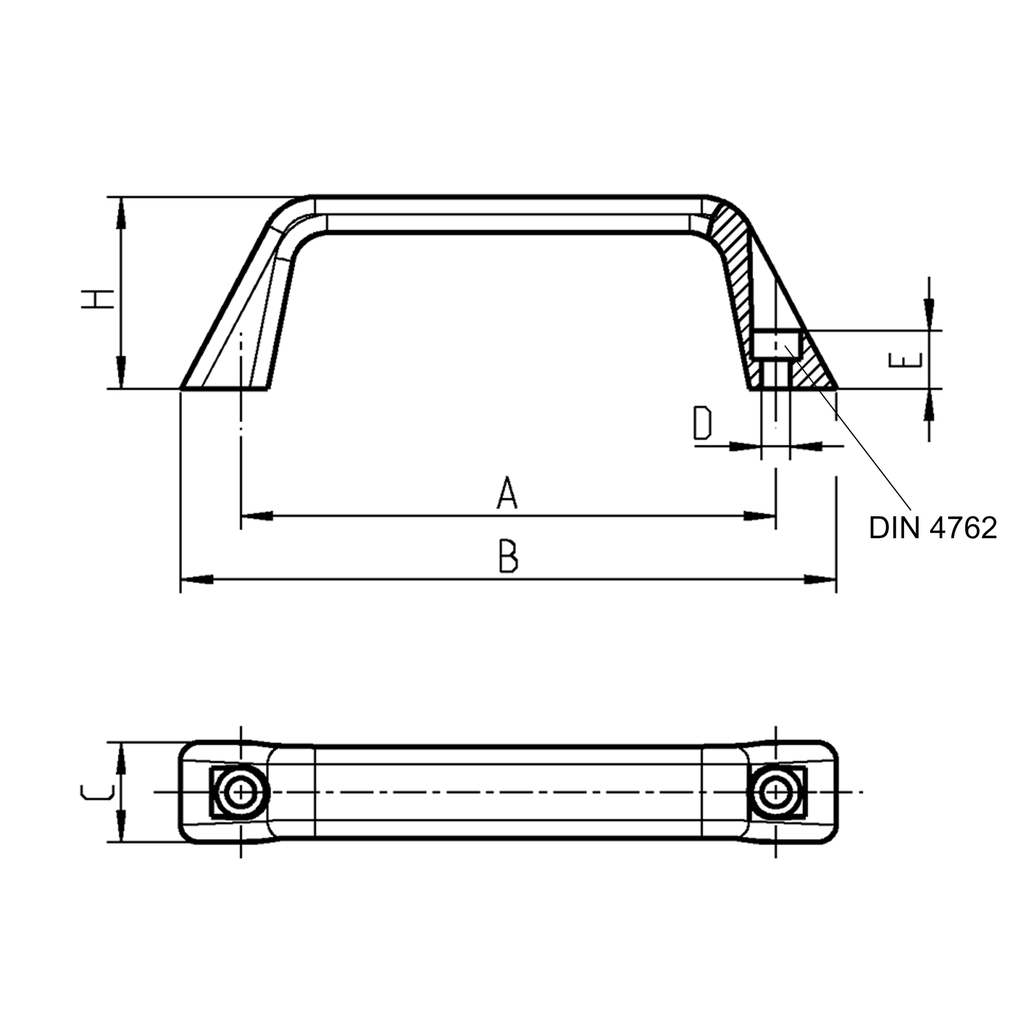

A = 120 mm

    This combination does not exist.

    Contact Us

    Key features:

    Bore hole for hexagon socket head cap screw DIN 4762
    Internal Reference: 1095-29-120KB
    Product Type: Handle
    Material: Die-cast aluminium
    Program: 1095
    Surface: blank
    Catalog sheet: 6A-180
    Dimension A: 120 mm
    Execution: A
    Dimension B: 147 mm
    Fixing type of handle: screw-on from outside
    Dimension C: 22.50 mm
    Dimension D: 6.40 mm
    Dimension E: 13 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 43 mm
