Bow-type handle, Aluminium anodized
Bow-type handle, Aluminium anodized
Bow-type handle, Die-cast aluminium blank
Bow-type handle, Die-cast aluminium blank

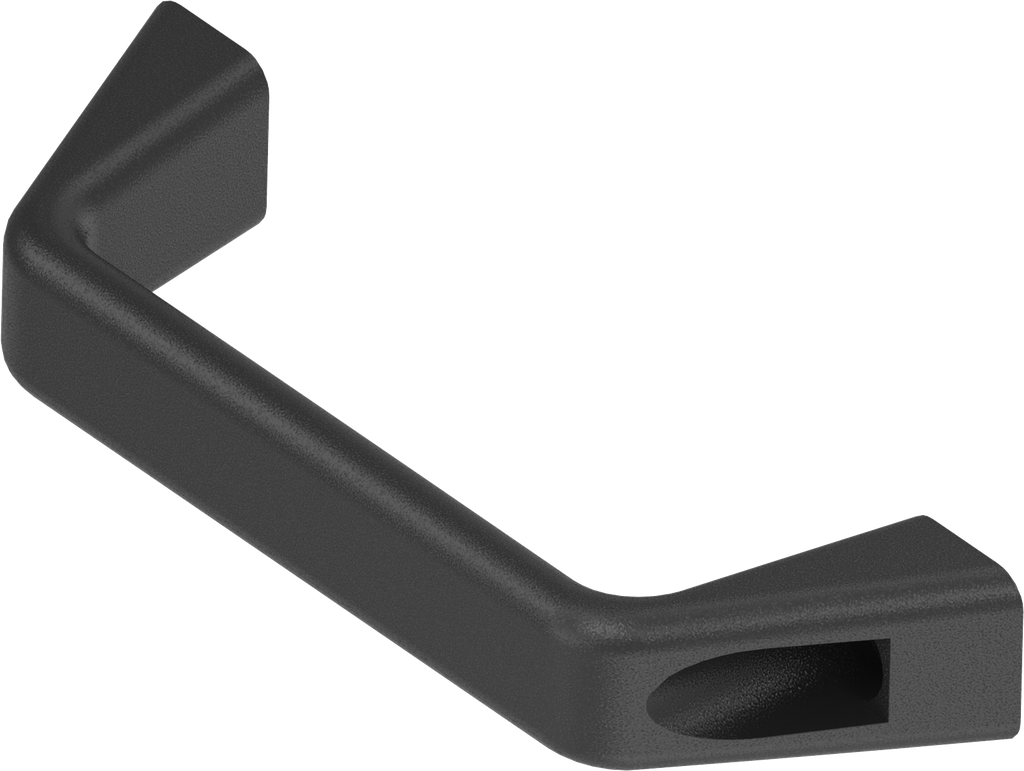

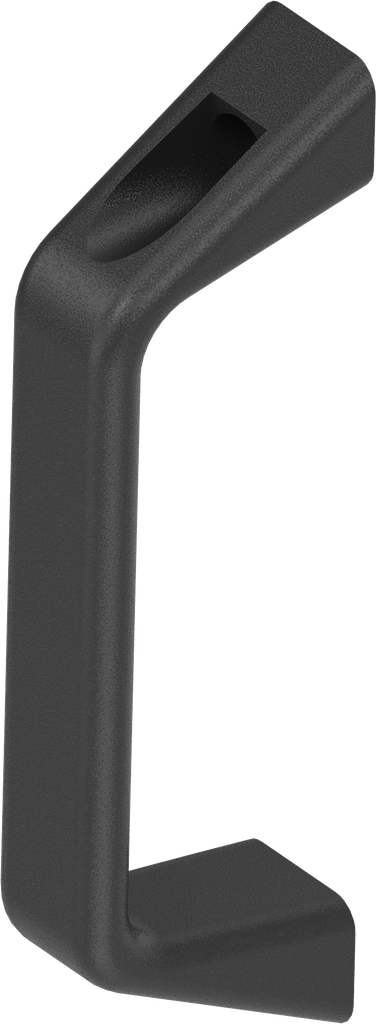

Bow-type handle, Die-cast aluminium black plastic-coated; 1095-29-120AA

https://www.emka.com/products/1095-29-120aa https://www.emka.com/web/image/product.template/62238/image_1920?unique=8126e80

A = 120 mm

    This combination does not exist.

    Contact Us

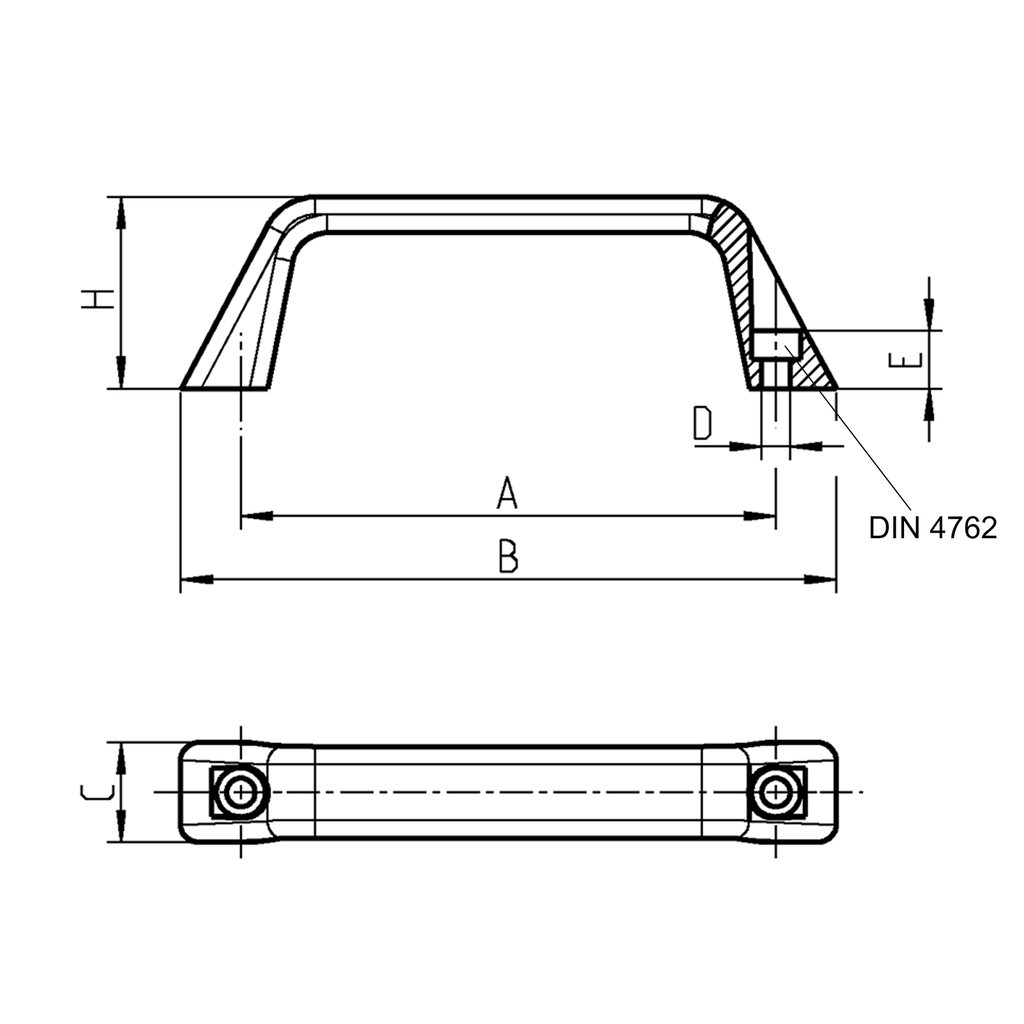

    Assembly instruction:

    Bore hole for hexagon socket head cap screw DIN 4762
    Internal Reference: 1095-29-120AA
    Product Type: Handle
    Material: Die-cast aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-180
    Dimension A: 120 mm
    Execution: A
    Dimension B: 147 mm
    Fixing type of handle: screw-on from outside
    Dimension C: 22.50 mm
    Dimension D: 6.40 mm
    Dimension E: 13 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 43 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
