Bow-type handle, Aluminium anodized

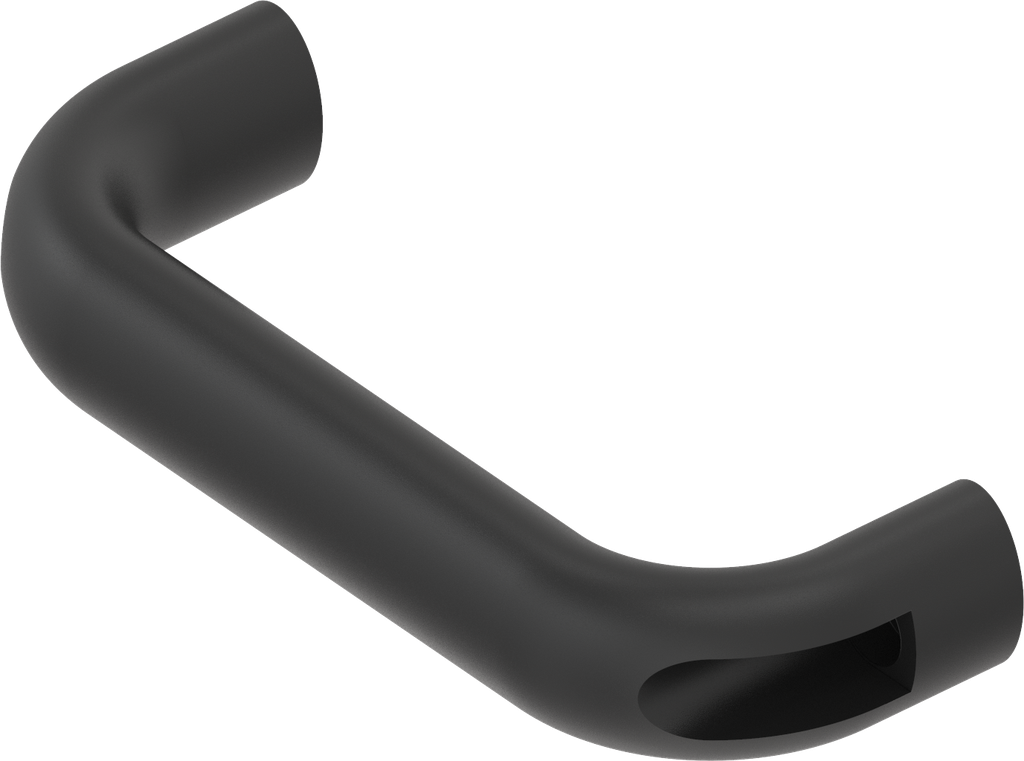

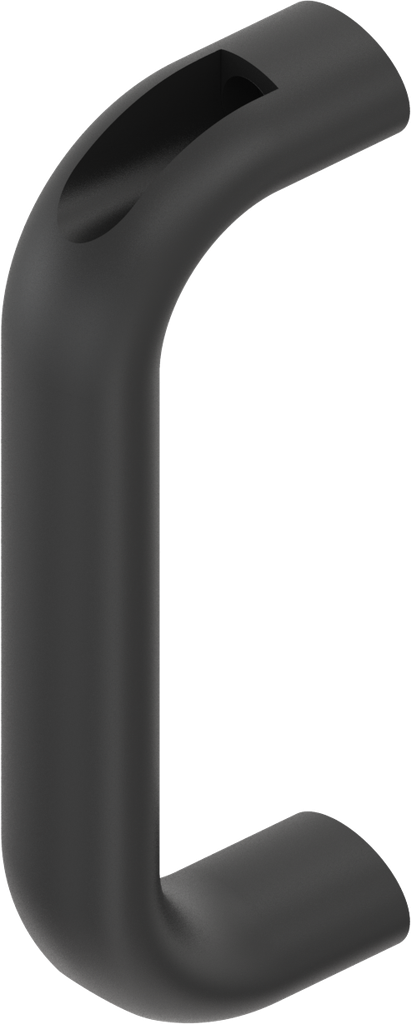

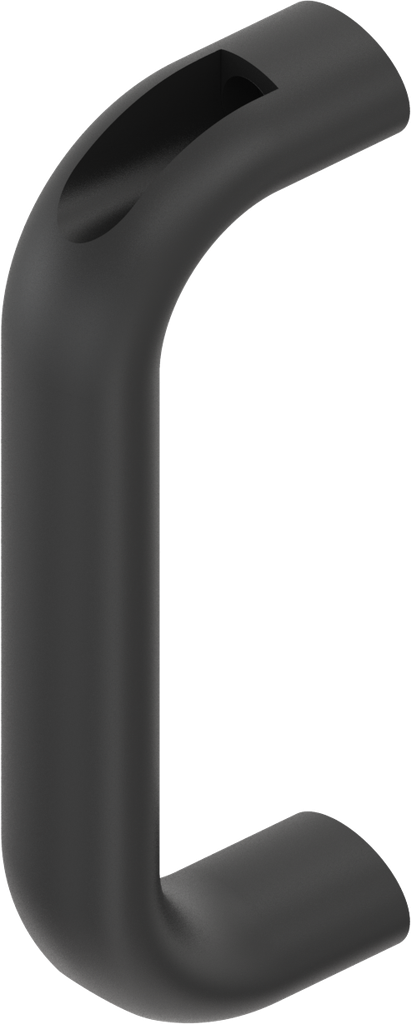

Bow-type handle, Aluminium black plastic-coated
Product information:

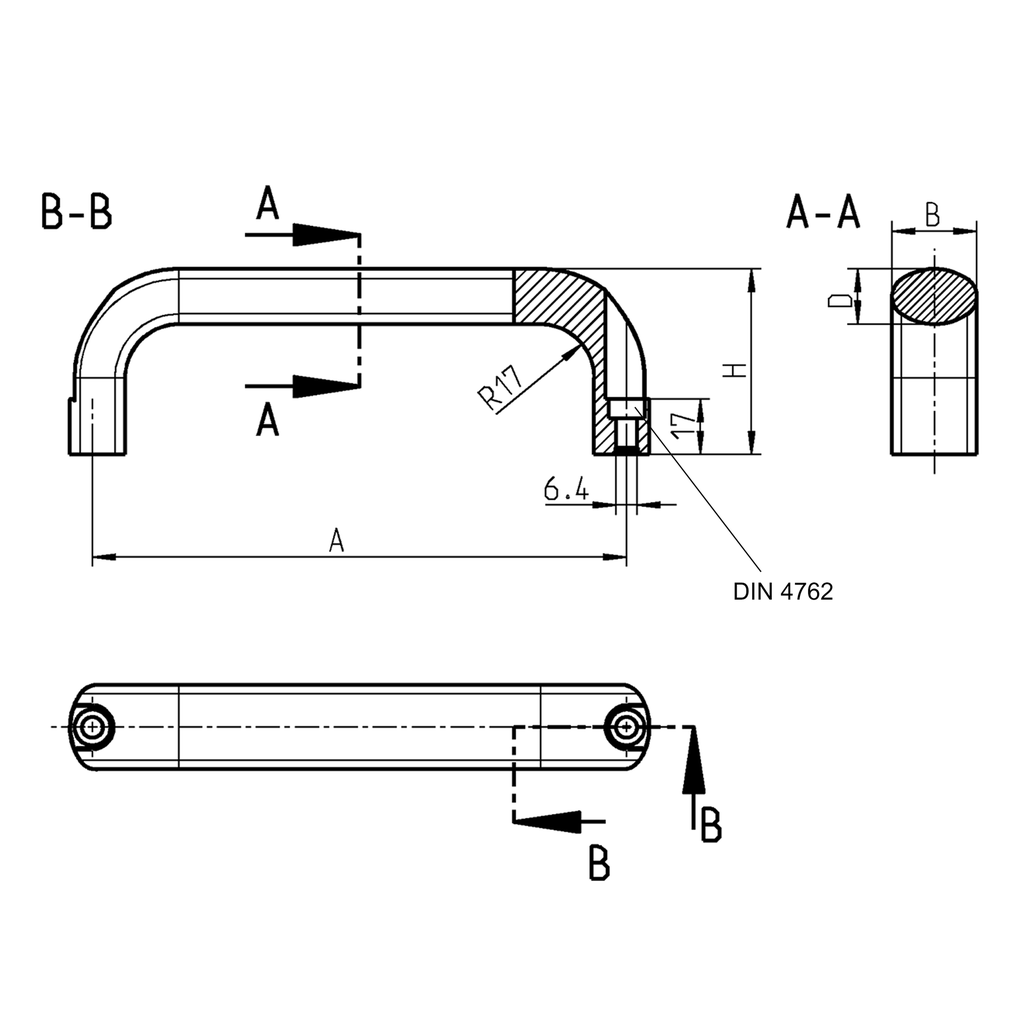

Bore hole for hexagon socket head cap screw DIN 4762
Internal Reference:
1095-28-132AA
Product Type:
Handle
Material:
Aluminium
Program:
1095
Surface:
black plastic-coated
Catalog sheet:
6A-160
Dimension A:
132 mm
Dimension B:
26 mm
Fixing type of handle:
screw-on from outside
Dimension D:
17 mm
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
55 mm
Dimension R:
17 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
