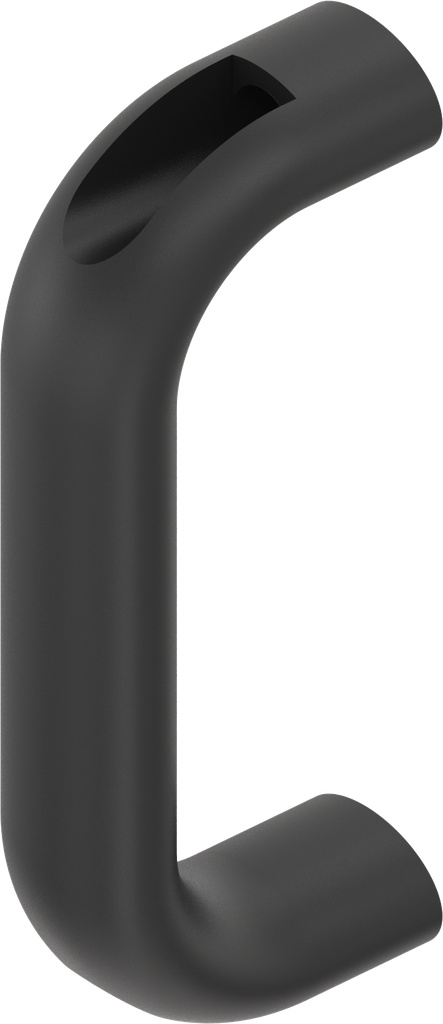

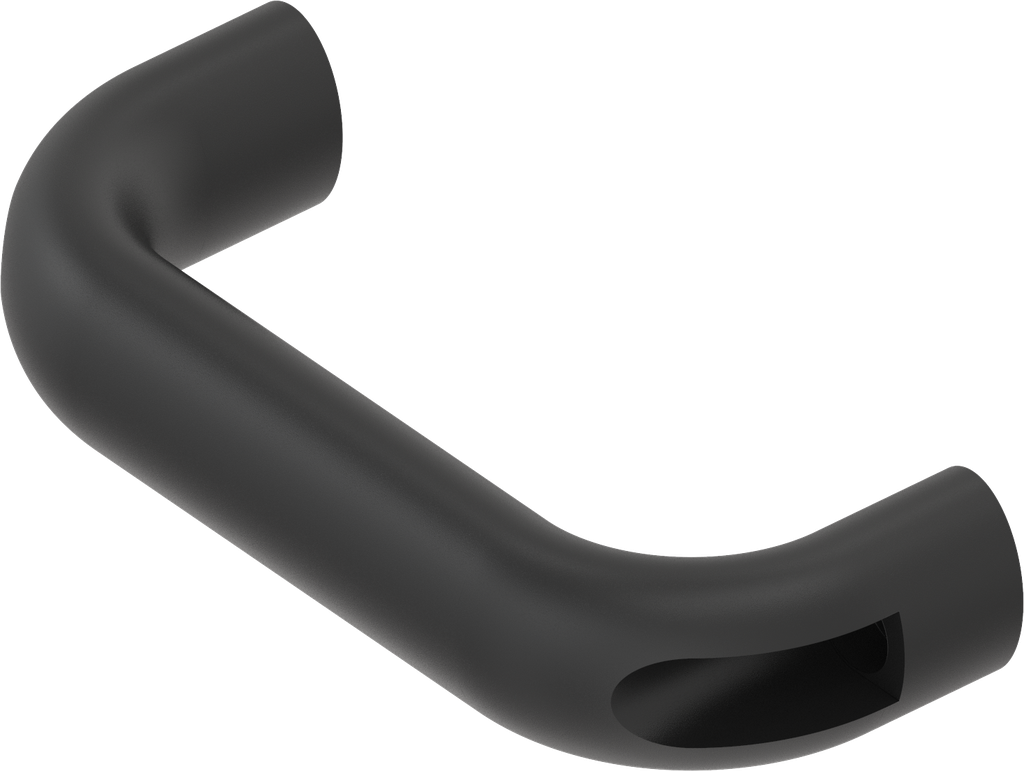

Bow-type handle, Aluminium black plastic-coated; 1095-28-116AA

https://www.emka.com/products/1095-28-116aa https://www.emka.com/web/image/product.template/215242/image_1920?unique=4963125

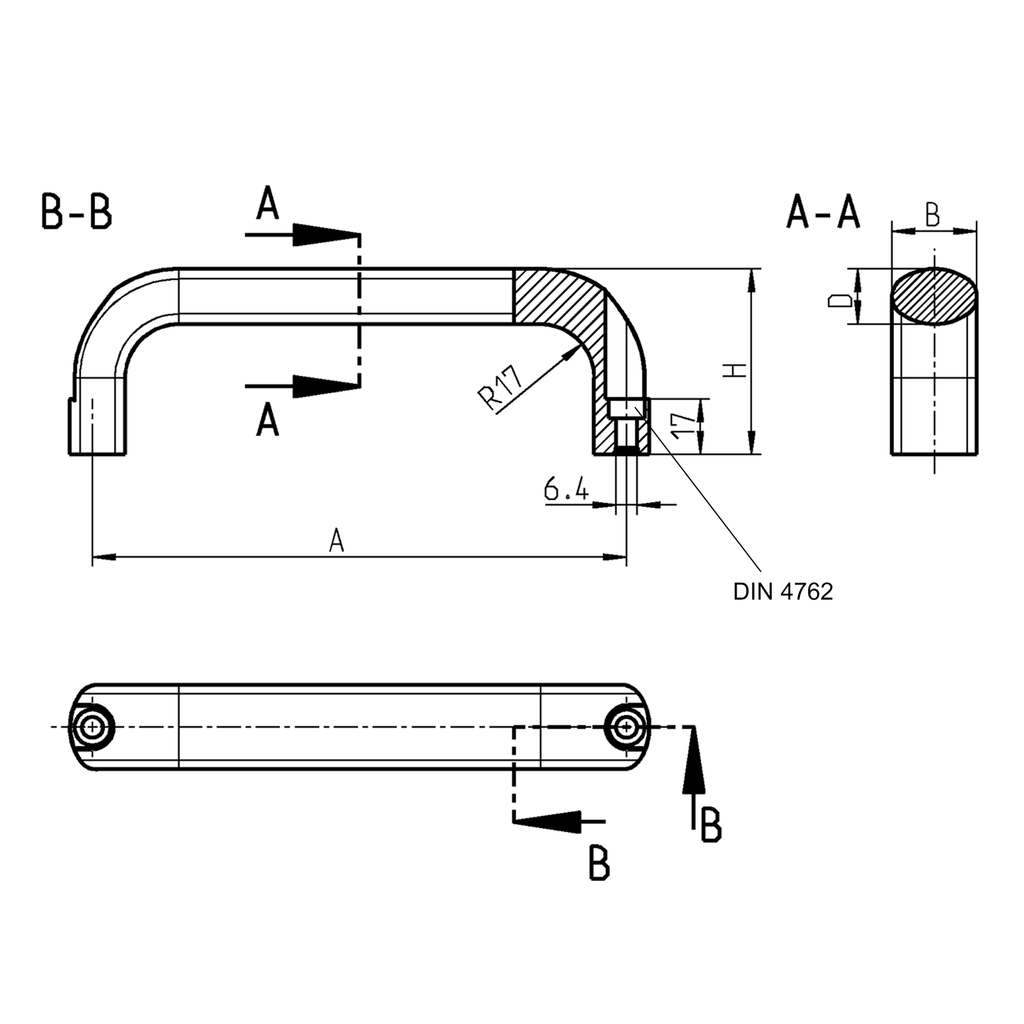

A = 116 mm

    This combination does not exist.

    Contact Us

    Product information:

    Bore hole for hexagon socket head cap screw DIN 4762
    Internal Reference: 1095-28-116AA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-160
    Dimension A: 116 mm
    Dimension B: 26 mm
    Fixing type of handle: screw-on from outside
    Dimension D: 17 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 55 mm
    Dimension R: 17 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-160
    CAD file | 1095-28-116AA_igs
    CAD file | 1095-28-116AA_stp
