Bow-type handle, Aluminium anodized
Bow-type handle, Aluminium anodized
Bow-type handle, Aluminium anodized
Bow-type handle, Aluminium anodized

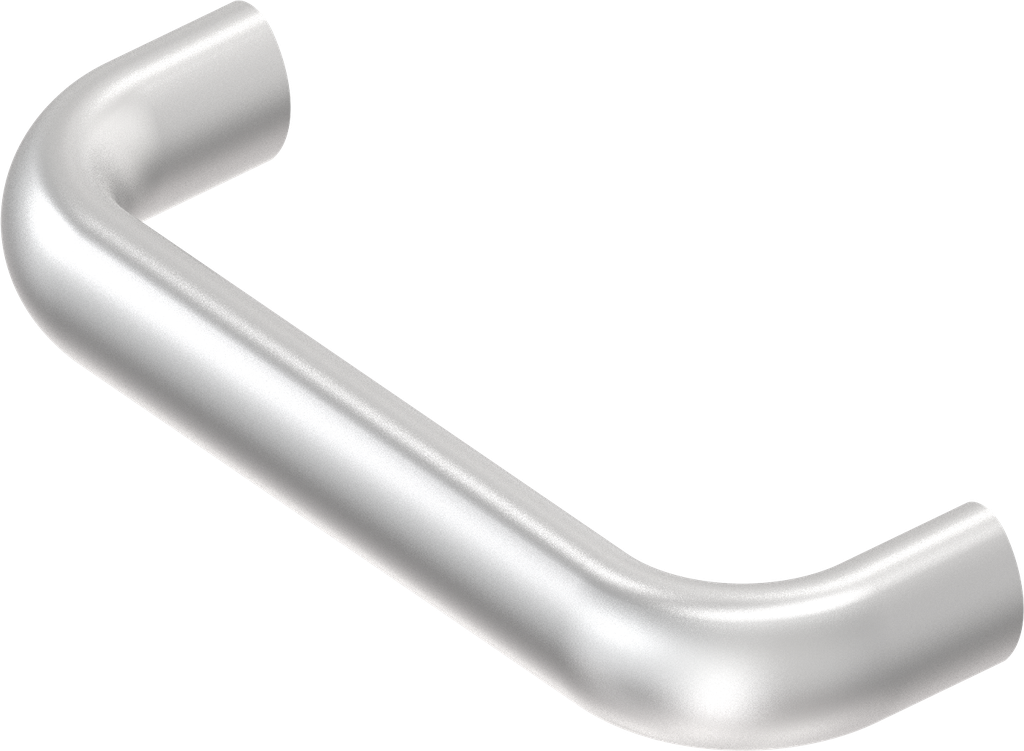

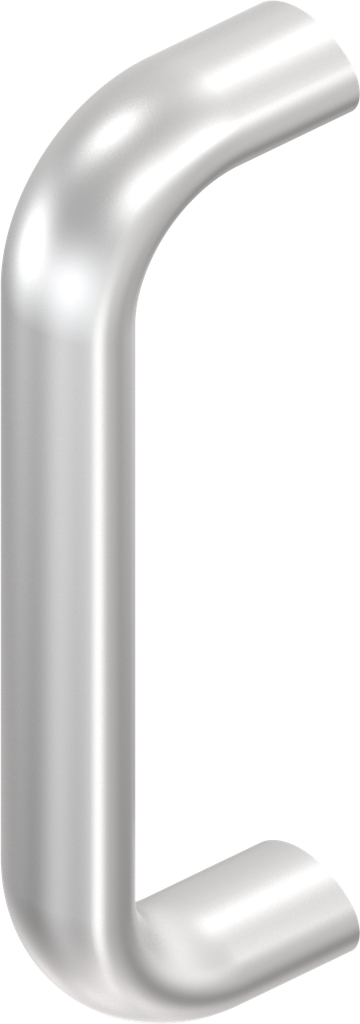

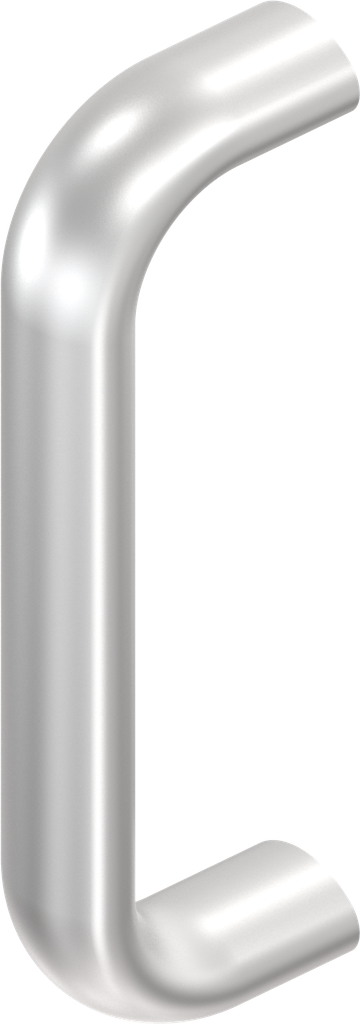

Bow-type handle, Aluminium anodized; 1095-27-160NA

https://www.emka.com/products/1095-27-160na https://www.emka.com/web/image/product.template/62233/image_1920?unique=bbccd77

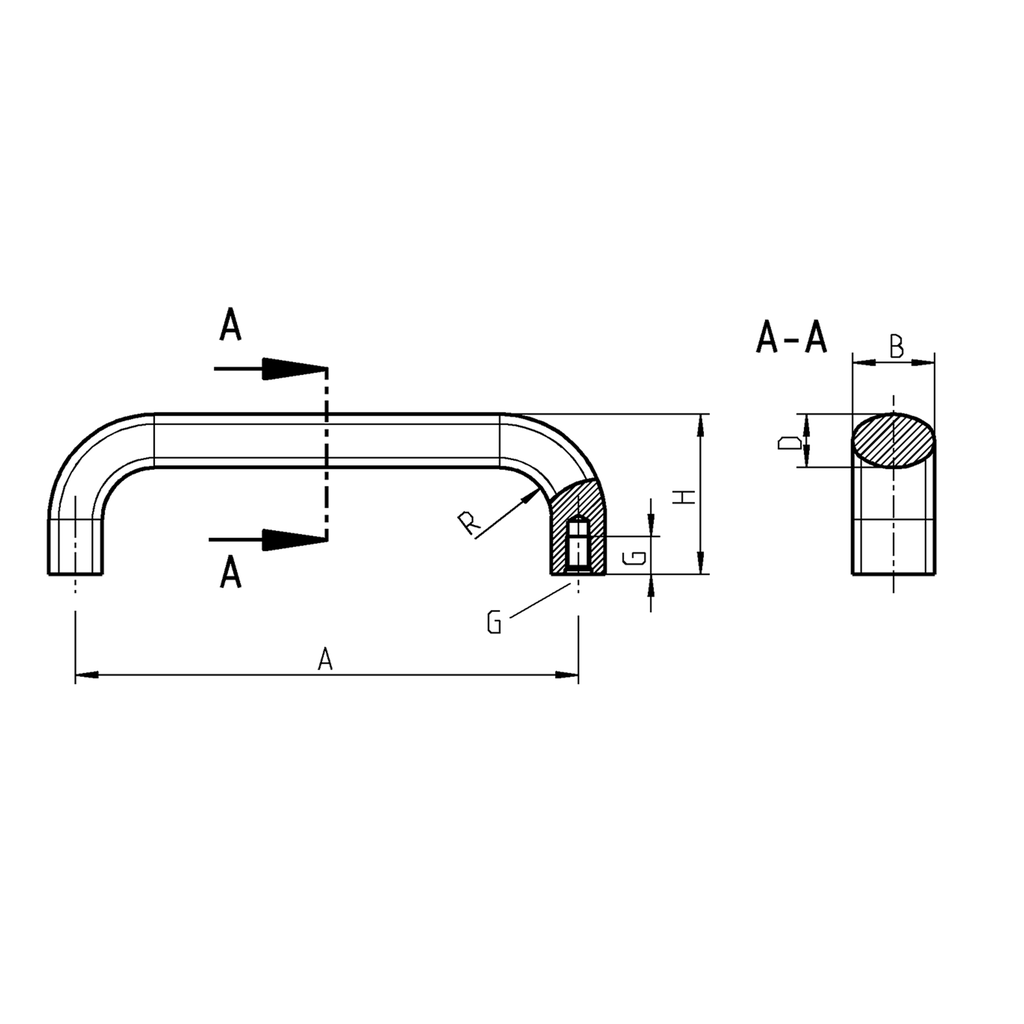

A = 160 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-27-160NA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: anodized
    Catalog sheet: 6A-160
    Dimension A: 160 mm
    Dimension B: 26 mm
    Fixing type of handle: screw-on from inside
    Dimension D: 17 mm
    G = thread specification: M8x12
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 57 mm
    Dimension R: 17 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
