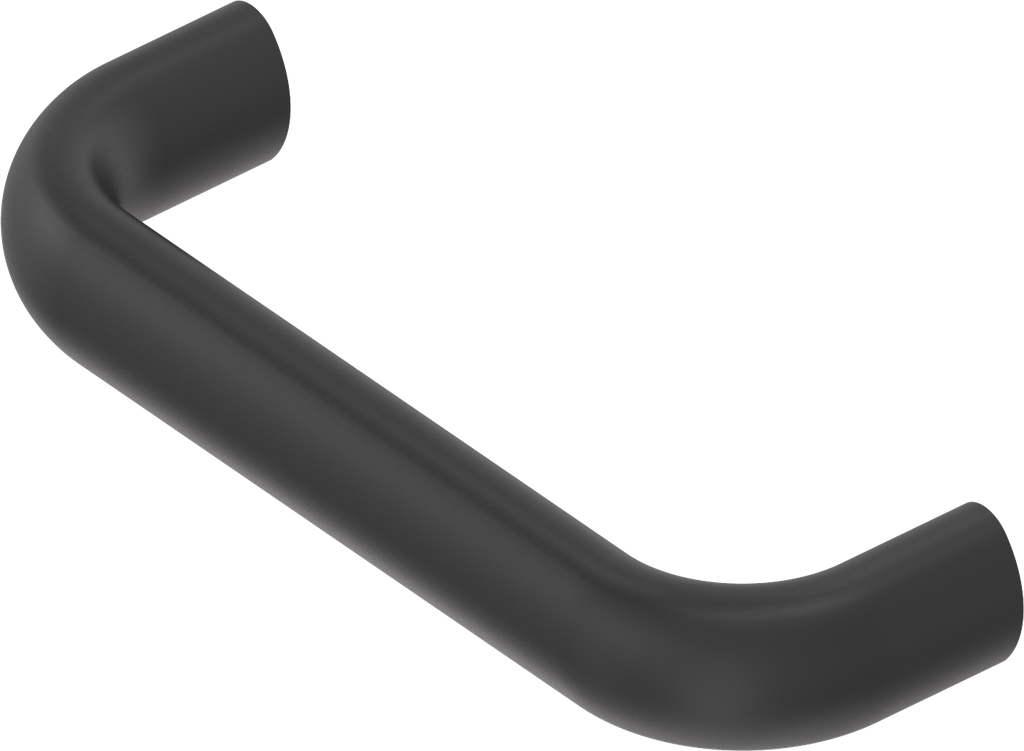

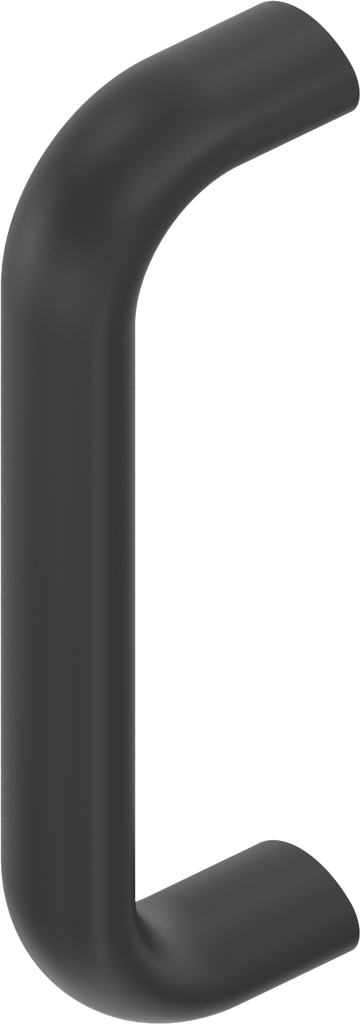

Bow-type handle, Aluminium black plastic-coated; 1095-27-160AA

https://www.emka.com/products/1095-27-160aa https://www.emka.com/web/image/product.template/215240/image_1920?unique=9c6f97c

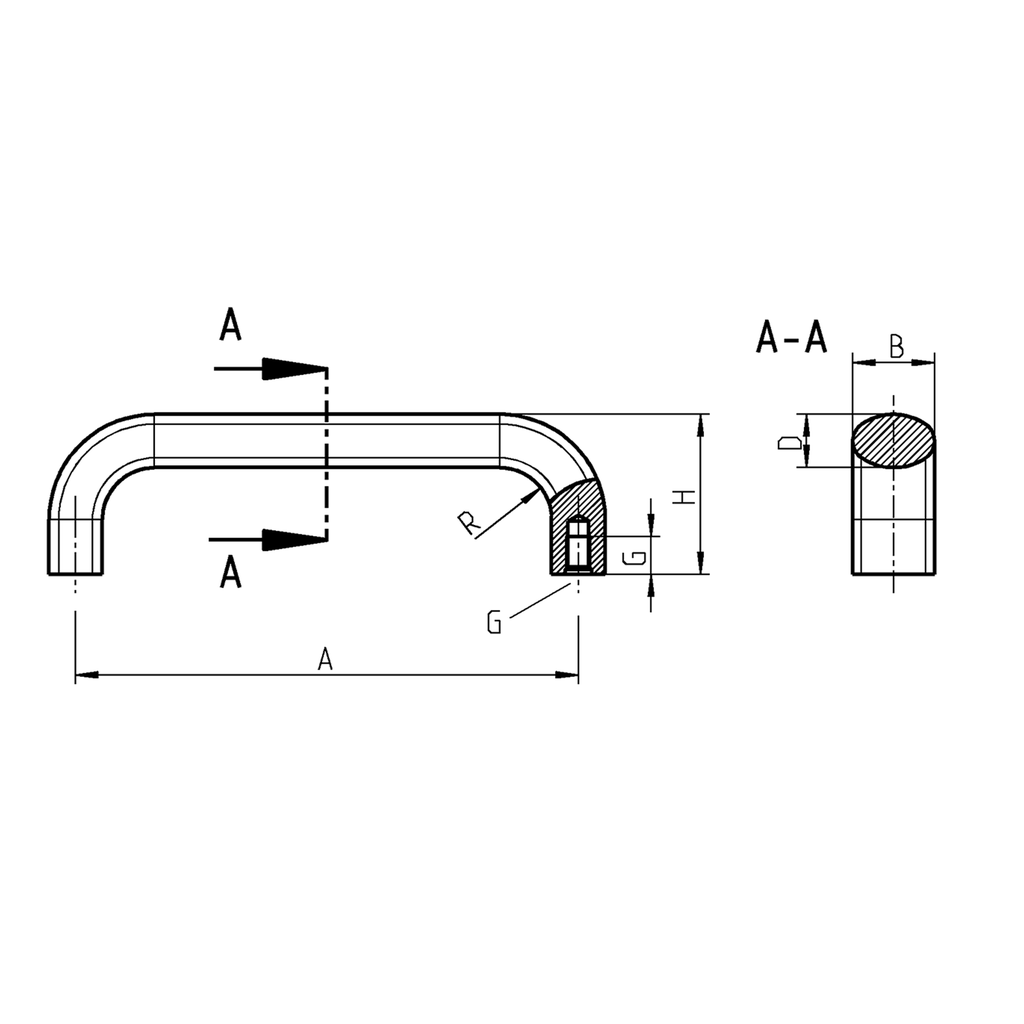

A = 160 mm


    This combination does not exist.



    Internal Reference: 1095-27-160AA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-160
    Dimension A: 160 mm
    Dimension B: 26 mm
    Fixing type of handle: screw-on from inside
    Dimension D: 17 mm
    G = thread specification: M8x12
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 57 mm
    Dimension R: 17 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-160
    CAD file | 1095-27-160AA_igs
    CAD file | 1095-27-160AA_stp
