Bow-type handle, Aluminium black plastic-coated
Bow-type handle, Aluminium black plastic-coated
Bow-type handle, Aluminium black plastic-coated
Bow-type handle, Aluminium black plastic-coated

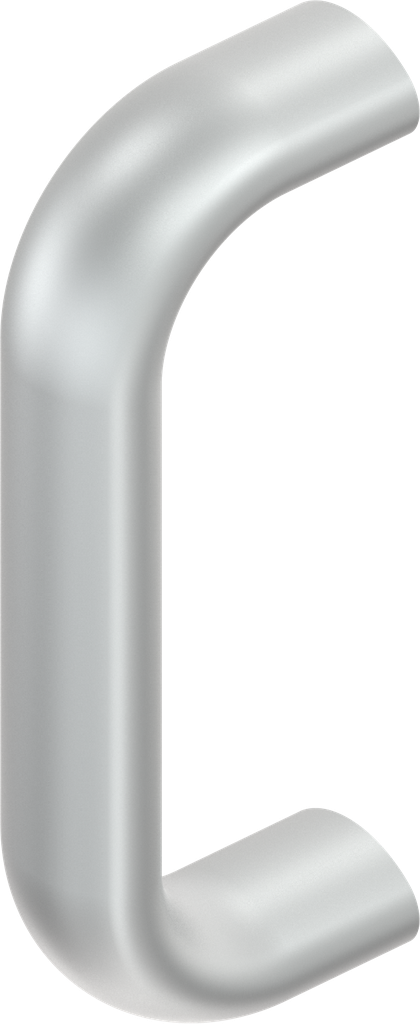

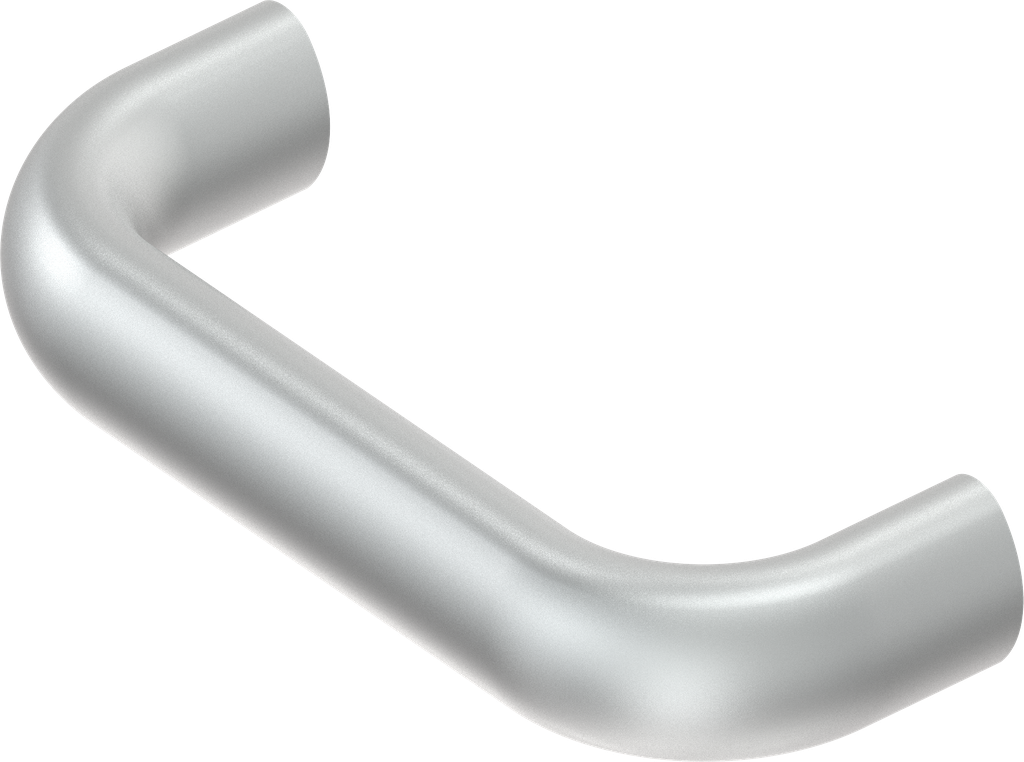

Bow-type handle, Aluminium blank; 1095-27-128KB

https://www.emka.com/products/1095-27-128kb https://www.emka.com/web/image/product.template/215239/image_1920?unique=824f0e6

A = 128 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-27-128KB
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: blank
    Catalog sheet: 6A-160
    Dimension A: 128 mm
    Dimension B: 26 mm
    Fixing type of handle: screw-on from inside
    Dimension D: 17 mm
    G = thread specification: M8x12
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 55 mm
    Dimension R: 17 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
