Bow-type handle, Aluminium blank
Bow-type handle, Aluminium blank
Bow-type handle, Aluminium blank
Bow-type handle, Aluminium blank

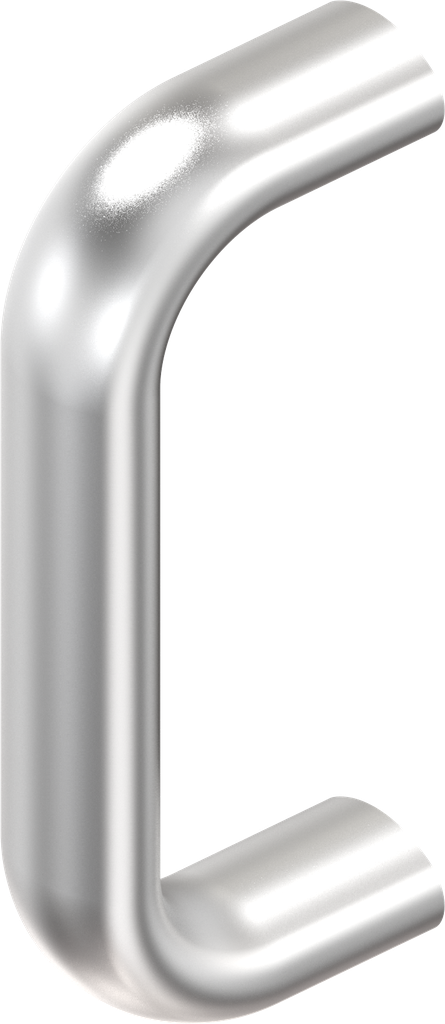

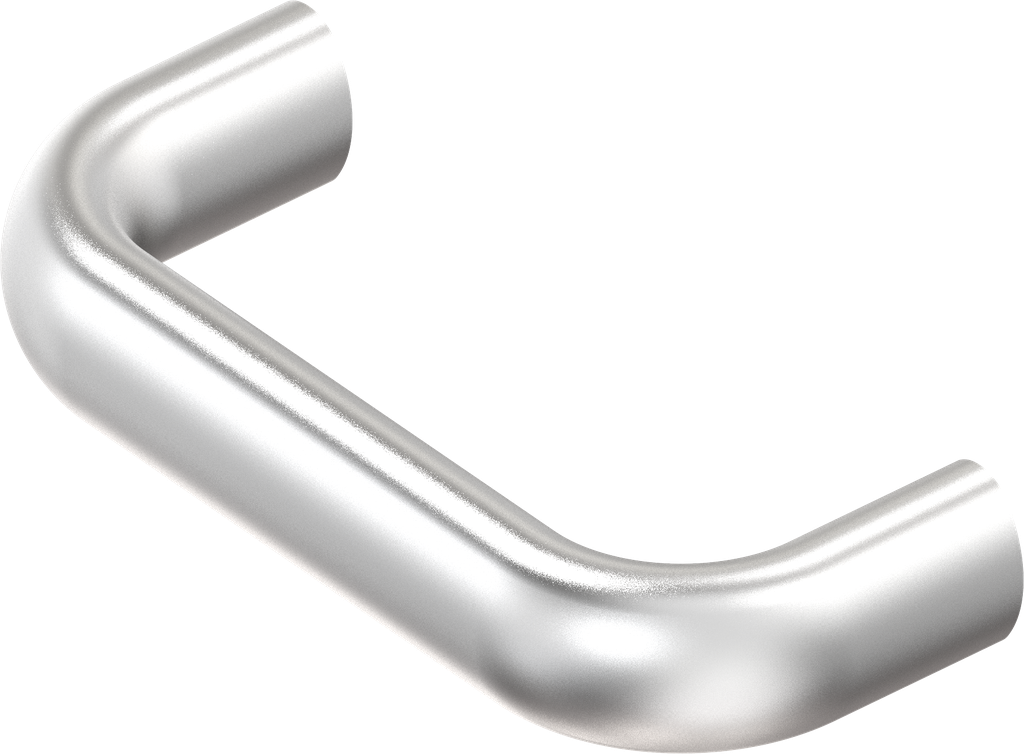

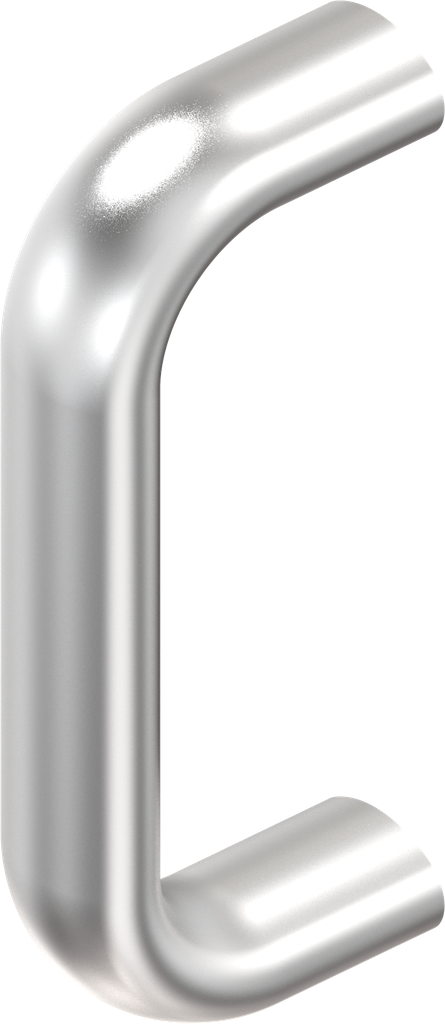

Bow-type handle, Aluminium anodized; 1095-26-100NA

https://www.emka.com/products/1095-26-100na https://www.emka.com/web/image/product.template/215216/image_1920?unique=e92b1d3

A = 100 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-26-100NA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: anodized
    Catalog sheet: 6A-160

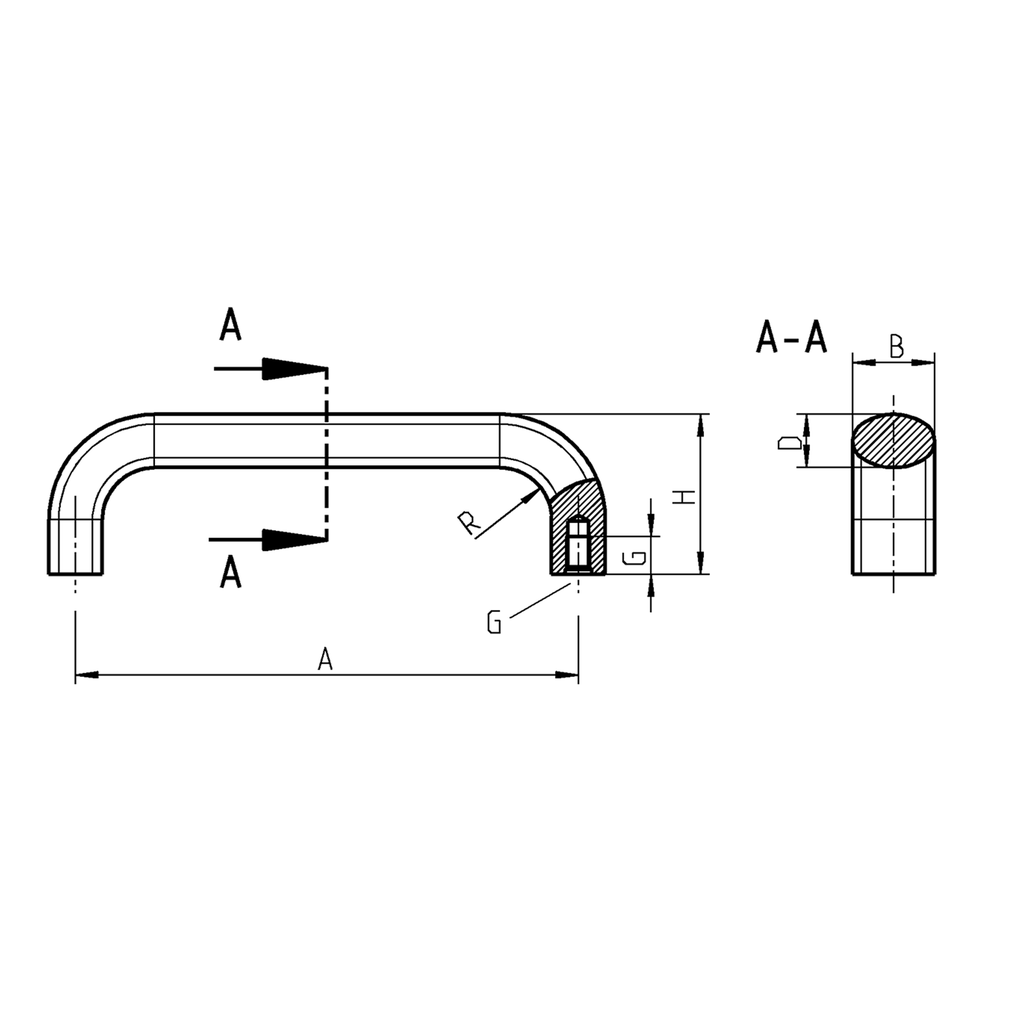

    Dimension A: 100 mm
    Dimension B: 20 mm
    Fixing type of handle: screw-on from inside
    Dimension D: 13 mm
    G = thread specification: M6x10
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 47 mm
    Dimension R: 13 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
