Bow-type handle, Polyamide GF black
Bow-type handle, Polyamide GF black
Steel tube Ø 30, Steel, plastic-coated black
Steel tube Ø 30, Steel, plastic-coated black

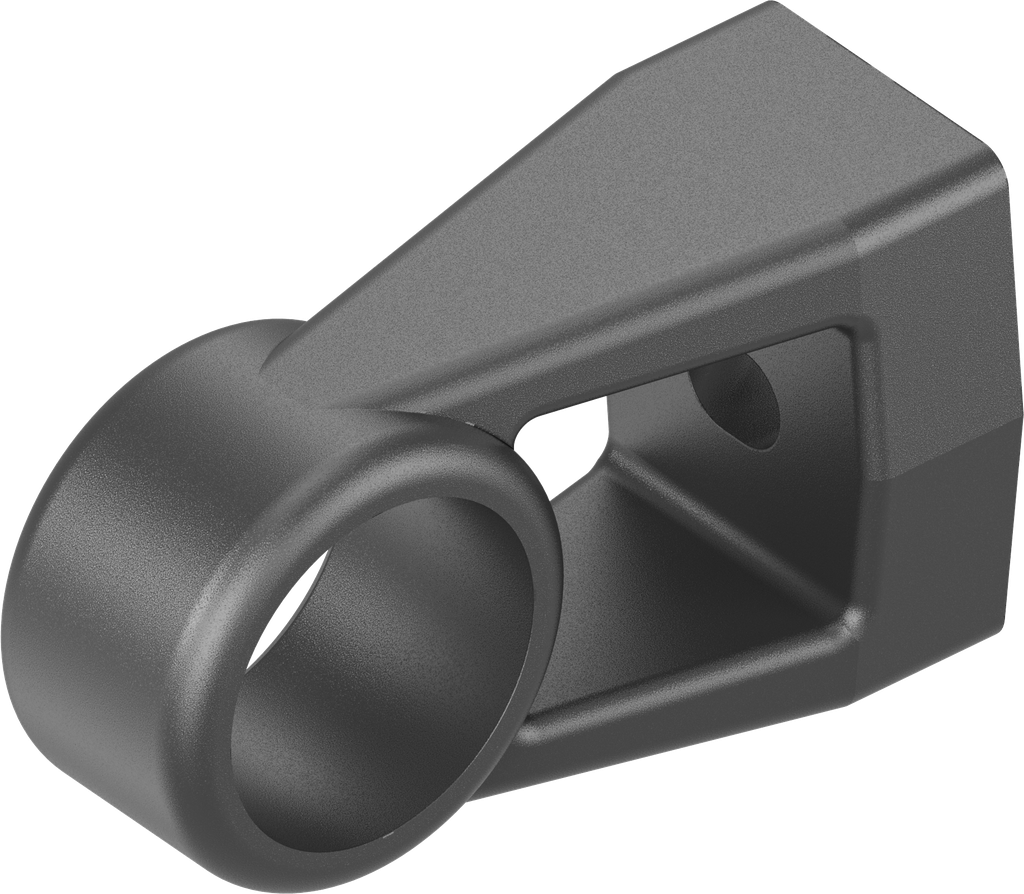

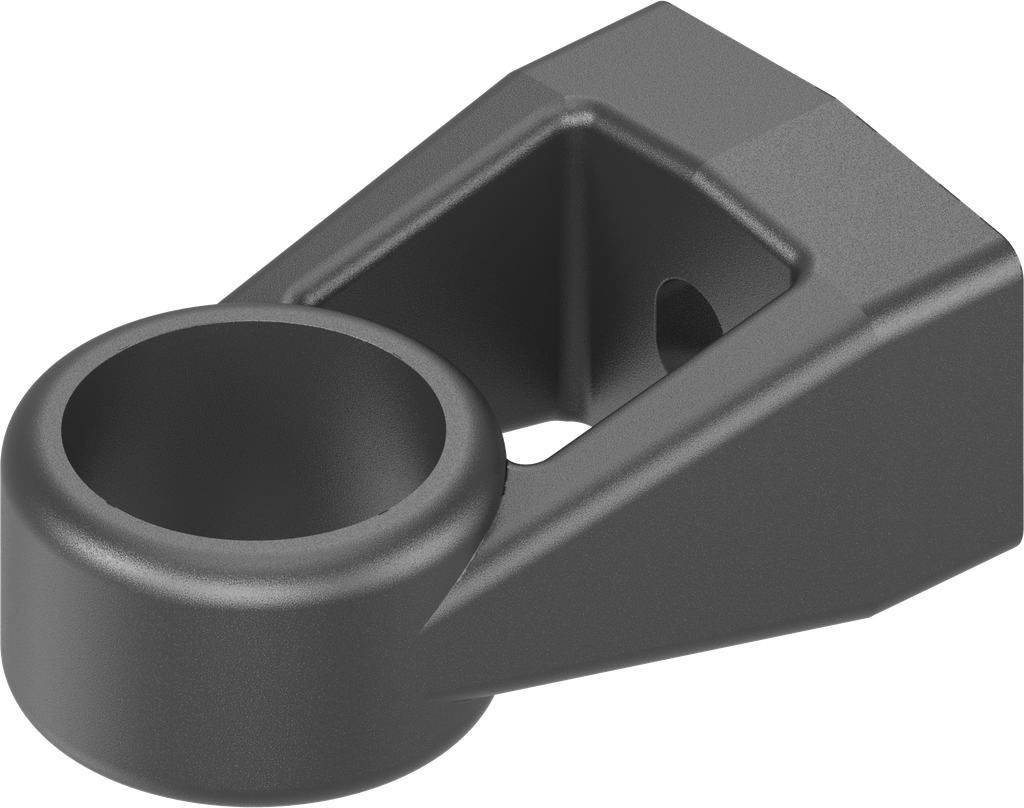

Middle stay, Polyamide GF black; 1095-20

https://www.emka.com/products/1095-20 https://www.emka.com/web/image/product.template/62214/image_1920?unique=1cd9139

    This combination does not exist.

    Contact Us

    Product information:

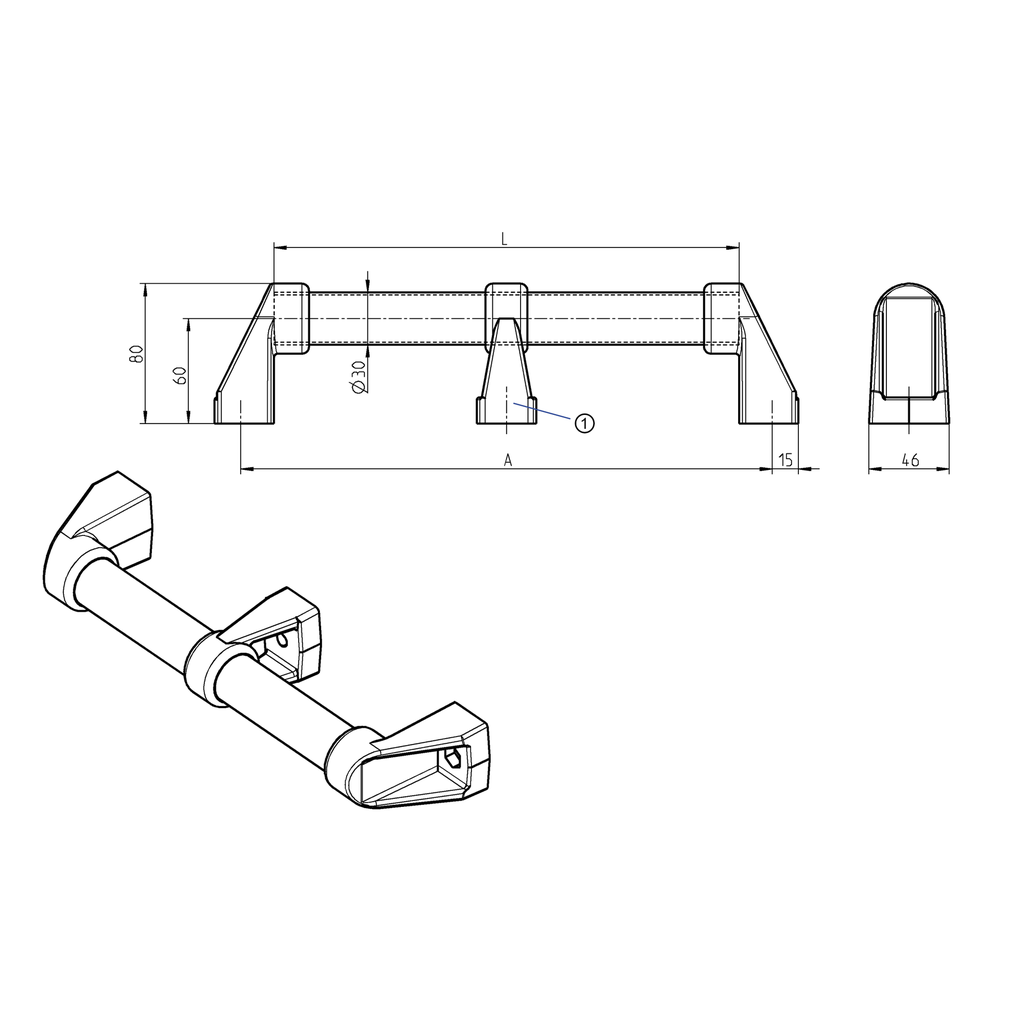

    ① = Middle stay to be used from 1000 mm length
    Internal Reference: 1095-20
    Product Type: Grip
    Material: Polyamide GF
    Program: 1095
    Surface: black
    Catalog sheet: 6A-220
    Dimension A, Variable: Yes
    Fixing type of handle: screw-on from outside,screw-on from inside
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    No Specifications
    View All Products
    Handle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-220
    Product data sheet
    CAD file | 1095-20_igs
    CAD file | 1095-20_stp
