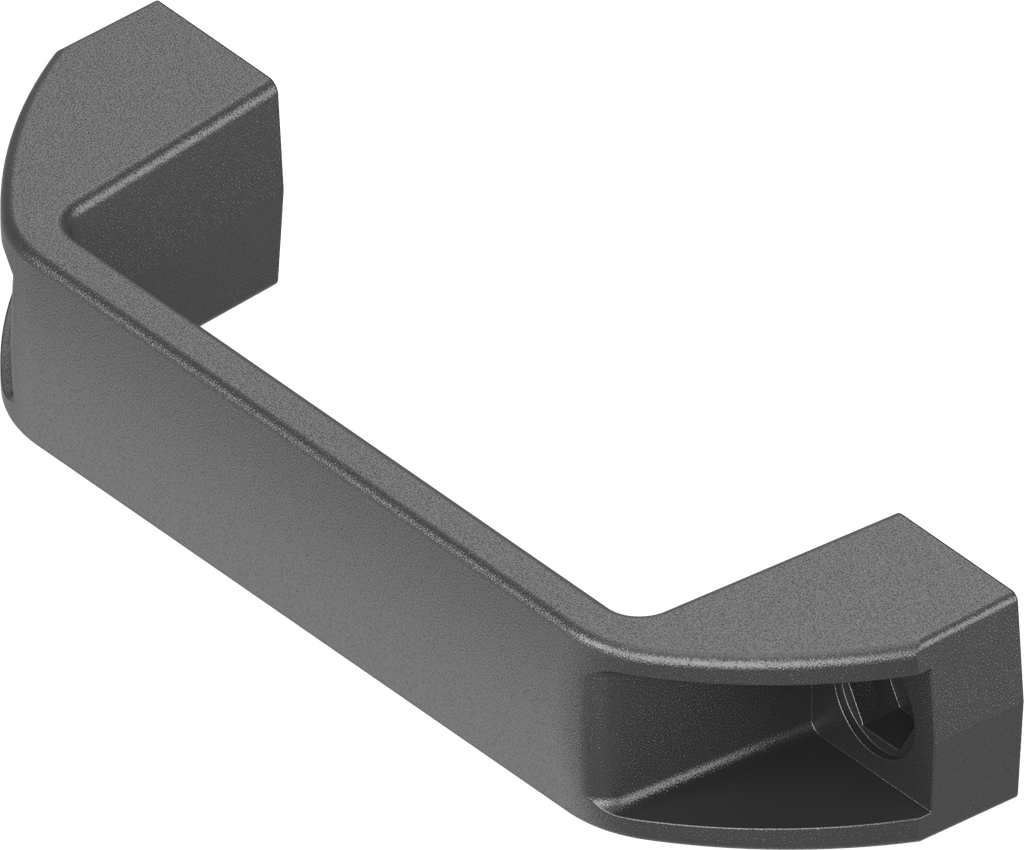

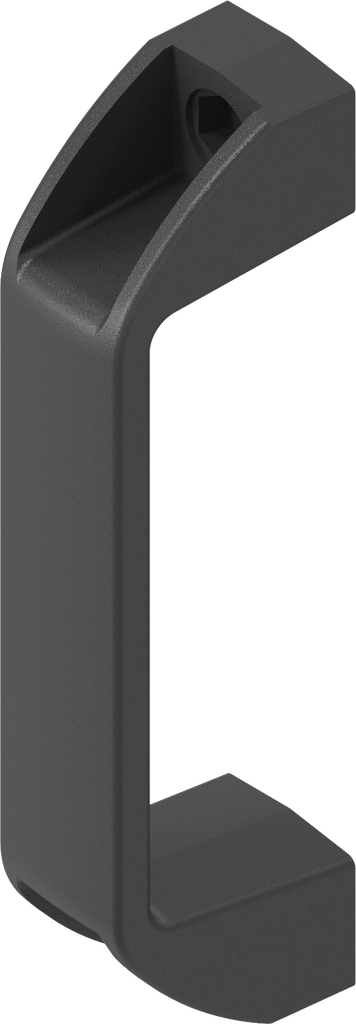

Bow-type handle, Polyamide GF black
Bow-type handle, Polyamide GF black

Bow-type handle, Polyamide GF black; 1095-05

https://www.emka.com/products/1095-05 https://www.emka.com/web/image/product.template/62204/image_1920?unique=10d8de4

A = 122 mm

    This combination does not exist.

    Contact Us

    Product information:

    Handle for hexagon head screw or hexagon socket head cap screw M6 acc. to DIN 4017/1207
    Internal Reference: 1095-05
    Product Type: Handle
    Material: Polyamide GF
    Program: 1095
    Surface: black
    Catalog sheet: 6A-120

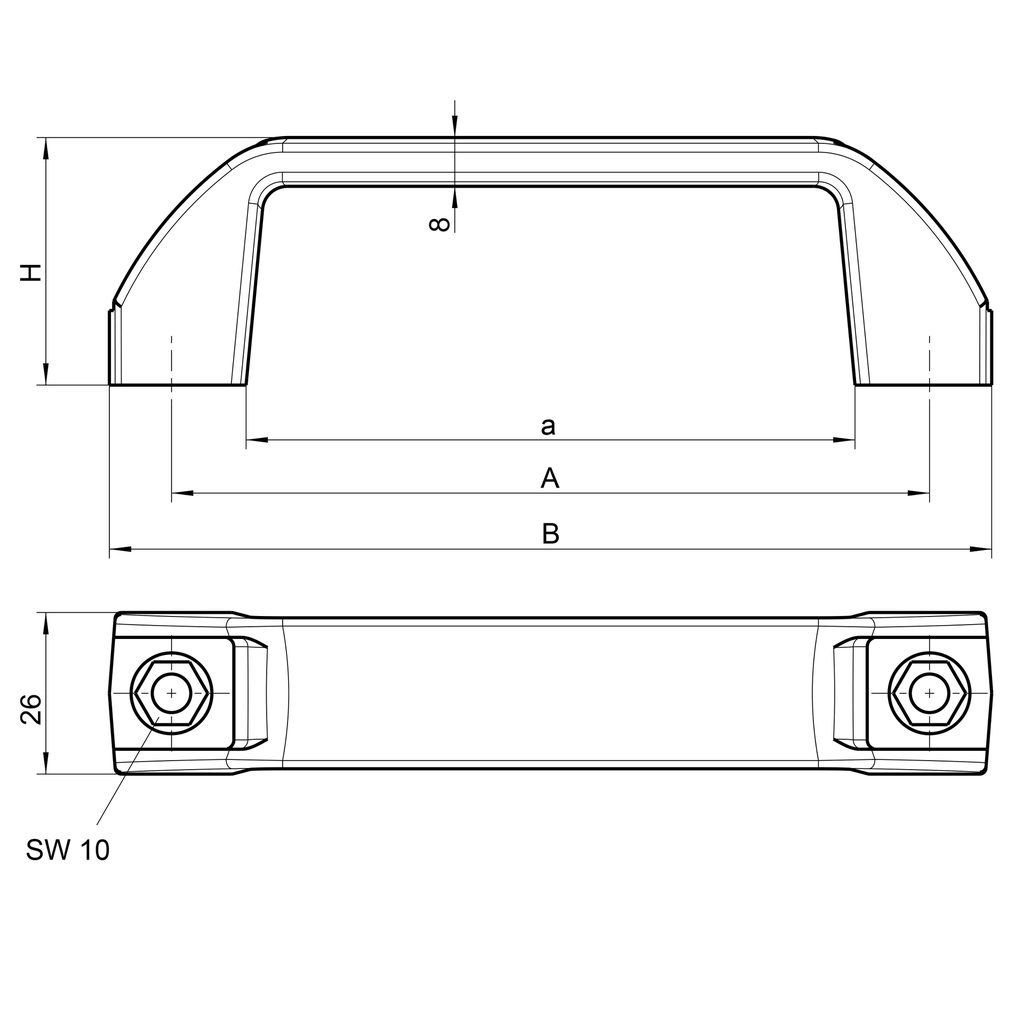

    Dimension a: 98 mm
    Dimension A: 122 mm
    Dimension B: 142 mm
    Fixing type of handle: Handle for hexagon screw M6,Handle for cylinder screw M6 according to DIN 4017/1207
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 40 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
