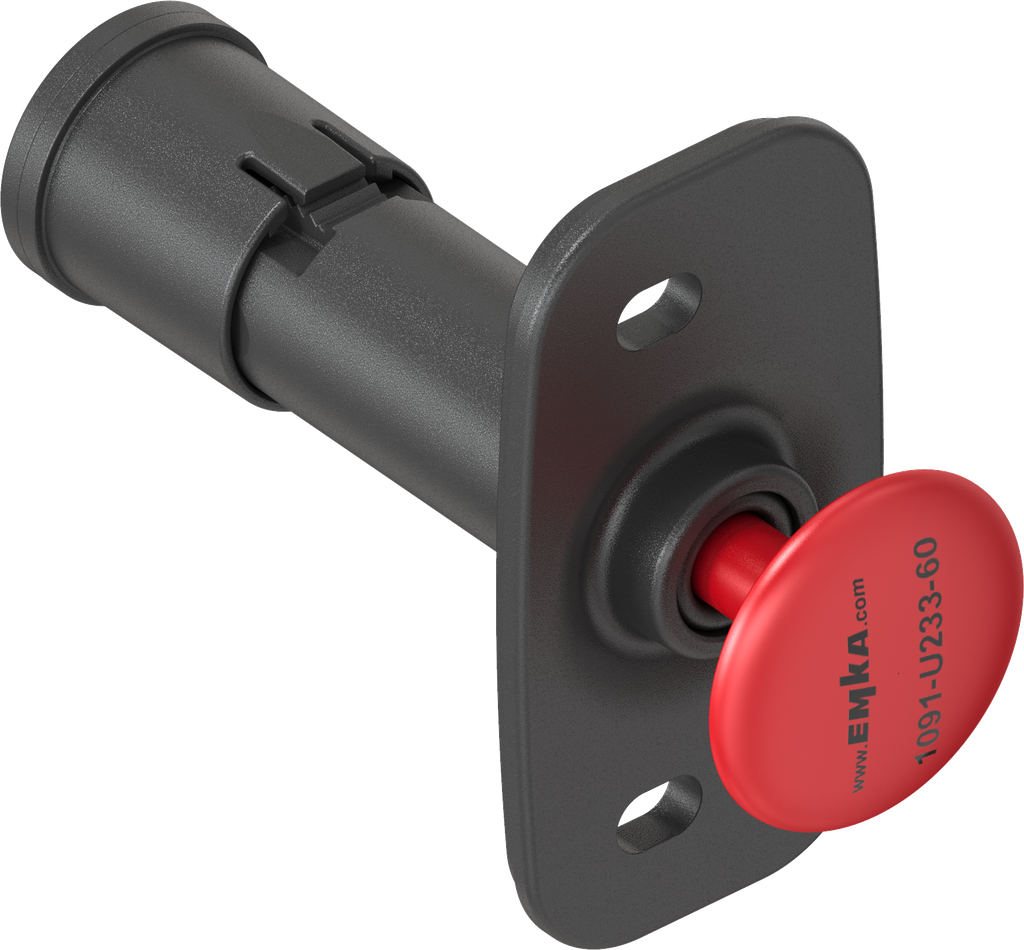

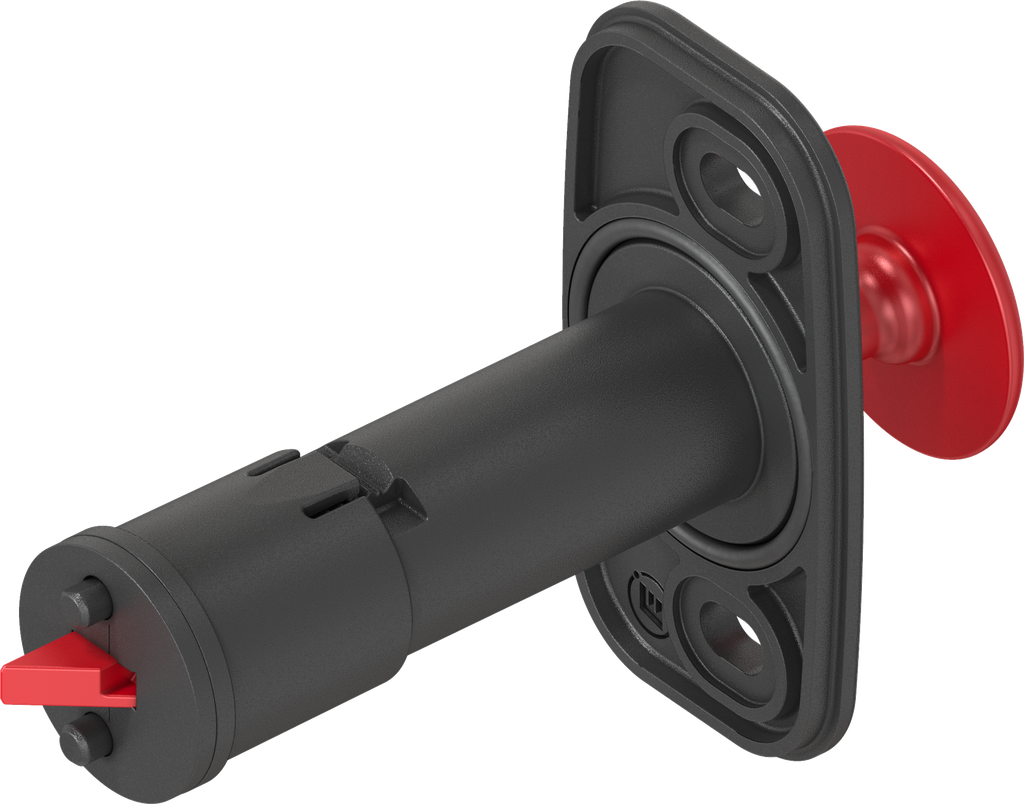

Emergency opening for Latch-Hinge, Polyamide GF black; 1091-U233-60

https://www.emka.com/products/1091-u233-60 https://www.emka.com/web/image/product.template/215031/image_1920?unique=42a3eec

Clearance T = 60 + 4.5 mm, ATEX version

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    No stock item, please ask for availability

    Product information:

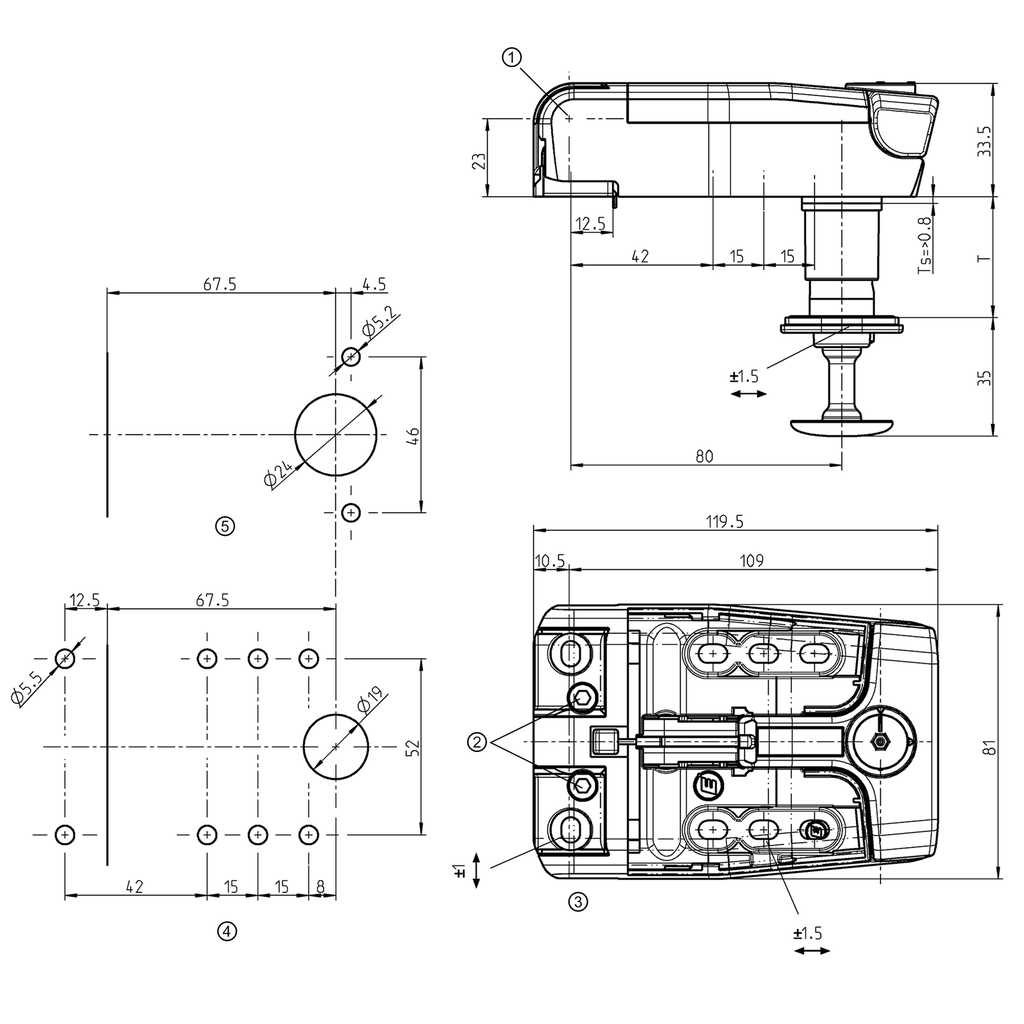

    ① = Centre of rotation ② = Hex screws (SW 4) for height adjustment; compression adjustable on the bracket ③ = View without screw covers ④ = Front cut out ⑤ = Rear cut out
    Internal Reference: 1091-U233-60
    Barcode: 1091-U00233-0000060
    Product Type: Emergency opening
    Program: 1091
    Material of the module : Polyamide GF
    Surface of the module: black
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door Version : Left,Right
    Lock Type: Latch-Hinge
    No Specifications
    View All Products

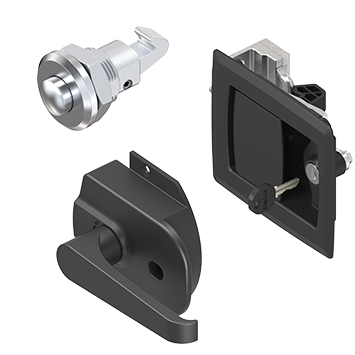

    Other latch
    Here you can find the product data sheets and CAD files of this product
