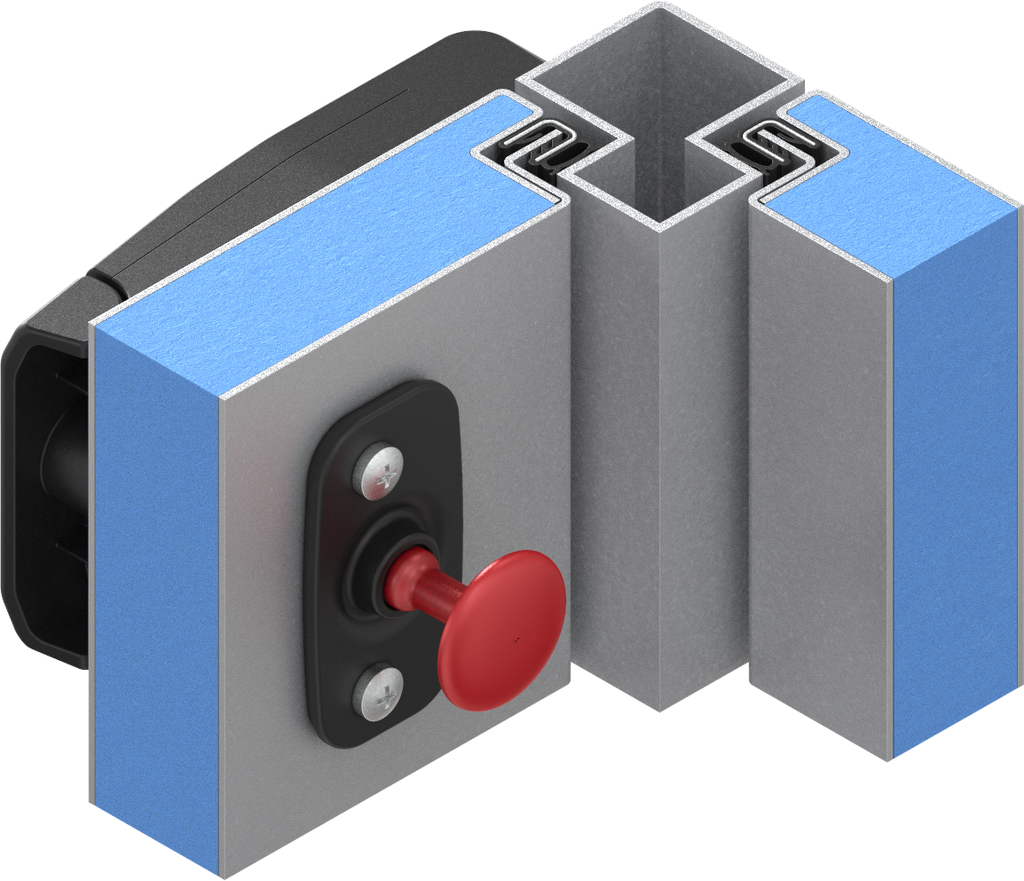

Emergency opening for Latch-Hinge, Polyamide GF black

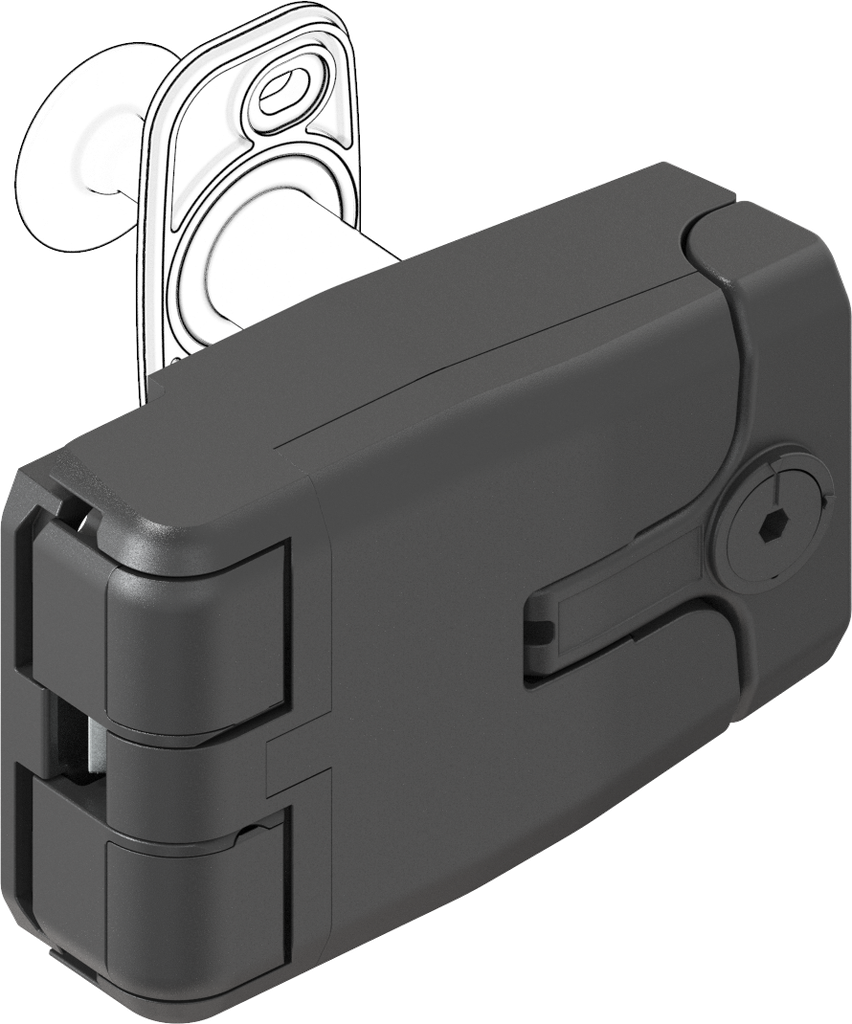

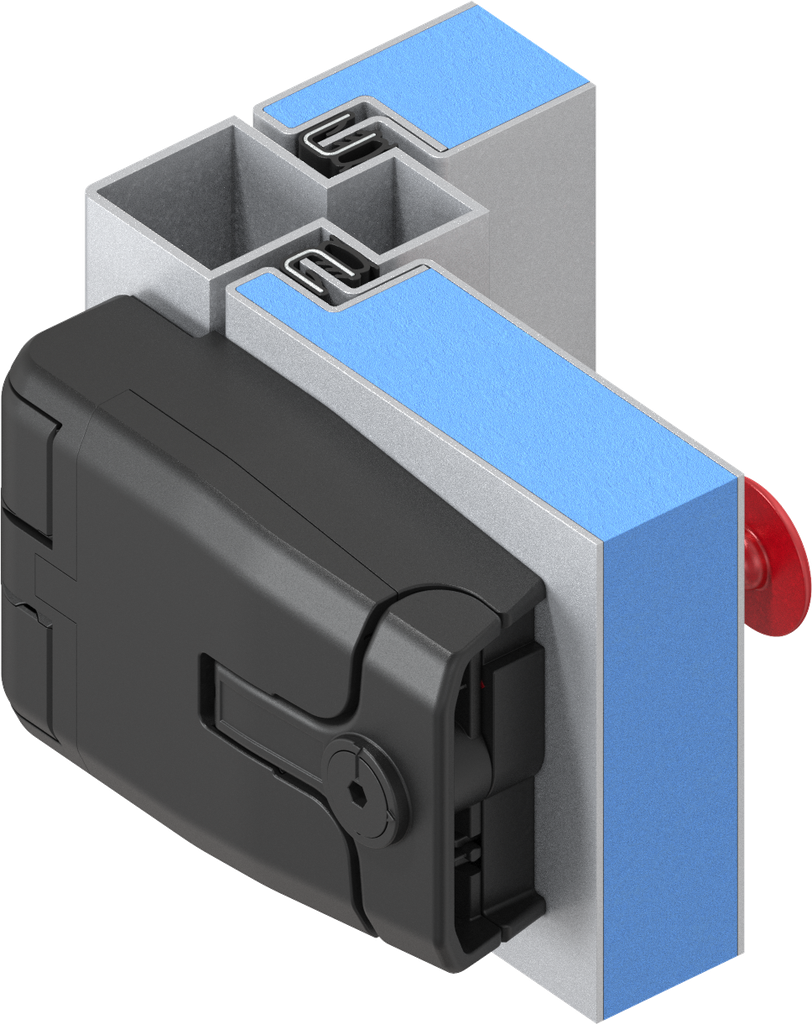

Latch-Hinge with pressure relief, insert hexagon female SW 4, Polyamide GF black

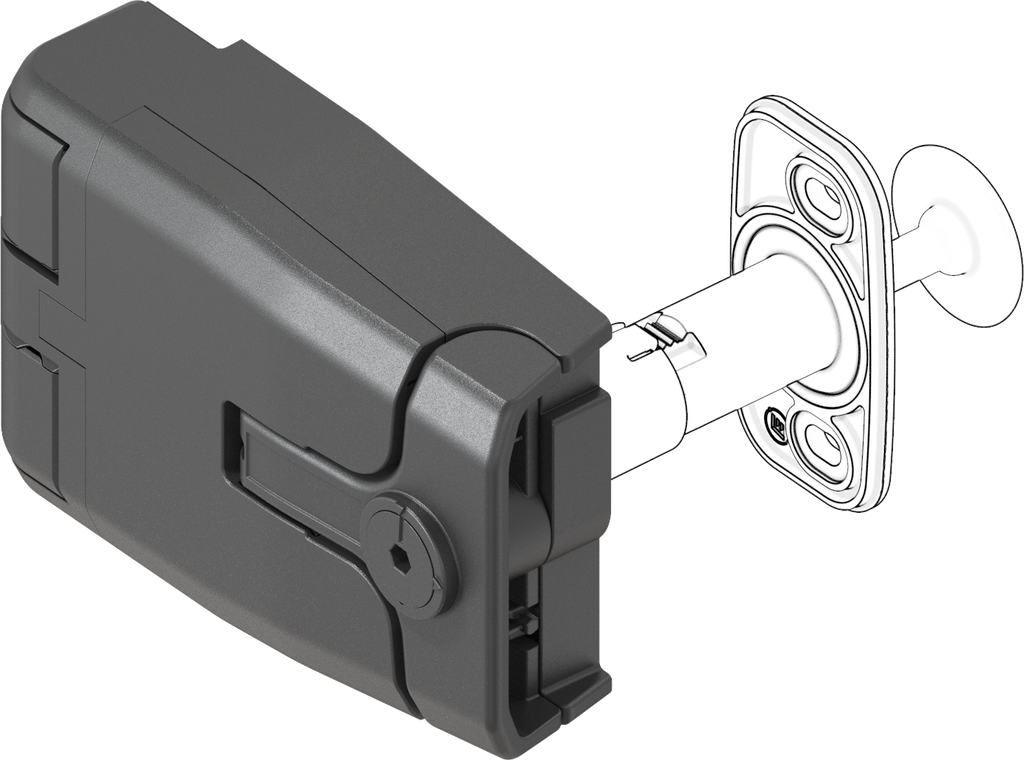

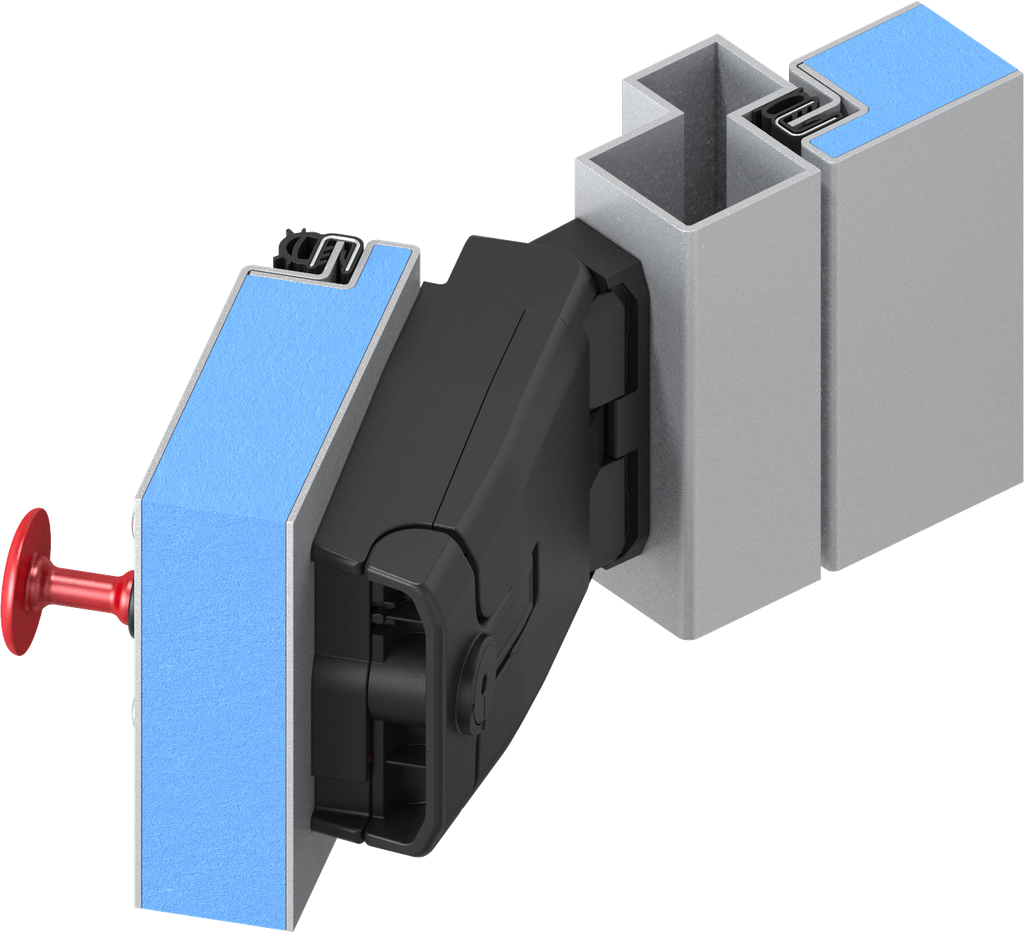

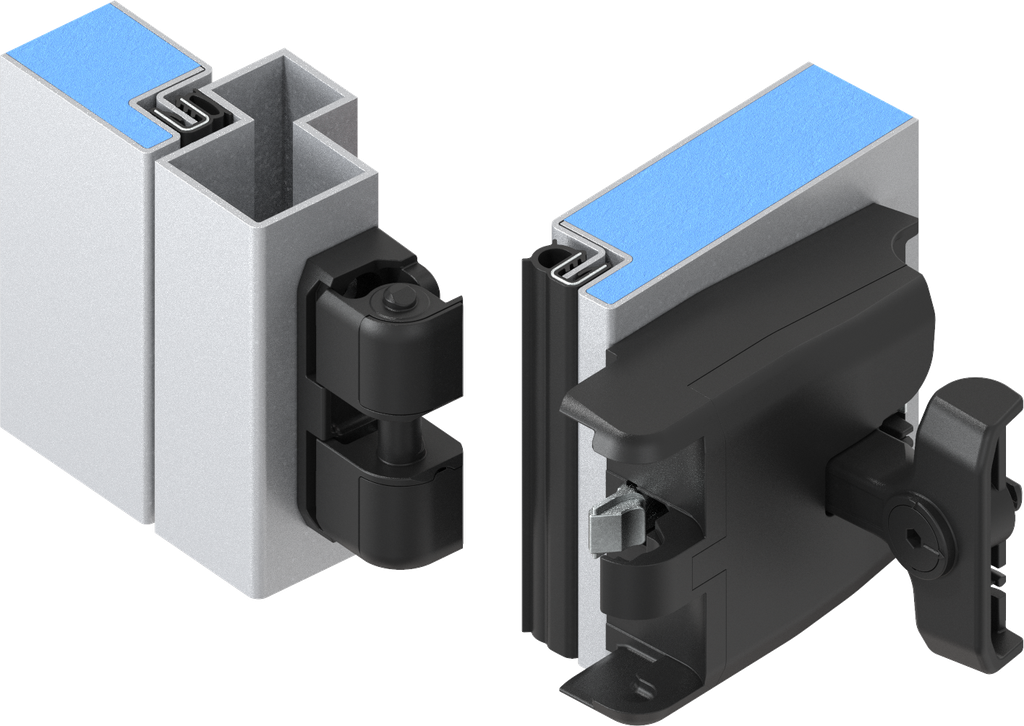

Latch-Hinge without pressure relief, insert hexagon female SW 4, Polyamide GF black; 1091-U190

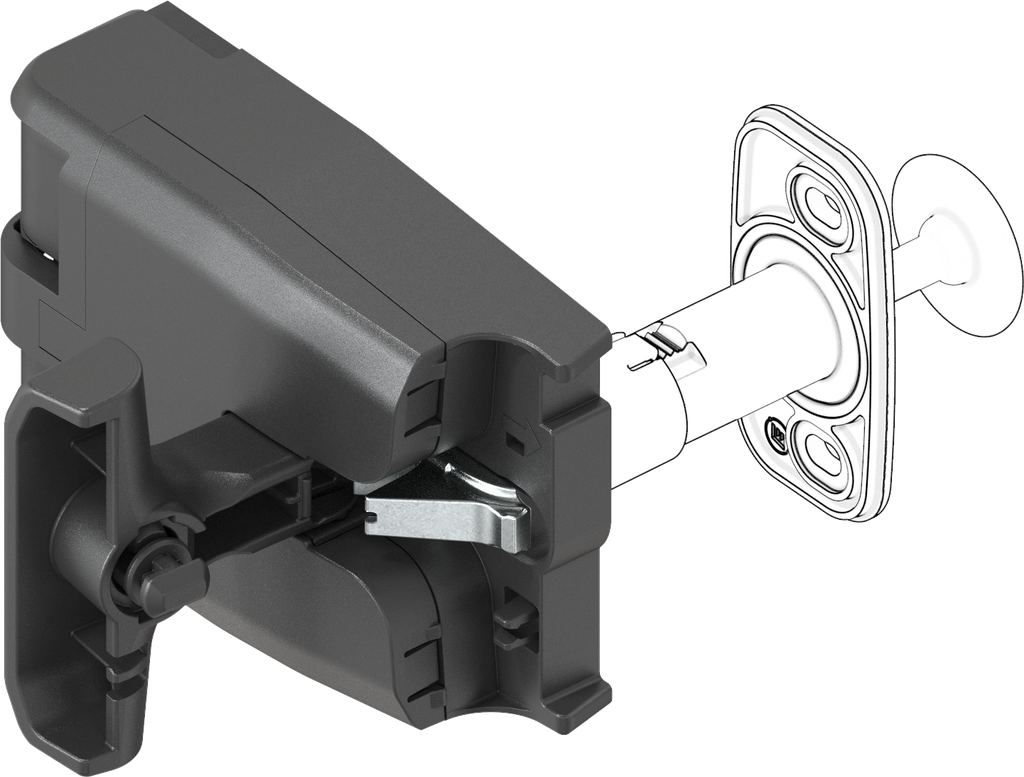

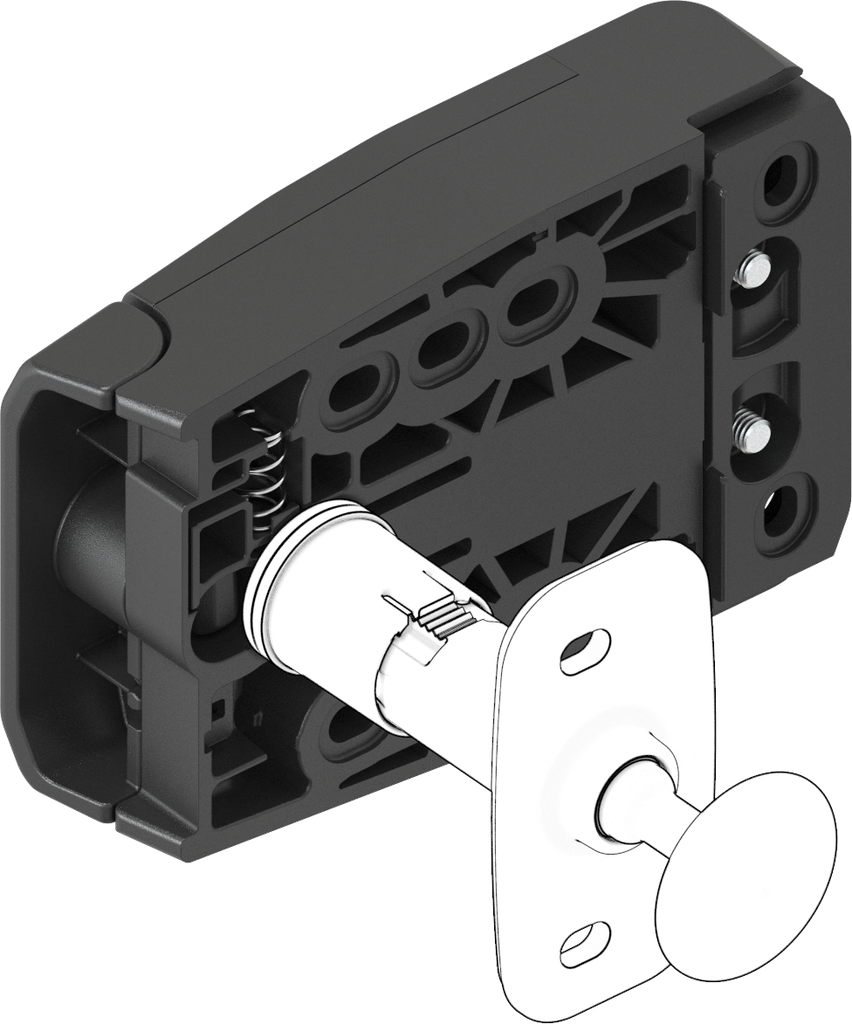

Prepared for emergency opening
Product Benefits:
- The contact pressure of the closed door can be adjusted by 3 mm during operation
- Due to the favourable centre of rotation of the handle a compression of the seal of 5 mm is possible with low opening and closing force
- The door / panel can be removed by unlatching the handles on both sides
- 3D adjustable (tolerance compensation)
- Latch-Hinge can be mounted as one piece with the door / panel in place Right or left hinged
- Hinge 180° opening angle Optionally, available with safety function "pressure relief" 1x per locking side
- Patented
- ATEX compliant explosion protection version available on request
Product information:

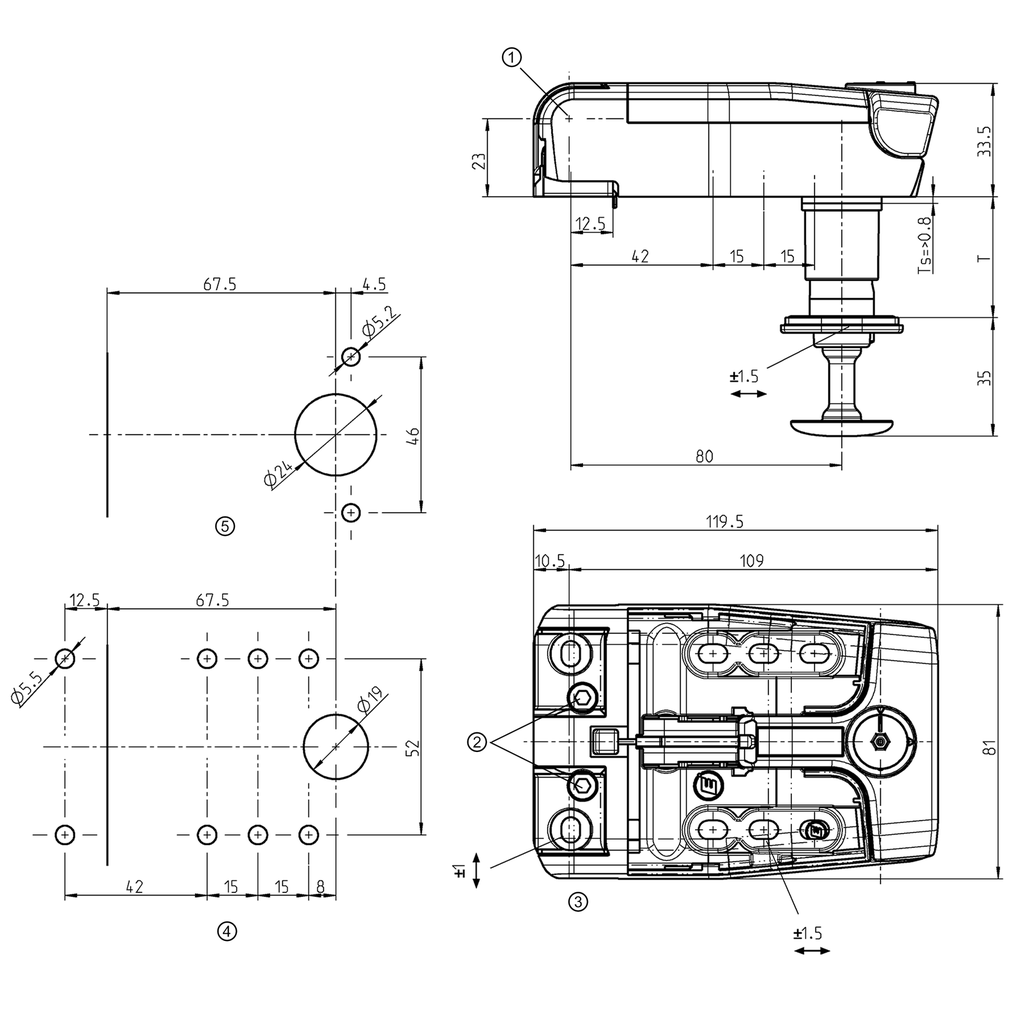

① = Centre of rotation

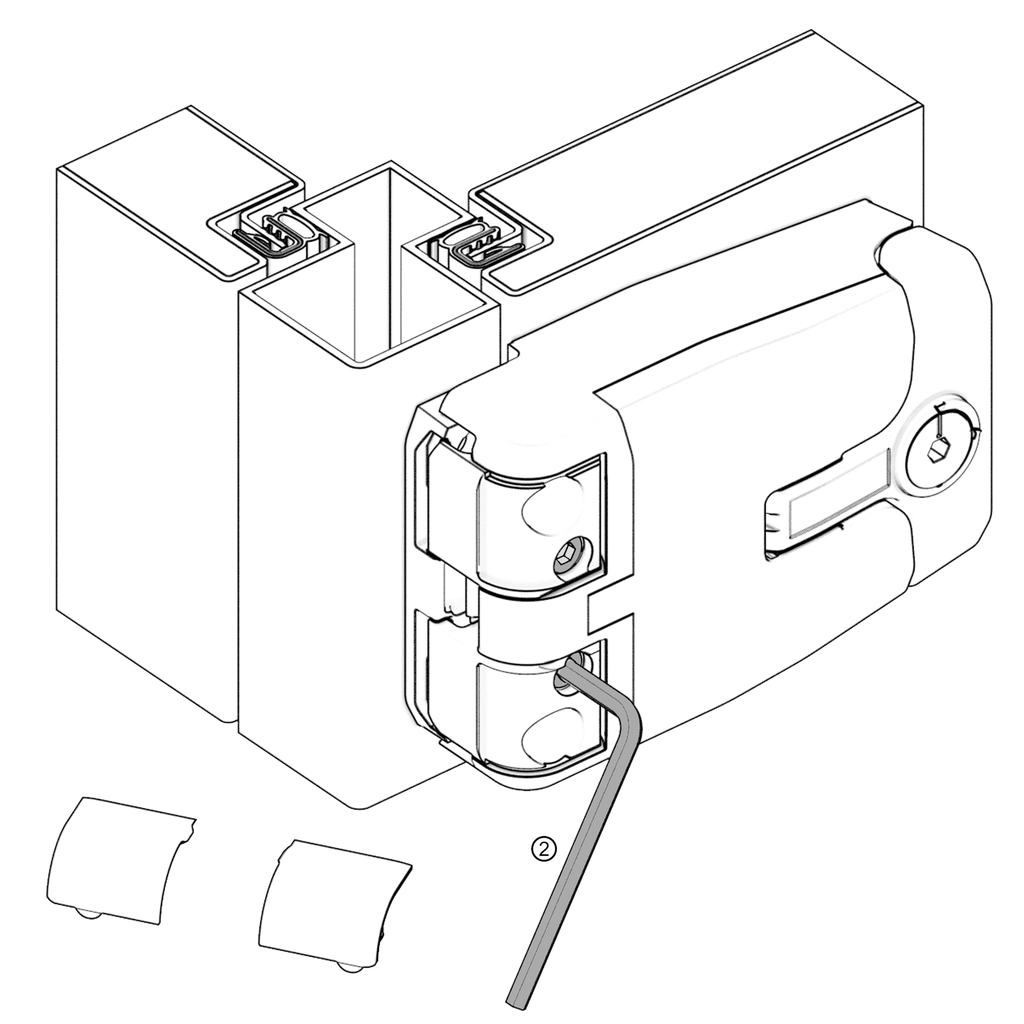

② = Screws hexagon female SW 4 for height adjustment; compression adjustable on frame part
③ = View without screw covers
④ = Cut out front
⑤ = Cut out back
Internal Reference:
1091-U190
Product Type:
Other latch
Program:
1091
Material of the module :
Polyamide GF
Surface of the module:
black
Article with property rights:
Yes
Detachable:
without tools
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Fixing type of housing :
nut fixing
Type of actuation:
Hexagon female SW 4
Mounting Positions :
Outside the sealing
Adjustable :
3D
Max Opening Angle:
180°
Locking set:
Insert
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
Lock Type:
Latch-Hinge
