Latch-Hinge small without pressure relief, Polyamide GF black
Latch-Hinge small without pressure relief, Polyamide GF black
Emergency opening for Latch-Hinge, Polyamide GF black
Emergency opening for Latch-Hinge, Polyamide GF black

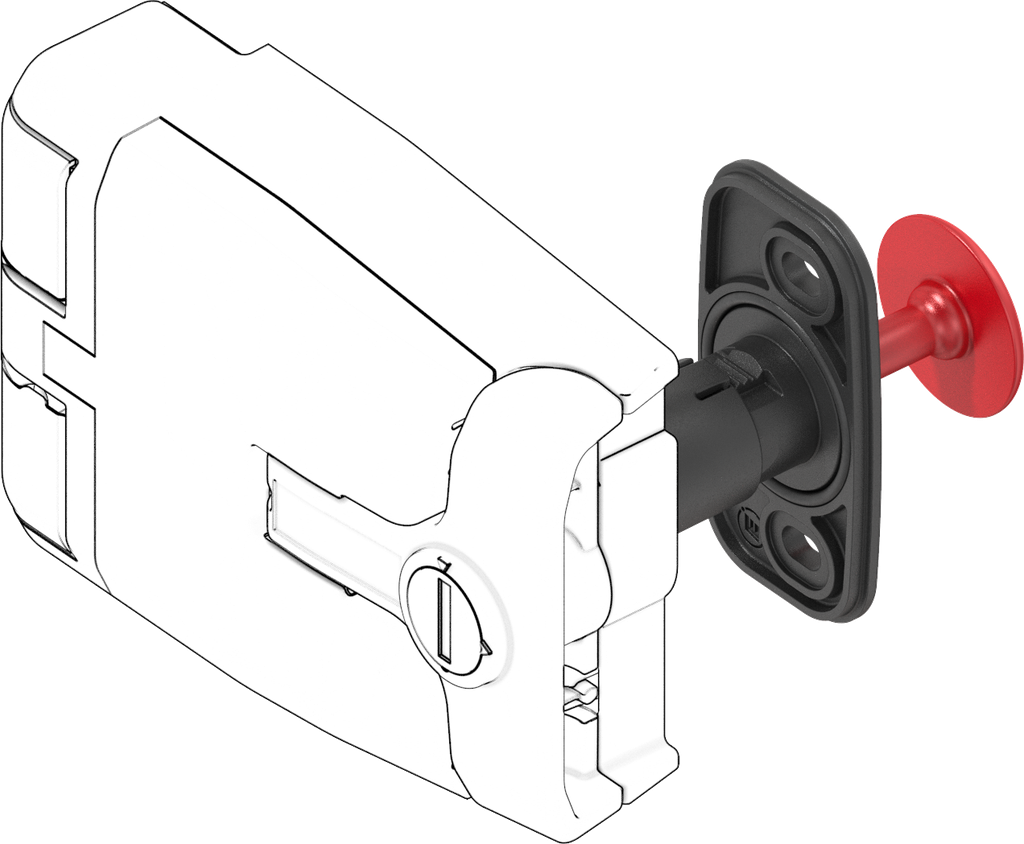

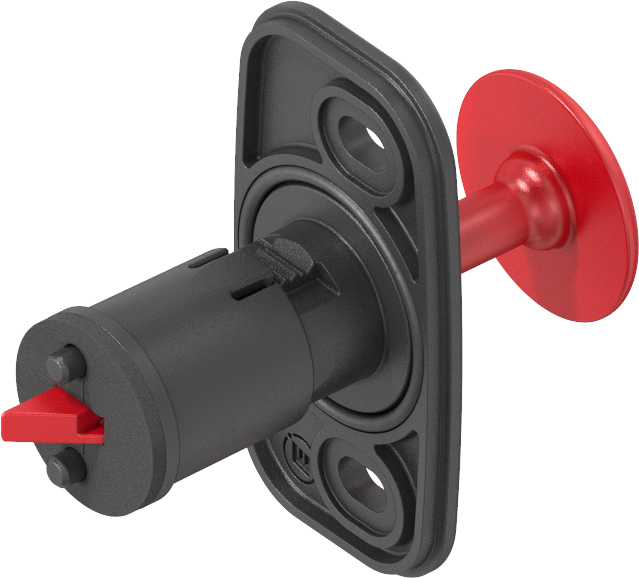

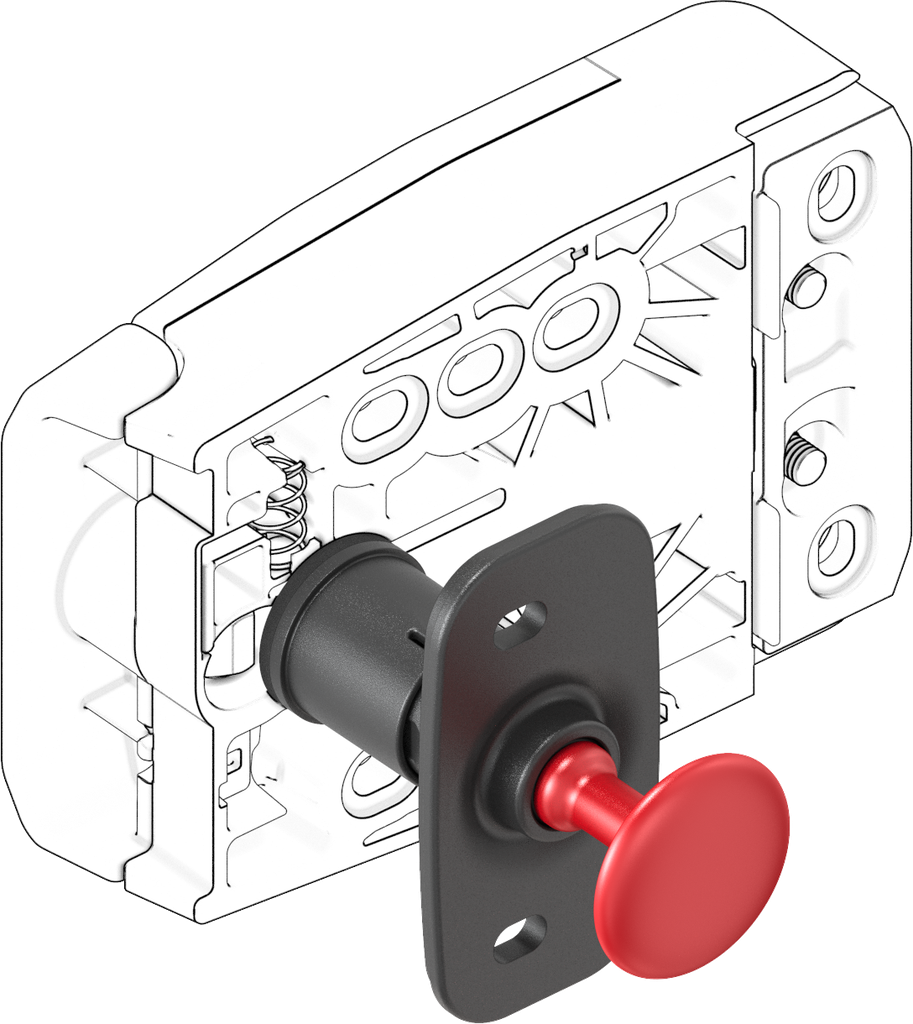

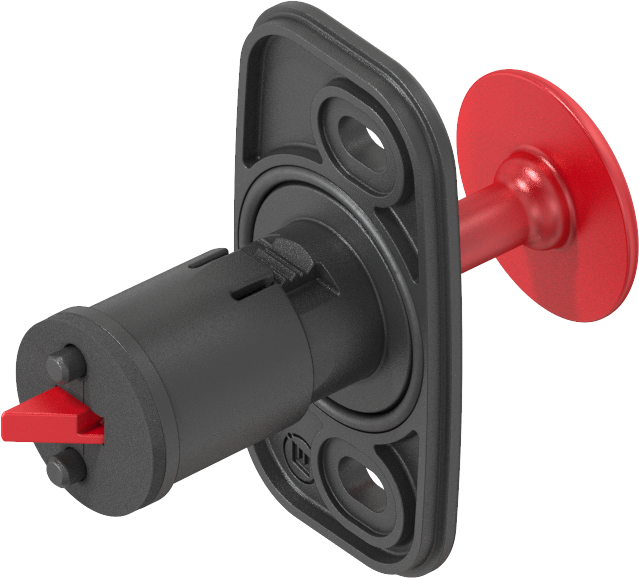

Emergency opening for Latch-Hinge, Polyamide GF black; 1091-U175-30

https://www.emka.com/products/1091-u175-30 https://www.emka.com/web/image/product.template/62177/image_1920?unique=f86255a

Clearance T = 30 + 4.5 mm

    This combination does not exist.

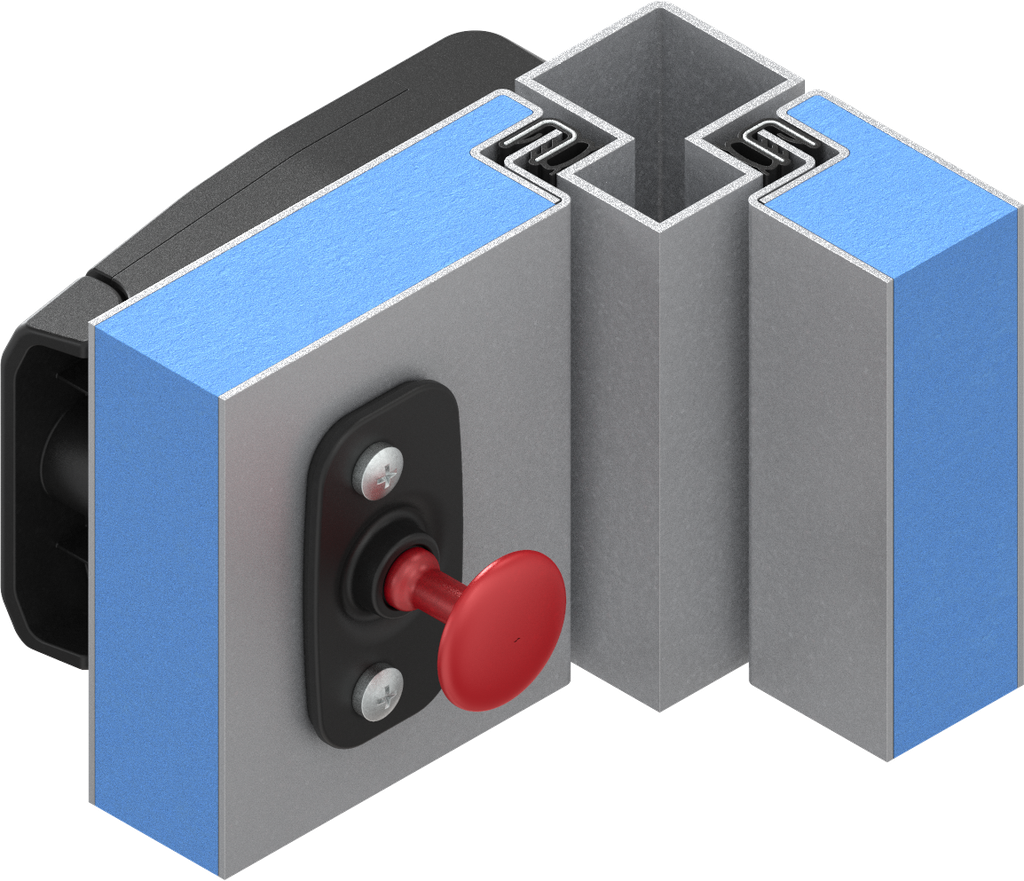

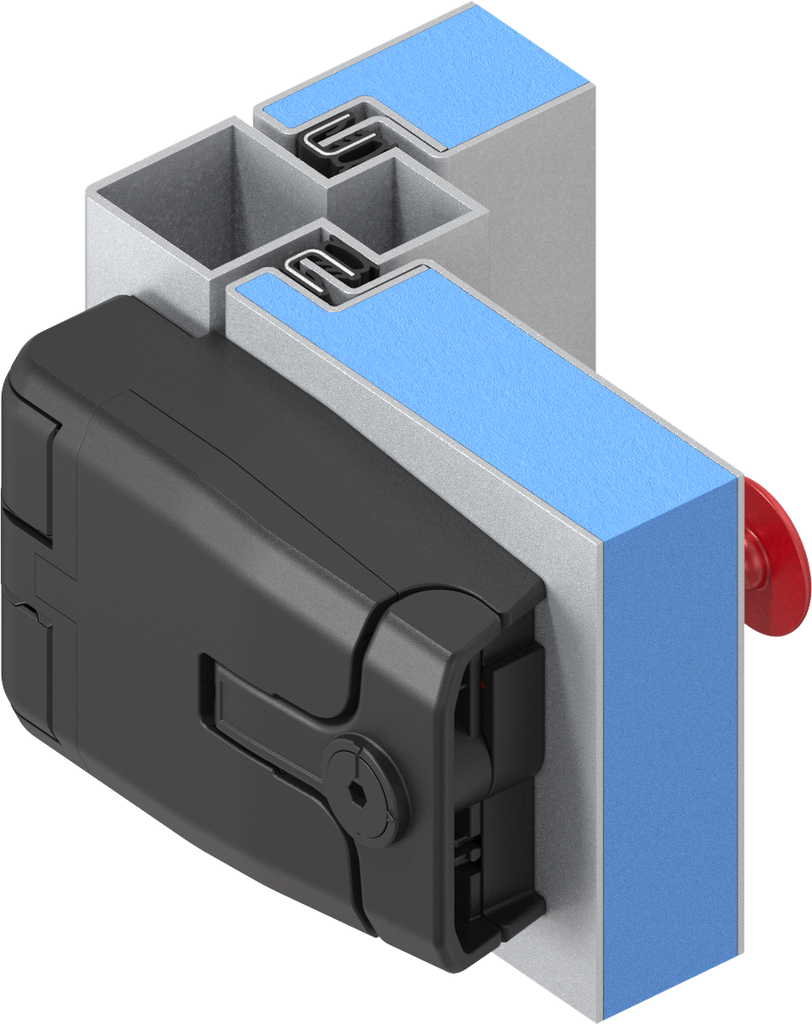

    Single cabinets In-line cabinets with single door Left Right
    Contact Us

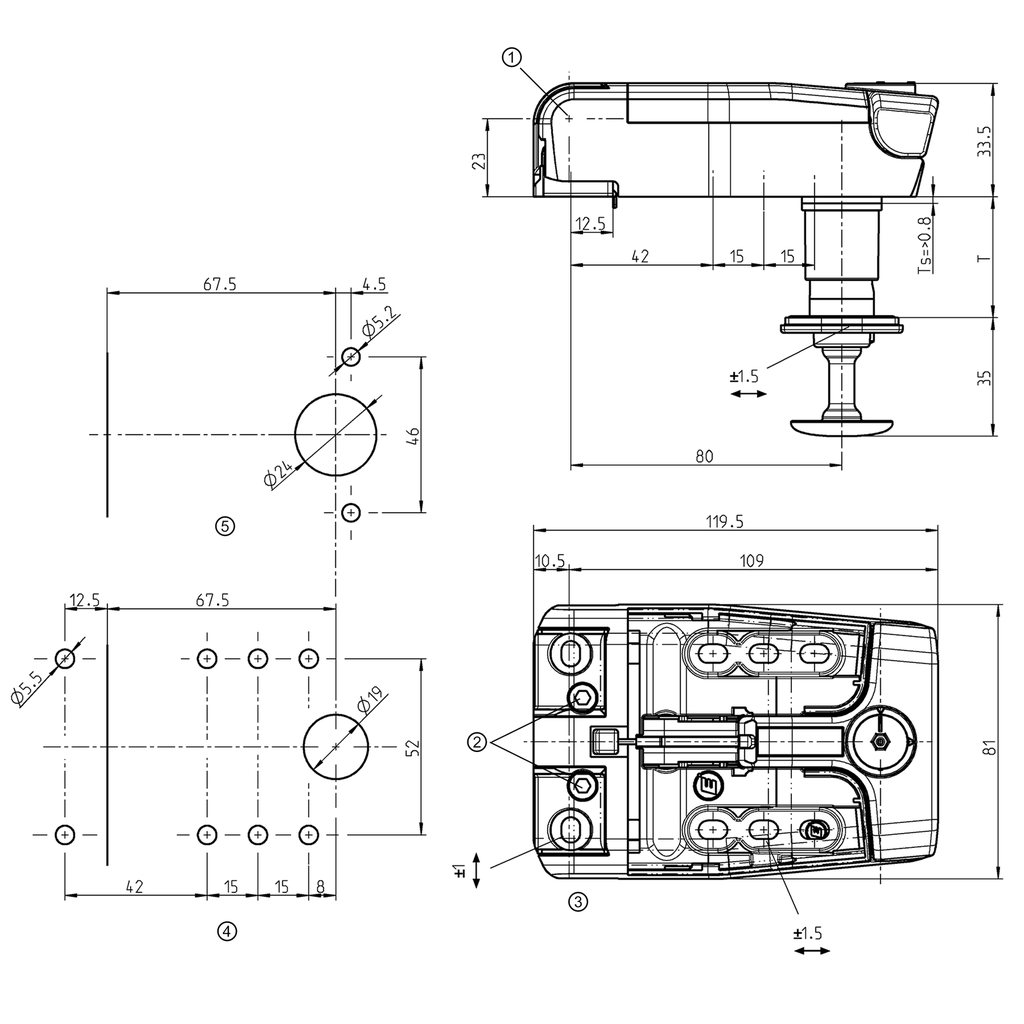

    Product information:

    ① = Centre of rotation
    ② = Screws hexagon female SW 4 for height adjustment; compression adjustable on frame part
    ③ = View without screw covers
    ④ = Cut out front
    ⑤ = Cut out back
    Internal Reference: 1091-U175-30
    Product Type: Emergency opening
    Program: 1091
    Material of the module : Polyamide GF
    Surface of the module: black
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door Version : Left,Right
    Lock Type: Latch-Hinge
    No Specifications
    View All Products
    Other latch
    Here you can find the product data sheets and CAD files of this product
