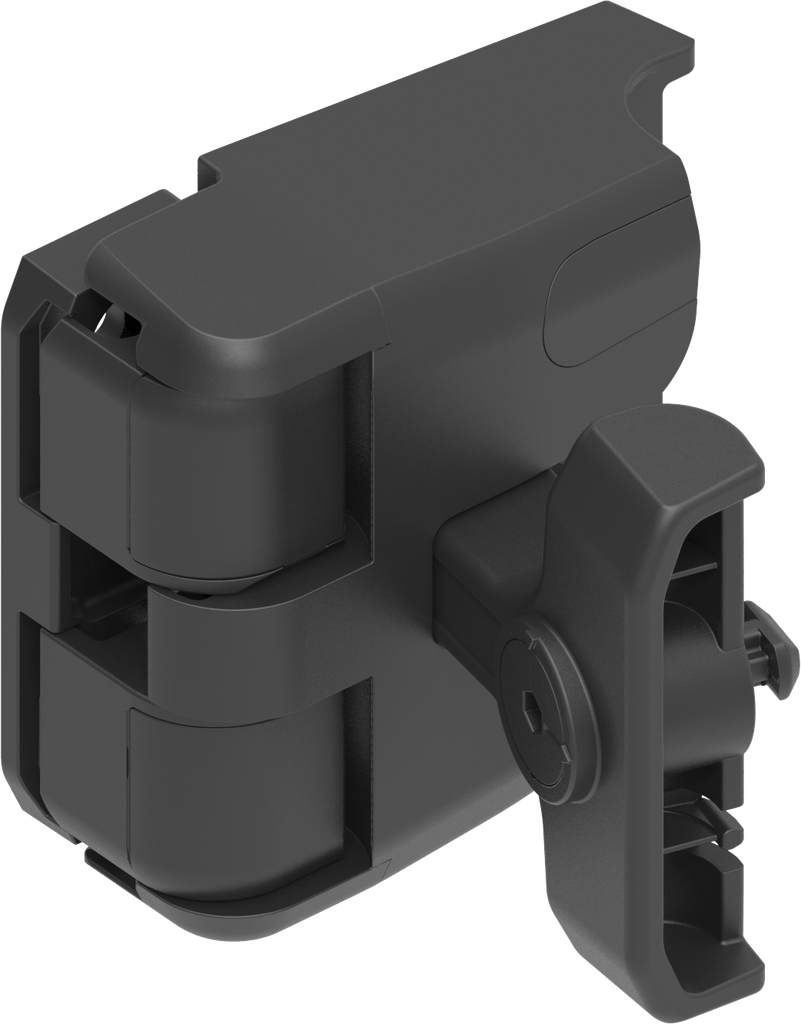

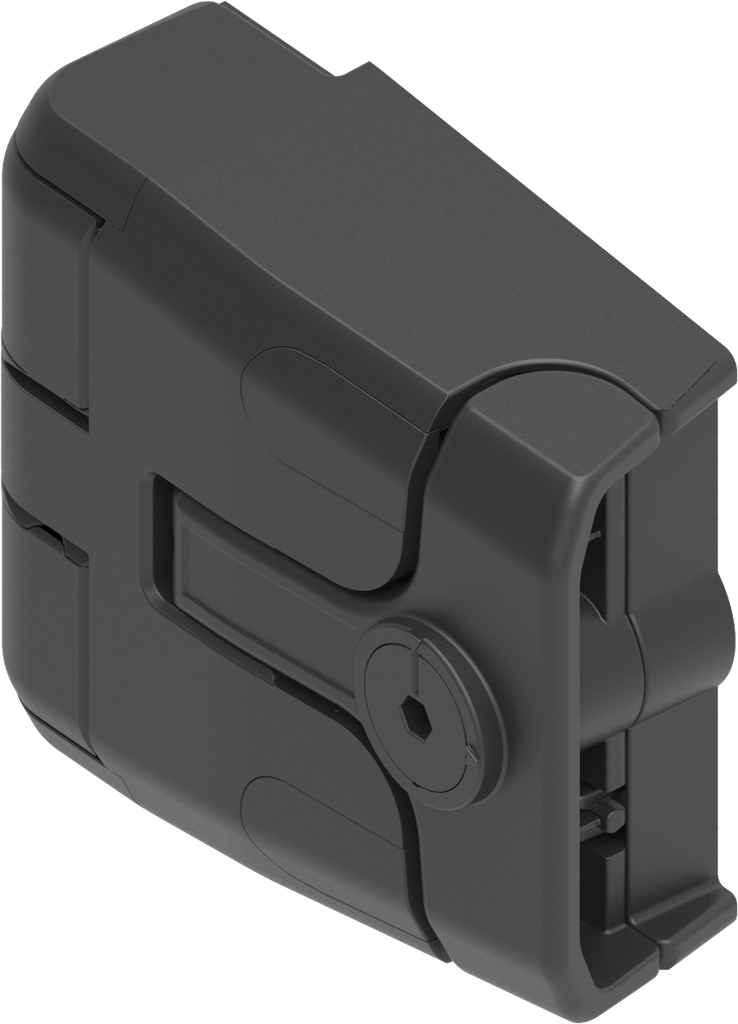

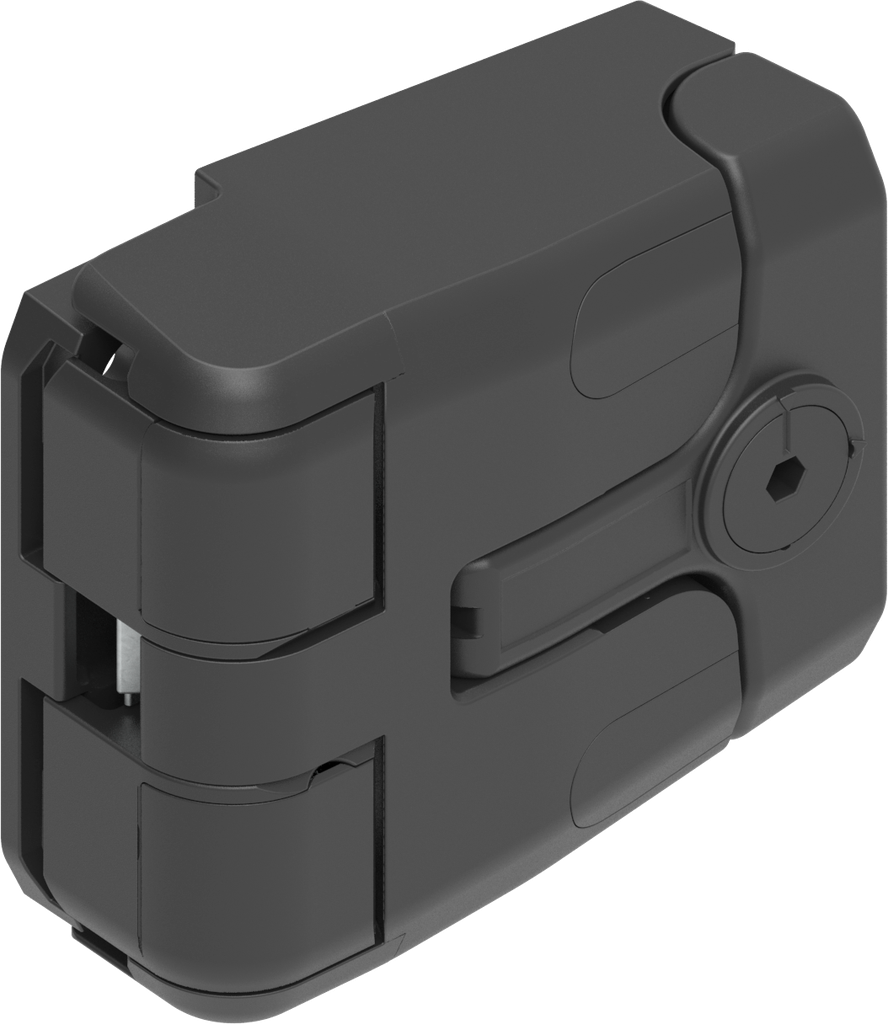

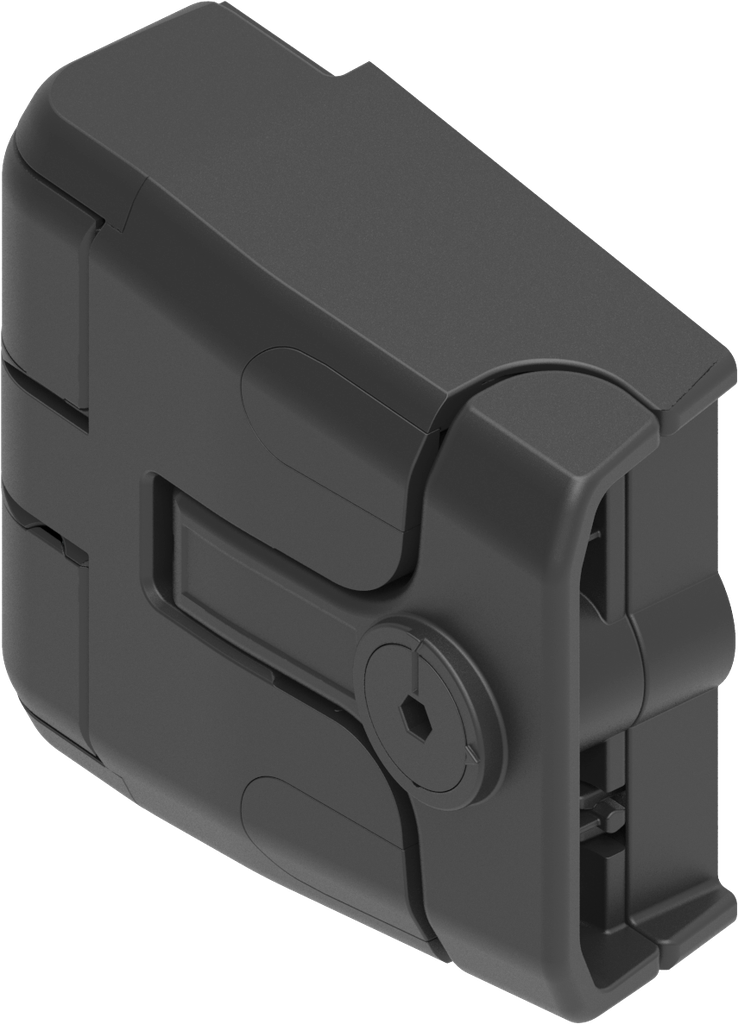

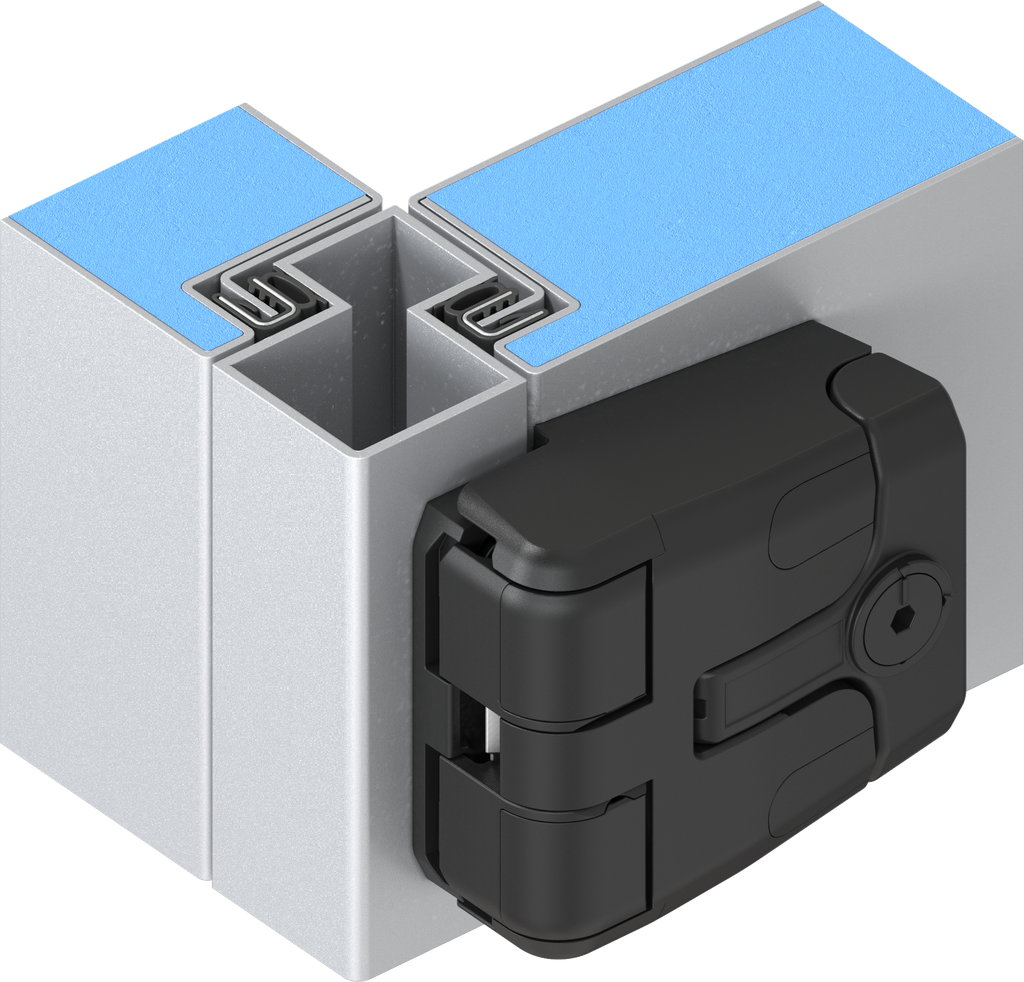

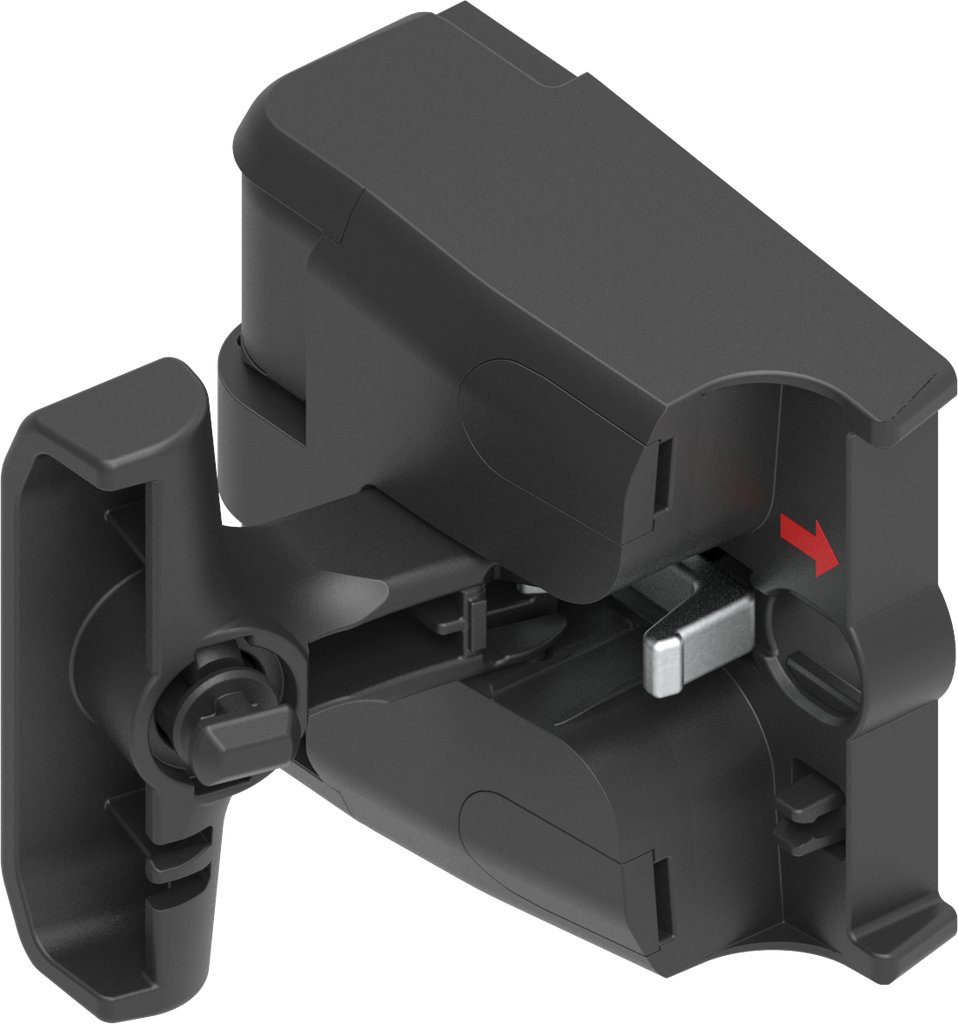

Latch-Hinge without pressure relief, hexagon female SW 4, Polyamide GF black
Latch-Hinge without pressure relief, keyed 9081, Polyamide GF black
Product Benefits:

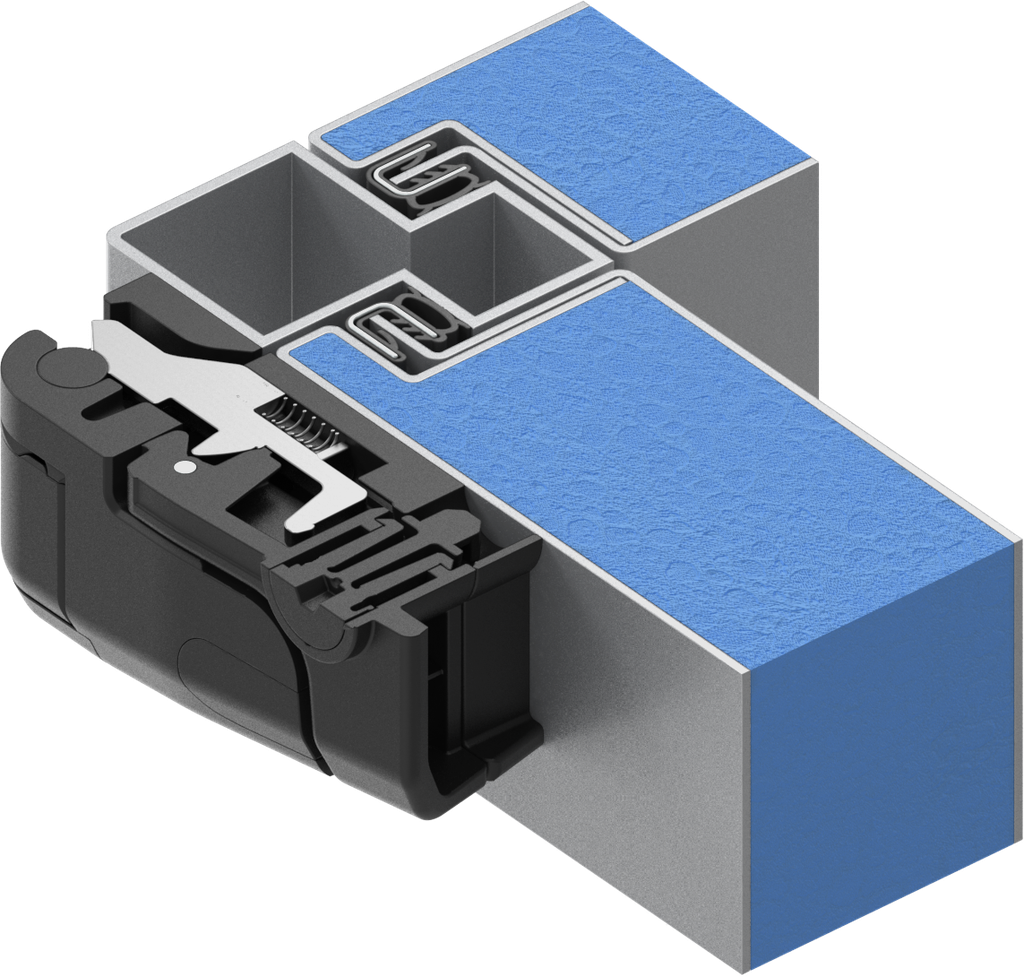

- When the door is closed, the latch is adjustable (3 mm) to achieve perfect alignment
- Compression (5 mm) with low opening and closing force due to ergonomic closing with the handles

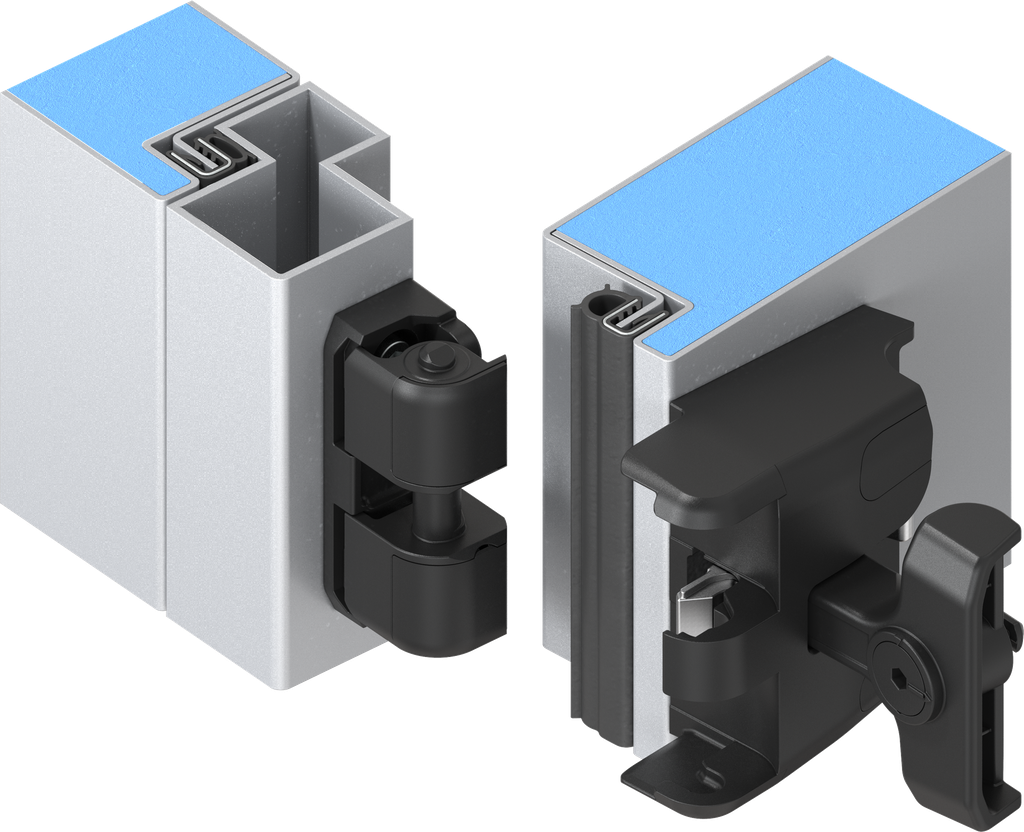

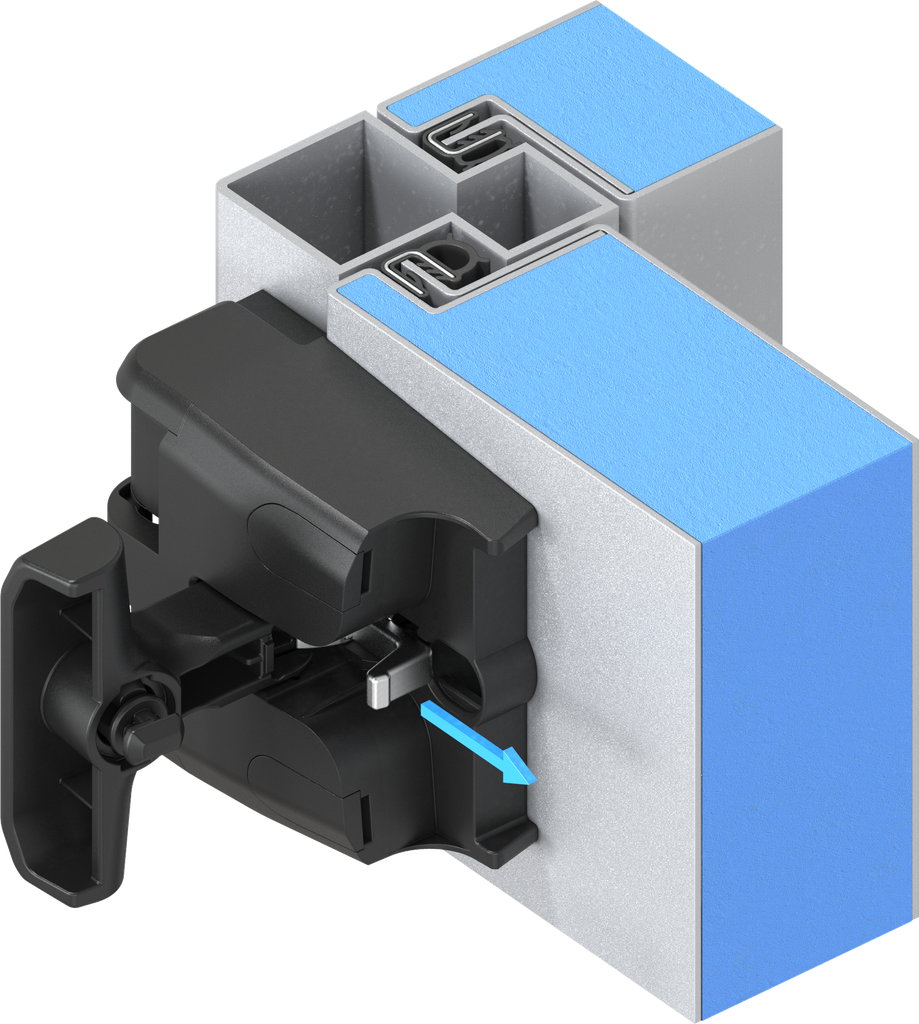

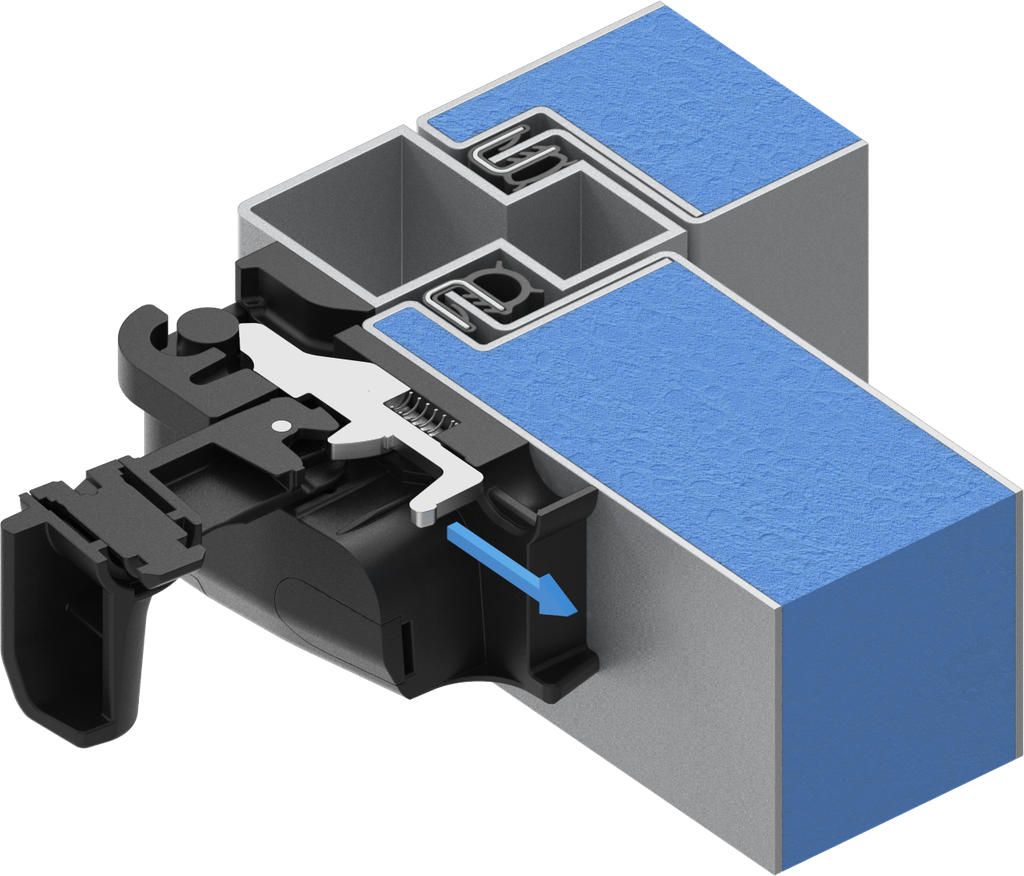

- Door / panel can be removed by unlatching the handles on both sides
- 3D adjustable (tolerance compensation)
- Latch-Hinge can be mounted as one piece with the door / panel in place
- Right or left hinged

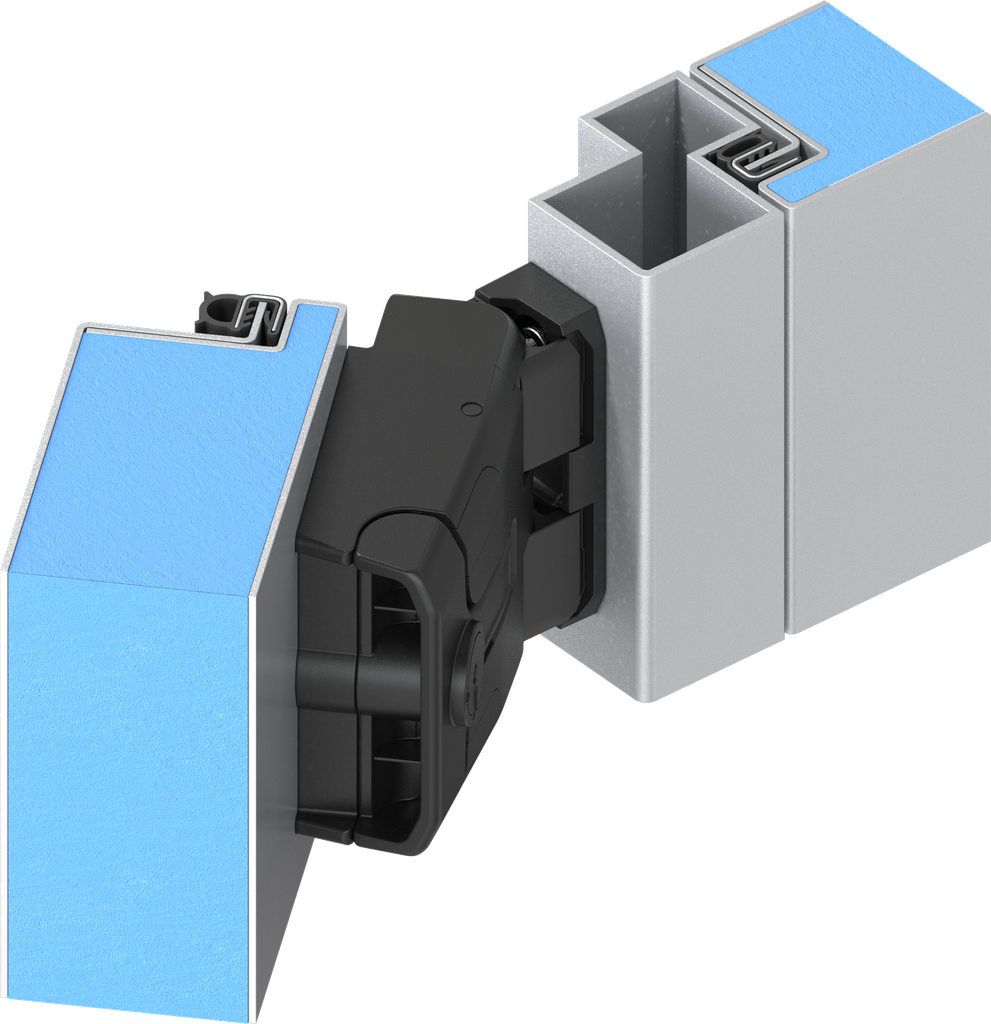

- Hinge 180° opening angle
- Optionally, available with safety function "pressure relief" 1x per locking side
- Patented
Product information:
Use latch-hinge with pressure relief 1x per locking side

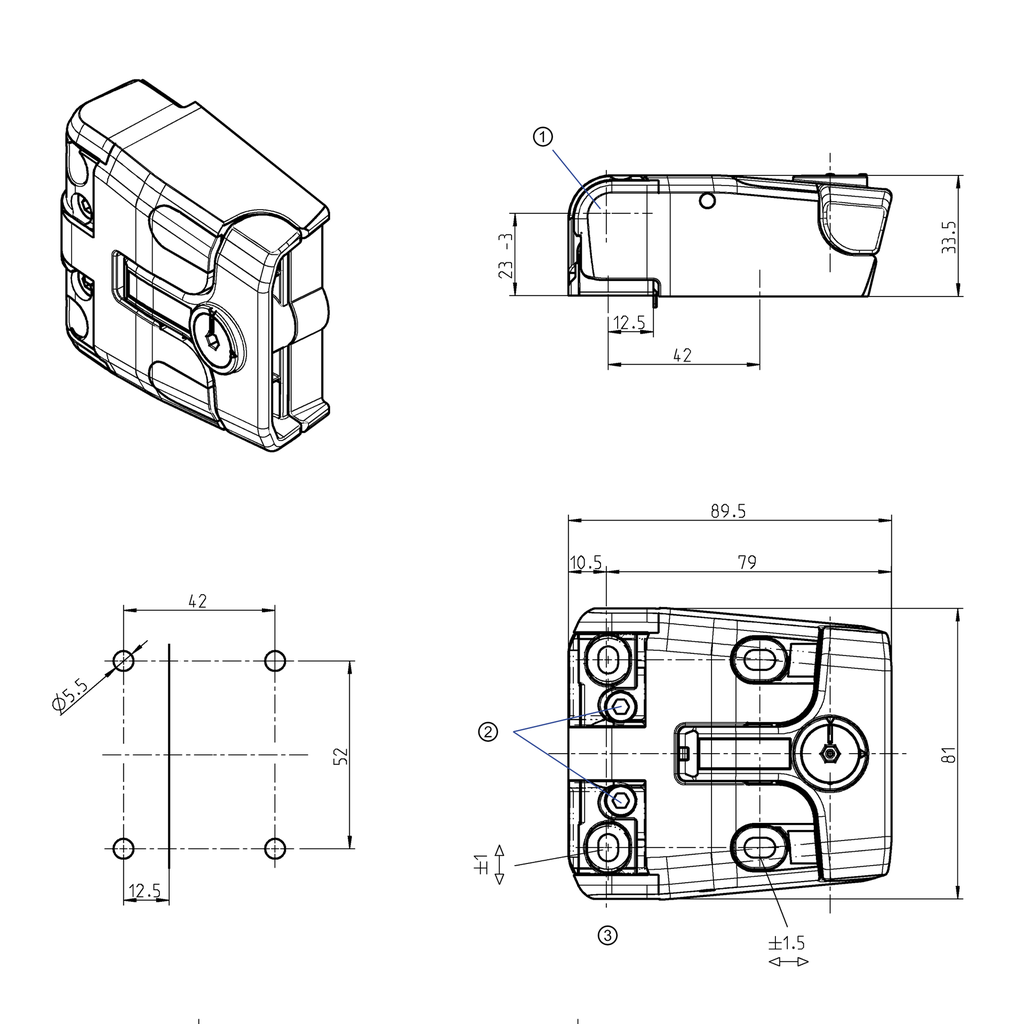

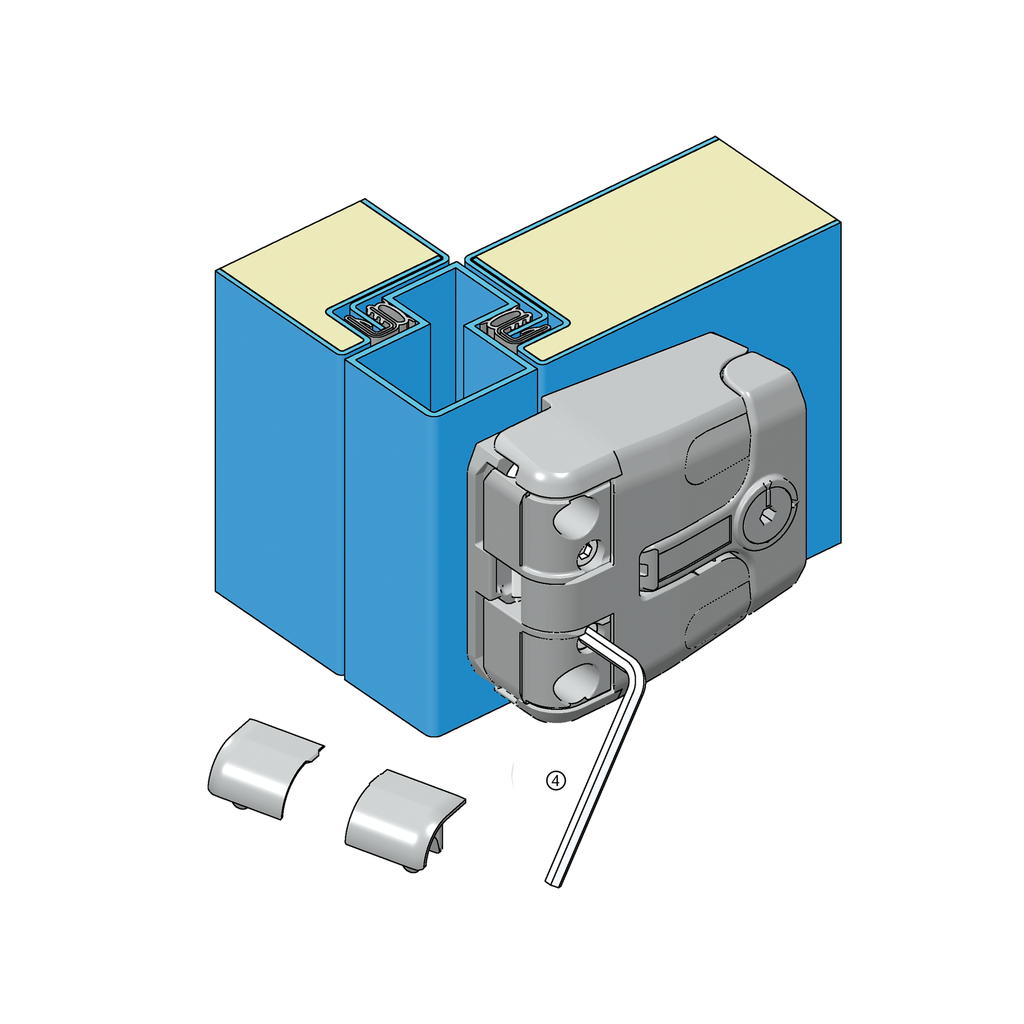

① = Centre of rotation

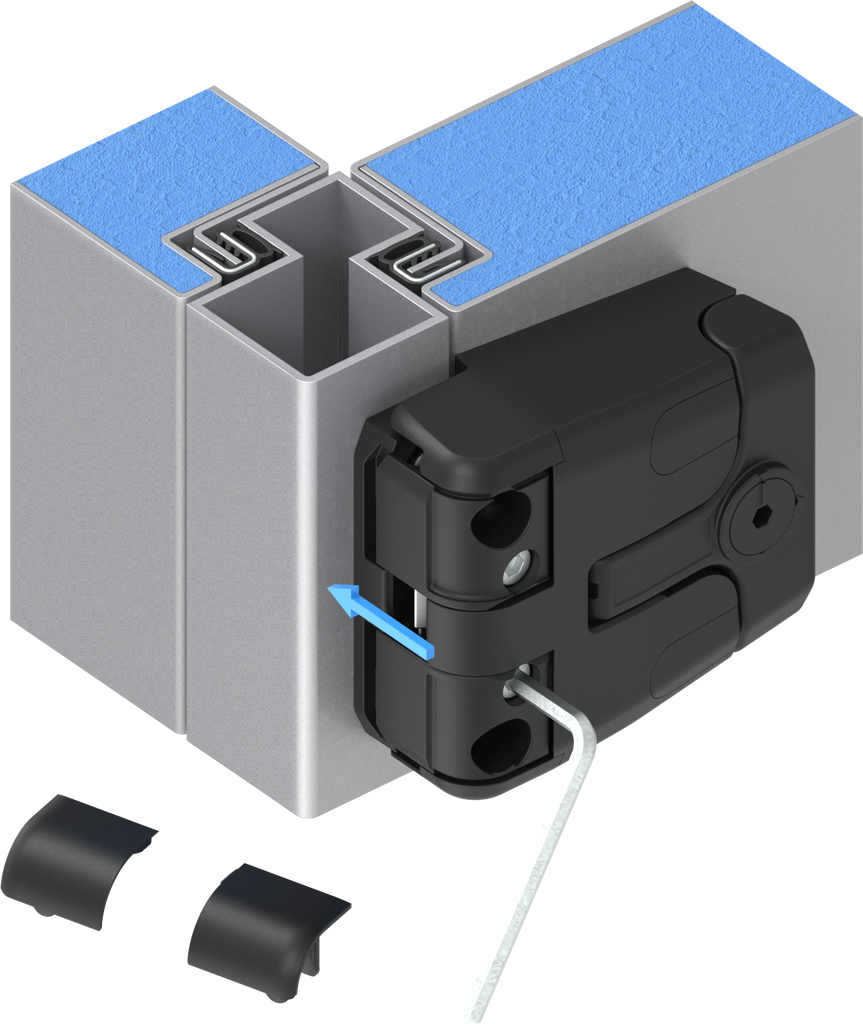

② = Screws hexagon female SW 4 for height adjustment
③ = View without screw covers
④ = Compression adjustable on hinge frame part
Internal Reference:
1091-U147
Product Type:
Other latch
Program:
1091
Material of the module :
Polyamide GF
Surface of the module:
black
Article with property rights:
Yes
Detachable:
without tools
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Type of actuation:
Hexagon female SW 4
Mounting Positions :
Outside the sealing
Adjustable :
3D
Compression Value :
5 mm
Max Opening Angle:
180°
Locking set:
Insert
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
Lock Type:
Latch-Hinge
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
