Side panel latch, Polyamide GF black
Side panel latch, Polyamide GF black
Latch-Hinge without pressure relief, hexagon female SW 4, Polyamide GF black
Latch-Hinge without pressure relief, hexagon female SW 4, Polyamide GF black

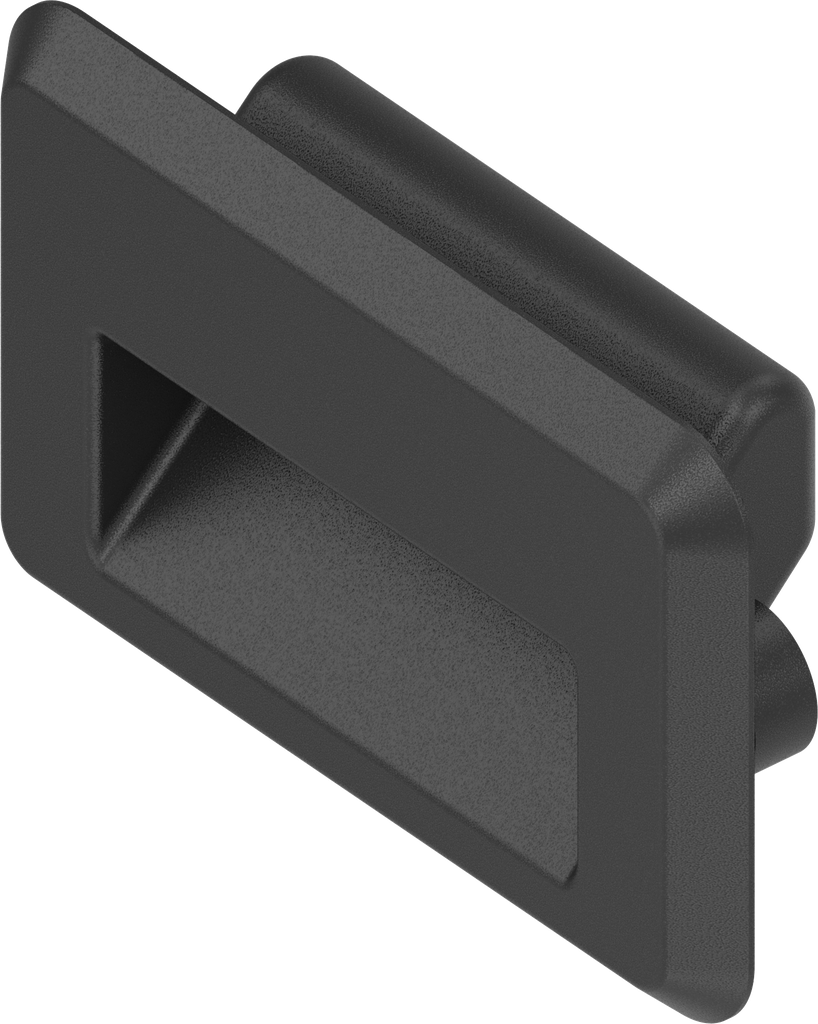

Recessed grip, Polyamide GF black; 1091-U144

https://www.emka.com/products/1091-u144 https://www.emka.com/web/image/product.template/62162/image_1920?unique=088b088

    This combination does not exist.

    Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1091-U144
    Product Type: Handle
    Material: Polyamide GF
    Program: 1091
    Surface: black
    Fixing type of handle: screw-on from inside
    Foamed gasket: Yes
    Handle Art(2): Pull
    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 3 mm
    No Specifications
    No Matching Products

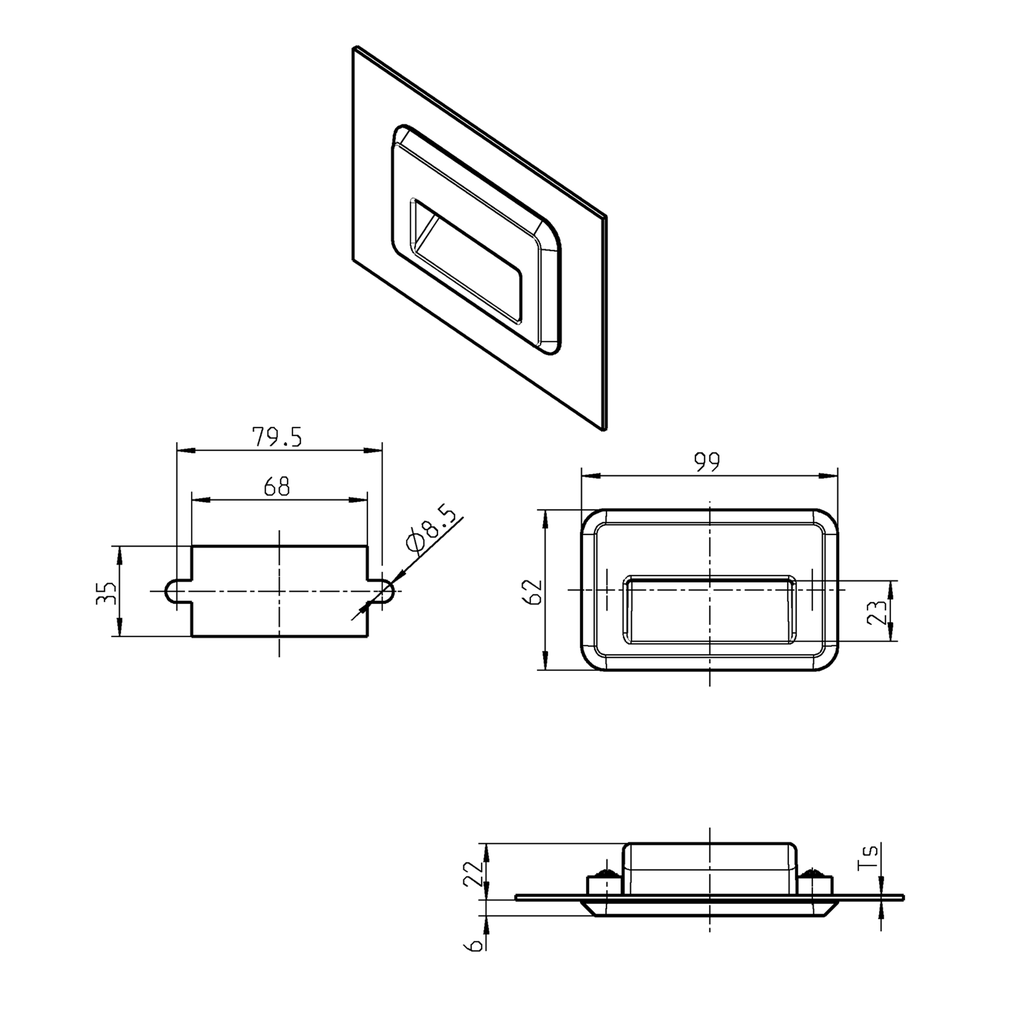

    Here you can find the product data sheets and CAD files of this product
    CAD file | 1091-U144_igs
    CAD file | 1091-U144_stp
