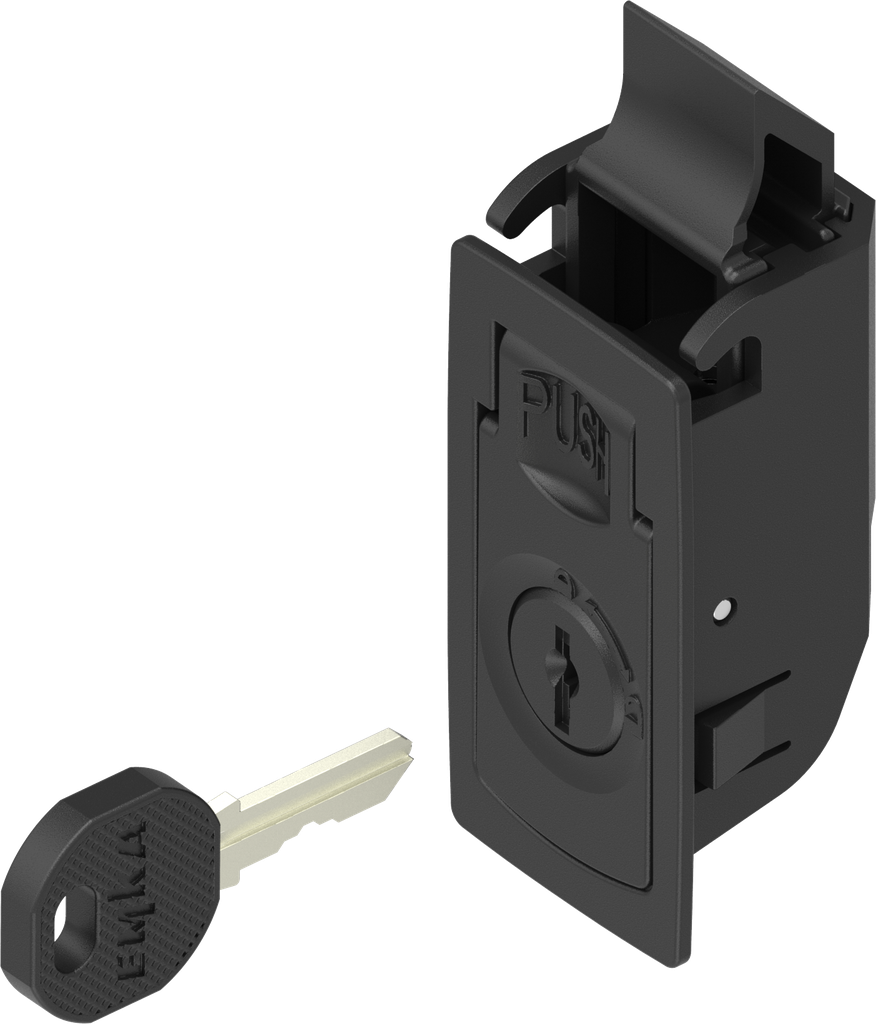

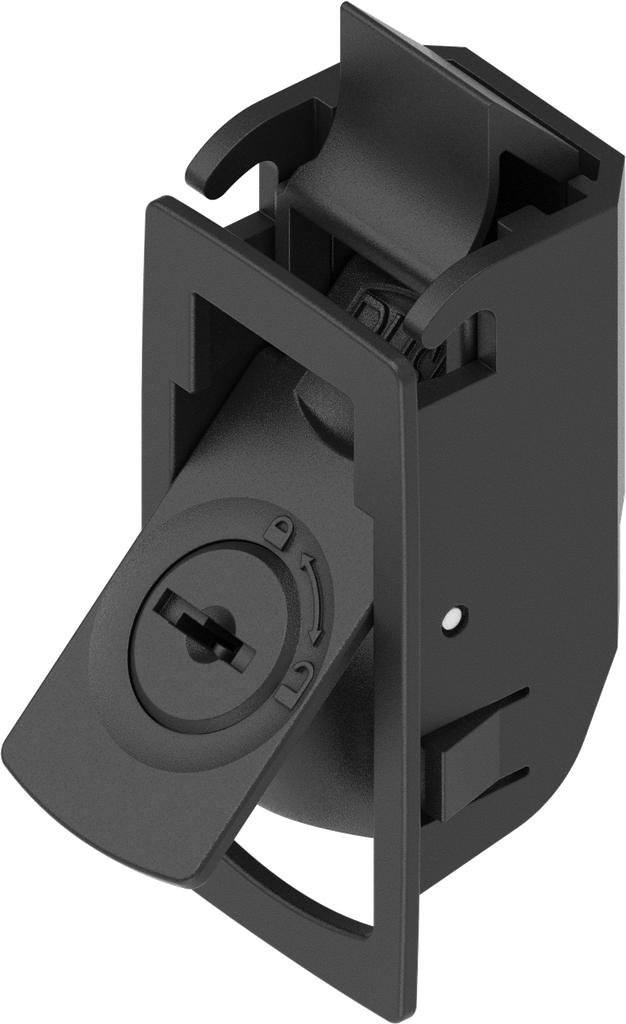

Side panel latch, keyed different, Polyamide GF black; 1091-U143-1V
Internal Reference:
1091-U143-1V
Product Type:
Other latch
Program:
1091
Catalog sheet:
8A-440
Material of the module :
Polyamide GF
Surface of the module:
black
Fixing type of housing :
clip-in
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
1.40 mm
Locking set:
Round cylinder
Door Version :
Left,Right
Lock Type:
Side panel latch
No Specifications
View All Products

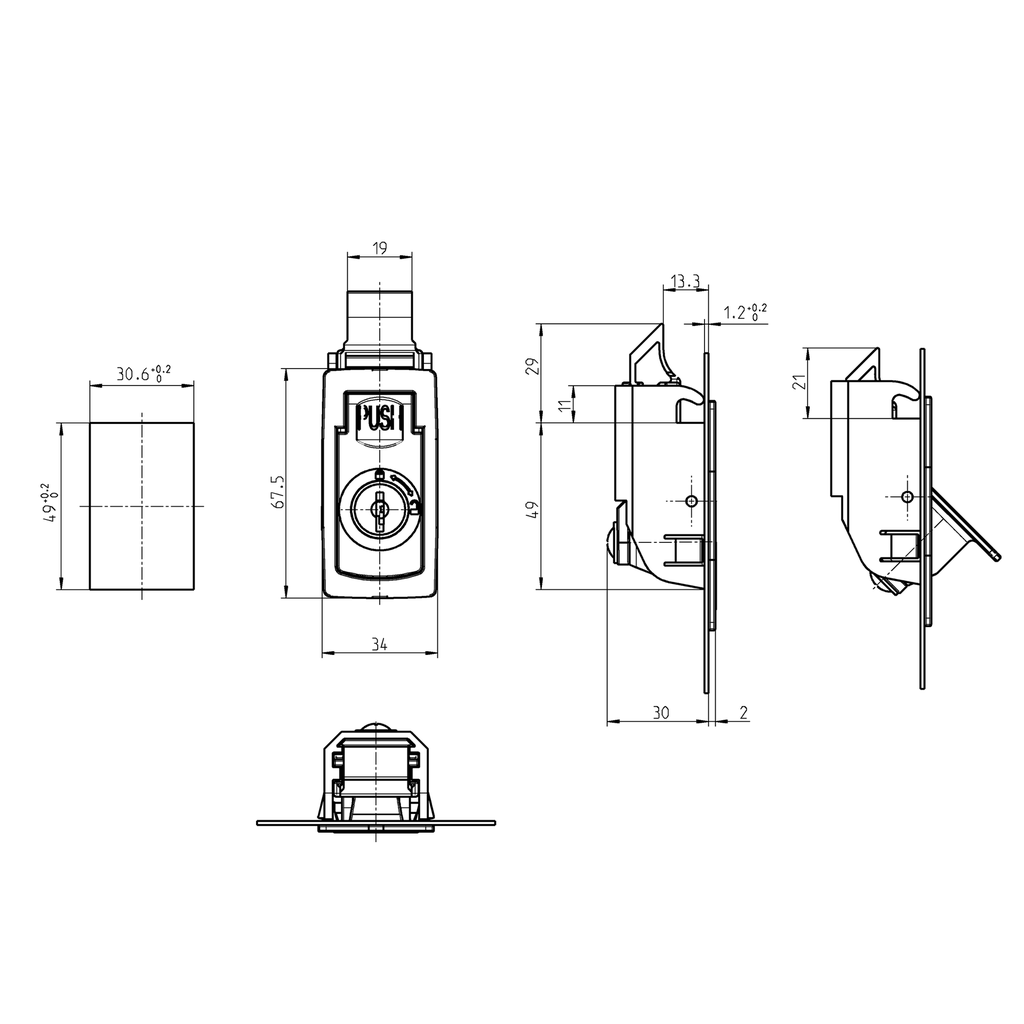

Here you can find the product data sheets and CAD files of this product
