Side panel latch, keyed different, Polyamide GF black
Side panel latch, keyed different, Polyamide GF black
Recessed grip, Polyamide GF black
Recessed grip, Polyamide GF black

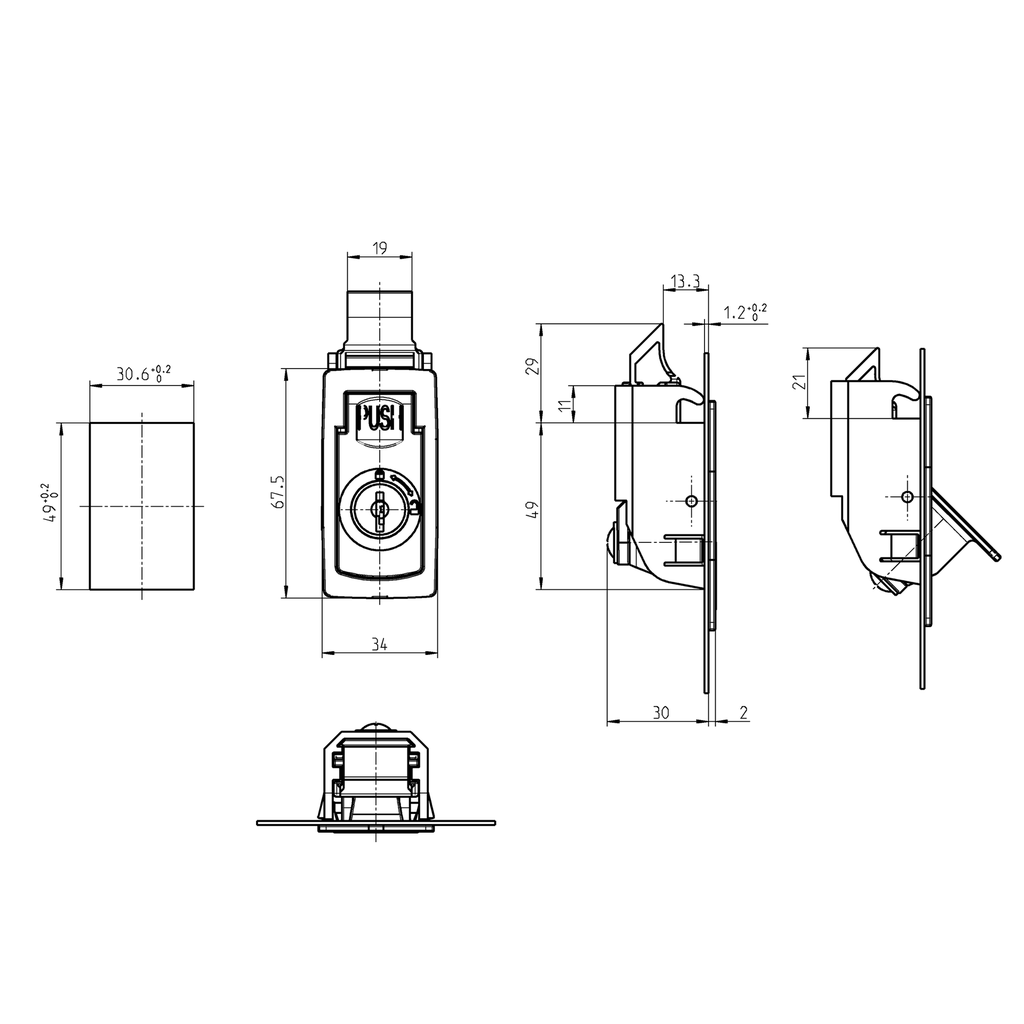

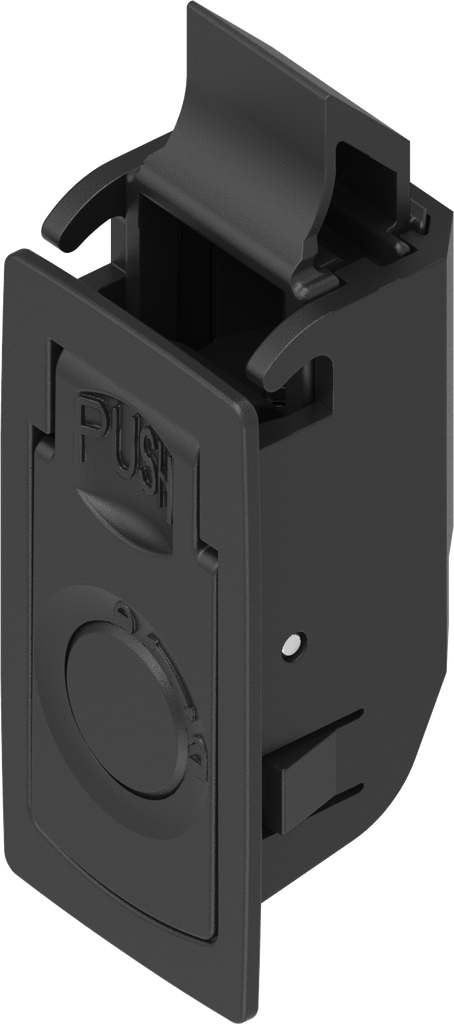

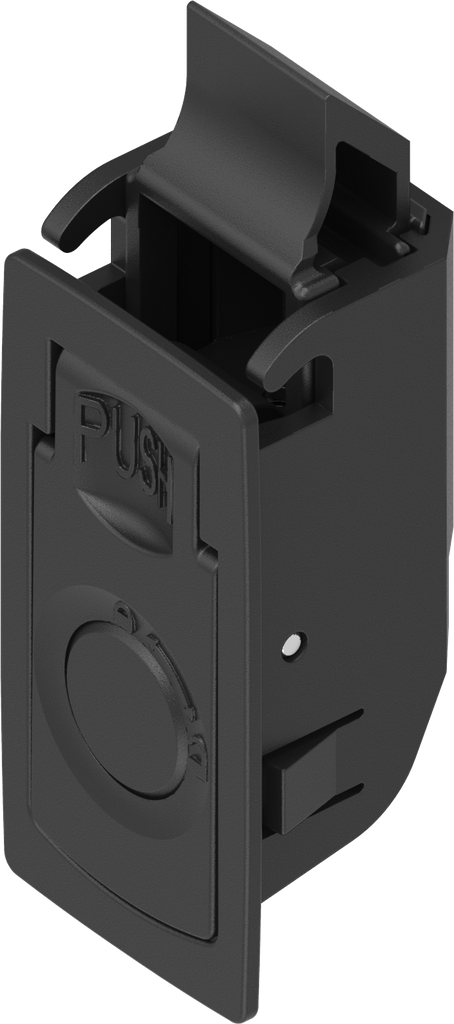

Side panel latch, Polyamide GF black; 1091-U143-02

https://www.emka.com/products/1091-u143-02 https://www.emka.com/web/image/product.template/62161/image_1920?unique=ad0371a

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1091-U143-02
    Product Type: Other latch
    Program: 1091
    Catalog sheet: 8A-440
    Material of the module : Polyamide GF
    Surface of the module: black
    Mounting Positions : Inside the sealing
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 1.40 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Lock Type: Side panel latch
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
