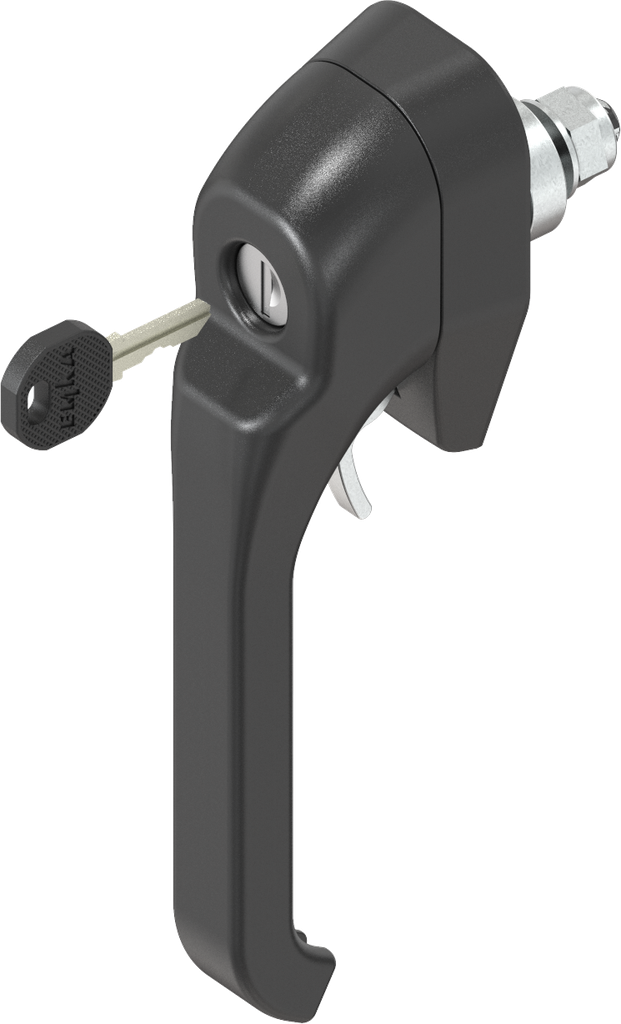

Heavy duty latch slot 2 x 4 and for padlock, Zinc die black powder-coated
Heavy duty latch with insert slot 2 x 4 and for padlock, Stainless steel AISI 316

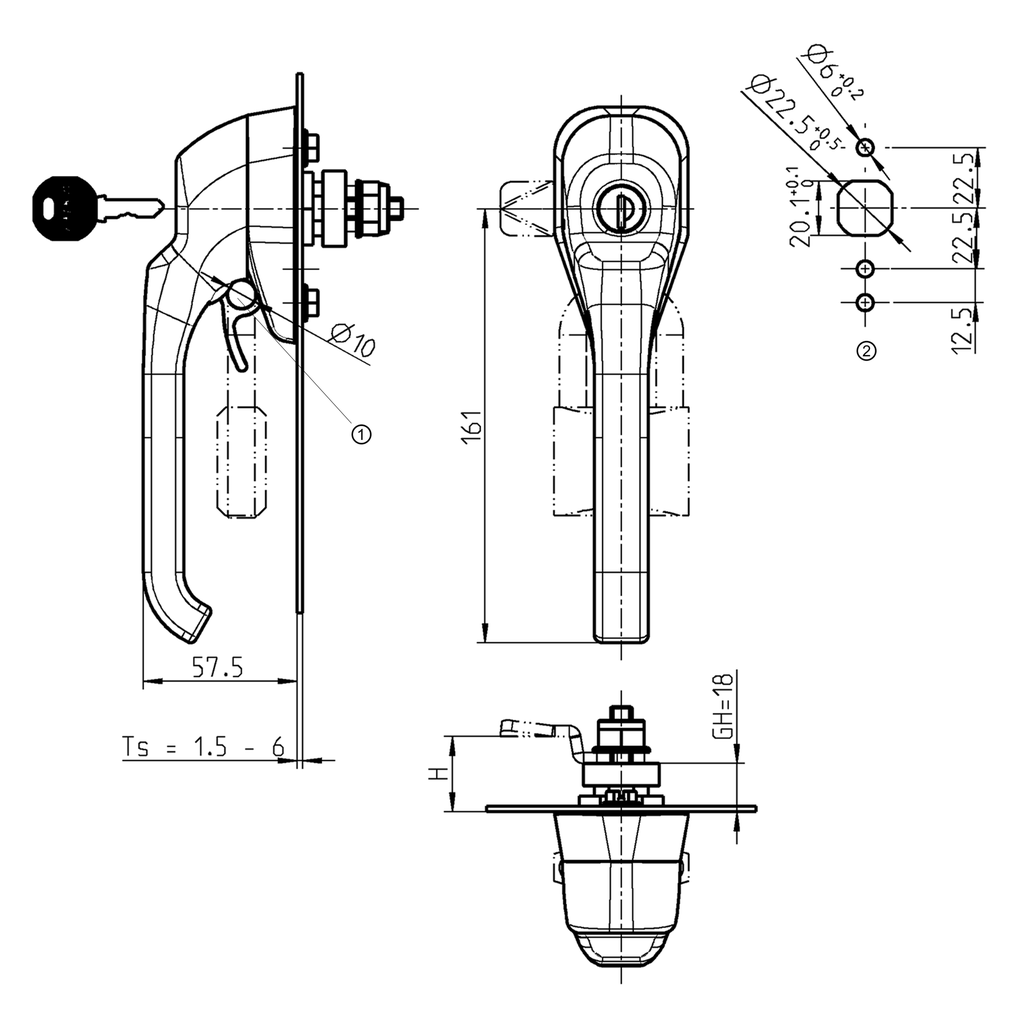

Assembly instruction:
① = Bore holes for padlock
② = Only two of these three Ø 6 bore holes are required
Internal Reference:
1091-U140
Product Type:
Quarter turn
Program:
1091
Catalog sheet:
8A-860
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art:
L-handle
Lever for Padlock:
without spring-loaded return
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
6 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with handle
