Heavy duty latch keyed EK 333 and for padlock, Zinc die black powder-coated
Heavy duty latch keyed EK 333 and for padlock, Zinc die black powder-coated
Heavy duty latch slot 2 x 4 and for padlock, Zinc die black powder-coated
Heavy duty latch slot 2 x 4 and for padlock, Zinc die black powder-coated

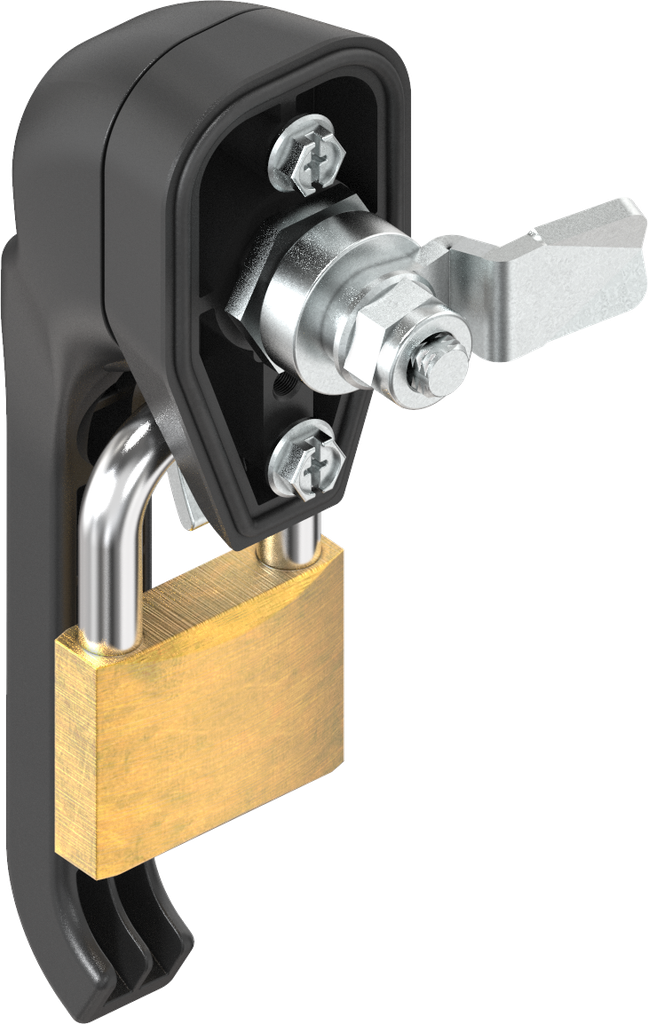

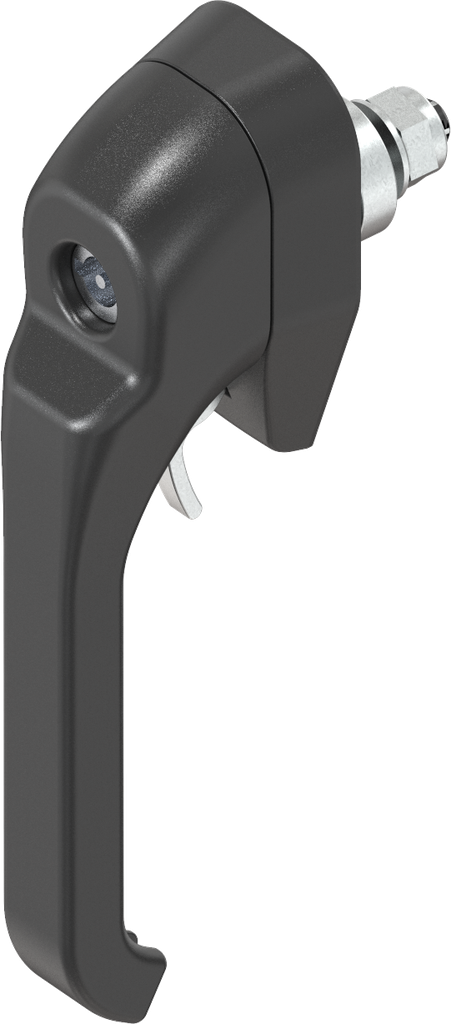

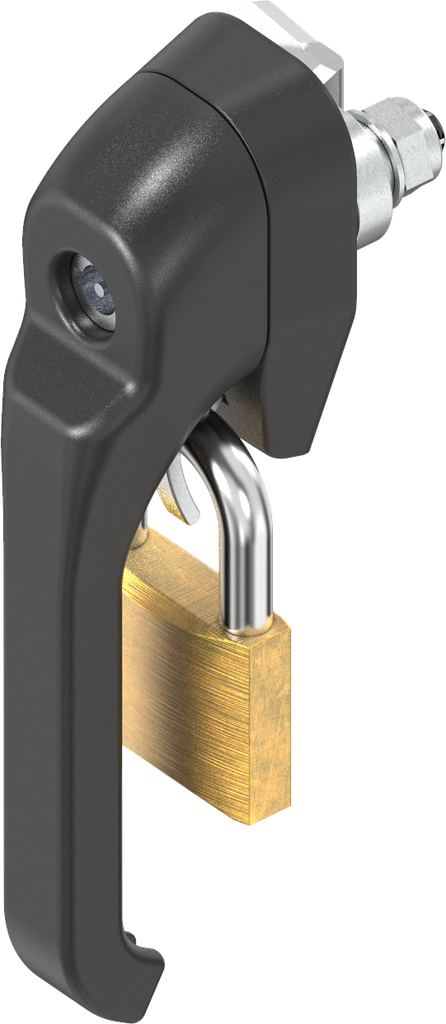

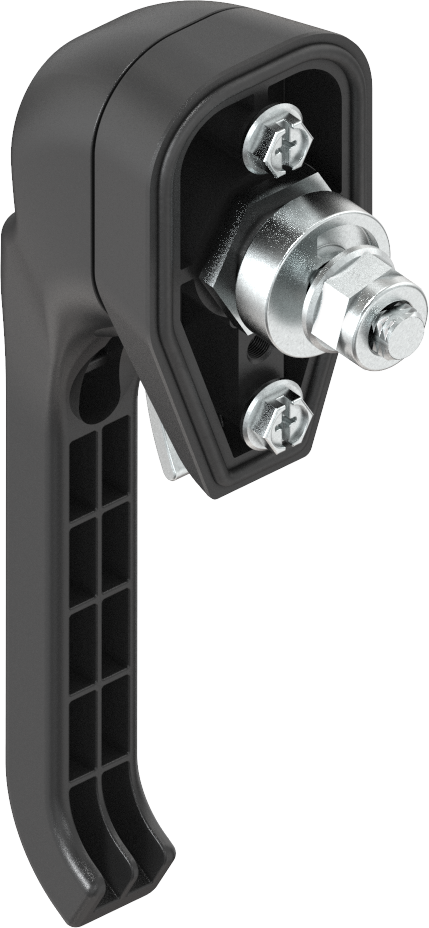

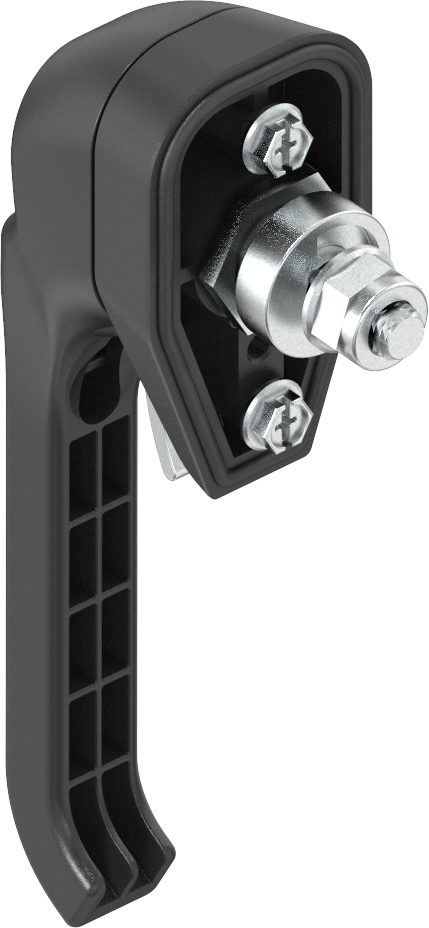

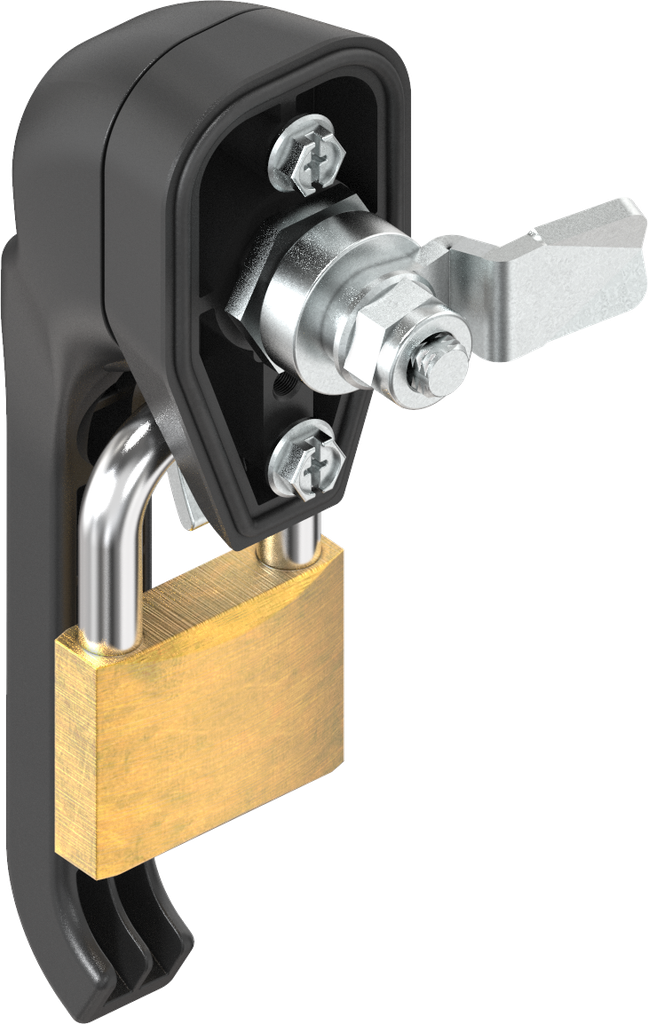

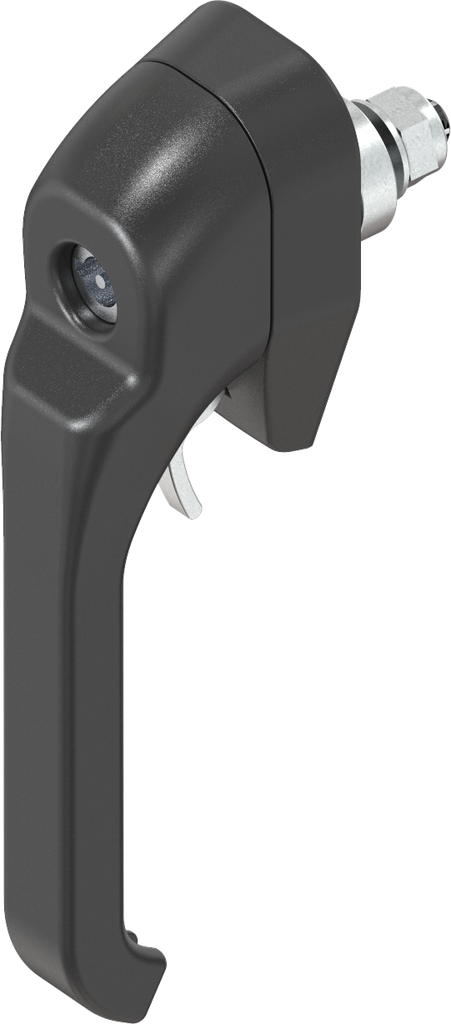

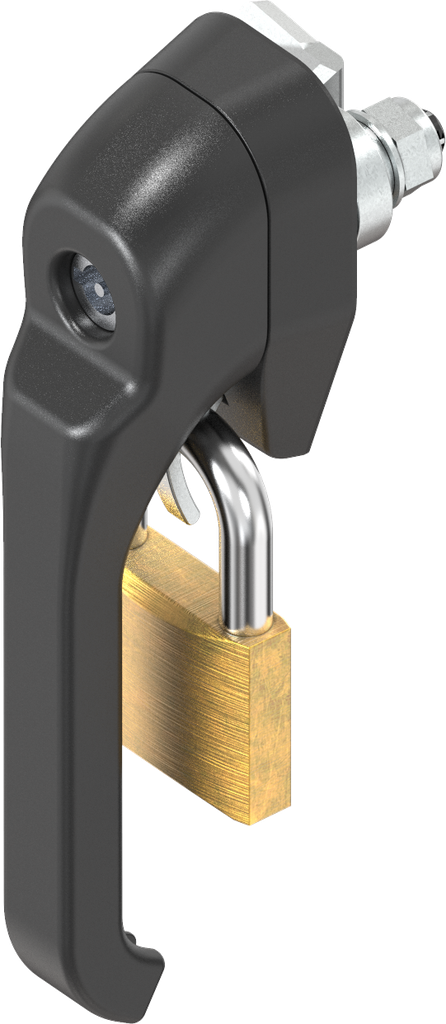

Heavy duty latch double bit 3 and for padlock, Zinc die black powder-coated; 1091-U132

https://www.emka.com/products/1091-u132 https://www.emka.com/web/image/product.template/62153/image_1920?unique=45546b2

    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 Left Right
    Contact Us

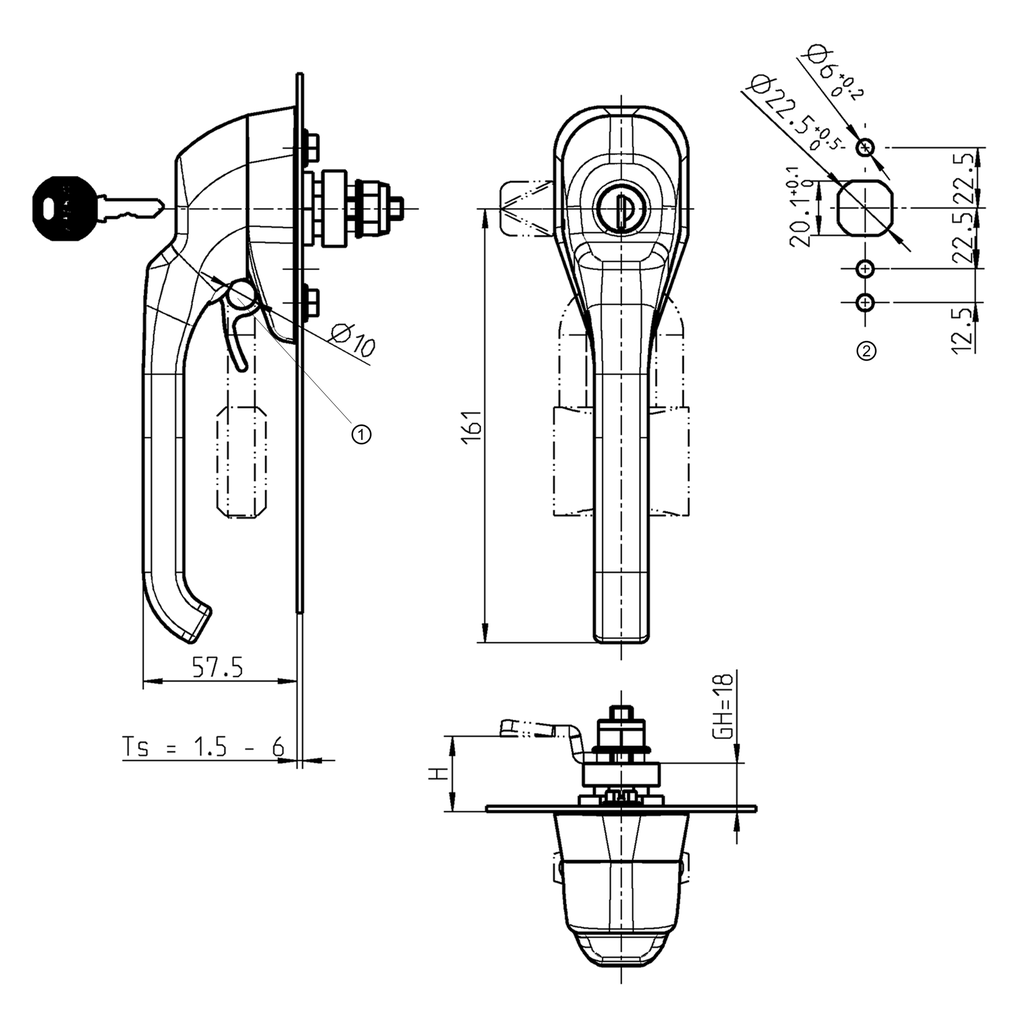

    Assembly instruction:

    ① = Bore holes for padlock
    ② = Only two of these three Ø 6 bore holes are required
    Internal Reference: 1091-U132
    Product Type: Quarter turn
    Program: 1091
    Catalog sheet: 8A-860
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Double bit 3
    Mounting Positions : Inside the sealing
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art: L-handle
    Lever for Padlock: with spring-loaded return
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 6 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Cam
    Rod control
    Other latch
    Here you can find the product data sheets and CAD files of this product
