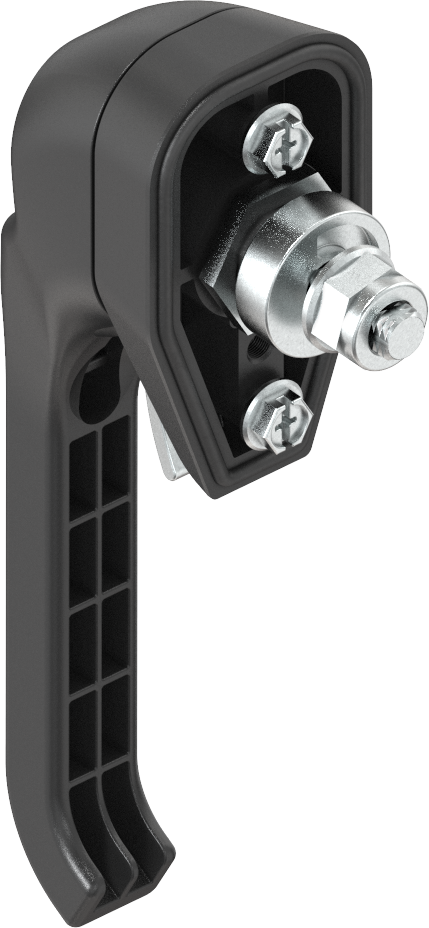

Outside heavy duty latch, Polyamide GF black

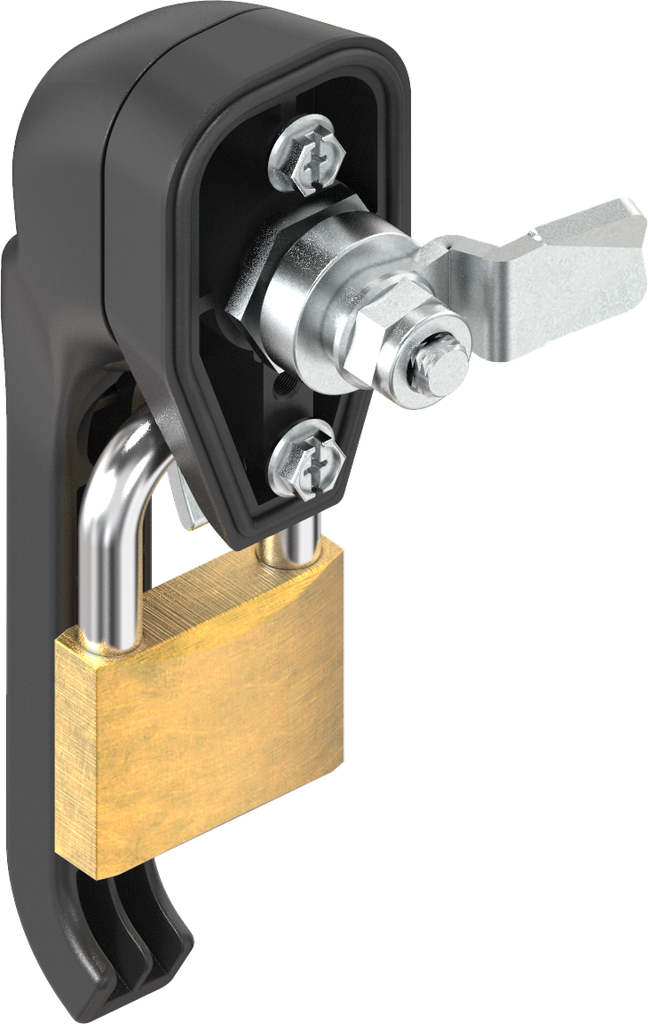

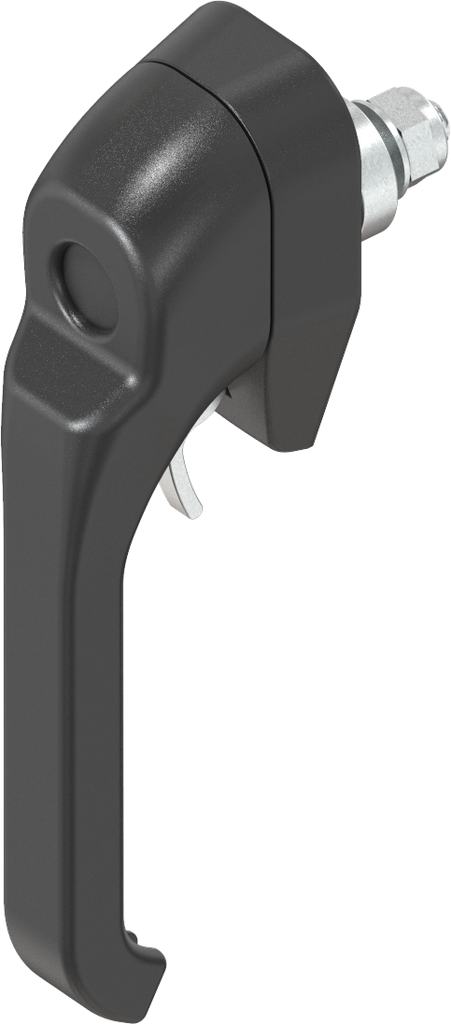

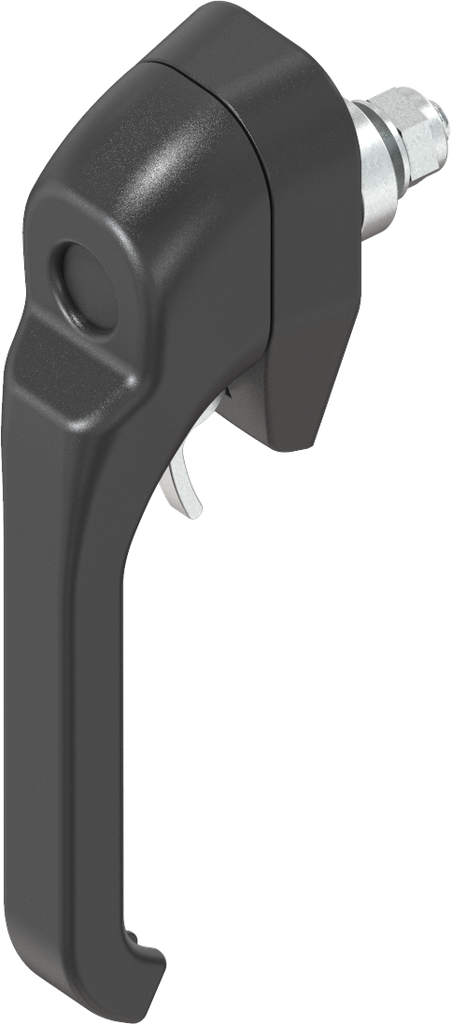

Heavy duty latch keyed EK 333 and for padlock, Zinc die black powder-coated

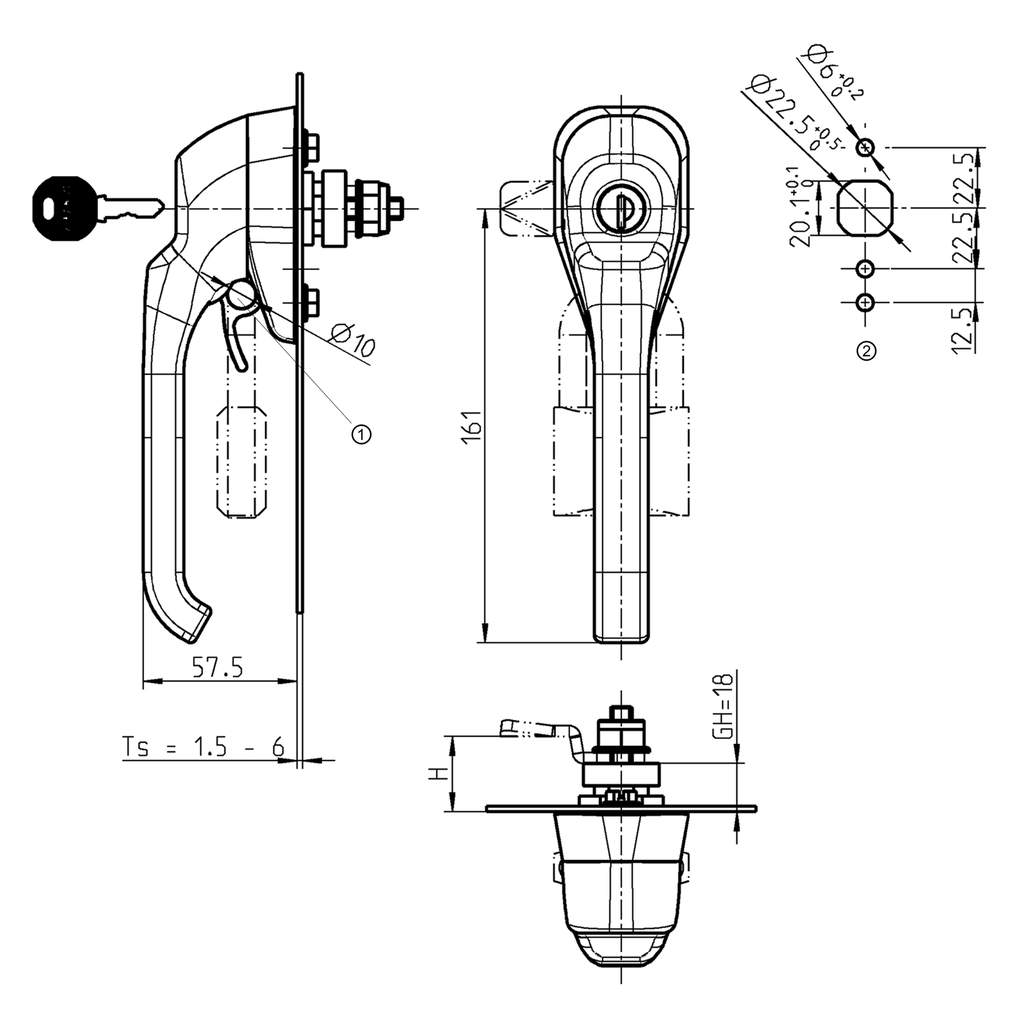

Assembly instruction:
① = Bore holes for padlock
② = Only two of these three Ø 6 bore holes are required
Internal Reference:
1091-U122
Product Type:
Quarter turn
Program:
1091
Catalog sheet:
8A-860
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art:
L-handle
Lever for Padlock:
with spring-loaded return
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
6 mm
Locking set:
No locking set, blind
Door Version :
Left,Right
Locking components:
Cam
Padlock Art:
Padlock with shackle dimension Ø 10
Quarter turn types:
Quarter turn with handle
