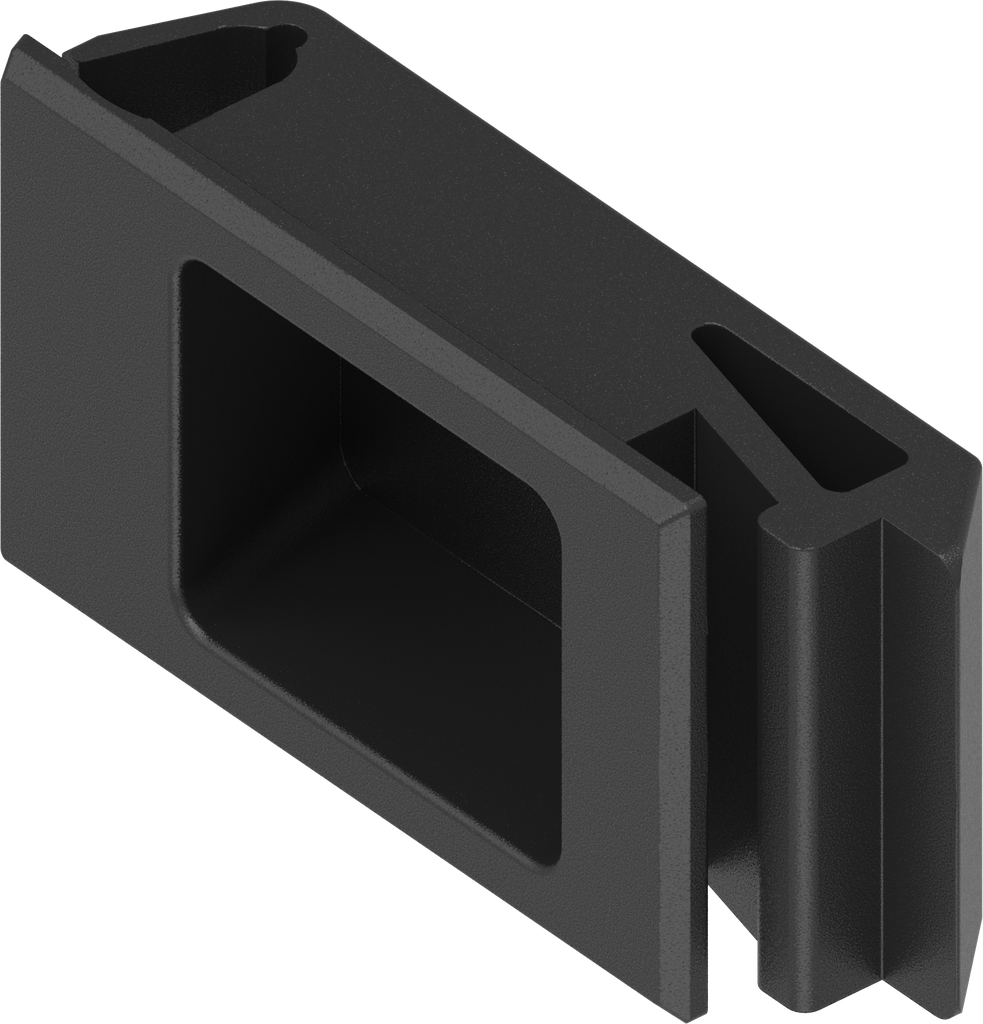

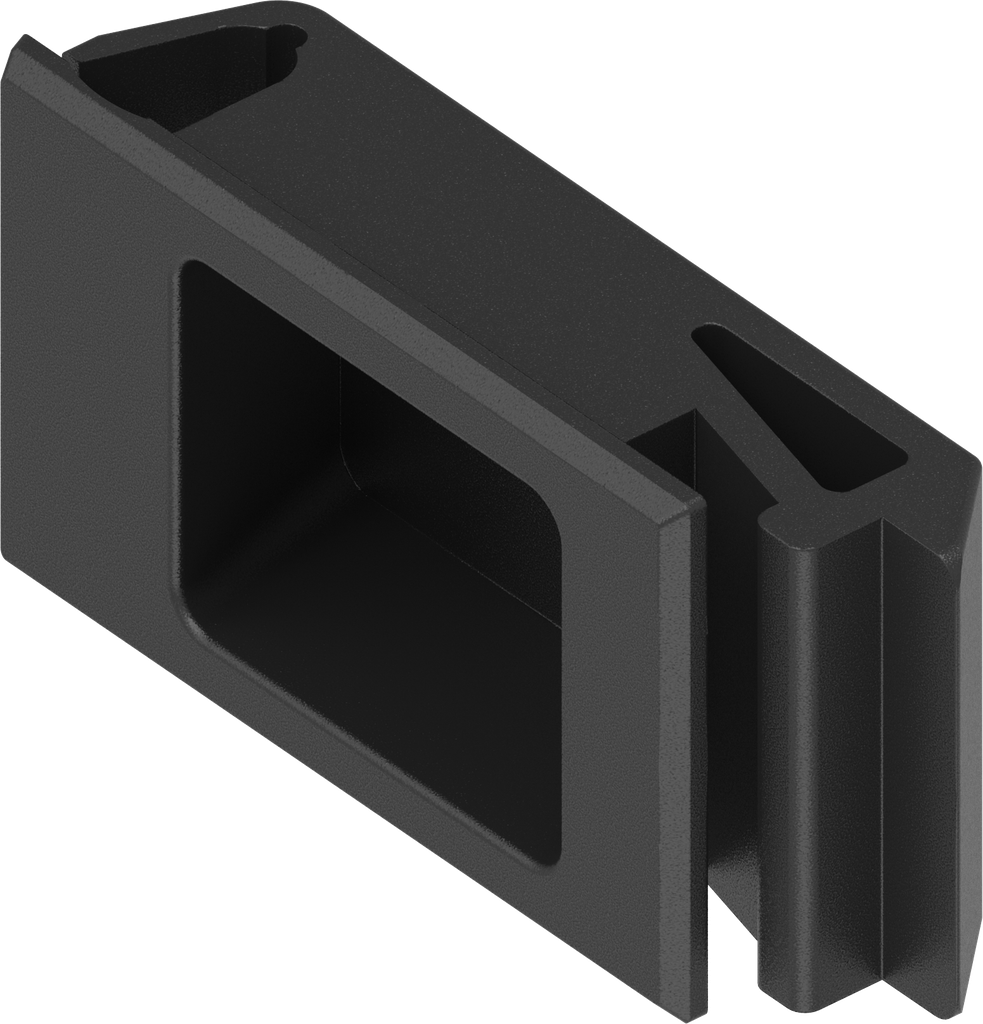

Snap lock, clip-in, Polyamide GF black; 1091-U114-01

https://www.emka.com/products/1091-u114-01 https://www.emka.com/web/image/product.template/62142/image_1920?unique=fd60215

for Ts = 1.2 - 1.6 mm


    This combination does not exist.

    Inside the sealing Outside the sealing Left Right


    Akeneo Note:

    Lockable e.g. with small quarter turns of Program 1022

    Internal Reference: 1091-U114-01
    Product Type: Other latch
    Program: 1091
    Catalog sheet: 8A-420
    Material of the module : Polyamide GF
    Surface of the module: black

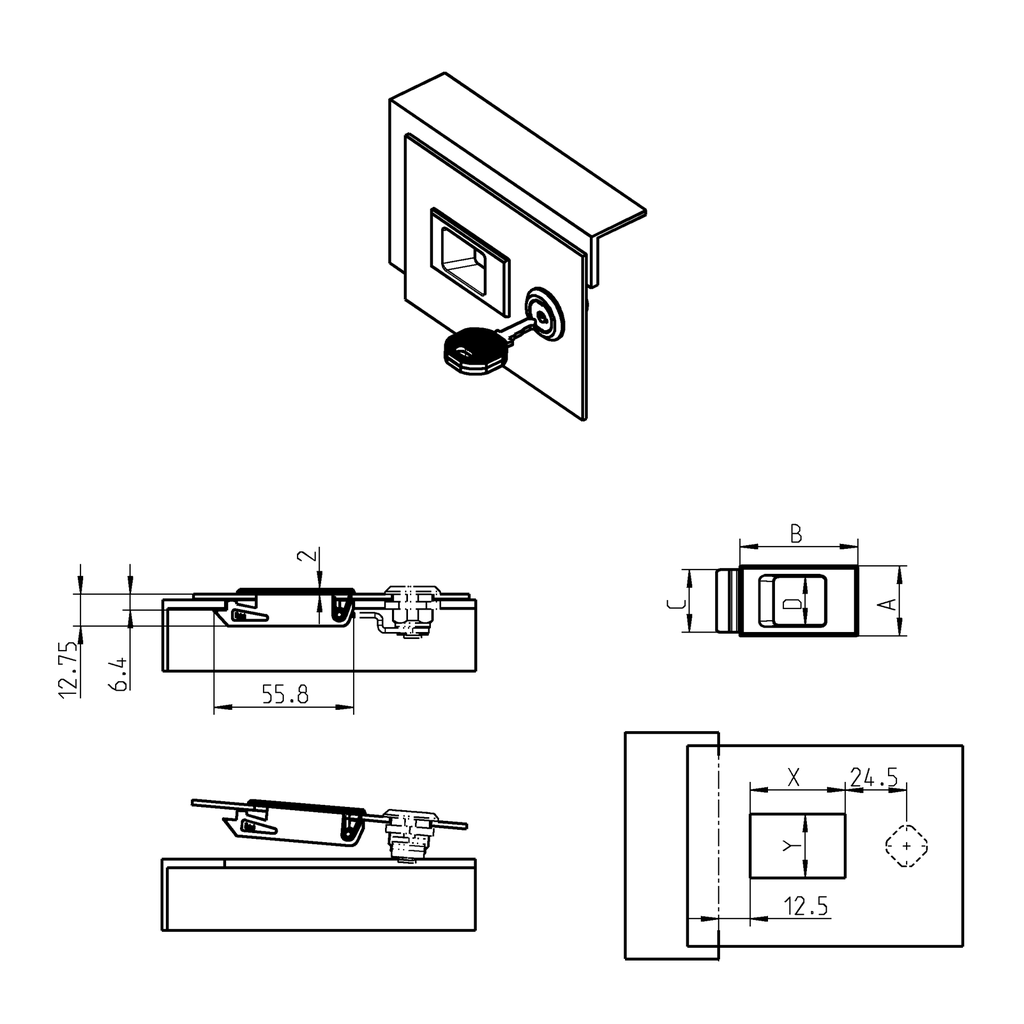

    Dimension A: 28 mm
    Dimension B: 47 mm
    Dimension C: 25 mm
    Dimension D: 20 mm
    Mounting Positions : Inside the sealing,Outside the sealing
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 1.60 mm
    Door Version : Left,Right
    Lock Type: Snap lock
    Dimension X: 38 mm
    Dimension Y: 25.50 mm
