Cover for 3D unit connector, Polyamide black
Cover for 3D unit connector, Polyamide black

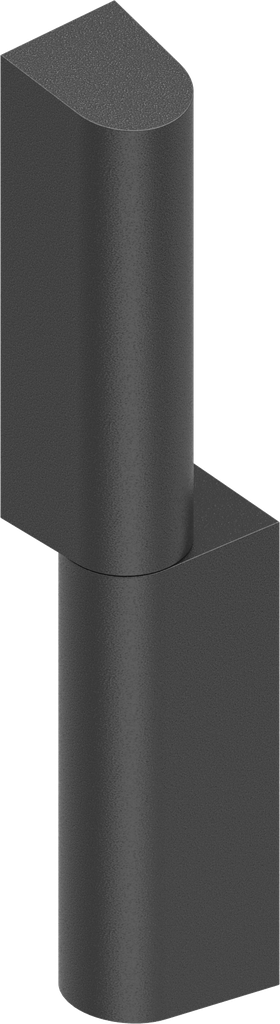

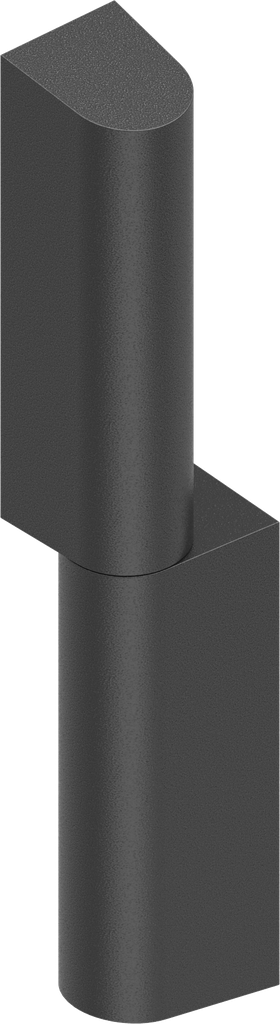

180° Hinge, Polyamide GF black
180° Hinge, Polyamide GF black

180° Hinge, Polyamide GF black; 1079-U2

https://www.emka.com/products/1079-u2 https://www.emka.com/web/image/product.template/61850/image_1920?unique=55bca9d

    This combination does not exist.

    Single cabinets Left Right
    Contact Us

    Product information:

    Hinge with chamfer against dirt accumulation
    Internal Reference: 1079-U2
    Product Type: Hinge
    Program: 1079
    Catalog sheet: 4A-285
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products

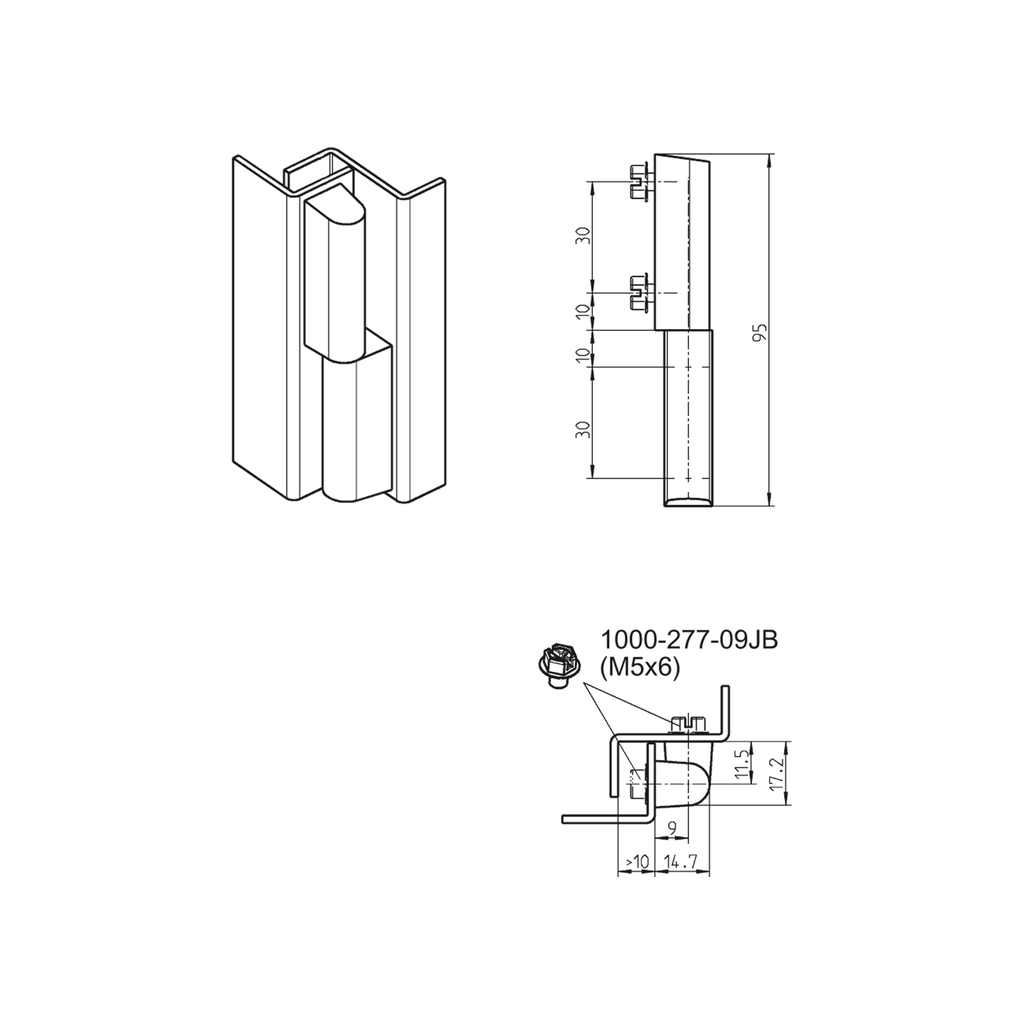

    Here you can find the product data sheets and CAD files of this product
