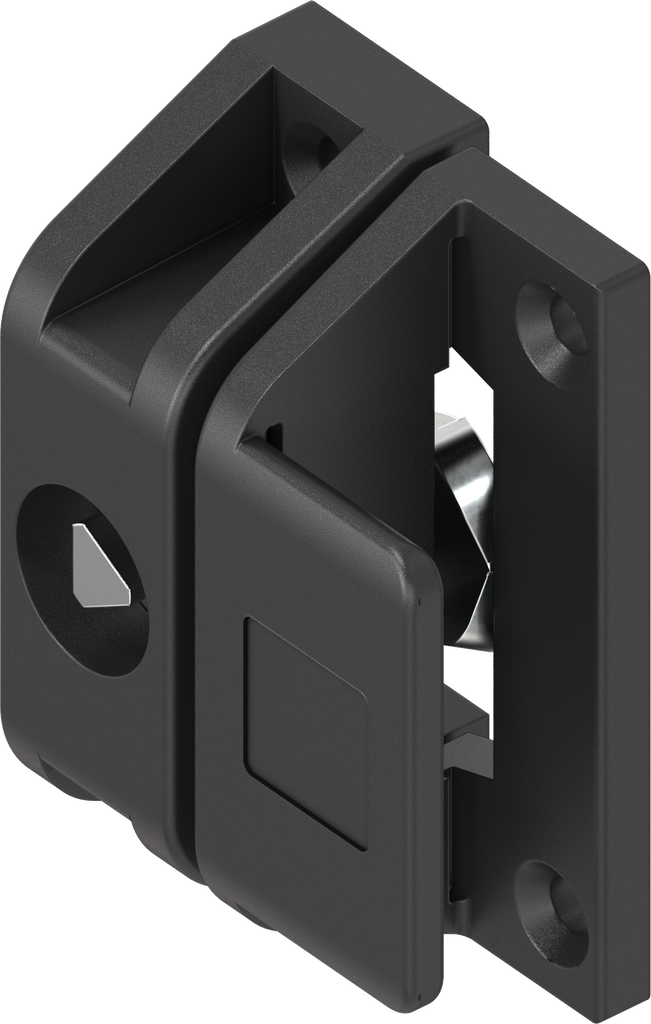

Cam lock with insert triangular 7, Polyamide black; 1076-U7

https://www.emka.com/products/1076-u7 https://www.emka.com/web/image/product.template/213880/image_1920?unique=af2840b

    This combination does not exist.

    Left Right
    Contact Us

    Product information:

    Logo recess 15 x 15 x 0.3

    Multicolour pad print possible

    Countersink for countersunk screws M4x... acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Internal Reference: 1076-U7
    Product Type: Other latch
    Program: 1076
    Catalog sheet: 8A-240
    Material of the module : Polyamide
    Surface of the module: black
    Fixing type of housing : nut fixing
    Type of actuation: Triangular 7
    Locking set: Insert
    Door Version : Left,Right
    Lock Type: Cam lock
    No Specifications
    View All Products
    Keys

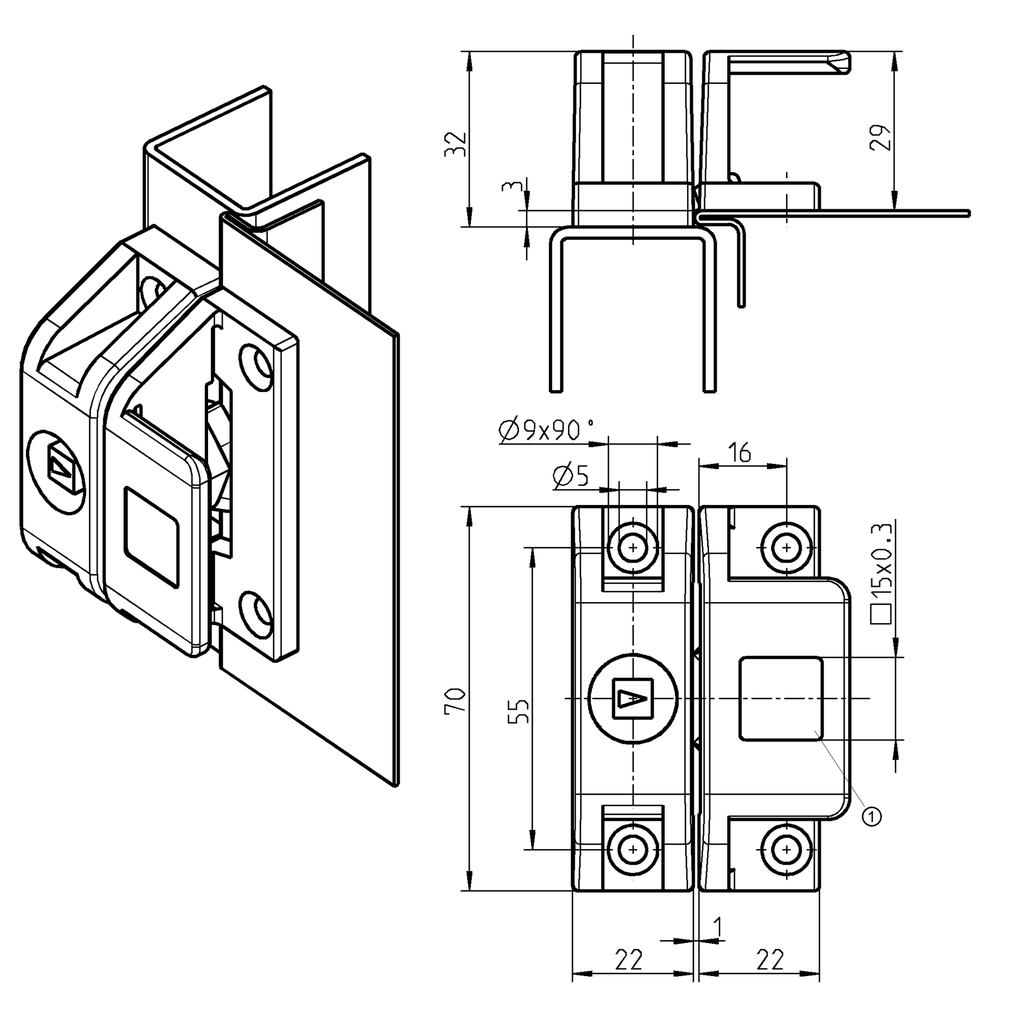

    Here you can find the product data sheets and CAD files of this product
