Cam lock with insert square 7, Polyamide black
Cam lock with insert square 7, Polyamide black
Cam lock with insert triangular 7, Polyamide black
Cam lock with insert triangular 7, Polyamide black

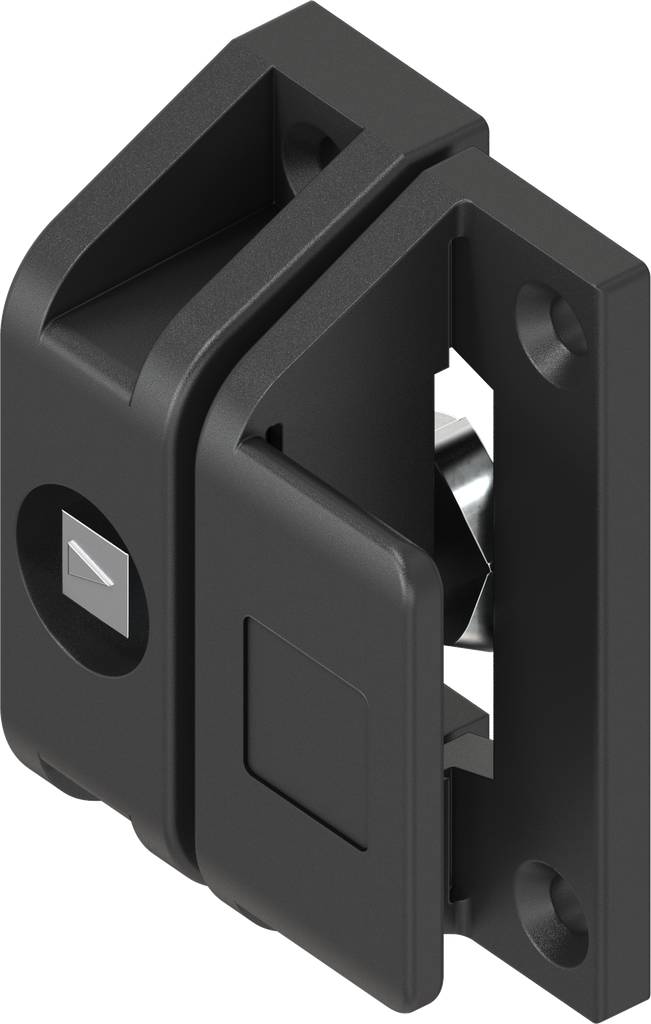

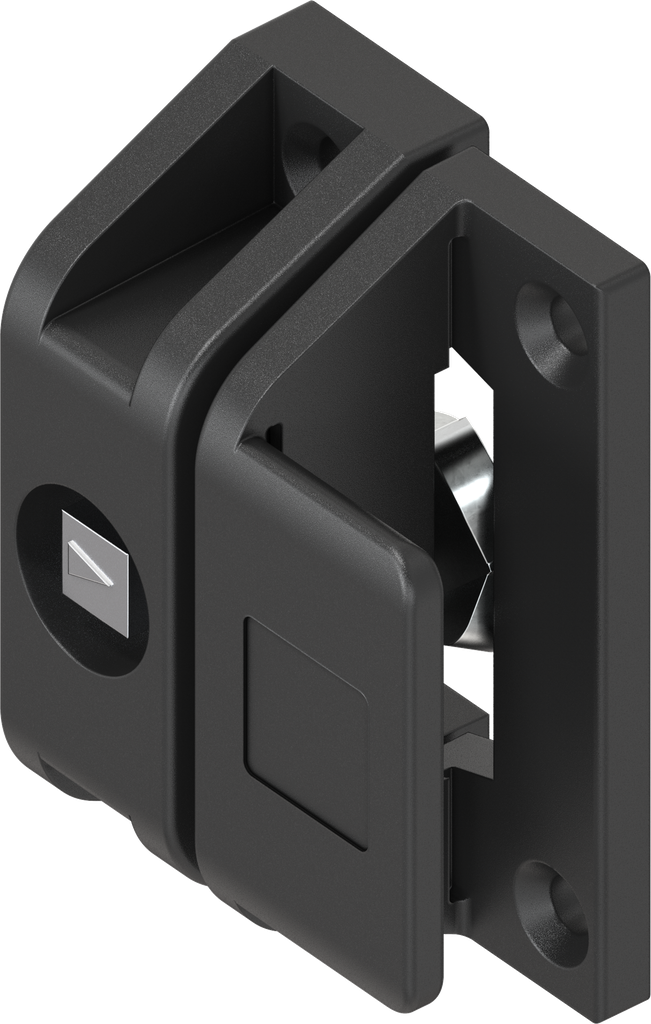

Cam lock with insert square 8, Polyamide black; 1076-U6

https://www.emka.com/products/1076-u6 https://www.emka.com/web/image/product.template/213879/image_1920?unique=af2840b

    This combination does not exist.

    Left Right
    Contact Us

    Product information:

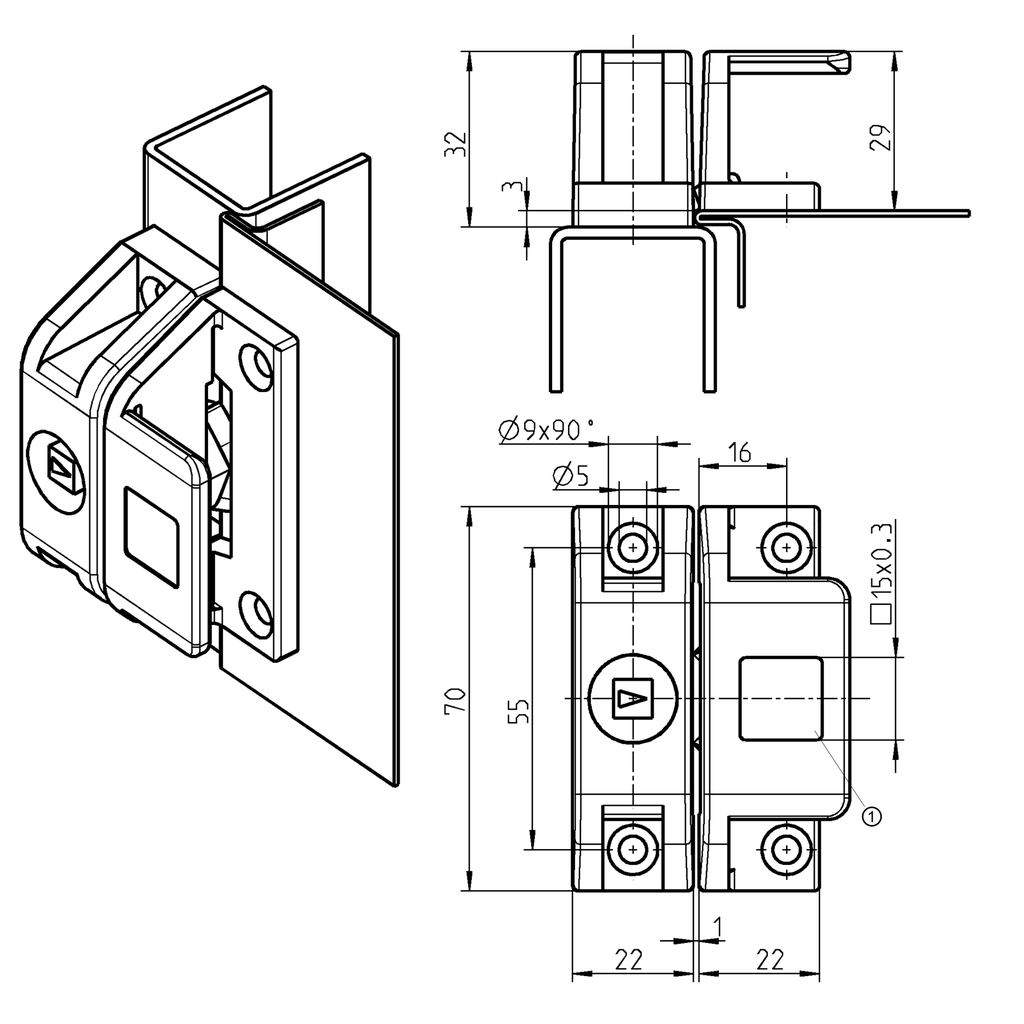

    Logo recess 15 x 15 x 0.3

    Multicolour pad print possible

    Countersink for countersunk screws M4x... acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Internal Reference: 1076-U6
    Product Type: Other latch
    Program: 1076
    Catalog sheet: 8A-240
    Material of the module : Polyamide
    Surface of the module: black
    Fixing type of housing : nut fixing
    Type of actuation: Square 8 with arrow
    Locking set: Insert
    Door Version : Left,Right
    Lock Type: Cam lock
    No Specifications
    View All Products
    Keys
    Here you can find the product data sheets and CAD files of this product
