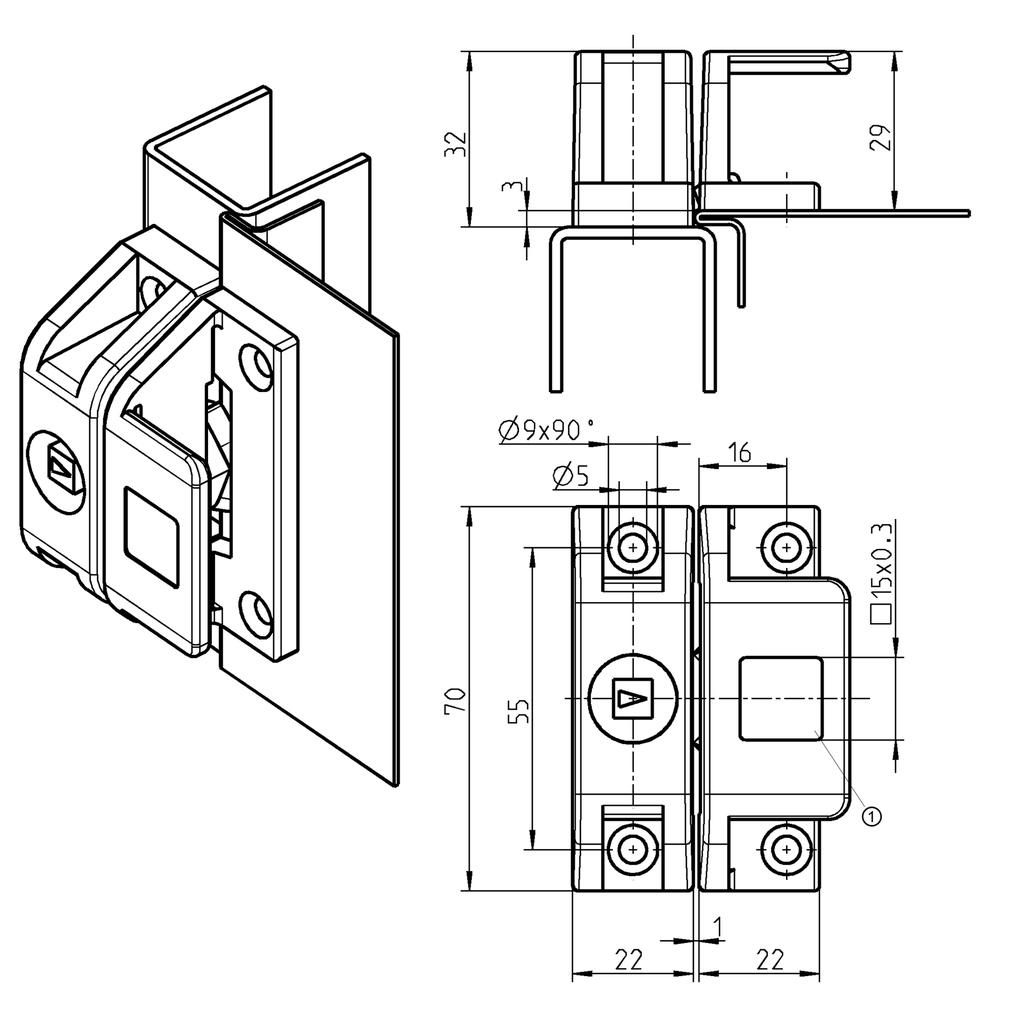

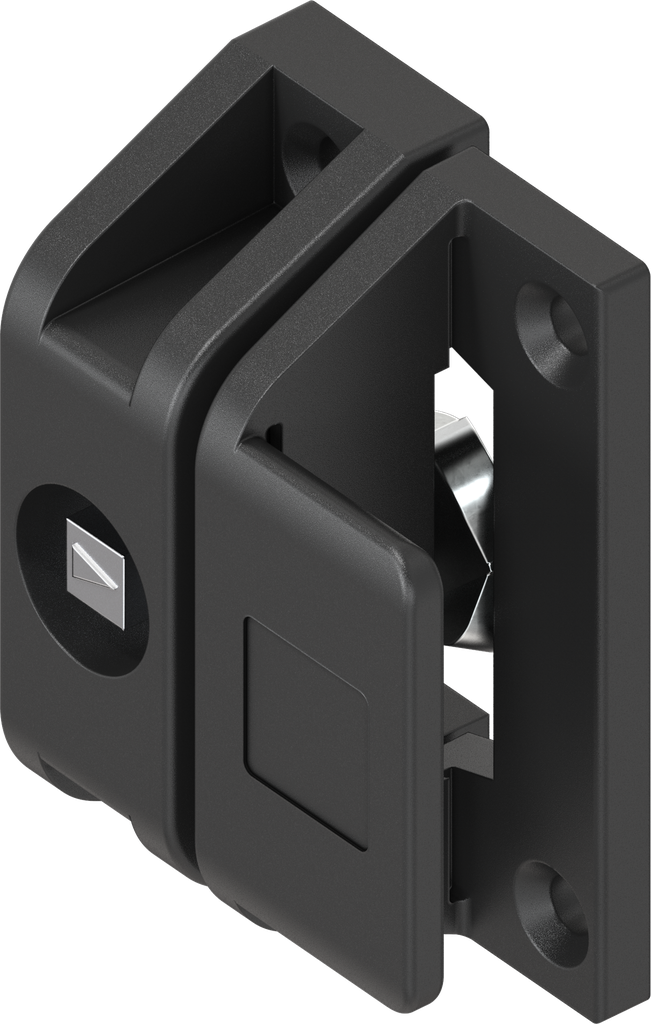

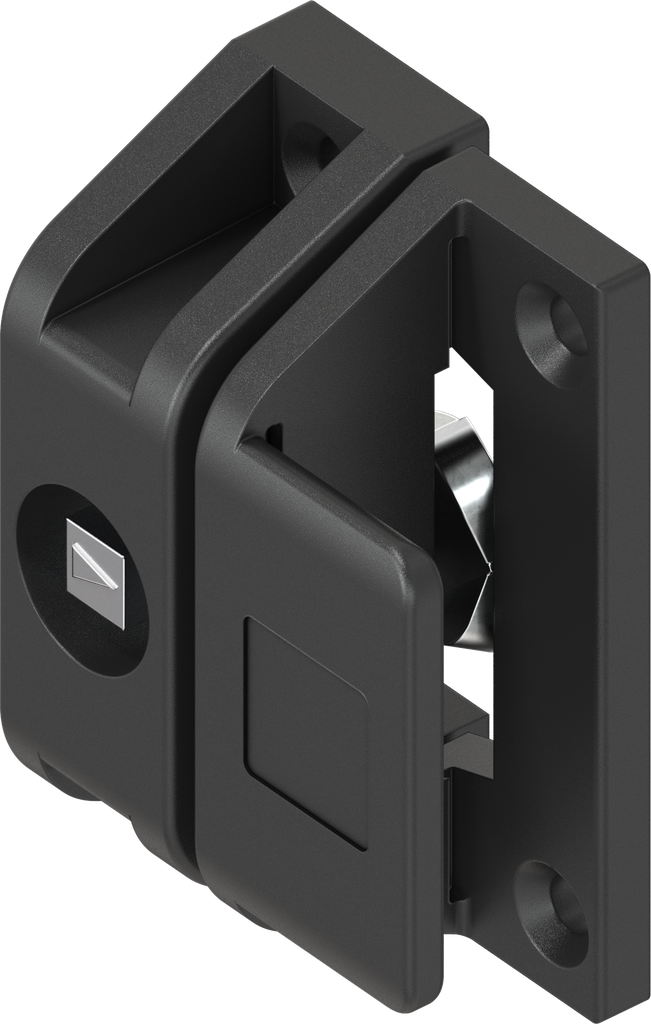

Cam lock with insert square 8, Polyamide black
Product information:
Logo recess 15 x 15 x 0.3
Multicolour pad print possible
Countersink for countersunk screws M4x... acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Internal Reference:
1076-U5
Product Type:
Other latch
Program:
1076
Catalog sheet:
8A-240
Material of the module :
Polyamide
Surface of the module:
black
Fixing type of housing :
nut fixing
Type of actuation:
Square 7 with arrow
Locking set:
Insert
Door Version :
Left,Right
Lock Type:
Cam lock
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
