Product information:

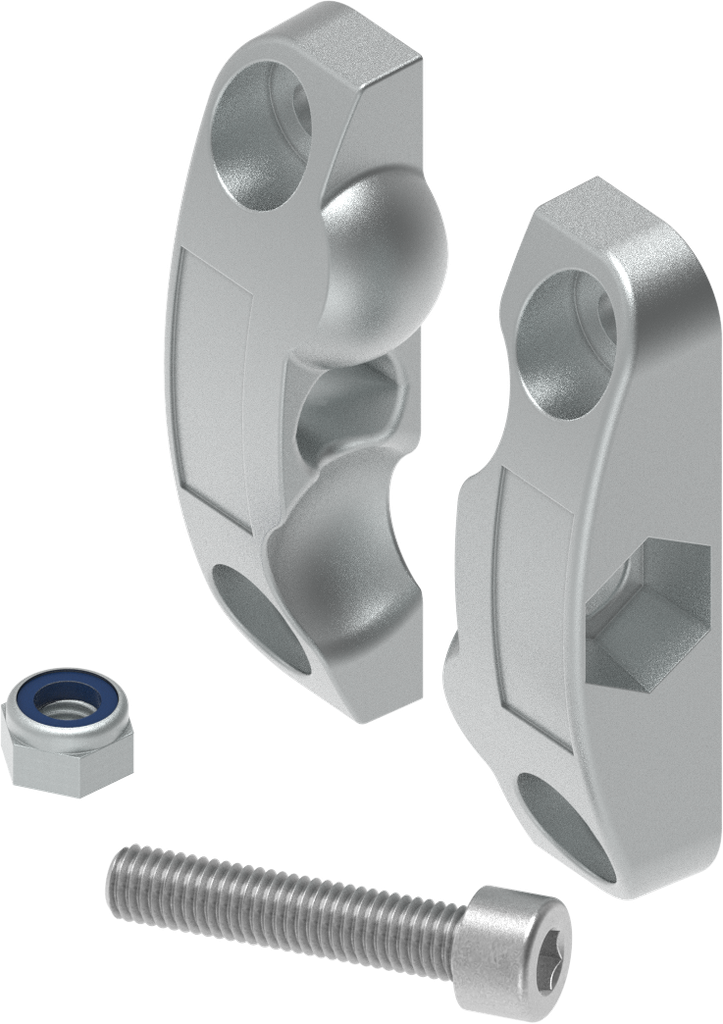

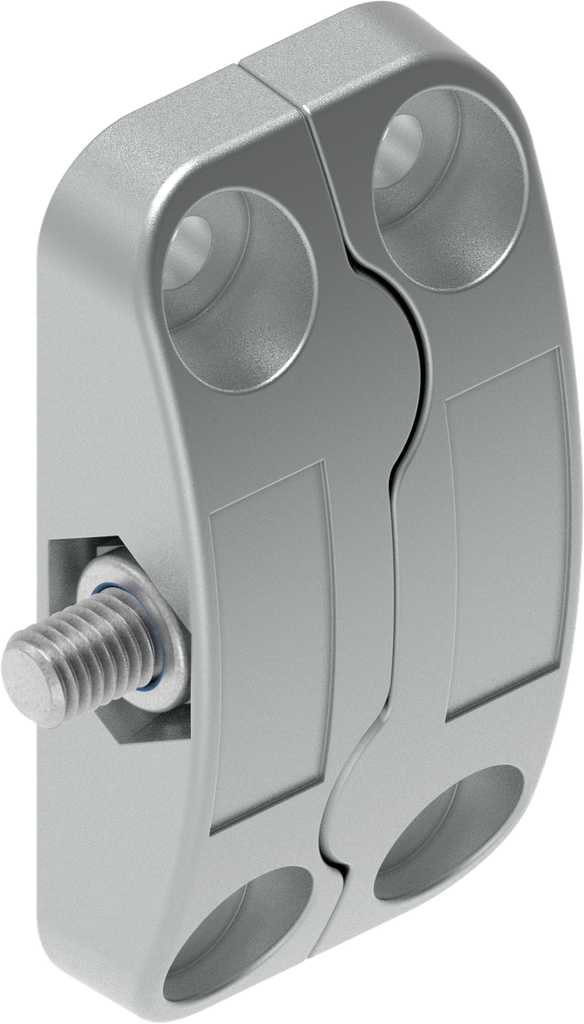

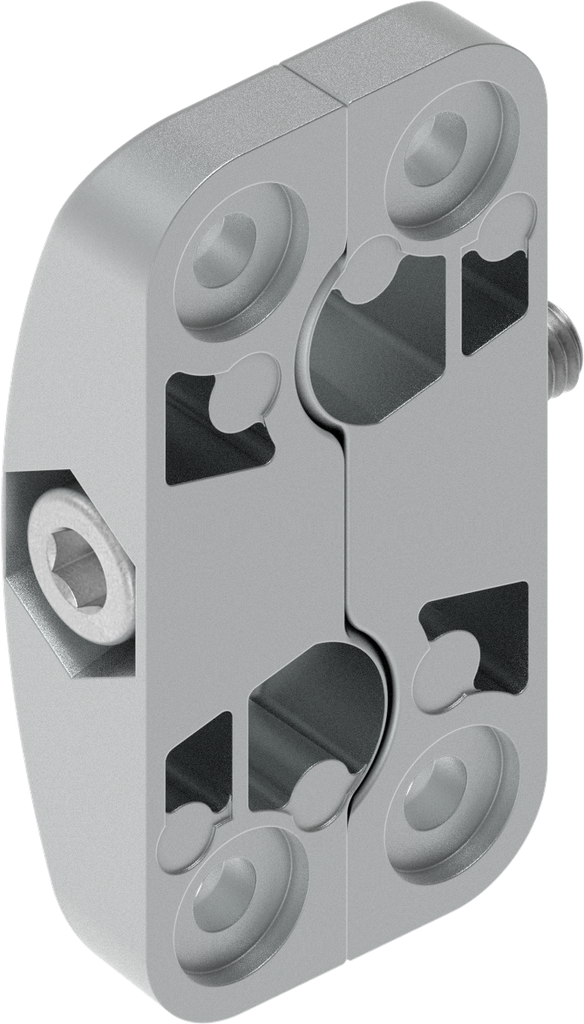

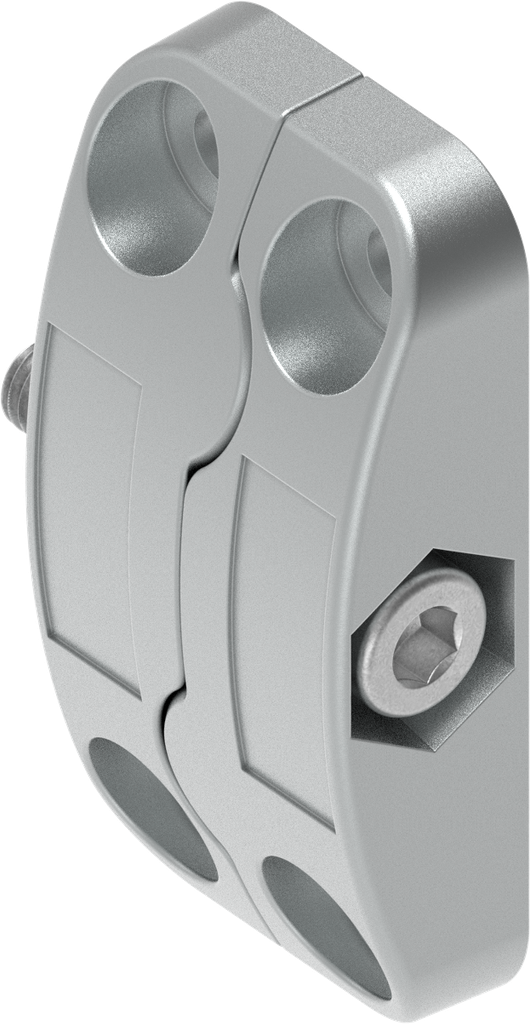

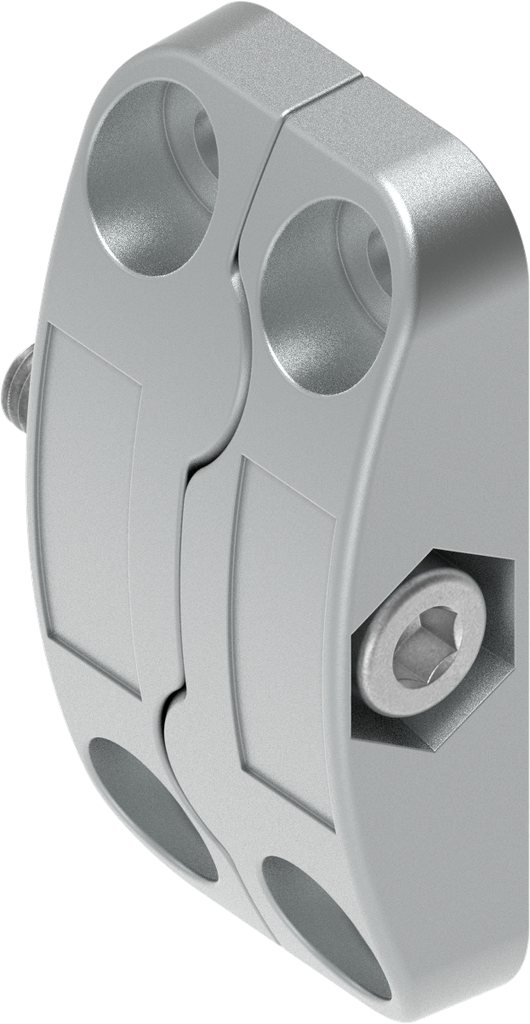

3D unit connector without fixing material
Function:
Spherical shaping allows 3D positioning Lateral offset: 6 mm Hight offset: 6 mm Depth offset: 5 mm
- Lateral offset: 6 mm
- Hight offset: 6 mm
- Depth offset: 5 mm

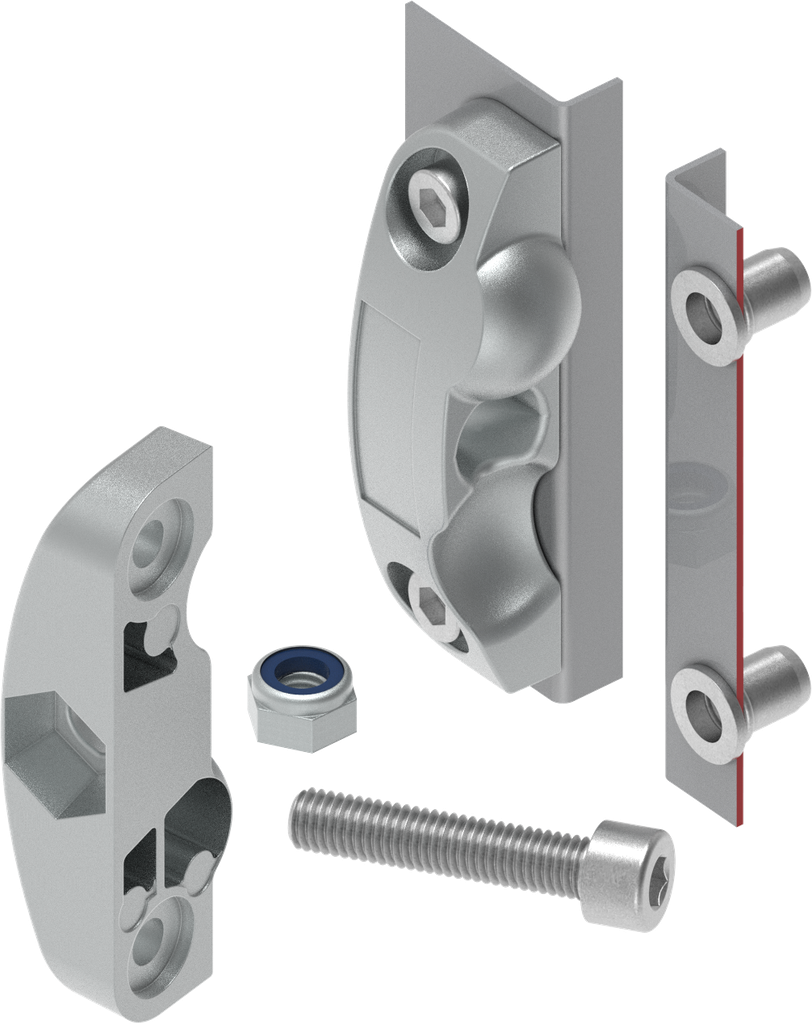

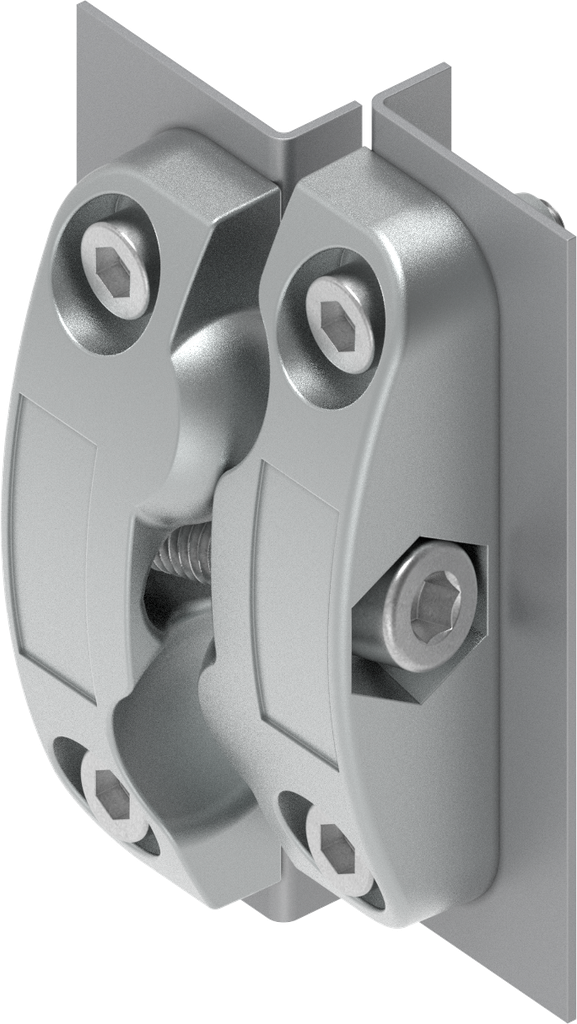

Assembly instruction:

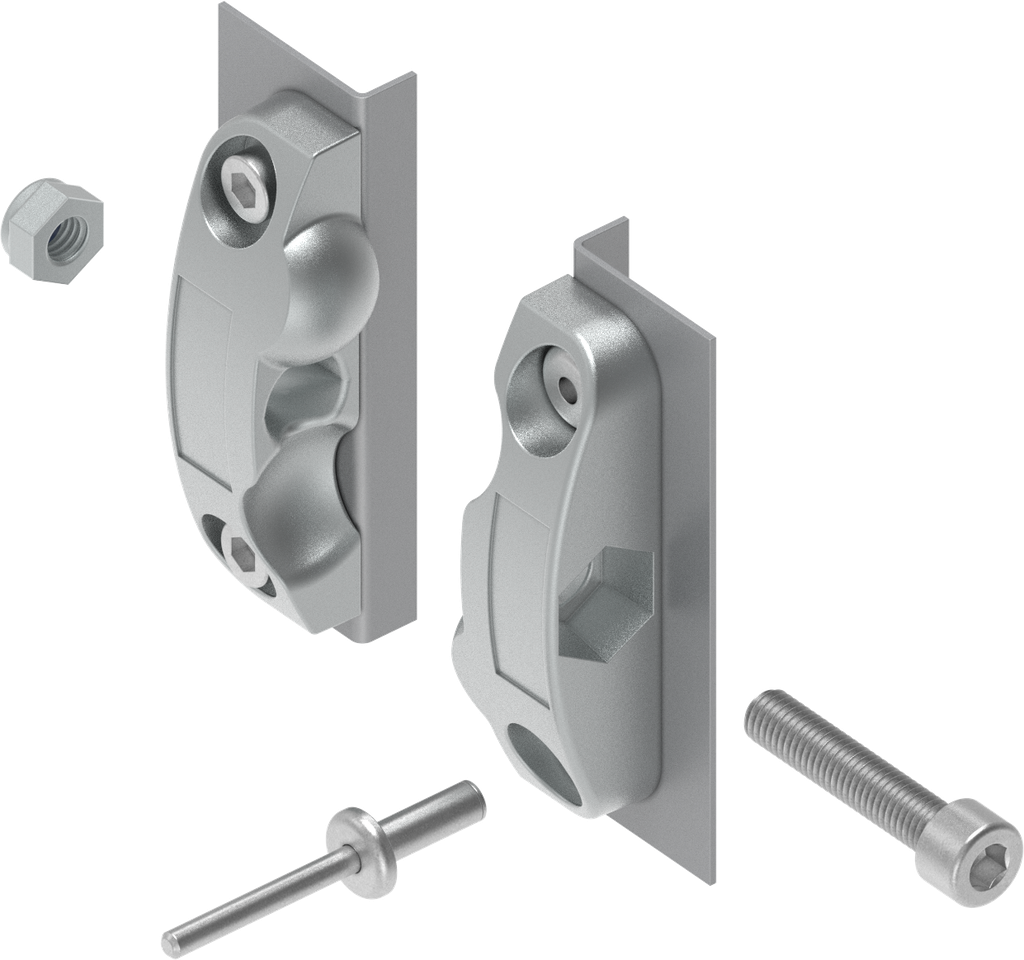

3D unit connector without recess = for hexagon socket head cap screw M6 DIN EN ISO 4762 and washer 6 DIN EN ISO 7089 / 7090 or blind rivet with flat head DIN EN ISO 15973
Internal Reference:
1076-U17
Product Type:
3D unit connectors
Program:
1079
Material of the module :
Aluminium
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
