Bridge clamp, Polyamide GF black
Bridge clamp, Polyamide GF black
Bridge clamp with spring and screw, Polyamide GF black
Bridge clamp with spring and screw, Polyamide GF black

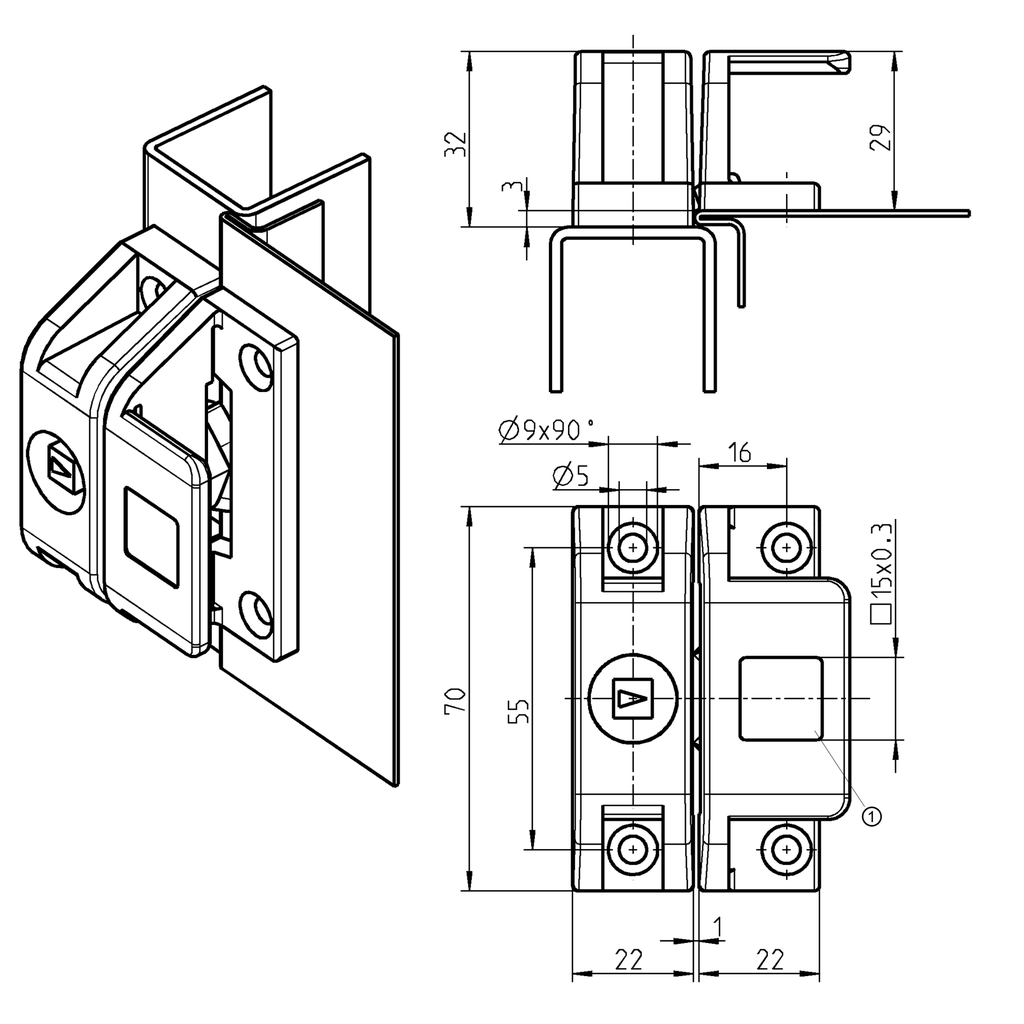

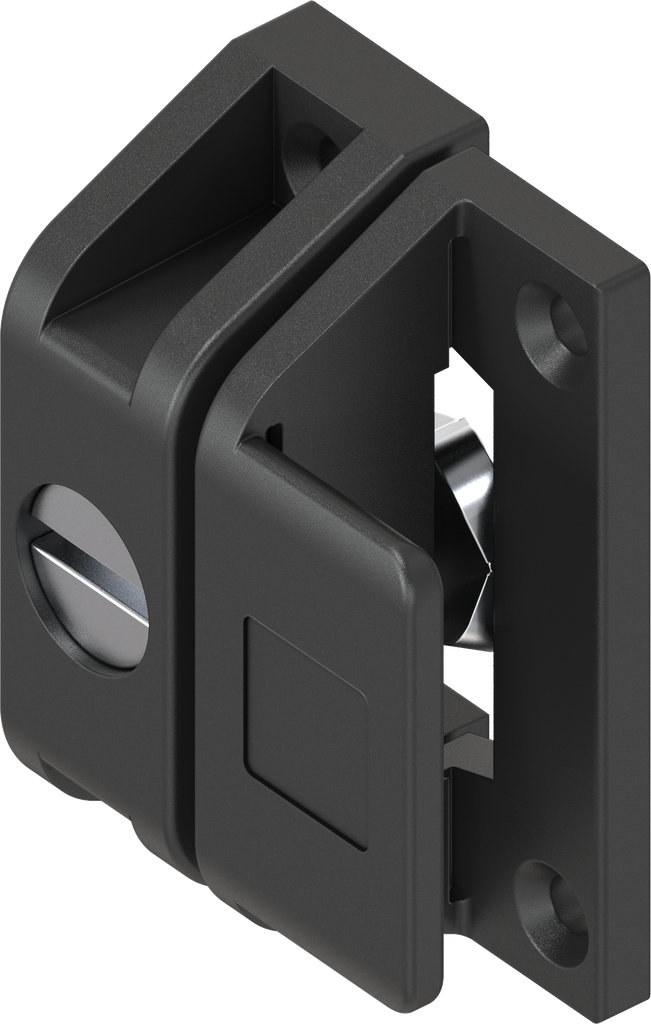

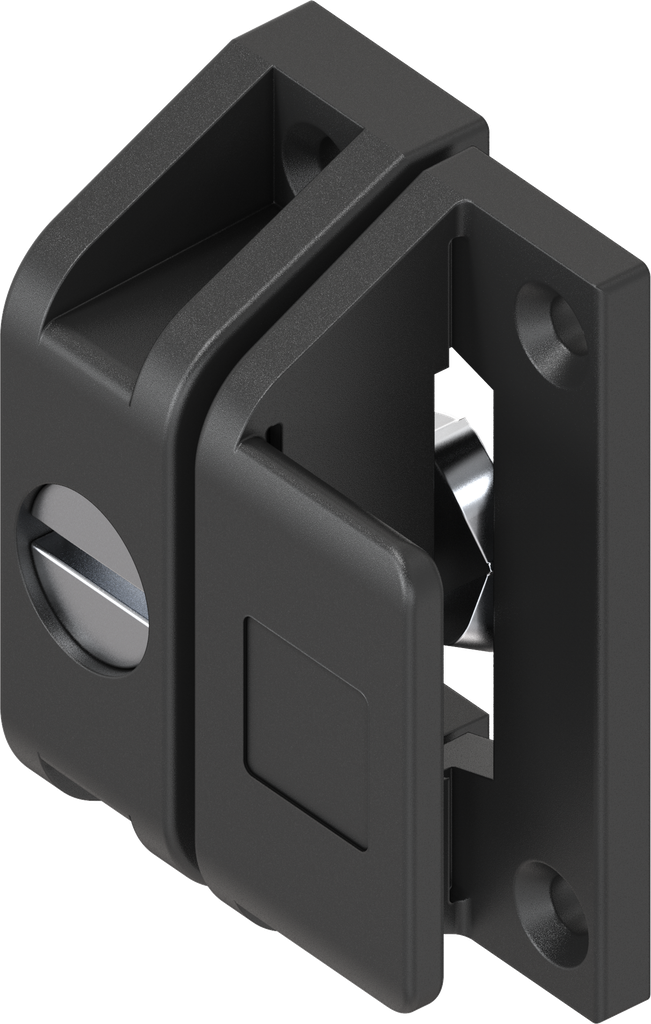

Cam lock with insert slot 2 x 4, Polyamide black; 1076-U12

https://www.emka.com/products/1076-u12 https://www.emka.com/web/image/product.template/61837/image_1920?unique=af2840b

    This combination does not exist.

    Left Right
    Contact Us

    Product information:

    Logo recess 15 x 15 x 0.3

    Multicolour pad print possible

    Countersink for countersunk screws M4x... acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Internal Reference: 1076-U12
    Product Type: Other latch
    Program: 1076
    Catalog sheet: 8A-240
    Material of the module : Polyamide
    Surface of the module: black
    Fixing type of housing : nut fixing
    Type of actuation: Slot 2 x 4
    Locking set: Insert
    Door Version : Left,Right
    Lock Type: Cam lock
    No Specifications
    View All Products

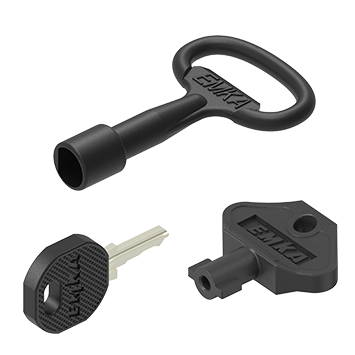

    Keys
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 8A-240
    Product data sheet
    CAD file | 1076-U12_igs
    CAD file | 1076-U12_stp
