Bridge clamp, Polyamide GF black
Bridge clamp, Polyamide GF black
Cam lock with insert slot 2 x 4, Polyamide black
Cam lock with insert slot 2 x 4, Polyamide black

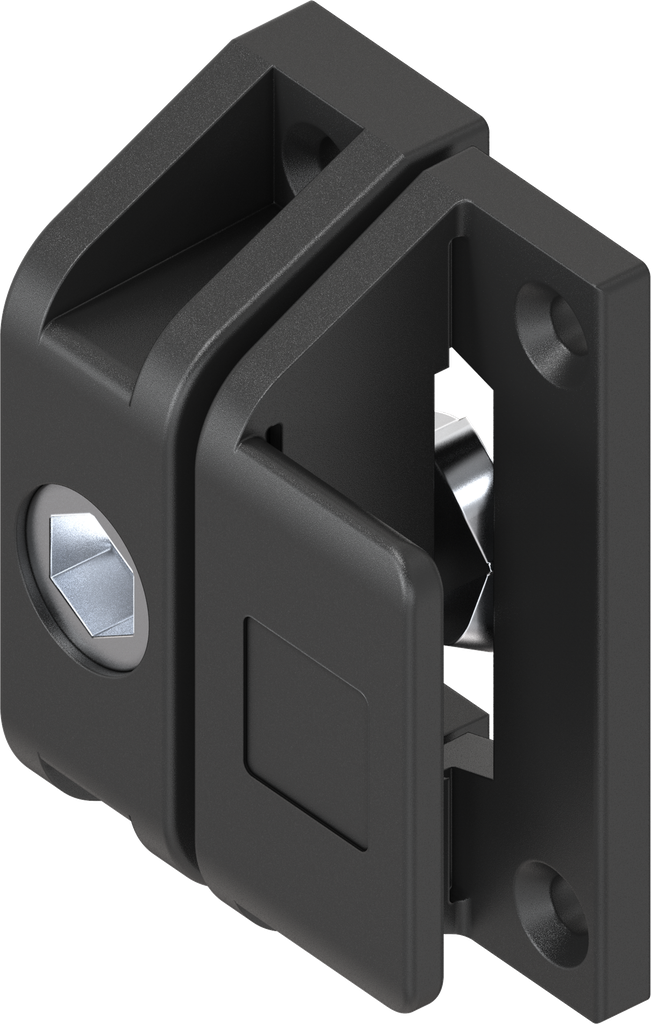

Cam lock with insert hexagon female SW 10, Polyamide black; 1076-U11

https://www.emka.com/products/1076-u11-cam-lock-with-insert-hexagon-female-sw-10-polyamide-black-61836 https://www.emka.com/web/image/product.template/61836/image_1920?unique=ef85d1b

    This combination does not exist.

    Left Right

    Product information:

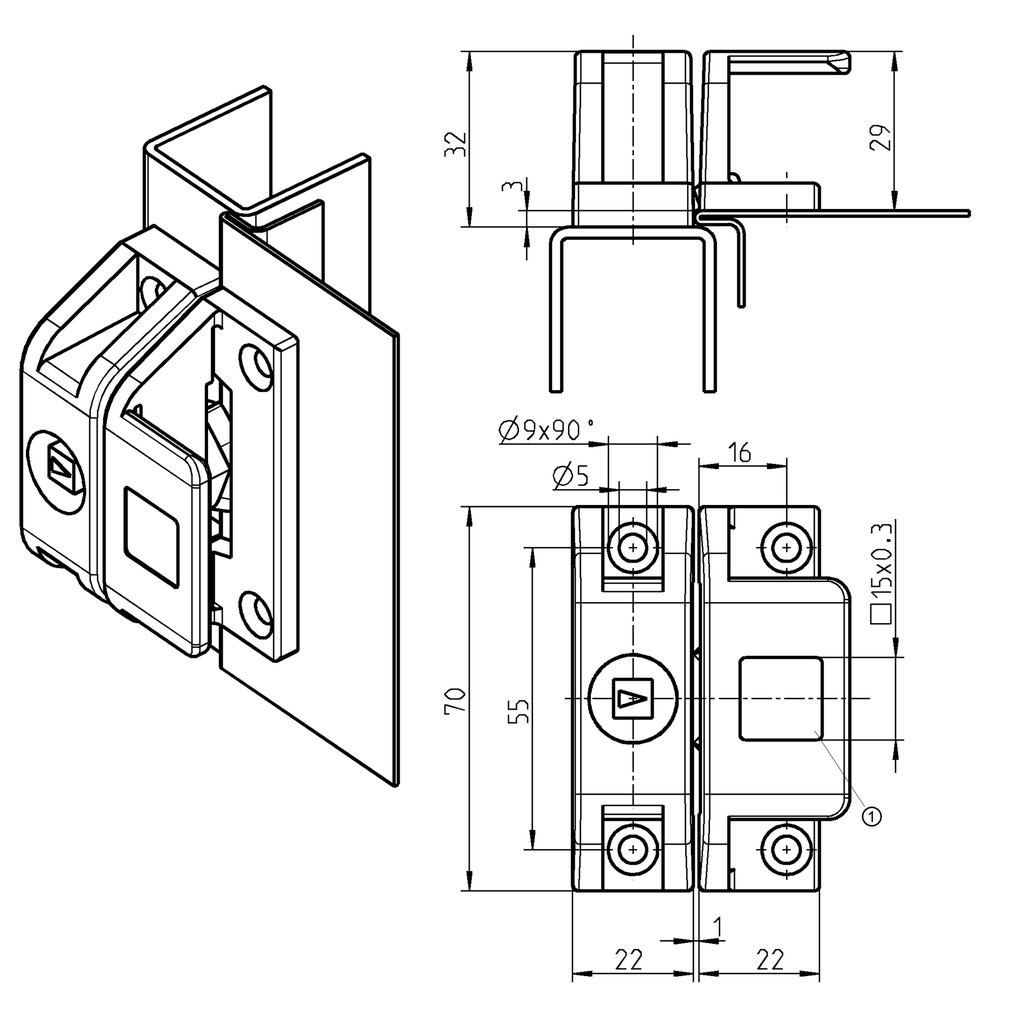

    Logo recess 15 x 15 x 0.3

    Multicolour pad print possible

    Countersink for countersunk screws M4x... acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Internal Reference: 1076-U11
    Barcode: 1076-U00011-0000000
    Product Type: Other latch
    Program: 1076
    Catalog sheet: 8A-240
    Material of the module : Polyamide
    Surface of the module: black
    Fixing type of housing : nut fixing
    Locking set: Insert
    Door Version : Left,Right
    Lock Type: Cam lock
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
