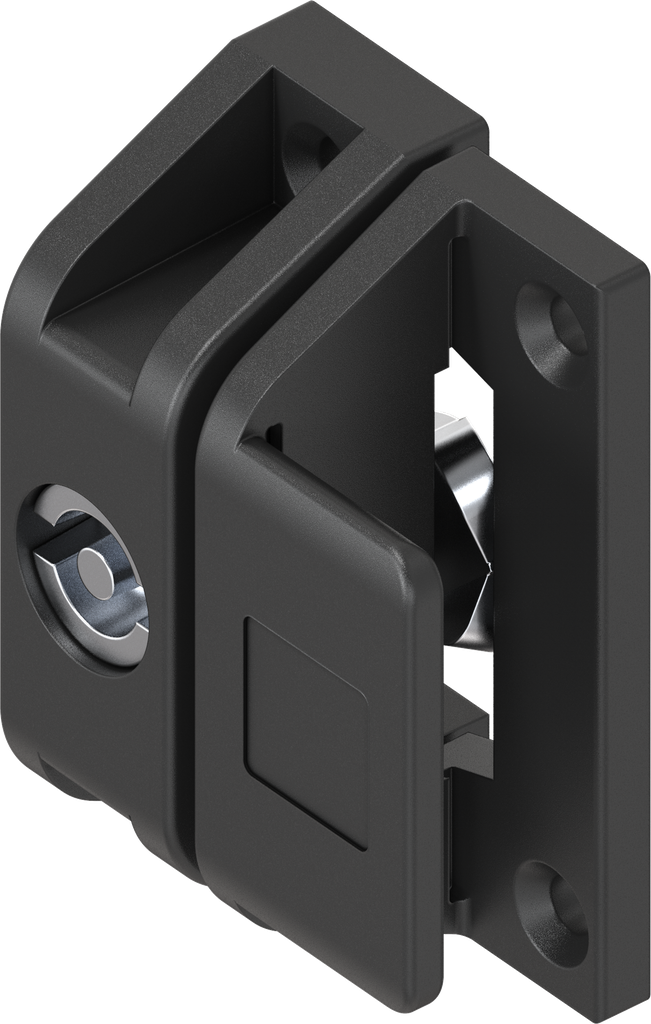

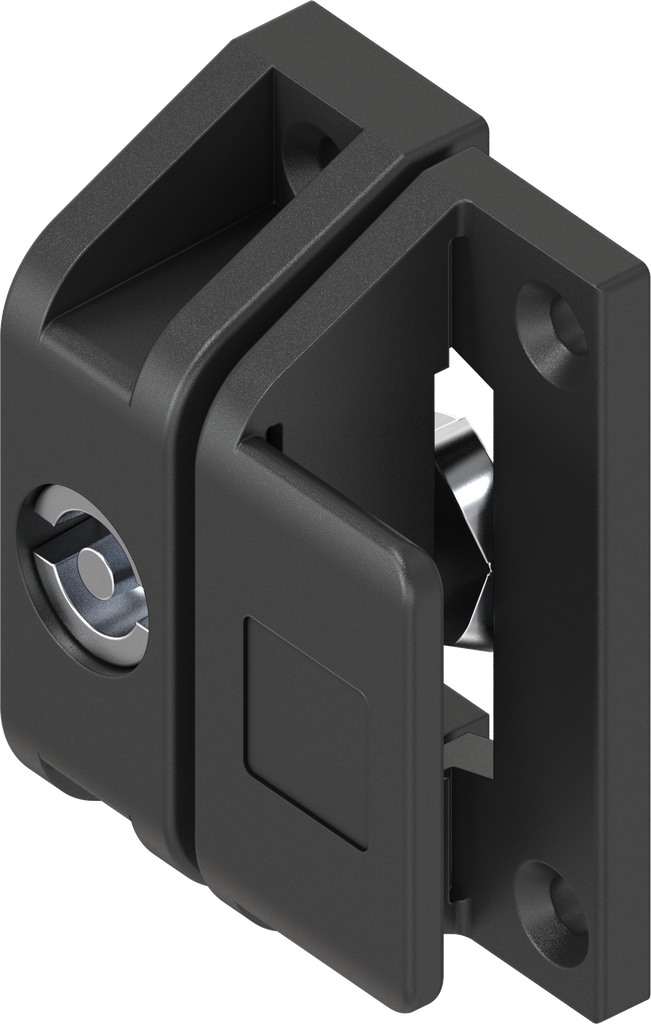

Cam lock with insert double bit 5, Polyamide black; 1076-U10

https://www.emka.com/products/1076-u10 https://www.emka.com/web/image/product.template/213883/image_1920?unique=af2840b

    This combination does not exist.

    Left Right
    Contact Us

    Product information:

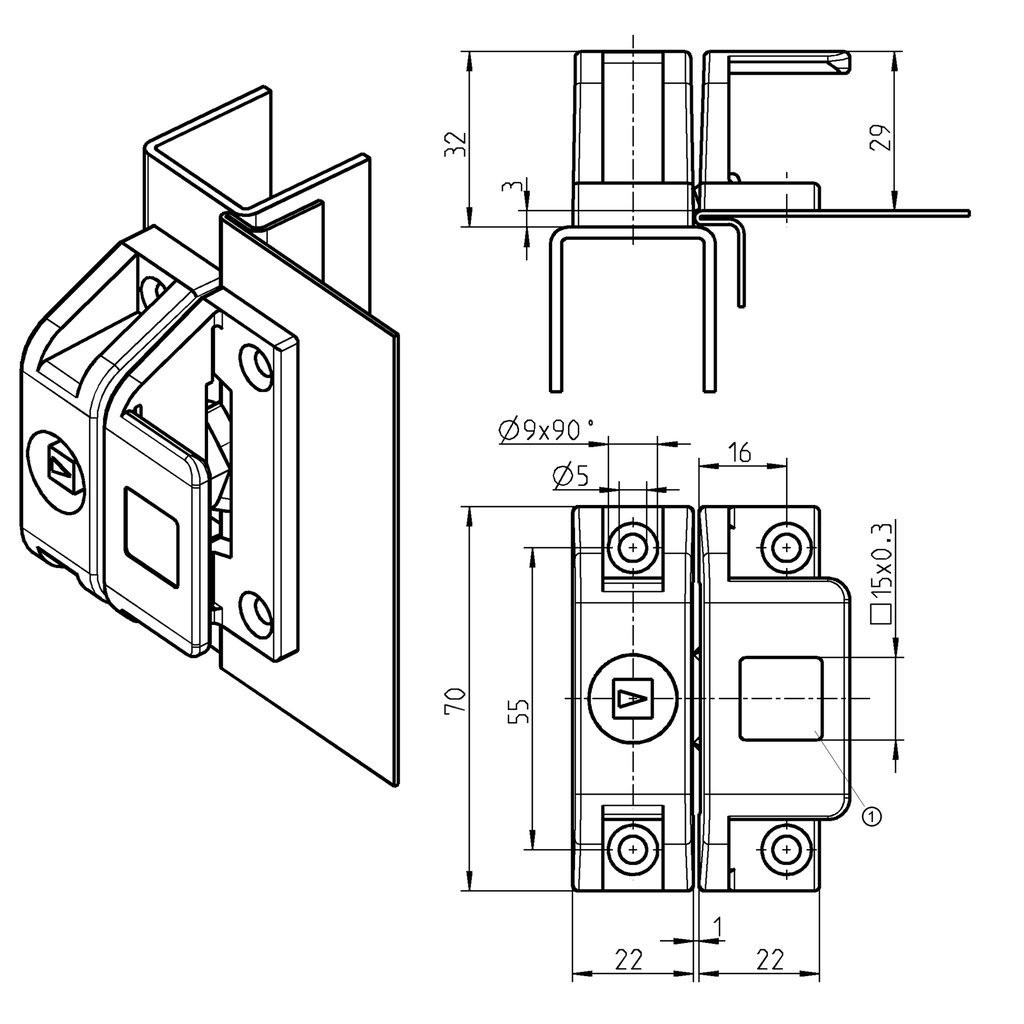

    Logo recess 15 x 15 x 0.3

    Multicolour pad print possible

    Countersink for countersunk screws M4x... acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Internal Reference: 1076-U10
    Product Type: Other latch
    Program: 1076
    Catalog sheet: 8A-240
    Material of the module : Polyamide
    Surface of the module: black
    Fixing type of housing : nut fixing
    Type of actuation: Double bit 5
    Locking set: Insert
    Door Version : Left,Right
    Lock Type: Cam lock
    No Specifications
    View All Products
    Keys
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 8A-240
    Product data sheet
    CAD file | 1076-U10_igs
    CAD file | 1076-U10_stp
