120° Hinge, Steel zinc-plated and raw
120° Hinge, Steel zinc-plated and raw
135° Hinge, Steel zinc-plated and raw
135° Hinge, Steel zinc-plated and raw

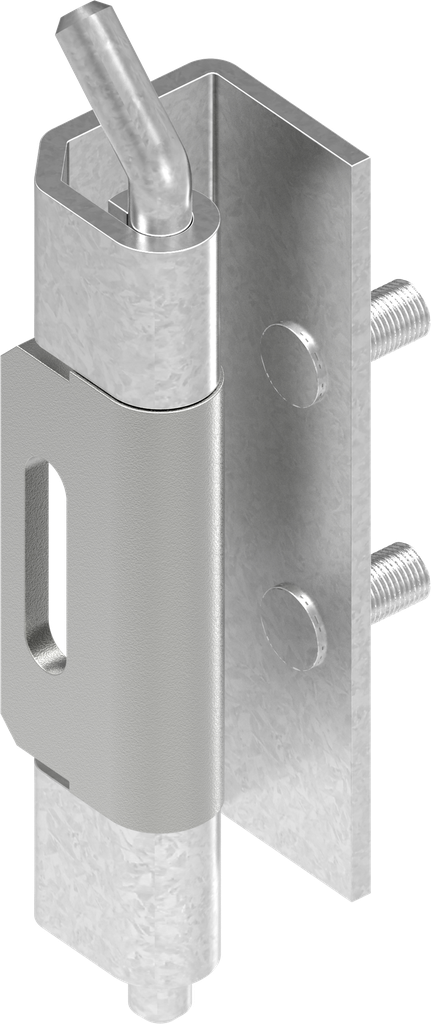

135° Hinge, Steel zinc-plated and raw; 1069-U7

https://www.emka.com/products/1069-u7 https://www.emka.com/web/image/product.template/61808/image_1920?unique=85465cc

Roller m.s. raw for welding on

    This combination does not exist.

    Single cabinets Left Right
    Contact Us

    Product information:

    Door cut out required
    Internal Reference: 1069-U7
    Product Type: Hinge
    Program: 1069
    Catalog sheet: 4A-134
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: 25 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from inside, with press-fit threaded studs M5 x 12
    Max Opening Angle: 135°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    Circlip
    Here you can find the product data sheets and CAD files of this product
