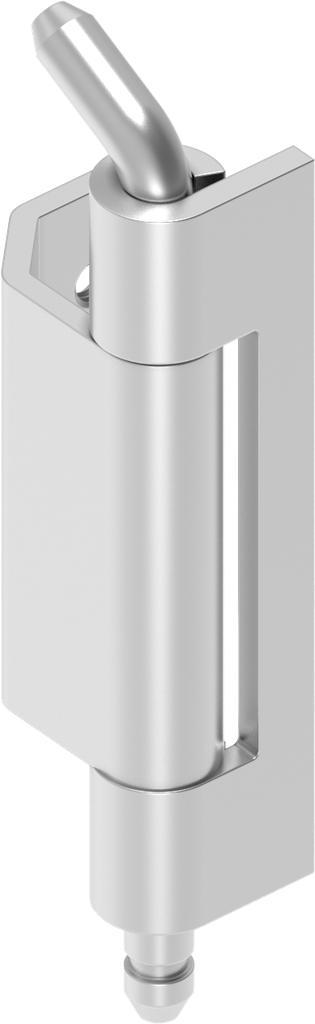

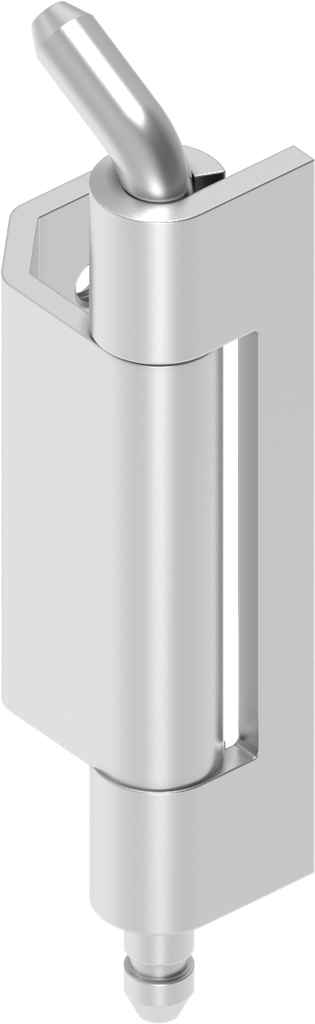

120° Hinge, Stainless steel AISI 304
120° Hinge, Stainless steel AISI 304
120° Hinge, Steel zinc-plated and raw
120° Hinge, Steel zinc-plated and raw

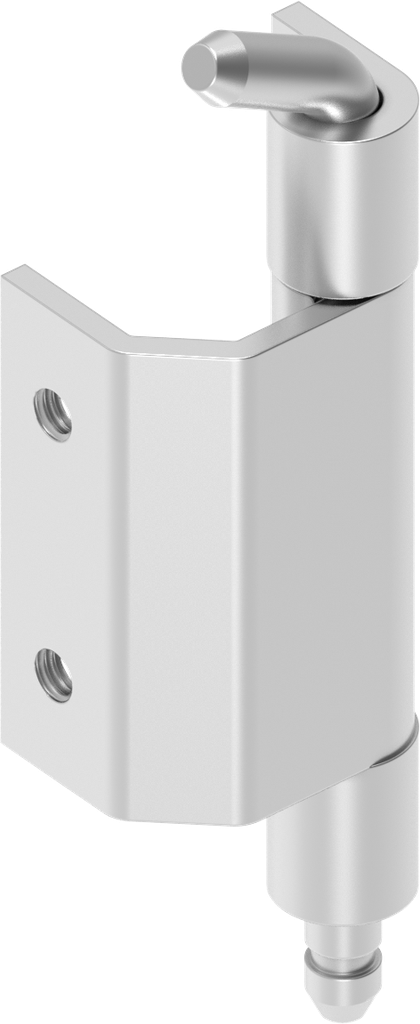

120° Hinge, Stainless steel AISI 304; 1069-U4

https://www.emka.com/products/1069-u4 https://www.emka.com/web/image/product.template/61805/image_1920?unique=c5006a2

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1069-U4
    Product Type: Hinge
    Program: 1069

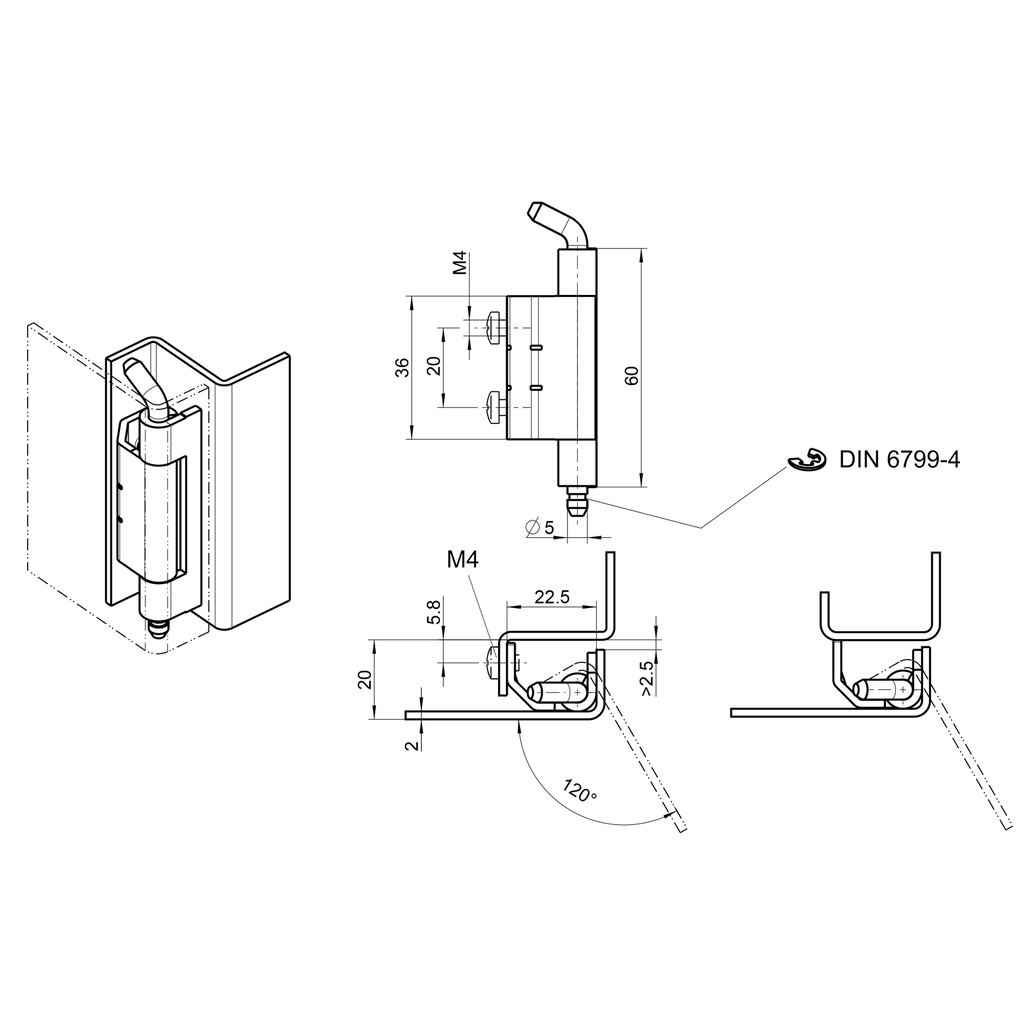

    Catalog sheet: 4A-120
    Material of the module : Stainless steel AISI 304
    Dimension A, Variable: 20 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from inside
    Max Opening Angle: 120°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    Circlip
    Here you can find the product data sheets and CAD files of this product
