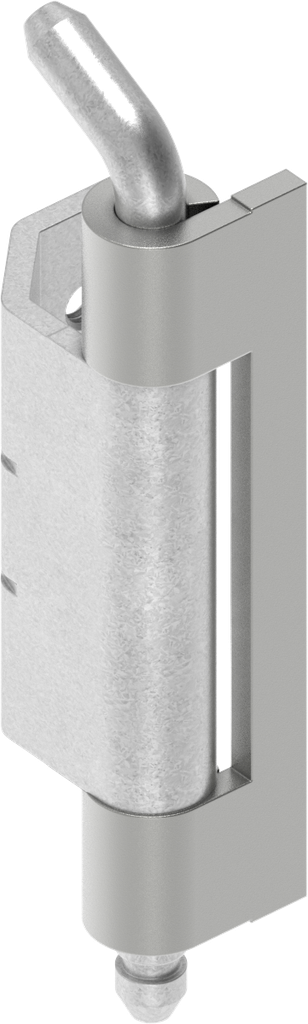

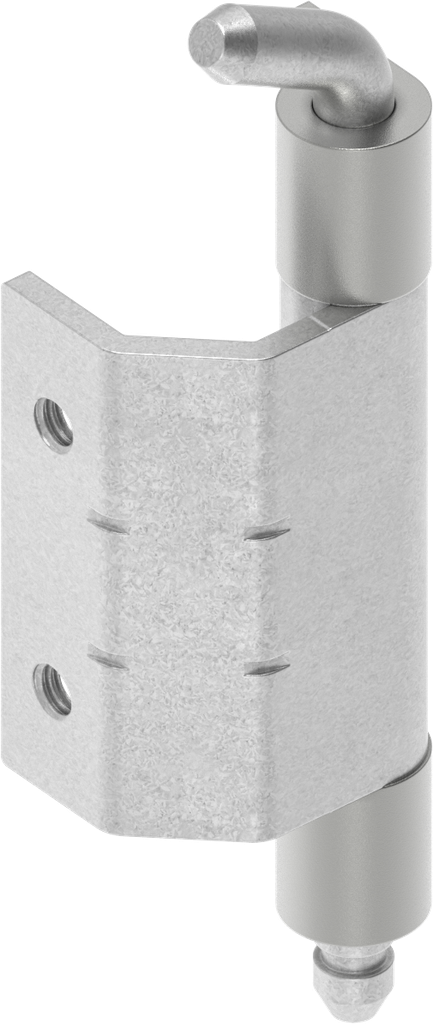

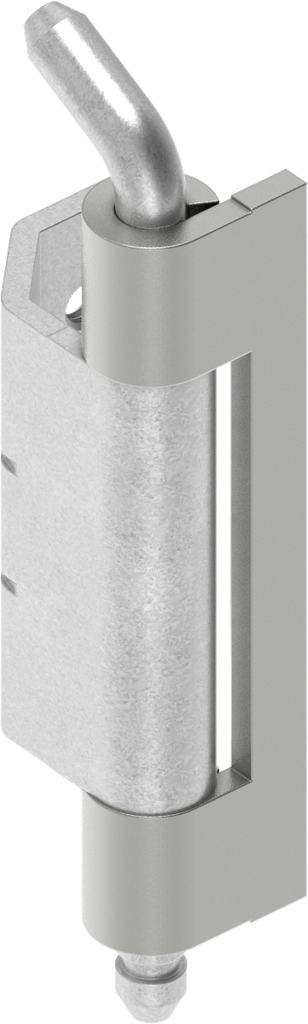

120° Hinge, Steel zinc-plated and raw; 1069-U1

https://www.emka.com/products/1069-u1 https://www.emka.com/web/image/product.template/61802/image_1920?unique=04b612b

Roller m.s. raw for welding on

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1069-U1
    Product Type: Hinge
    Program: 1069
    Catalog sheet: 4A-120
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: 20 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from inside
    Max Opening Angle: 120°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
