Rod control, right version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated
Rod control, right version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated
120° Hinge, Steel zinc-plated and raw
120° Hinge, Steel zinc-plated and raw

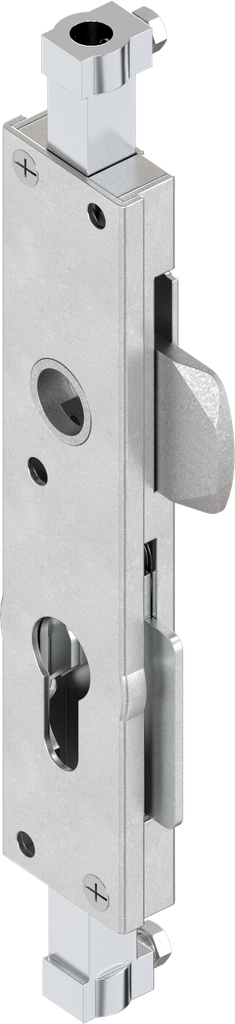

Rod control, left version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated; 1068-U2

https://www.emka.com/products/1068-u2 https://www.emka.com/web/image/product.template/61788/image_1920?unique=be44c73

Locking systems for high loads

    This combination does not exist.

    Inside the sealing Left
    Contact Us
    Internal Reference: 1068-U2
    Product Type: Rod control
    Program: 1068
    Catalog sheet: 2B-140
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimention A: A 20,A 26
    Rod: Round rod
    Connection rod mount: Rod holder Ø8 x 25
    Mounting Positions : Inside the sealing
    Lock for higher loads: Yes
    Door Version : Left
    No Specifications
    View All Products

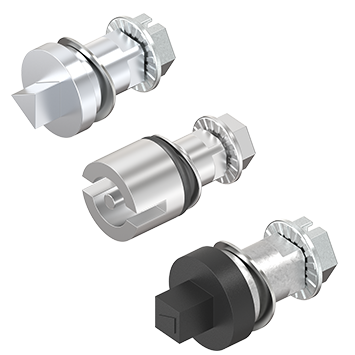

    Insert
    Housing
    Rod control accessories
    Quarter turn
    Rod
    Profile half cylinder
    Here you can find the product data sheets and CAD files of this product
