Housing with bush, Zinc die and steel raw
Housing with bush, Zinc die and steel raw
Rod control, left version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated
Rod control, left version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated

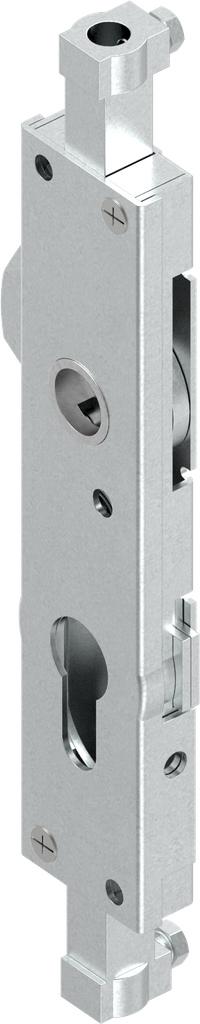

Rod control, right version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated; 1068-U1

https://www.emka.com/products/1068-u1 https://www.emka.com/web/image/product.template/61787/image_1920?unique=554a978

Locking systems for high loads

    This combination does not exist.

    Inside the sealing Right
    Contact Us
    Internal Reference: 1068-U1
    Product Type: Rod control
    Program: 1068
    Catalog sheet: 2B-140
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimention A: A 20,A 26
    Rod: Round rod
    Connection rod mount: Rod holder Ø8 x 25
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Lock for higher loads: Yes
    Door Version : Right
    No Specifications
    View All Products
    Insert
    Housing
    Rod control accessories
    Quarter turn
    Rod
    Profile half cylinder
    Here you can find the product data sheets and CAD files of this product
