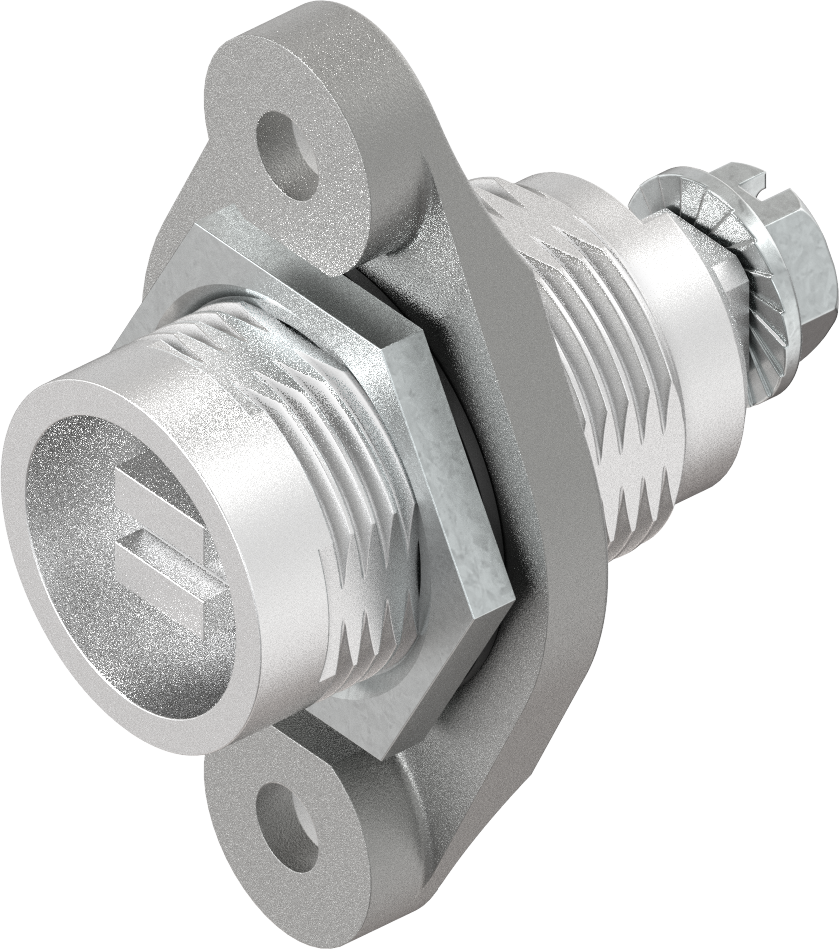

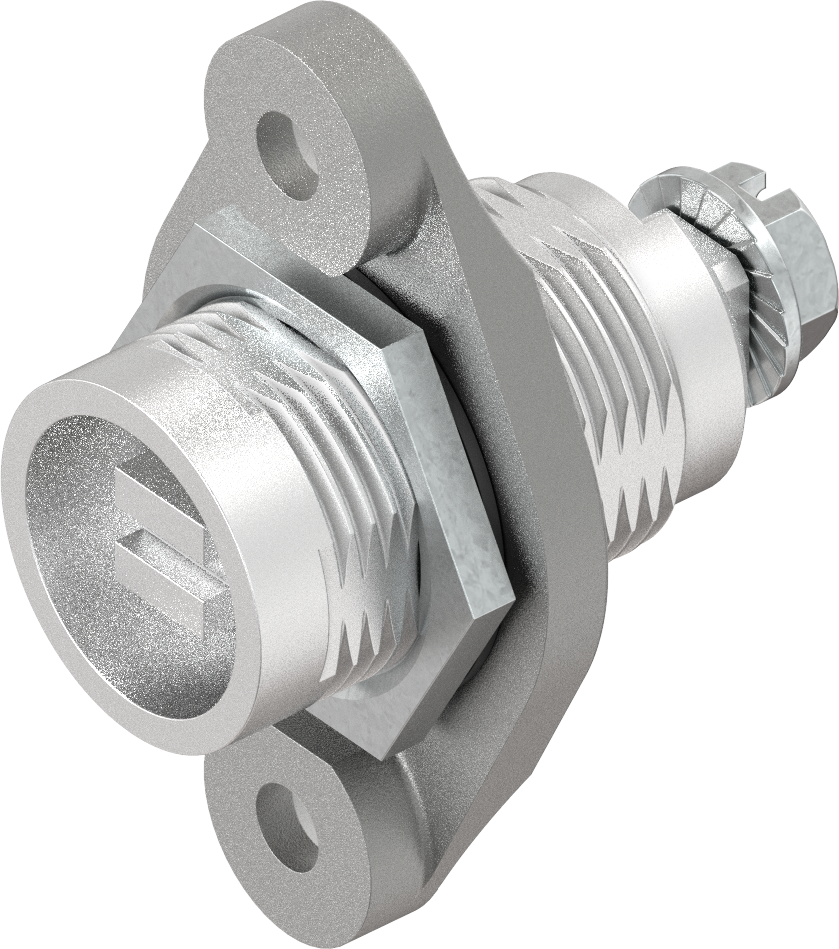

Quarter turn for flush mounting square 8 with slot, Zinc die chrome-plated; 1057-U3-01

https://www.emka.com/products/1057-u3-01 https://www.emka.com/web/image/product.template/75453/image_1920?unique=89d1666

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1057-U3-01
    Product Type: Quarter turn
    Program: 1057
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 8 with slot
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 36 mm
    Suitable for door thickness from: 5 mm
    Suitable for door thicknesses up to: 21 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
