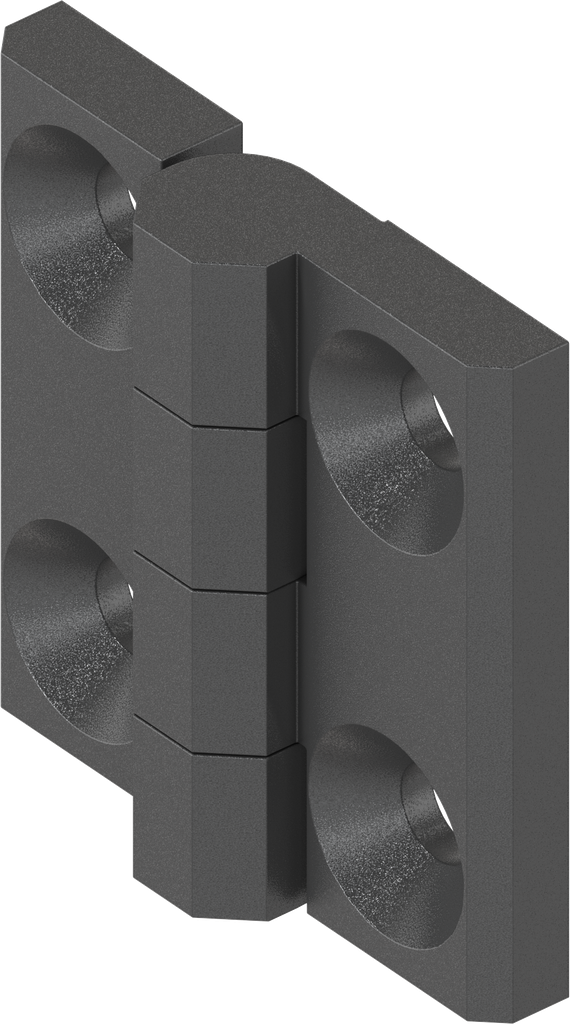

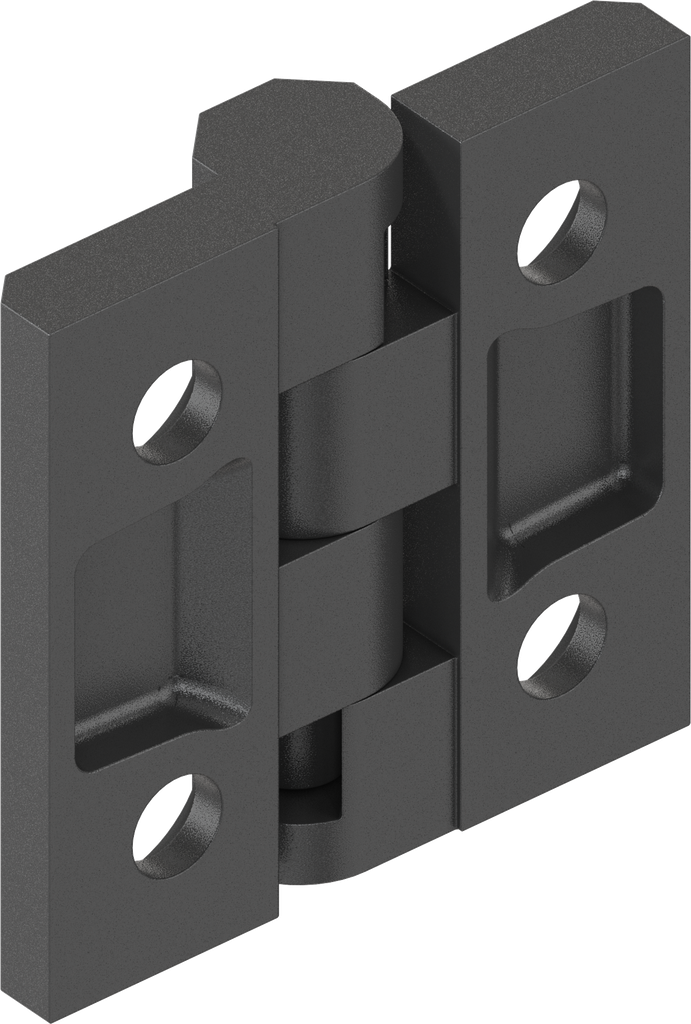

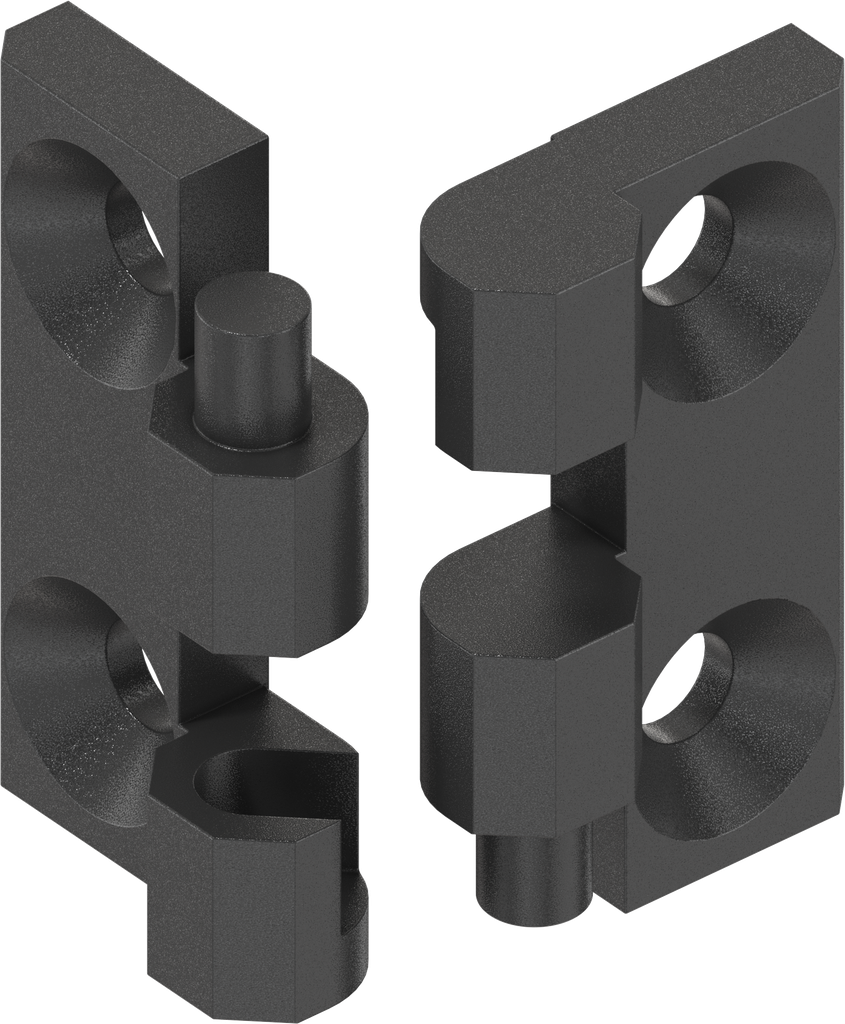

180° Hinge without hinge pin, Zinc die black powder-coated; 1056-U89-02

https://www.emka.com/products/1056-u89-02 https://www.emka.com/web/image/product.template/213291/image_1920?unique=23238ee

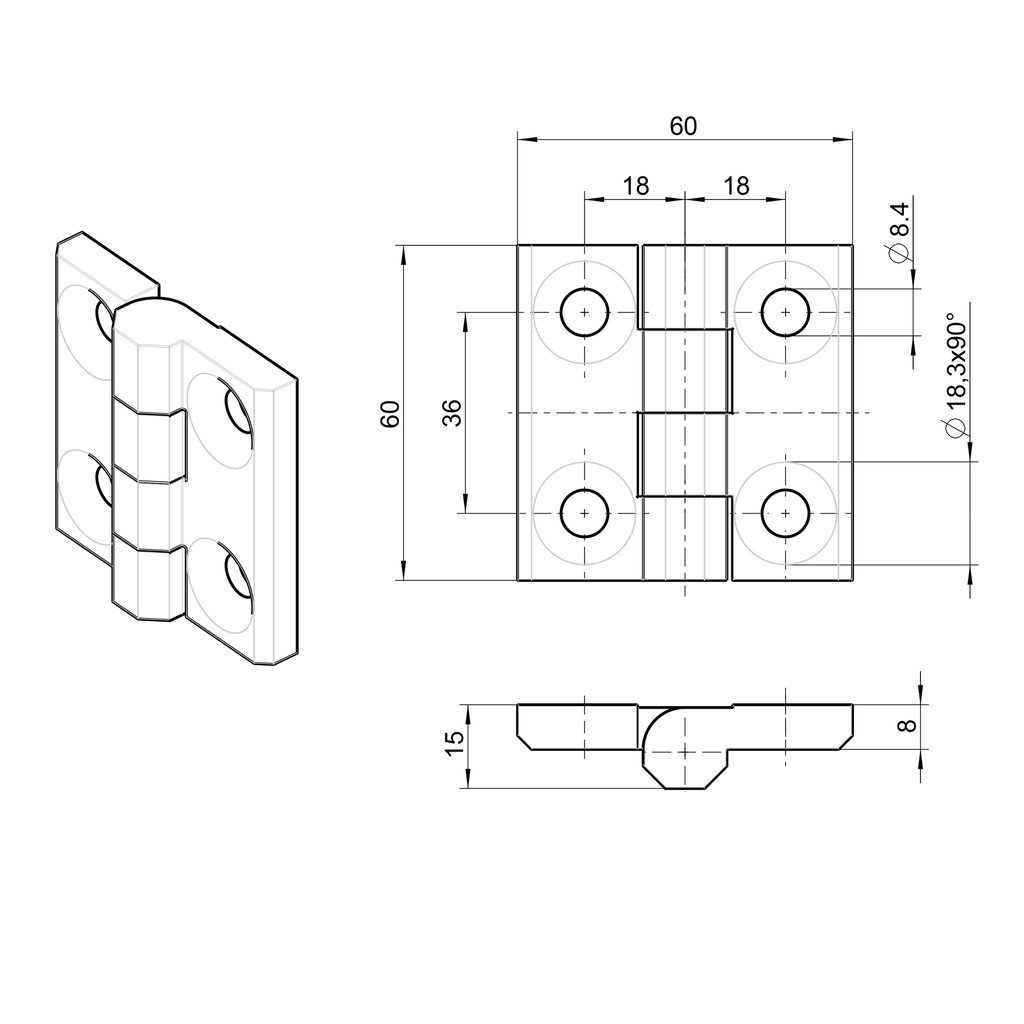

Dimension 60 x 60 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1056-U89-02
    Product Type: Hinge
    Program: 1056
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M8x...
    Door position: concealed
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    CAD file | 1056-U89-02_igs
    CAD file | 1056-U89-02_stp
