180° Hinge without hinge pin, Stainless steel AISI 316 bright polished
180° Hinge without hinge pin, Stainless steel AISI 316 bright polished
180° Hinge without hinge pin, Zinc die black powder-coated
180° Hinge without hinge pin, Zinc die black powder-coated

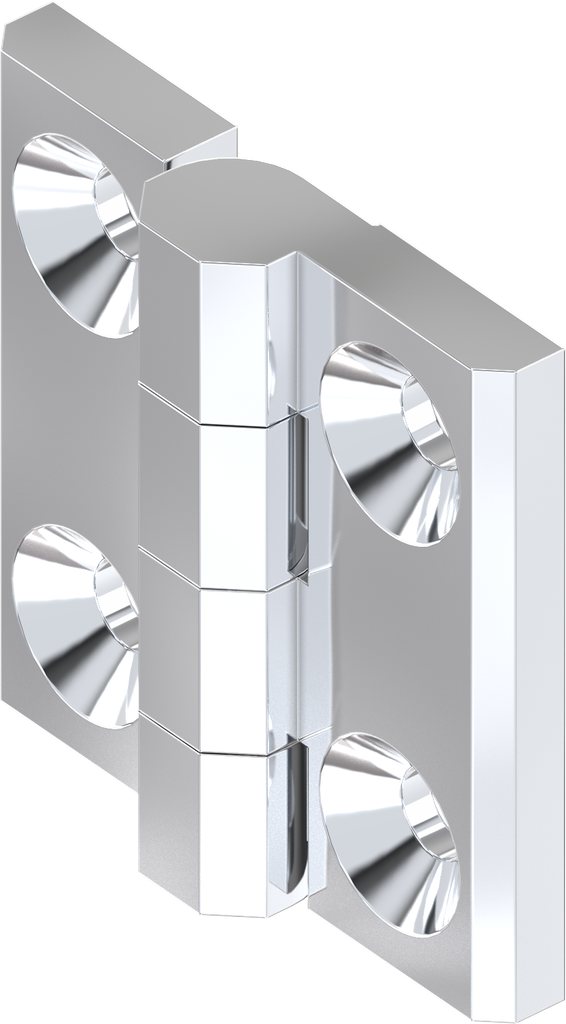

180° Hinge without hinge pin, Zinc die chrome-plated; 1056-U82-01

https://www.emka.com/products/1056-u82-01 https://www.emka.com/web/image/product.template/213283/image_1920?unique=2ac7dc6

Dimension 50 x 50 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1056-U82-01
    Product Type: Hinge
    Program: 1056
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M6x...
    Door position: concealed
    Door Version : Left,Right
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
    CAD file | 1056-U82-01_igs
    CAD file | 1056-U82-01_stp
