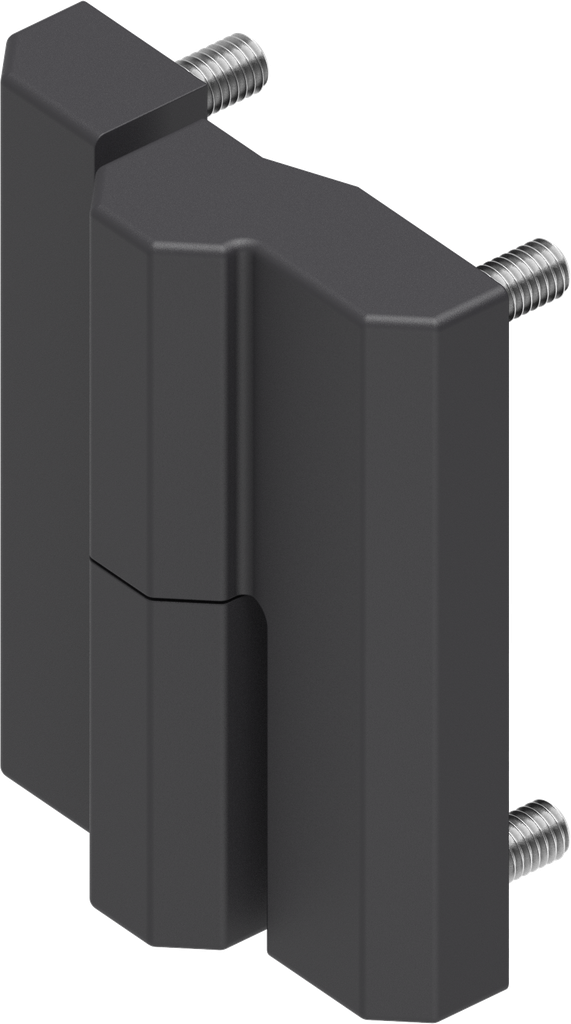

160° Hinge, left version, Zinc die black powder-coated; 1056-U62

https://www.emka.com/products/1056-u62 https://www.emka.com/web/image/product.template/61762/image_1920?unique=bb9c7fe

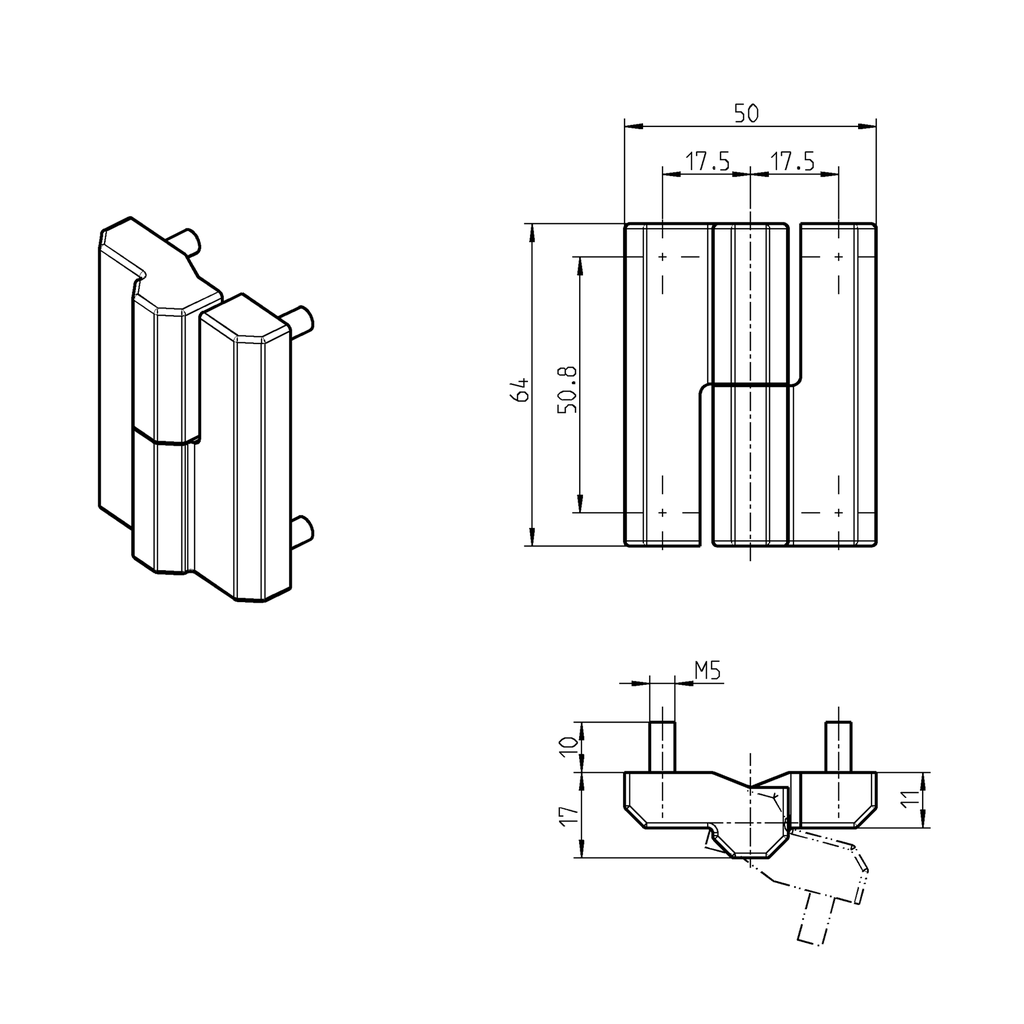

Dimension 50 x 64 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left
    Contact Us
    Internal Reference: 1056-U62
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-243
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes

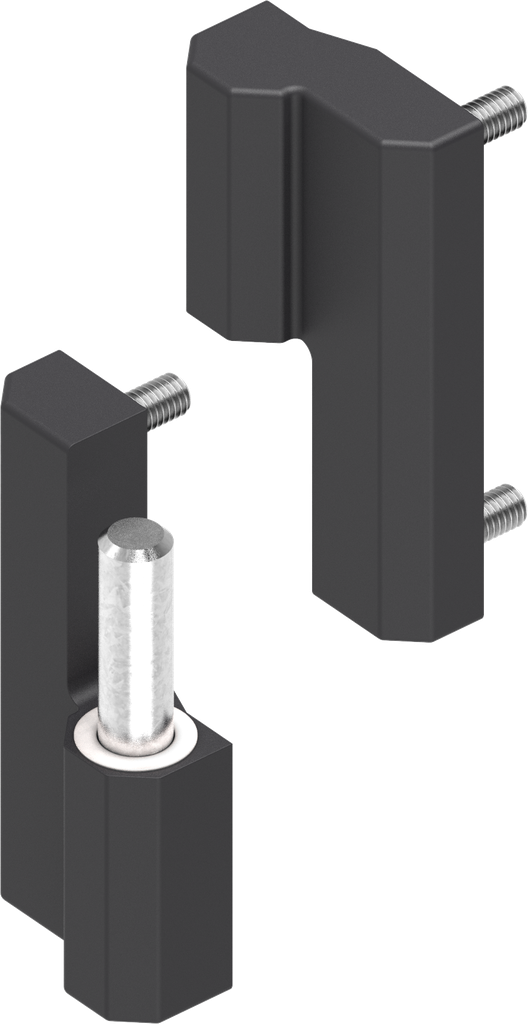

    Detachable: without tools
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Grub Screw: M5 x 10
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 160°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
