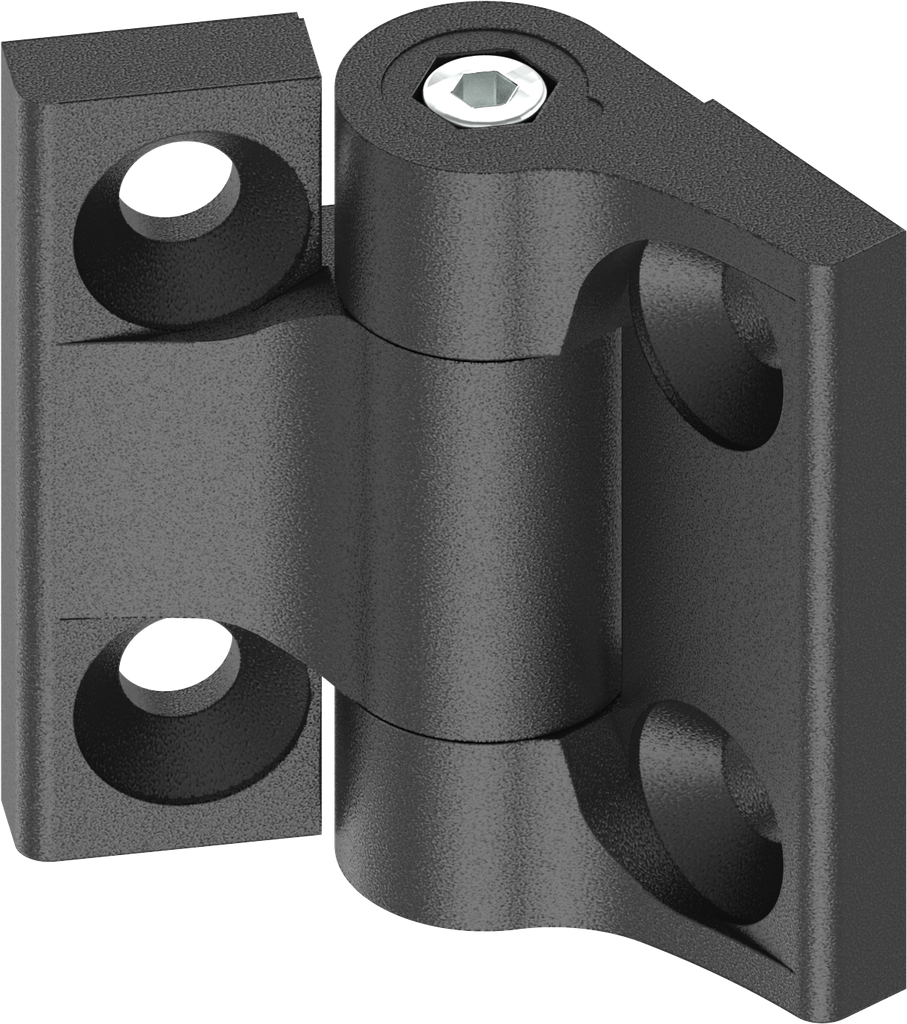

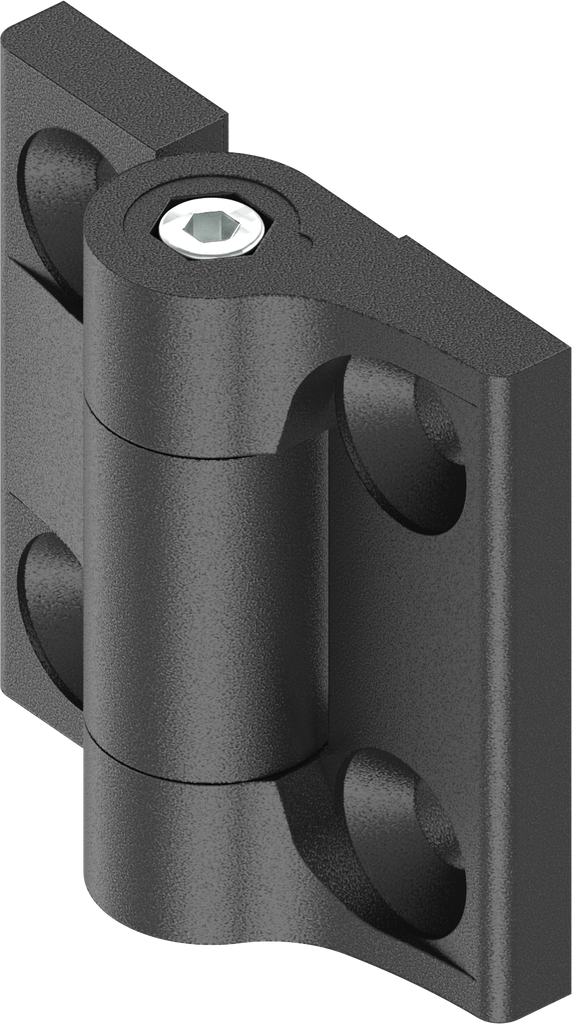

180° Torque hinge with adjustment function up to 2 Nm, Zinc die black powder-coated; 1056-U6-01

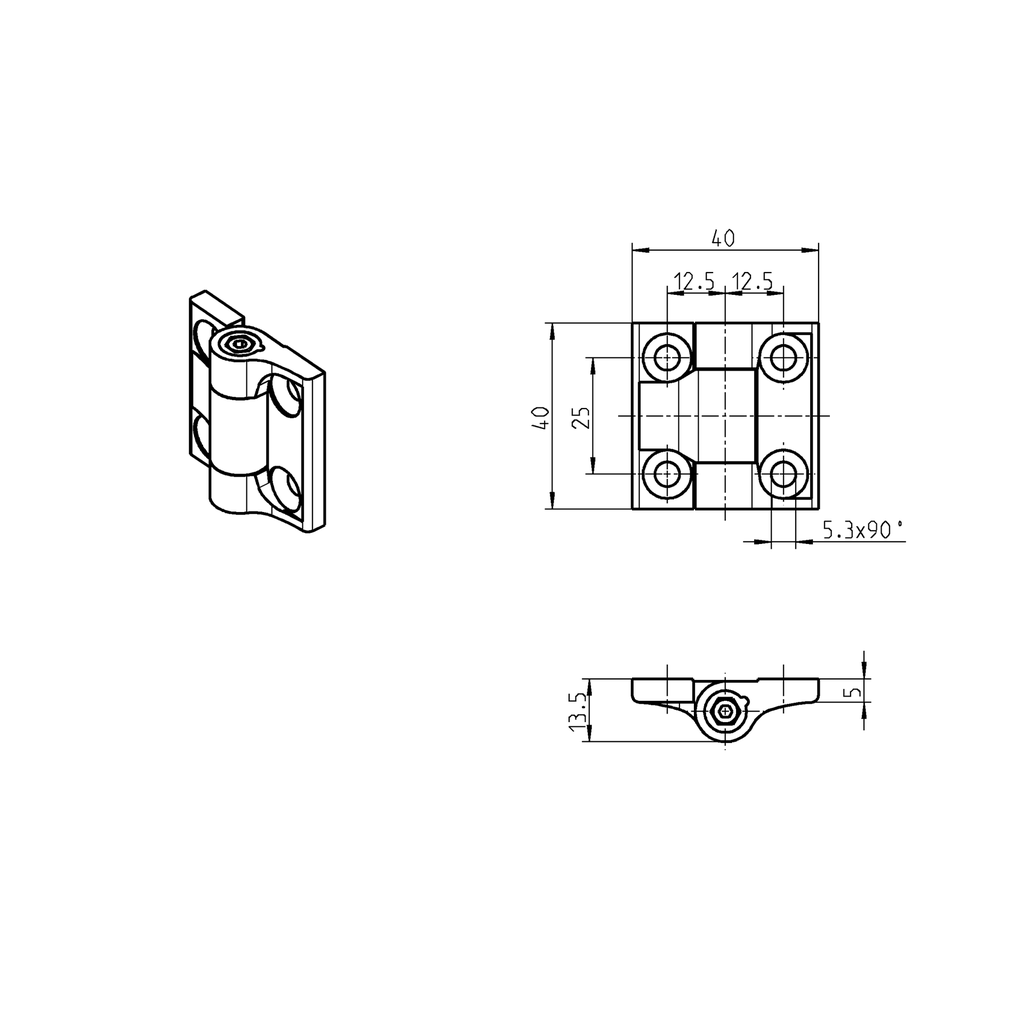

Dimension 40 x 40 mm
Product Benefits:
- Adjustable torque
- Constant torque across 180° adjustment range
- Same torque while opening and closing
- Torque adjustment may be necessary
- Compatible with all hinges of the 1056 Program with identical cut out
- Can replace door stops, cover stays or gas springs depending on installation location
Product information:
Number of hinges for flaps is dependent of height and weight of the flaps.

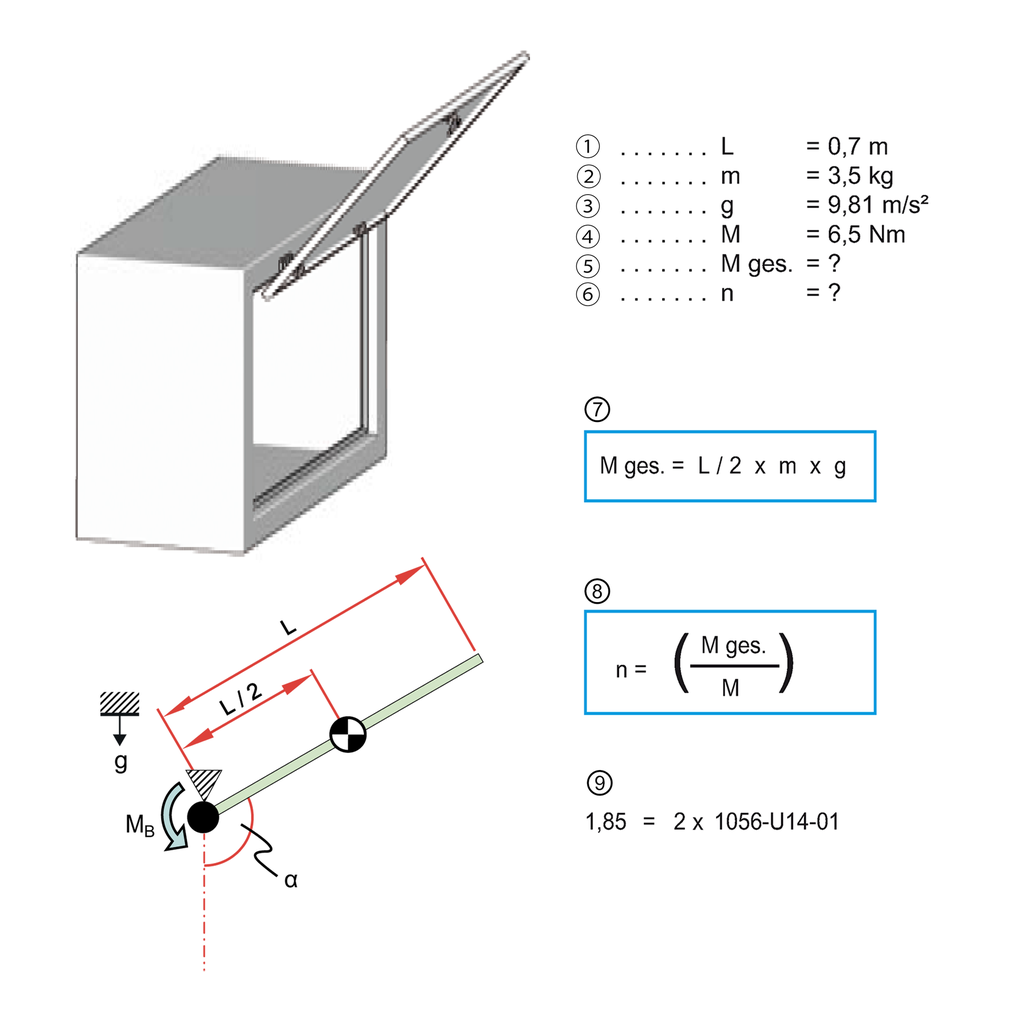

① = Door length
② = Door mass
③ = Gravity
④ = Torque hinge
⑤ = Total torque
⑥ = Number of hinges
⑦ = Formula: Total Torque
⑧ = Formula: Number of required hinges
⑨ = Ergebnis:
Internal Reference:
1056-U6-01
Product Type:
Hinge
Program:
1056
Catalog sheet:
4B-185
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Torque hinge:
Yes
Hole pattern required in the door:
Bore holes in the door
Maximum tightening torque of screw:
0.5 Nm
Maximum torque:
up to ~ 2 Nm
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M5x...
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
