180° Hinge, left version, Zinc die white aluminium powder-coated
180° Hinge, left version, Zinc die white aluminium powder-coated
180° Hinge, left version, Zinc die white aluminium powder-coated
180° Hinge, left version, Zinc die white aluminium powder-coated

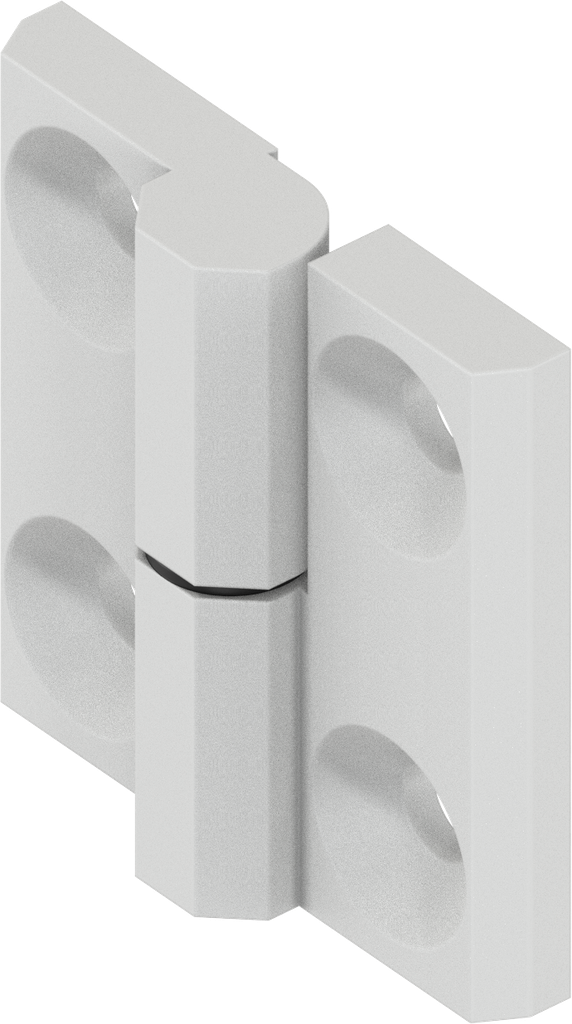

180° Hinge, right version, Zinc die white aluminium powder-coated; 1056-U57-FV

https://www.emka.com/products/1056-u57-fv-180-hinge-right-version-zinc-die-white-aluminium-powder-coated-213258 https://www.emka.com/web/image/product.template/213258/image_1920?unique=c69eab1

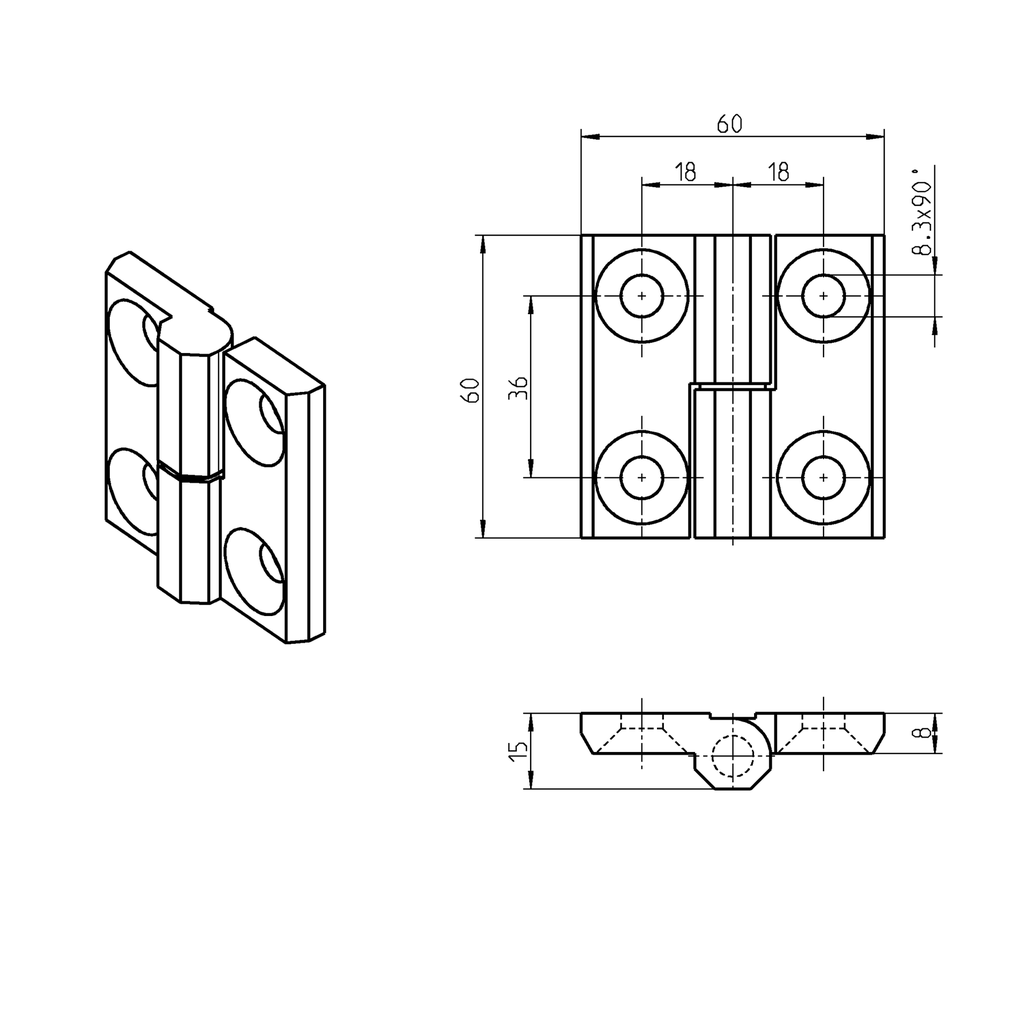

Dimension 60 x 60 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Right
    Internal Reference: 1056-U57-FV
    Barcode: 1056-U00057-00000FV
    Product Type: Hinge
    Program: 1056
    Material of the module : Zinc die
    Surface of the module: white aluminium powder-coated
    Door return variable: Yes

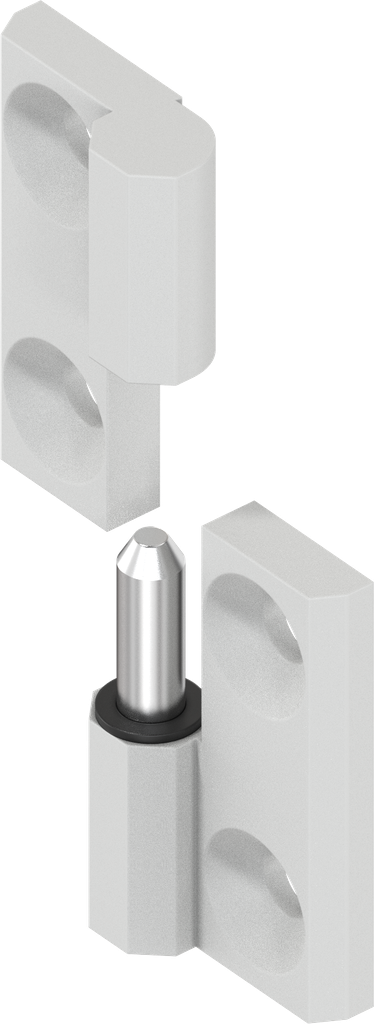

    Detachable: without tools
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M8x...
    Door position: concealed
    Door Version : Right
    Captive pen: Yes
